| Place of Origin: | China |
|---|---|
| Brand Name: | Star Merter |
| Model Number: | XCY |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 30000 Piece/Month |
| Name: | High Precision Leak Tester | Performance: | Advanced Algorithm, High Precision, High Stability |
|---|---|---|---|
| Multiple Communications: | Integrated Multiple Interfaces, Support MODBUS-RTU, MODBUS-TCP Communication | Data Management: | All Data Power Loss Memory Is Anti-loss, Parameters Are Quickly Called |
| Ambient Temperature: | 0-50° | Power Supply: | AC220V,50HZ |
| Highlight: | XC High Precision Leak Tester,High Precision Leak Tester Machine |
||

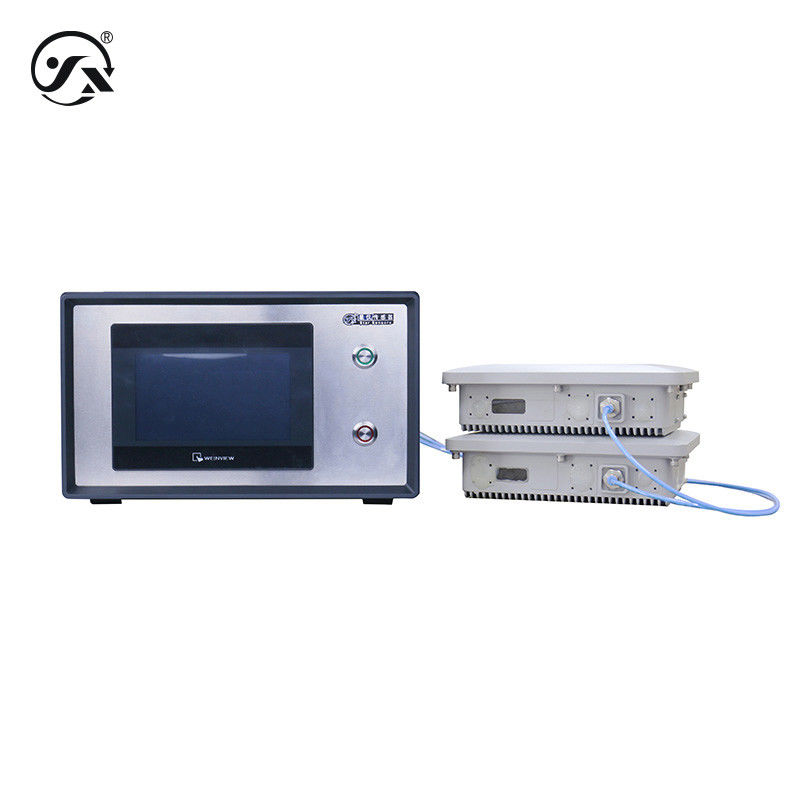

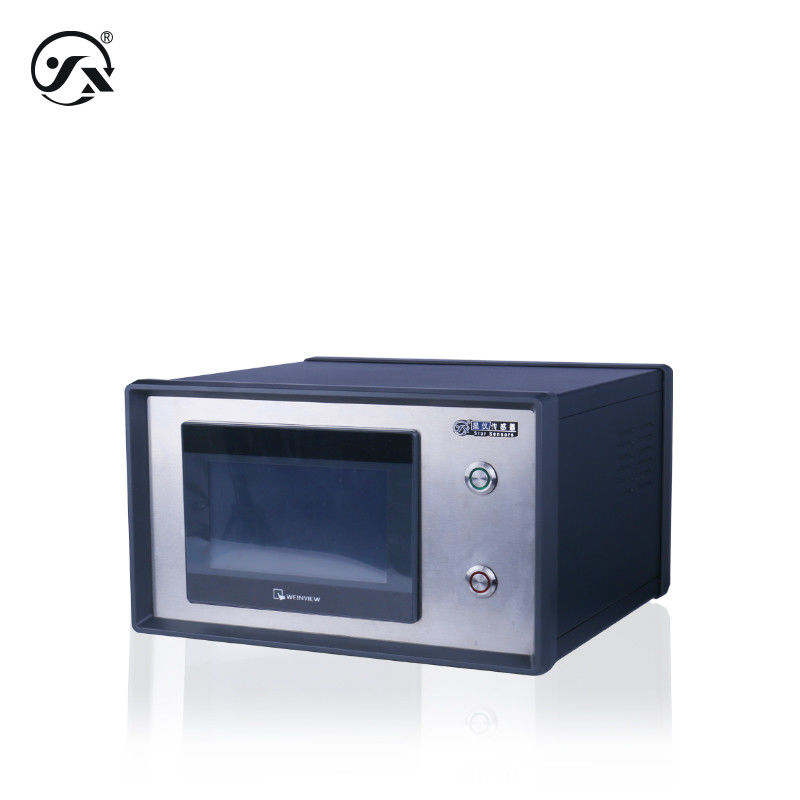

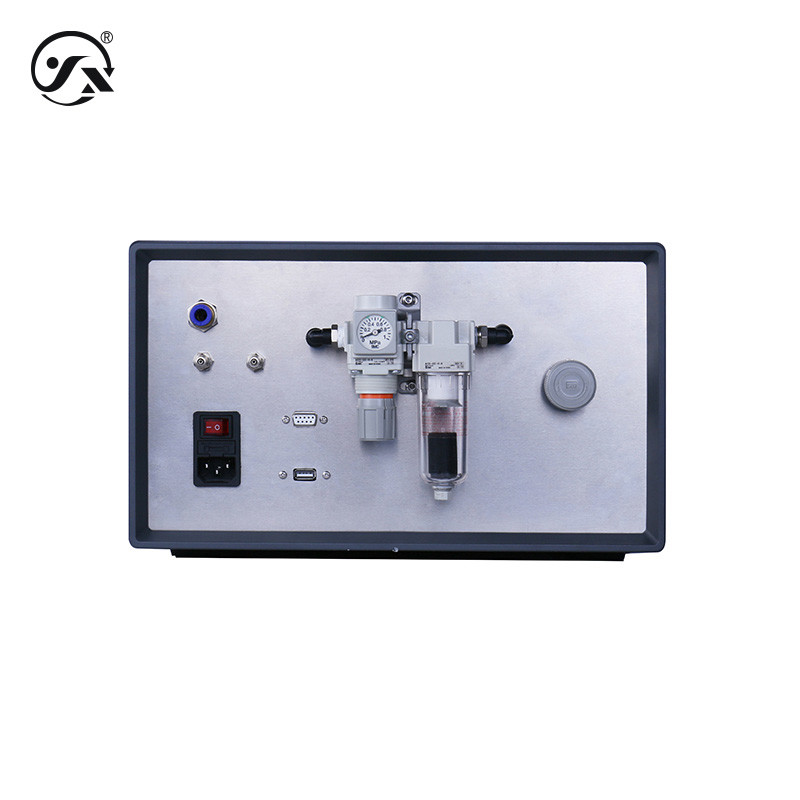

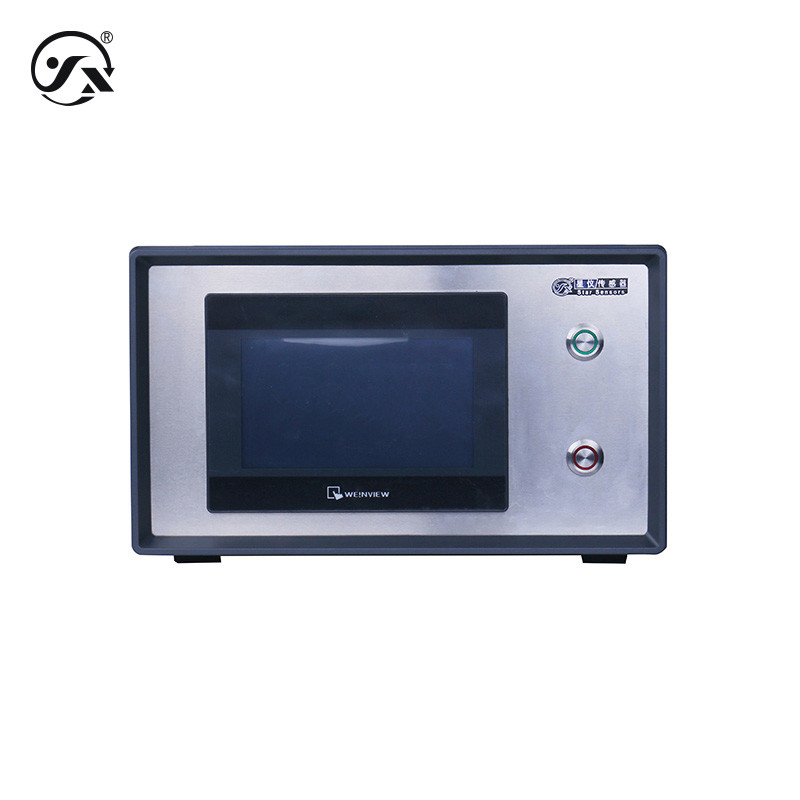

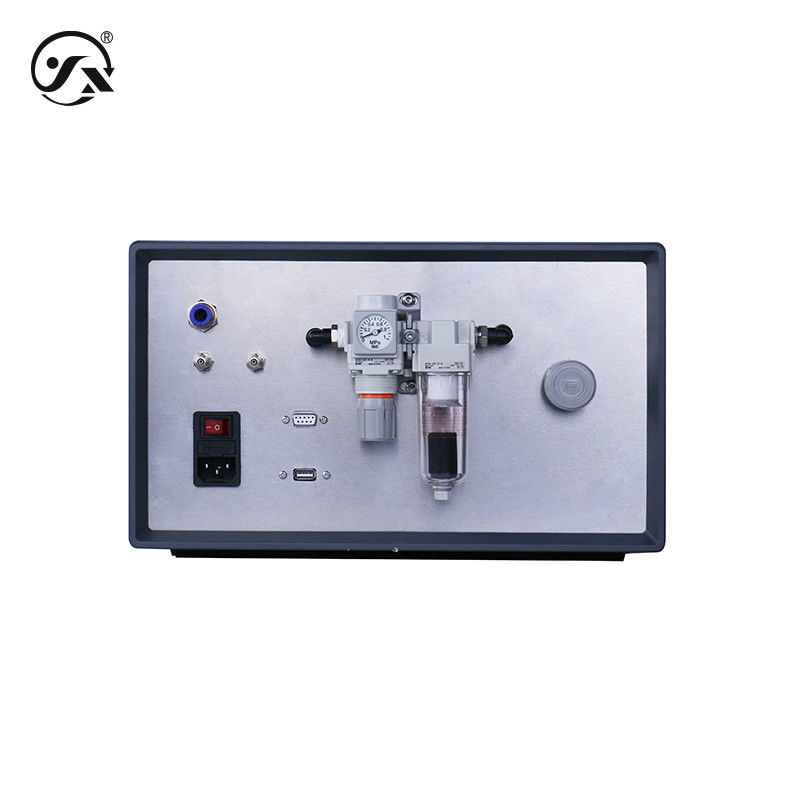

XCY High Precision Leak Tester
| Product features | |
| Performance | Advanced algorithm, high precision, high stability |
| Multiple communications | Integrated multiple interfaces, support MODBUS-RTU, MODBUS-TCP communication |
| High integration | Support barcode scanning function, convenient product traceability, tens of thousands of data can be exported in batches through U disk |
| Parameter settings | Multiple groups of subroutines are programmed individually and called at any time to meet the needs of different products |
| Touch screen operation | Full touch high resolution, simple and clear operation, easy to learn and use |
| Data management | All data power loss memory is anti-loss, parameters are quickly called |
| Pressure regulation | Divided into two levels of pressure regulation, coarse adjustment, fine adjustment can accurately adjust the pressure value, test accuracy can be arbitrarily switched, test units diversified including Pa, KPa, bar, PSI, etc., using secondary operation authority, hierarchical management to prevent parameter misoperation, Chinese and English bilingual switching real-time data and curve graphical display can clearly see the pressure leakage situation, precision pressure regulator, precision valve terminal, precision gas path control is stable and reliable. The key components are all imported brand PLC for German Siemens, Weylon touch screen, SMC pressure regulator, STI core. |
| Product parameters | |
| Ambient temperature | 0-50° |
| Ambient humidity | <95%RH (non-condensing) |
| power supply | AC220V,50HZ |
| Air source | 0.4-0.8MPa (clean and dry) |
| Test media | pressurized air |
| Measure valve terminal | 1 group |
| Product size | 300*350*200(mm) |
| Product weight | 8kg |
| Technical parameters | |
| Pressure range | 0-200kpa, non-calibrated |
| Pressure accuracy | ±0.2%FS |
| Pressure regulation | Manual adjustment |
| Pressure mode | Positive pressure |
| resolution | 0.1Pa |
| Manual | |
| Product Information -Chinese (CN) |
