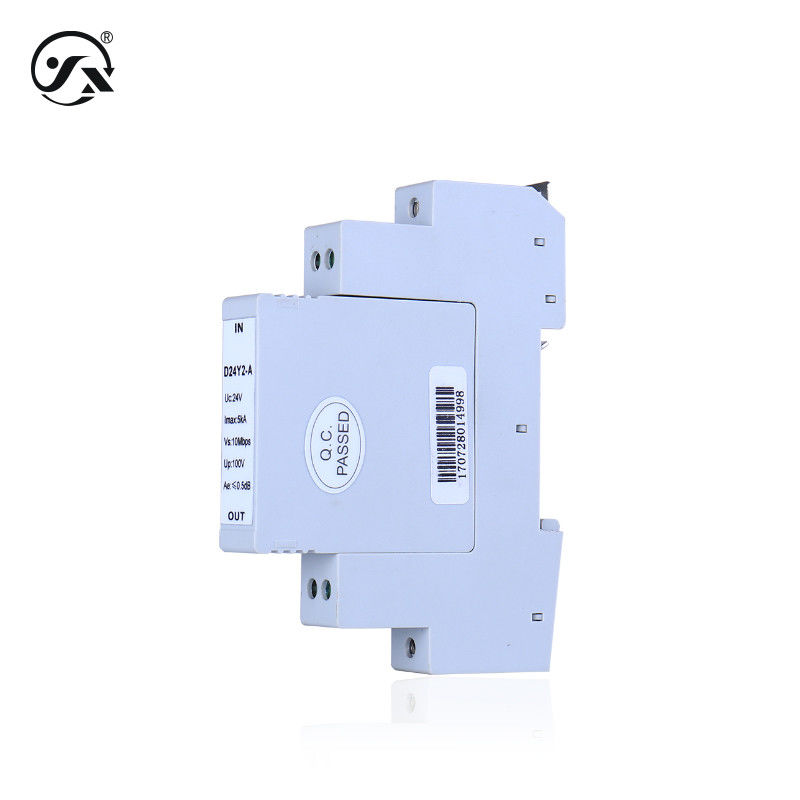

Technical parameters | |
Operating voltage Uc | 24V |
Nominal discharge current (8/20μS) In | 3kA |
Maximum flow capacity (8/20μS) Imax | 5kA |
Limit voltage (10/700μS) Up | ≤100V |
Transfer rate Vs | 10Mbps |
Interface form | Input (IN) crimp terminals, output (OUT) crimp terminals |
Number of protection paths | 2 lines |
Dimensions (excluding ground wire) | 90×14×66 mm |
Working environment | Temperature -40~+85°C, relative humidity ≤95%(25°C) |
