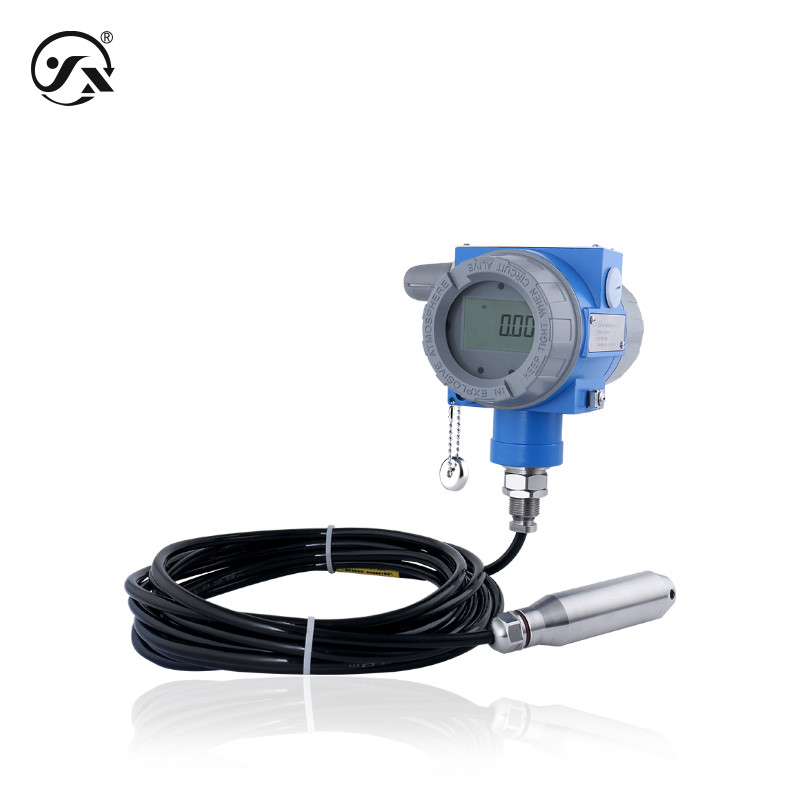

CYW101Y Intelligent Wireless Level Transmitter 0~1~50mH2O NB-IoT 0.1%FS 0.25% FS 0.5% FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW101Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~1~50mH2O (see Range Selection Table For Details) Network Standard: NB-IoT
Battery Life: ≤10 Years Accuracy: 0.1%FS, 0.25%FS, 0.5%FS
Name: Wireless Smart Transmitter
Highlight:

0.1% FS Wireless Level Transmitter

,

0.5% FS Wireless Level Transmitter

,

0.25% FS Wireless Level Transmitter

CYW101Y Intelligent Wireless Level Transmitter Measuring range 0~1~50mH2O NB-IoT LCD liquid crystal display



CYW101Y intelligent wireless liquid level transmitter adopts the form of communication + power supply + sensor three-in-one, ready to install and use without considering other factors, equipped with NB-IoT module, is a low-power, wireless communication function intelligent instrument, combined with big data platform can achieve a wide range of online multi-function monitoring.






Base parameters
Measuring medium Water (H2O) or liquids compatible with contact materials
Measuring range 0~1~50mH2O (see range selection table for details)
Media temperature -40~60℃
Battery life ≤ 10 years
Accuracy class 0.1%FS,0.25%FS,0.5%FS
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Overall weight Main body≈ 5.5kg probe ≈ 290g cable ≈ 60g per meter
resolution 0.05%FS
Degree of protection Main body IP66, probe IP68
Display form LCD liquid crystal display
Protocol parameters
Network standard NB-IoT
Upload information Data, battery level, signal strength
Send interval 15min~24h/time (default is 2h/time)
Send time ≈12s/time
Send power consumption ≈0.5mA/time
Acquisition frequency 1~30 times between sending (default 30 times)
Acquisition time ≈1s/time
Acquisition power consumption ≈0.002mA/time
Battery parameters
Working power supply 3.6V19Ah
Battery life Administrator: Depends on acquisition and transmission frequency (ignoring environmental and time factors) Annual sleep power consumption is 0.7Ah Example: The transmission interval is 1h, the acquisition frequency is 30 times, and the battery life is ≤ 3.3 years Example: The transmission interval is 2h, the acquisition frequency is 30 times, and the battery life is ≤ 6 years
Ambient temperature -40~85℃
Media temperature -40-60℃
Overall material
diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
enclosure Probe 304 stainless steel (contact with the measured medium) body die-cast aluminum
Seals Nitrile rubber (contact with the medium to be measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance: 500g/ms conforms to IEC60068-2-27 standard
