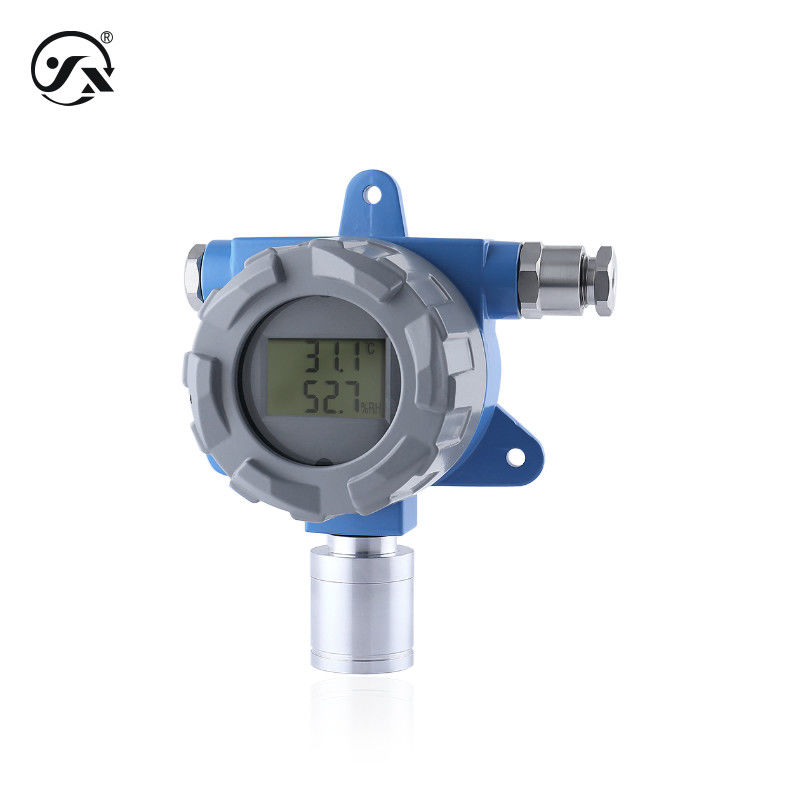

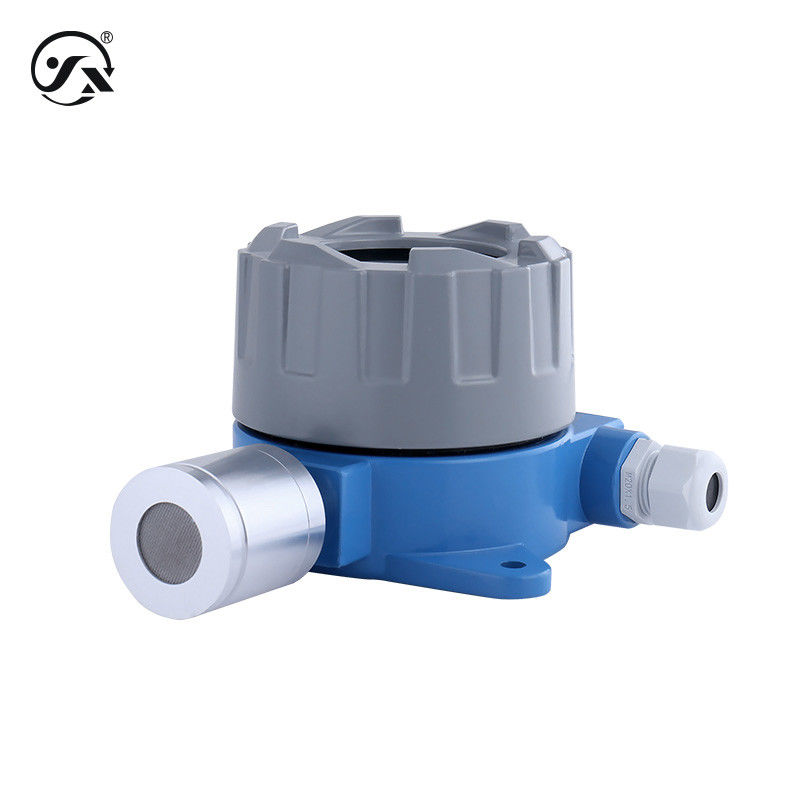

Name: CWS15DY Explosion Proof Temperature And Humidity Transmitter 4-20ma For Indoor / Outdoor
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CWS15DY
Price: 73.00 USD
Availability: InStock

CWS15DY Explosion Proof Temperature And Humidity Transmitter 4-20ma For Indoor / Outdoor

Basic Information

Place of Origin:	China
Brand Name:	Star merter
Model Number:	CWS15DY

Minimum Order Quantity:	1PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	30000 Piece/Month

Contact Now

Range:

Temperature -40-60°C Humidity 0-100%RH (relative Humidity)

Output:

4-20mA

Power Supply:

9~24VDC

Name:

Temperature And Humidity Transmitter

Highlight:

Temperature And Humidity Transmitter 4-20ma

Explosion Proof Temperature And Humidity Transmitter

Temperature Humidity Transmitter 4-20ma

CWS15DY Explosion-Proof Temperature And Humidity Transmitter Suitable For Various Indoor And Outdoor Environments

CWS15DY explosion-proof temperature and humidity transmitter is suitable for environmental temperature and humidity monitoring of various explosion-proof sites, and there are a variety of explosion-proof types of intrinsically safe type, dust intrinsically safe type, flameproof type, and flameproof dust type.

Base parameters
Measuring medium	Gas (compatible with contact material)
Temperature range	-40-60℃
Humidity range	0-100%RH (relative humidity)
Supply voltage	4-20mA
Maximum power	0.04Us(W) (Us=Supply voltage)
Overall weight	≈1.45kg
Response frequency	≤2Hz
Stable performance	±1%RH FS/year ±0.2°C/year
Ex type	Flameproof Ex db II.C T6 Gb Flameproof Dust Type Ex tb IIIC T80°C Db Intrinsically Safe Ex ia II.C T6 Ga Dust Intrinsically Safe Ex ia IIIC T80°C Da Note: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Degree of protection	IP66 Note: The above protection level refers to the electrical connection achieved after the electrical connection is complete
Speed of response	The temperature is 10°C per step, the humidity is 10%RH per step, and the gas flow rate is 0.1m/s.
Load characteristics
load	Load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
Load resistance	(4~20)mA DC
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%～95%RH( Non-condensing, non-condensing)
Electrical protection
Short-circuit protection
Anti-polarity protection	≥100kΩ
Insulation resistance	≤200Ω
Environmental dielectric strength
Ambient temperature:	-40～85℃
Ambient humidity:	0%～95%RH
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
4~20mA	Output min. 4mA and output max 20mA
Overall material
Body housing	Die-cast aluminum (in contact with the medium to be measured)
filter	Sintered mesh (contact with the medium to be measured)
display	LCD liquid crystal display
Seals	Nitrile rubber/silicone (contact with the medium to be measured)
Dust cover	LY12 aluminum (contact with the medium to be measured)
Mechanical stability
Seismic performance	5g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance	500g/1ms conforms to IEC60068-2-27 standard

Product Information -Chinese (CN)	PDF
Product Information -English (EN)	PDF
Product selection -Chinese (CN)	PDF
Product selection -English (EN)	PDF
Installation instructions -Chinese (CN)	PDF
Installation instructions -English (EN)	PDF
