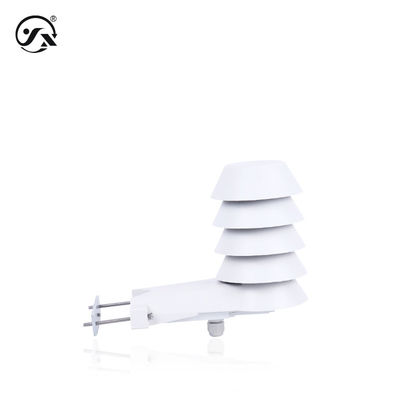

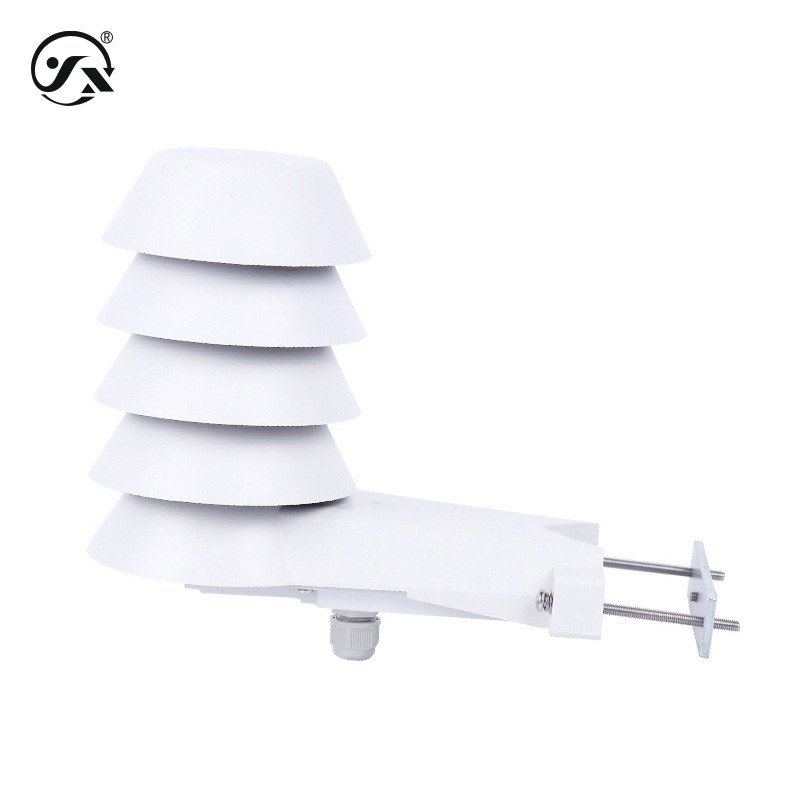

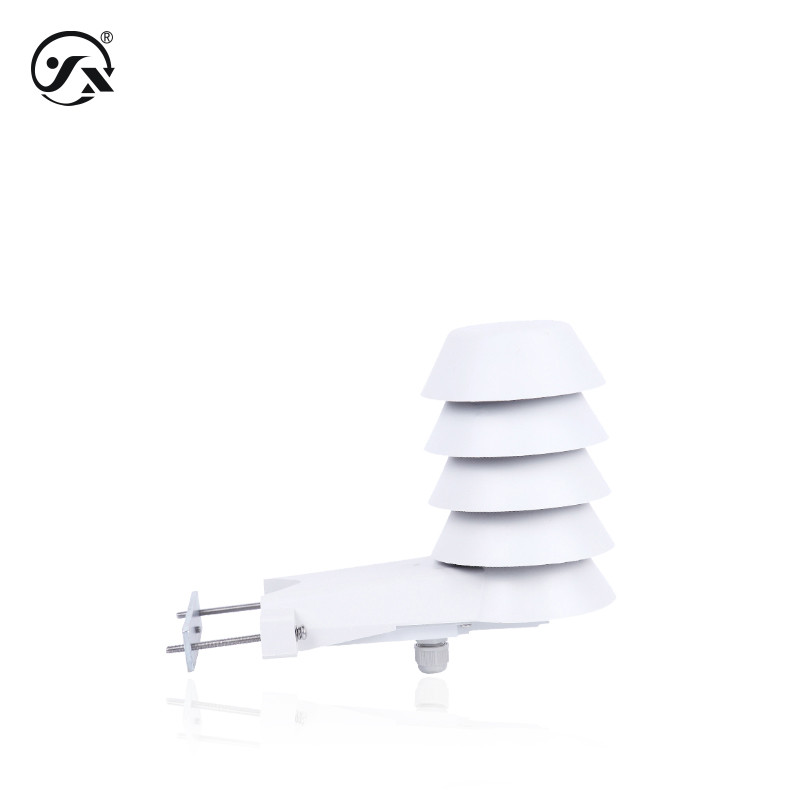

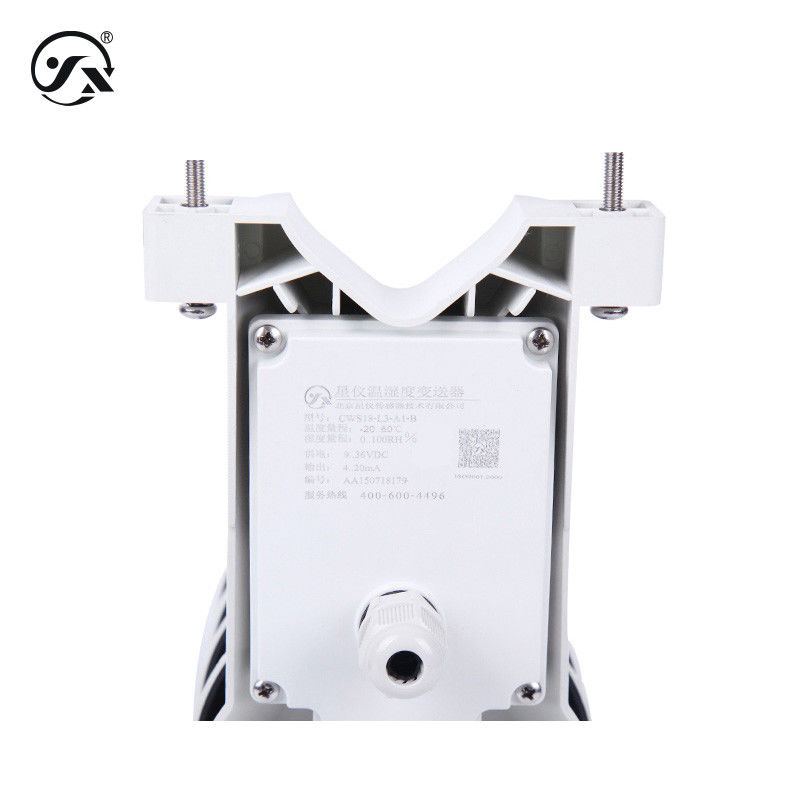

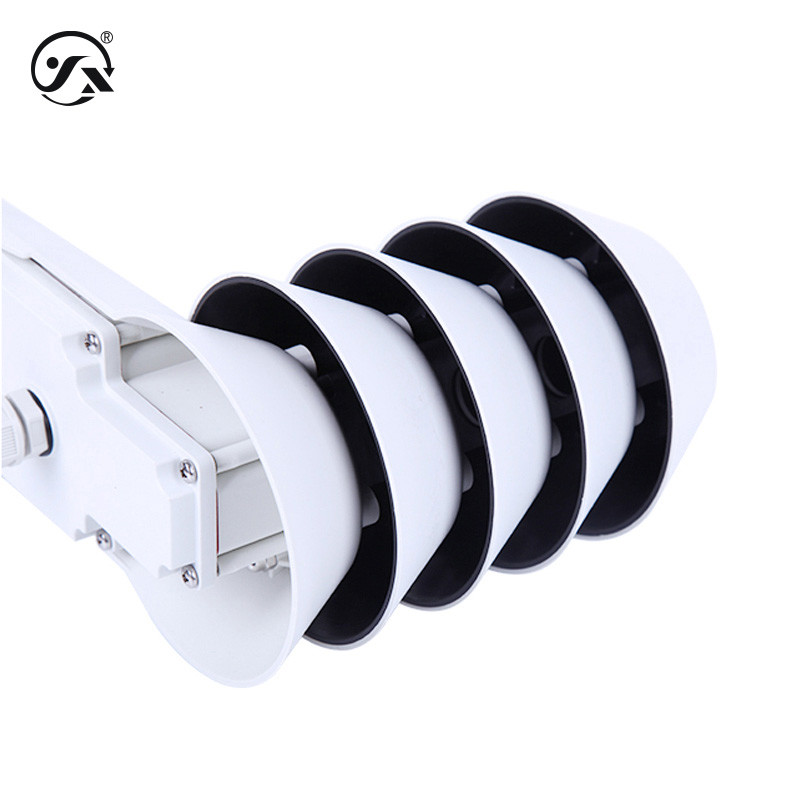

CWS18Y Outdoor Temperature And Humidity Transmitter RS485 4-20mA Output

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWS18Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Temperature And Humidity Transmitter Range: Temperature -20~60°C, -40~60°C Humidity 0-100%RH (relative Humidity)
Output: RS485, 4-20mA Power Supply: 12~36VDC
Highlight:

CWS18 Temperature And Humidity Transmitter

,

Outdoor Temperature And Humidity Transmitter

,

Outdoor Temperature And Humidity Sensor 4-20ma Output

CWS18Y Outdoor Type Temperature And Humidity Transmitter Measurement In Various Outdoor Environments



CWS18Y outdoor temperature and humidity transmitter design is meticulous, excellent quality, suitable for all kinds of outdoor temperature and humidity monitoring, digital signal and analog signal two outputs are optional, wide power supply range, strong weather resistance and other advantages.





Base parameters
Measuring medium Gas (compatible with contact material)
Temperature range -40℃~60℃,-20℃~60℃
Humidity range 0-100%RH
Overall weight ≈650g
Response frequency ≤2Hz
Stable performance ±1% RHFS/year, ±0.2°C/year
Degree of protection IP65
Output signal RS485,4-20mA
Power supply range 12~36VDC
Speed of response Temperature response time, no filter 15s, with filter 55s; Humidity response time, 15s without filter, 35s with filter (temperature at 10°C per step, humidity at 10%RH per step, gas flow rate of 0.1m/s)
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Voltage type ≥100kΩ
Current type ≤200Ω
Environmental conditions
Ambient temperature: -40~85℃
Ambient humidity: 0%~95%RH( Non-condensing, non-condensing)
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 4mA and output max 20mA
RS485 Output minimum 0, output maximum 1650
Overall material
Body housing ABA (Contact with the medium to be measured)
filter Polyethylene (density 50 μm) (contact with the measured medium)
Cable locking head Nylon (lock wire diameter 4~6mm) (contact with the measured medium)
Seals Nitrile rubber (contact with the medium to be measured)
Mechanical stability
Seismic performance 5g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/1ms conforms to IEC60068-2-27 standard
