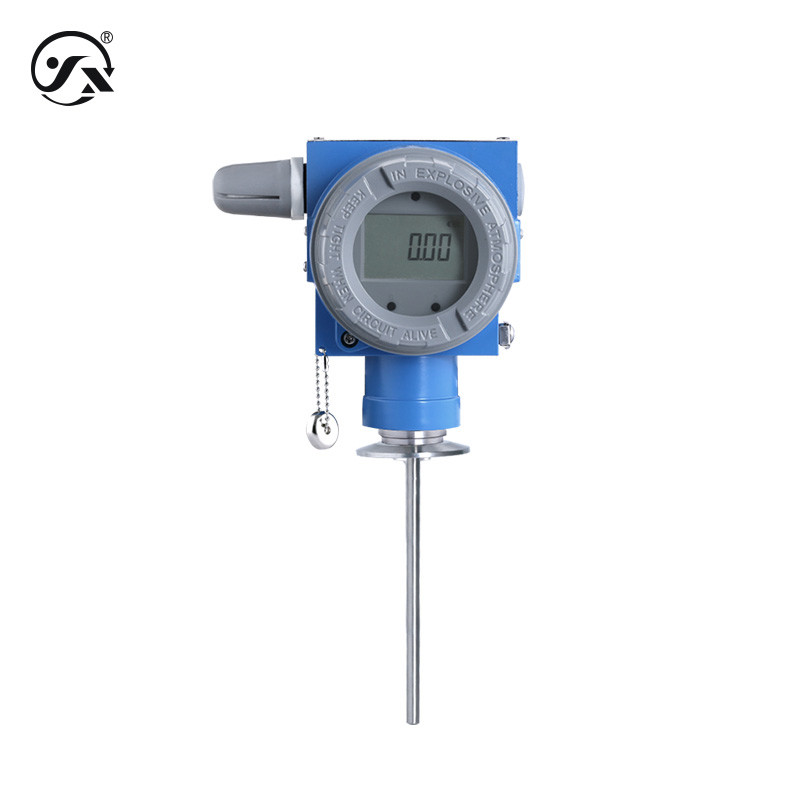

CWDZ101Y Intelligent Wireless Temperature Transmitter 0.25%FS 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ101Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -50~300°C (see Range Parameter Selection Table For Details) Network Standard: NB-IoT
Battery Life: ≤10 Years Accuracy: 0.25%FS, 0.5%FS
Highlight:

Intelligent Wireless Temperature Transmitter

,

CWDZ101 Wireless Temperature Transmitter

,

Wireless Temperature Transmitter 0.25%FS

CWDZ101Y Intelligent Wireless Temperature Transmitter Industrial Internet Of Things Intelligent Monitoring



CWDZ101Y intelligent wireless temperature transmitter adopts the form of communication + power + sensor three-in-one, ready to install and use without considering other factors, equipped with NB-IoT module, is a low-power, wireless communication function intelligent instrument, combined with big data platform can achieve a wide range of online multi-function monitoring.





Base parameters
Measuring medium Liquids or gases, etc. (compatible with contact materials)
Measuring range -50~300°C (see range parameter selection table for details)
Measuring cell 1*Pt100 (Class 1/3B)
Accuracy class 0.25%FS,0.5%FS
Stable performance ± 0.1% FS/year
Degree of protection IP66
Durable performance 1X10⁶ times (lower range to upper range number of cycles)
Overall weight ≈5.5kg
resolution 0.05%FS
Protocol parameters
Network standard NB-IoT
Upload information Data, battery level, signal strength
Send interval 15min~24h/time (default is 2h/time)
Send time ≈12s/time
Send power consumption ≈0.5mA/time
Acquisition frequency 1~30 times between sending (default 30 times)
Acquisition time ≈1s/time
Acquisition power consumption ≈0.002mA/time
Battery parameters
Working power supply 3.6V 19Ah
Battery life Depends on acquisition and transmission frequency (ignoring environmental and time factors)
Annual sleep power consumption is 0.7Ah Example
: The transmission interval is 1h, the acquisition frequency is 30 times, and the battery life is ≤ 3.3 years Example: The transmission interval is 2h, the acquisition frequency is 30 times, and the battery life is ≤ 6 years
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
Protective tube 304 stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
enclosure Die-cast aluminum
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard



Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
