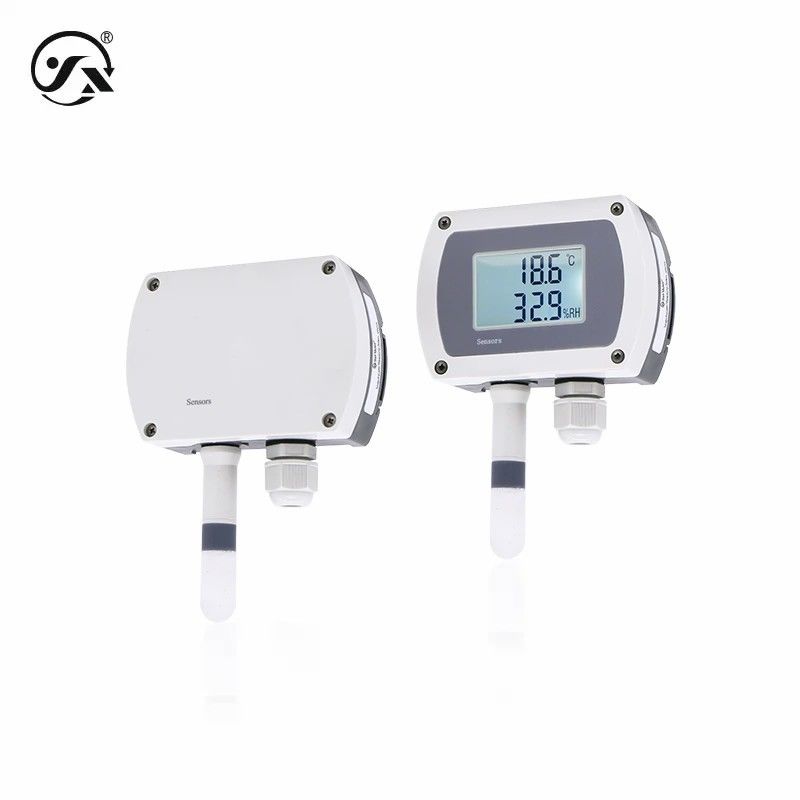

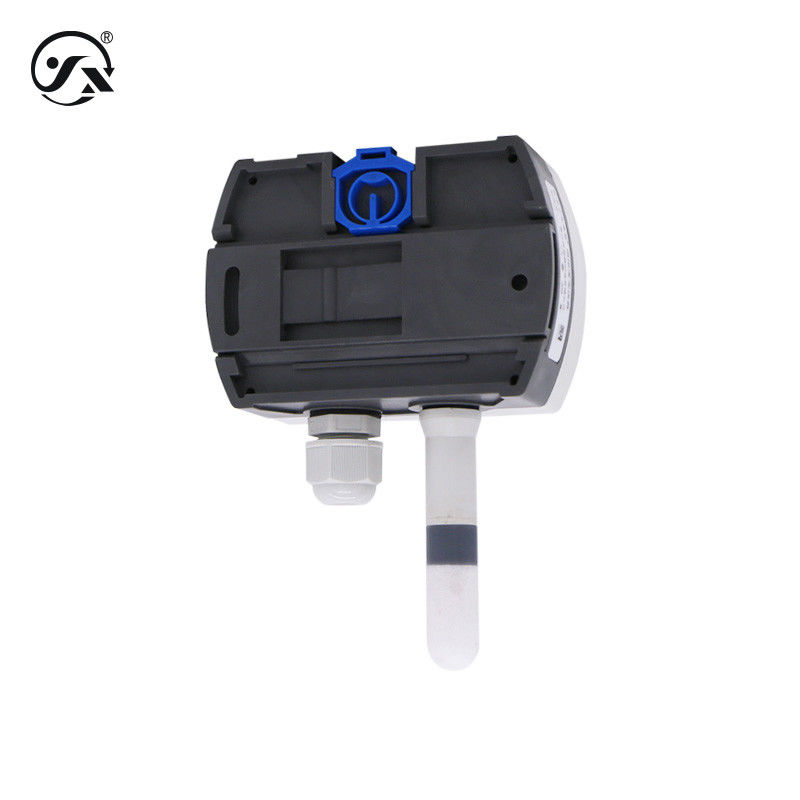

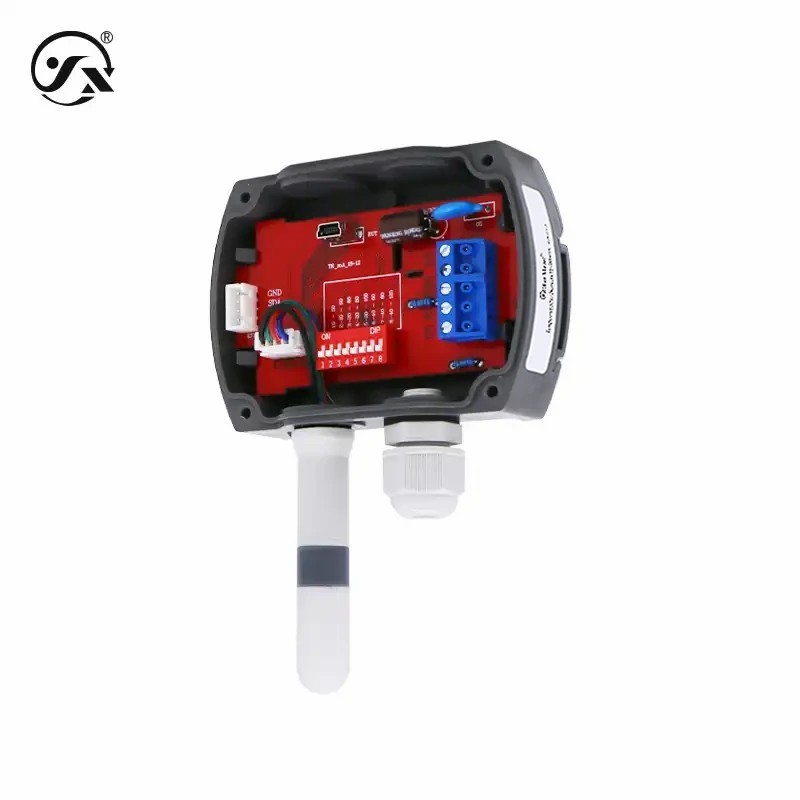

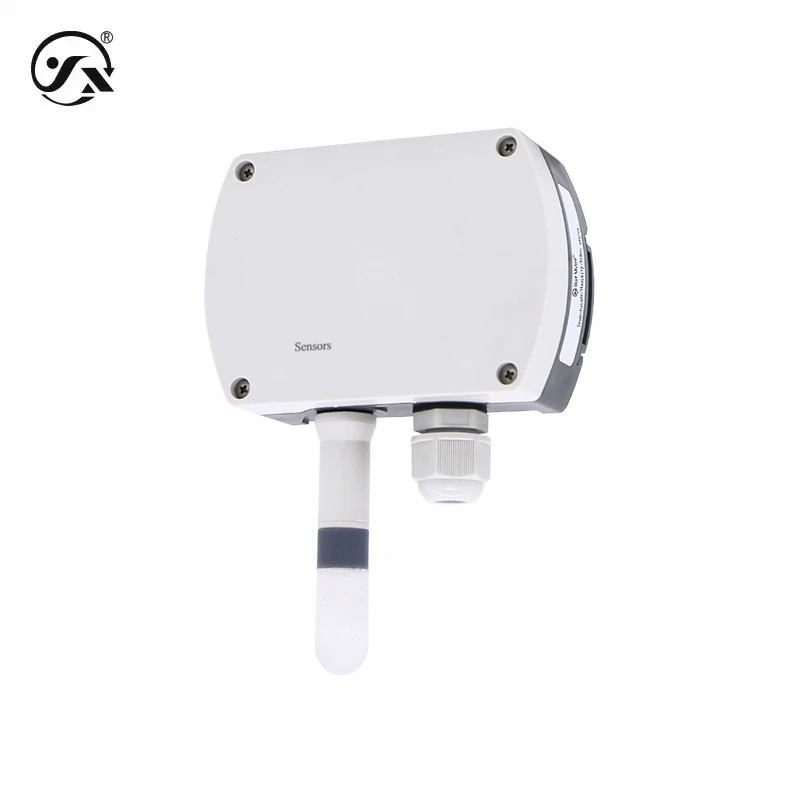

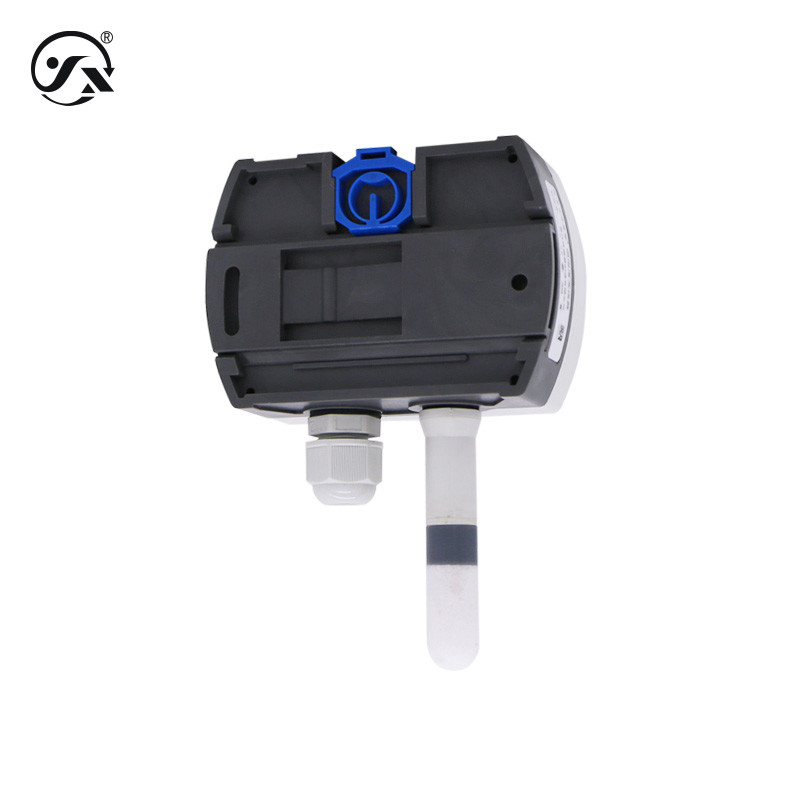

CWS19Y Wall Mounted Temperature & Humidity Transmitter For Hospital Ward / Clean Rooms HVAC

Basic Information
Place of Origin: China
Brand Name: Star Merter
Model Number: CWS19Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: Temperature -40~0~125°C Humidity 0-100%RH (relative Humidity) Output: RS485, 4-20mA, 0-10VDC
Power Supply: 12~24VDC, 24VDC Name: Temperature And Humidity Transmitter
Highlight:

CWS19 Temperature & Humidity Transmitter

,

Wall Mounted Temperature & Humidity Transmitter

,

Wall Mounted Temp Humidity Transmitter

CWS19Y Wall-Mounted Humidity And Temperature Transmitter Planting And Breeding Hospital Ward, Clean Rooms HVAC



CWS19Y wall-mounted temperature and humidity transmitter is carefully designed, excellent quality, suitable for indoor temperature and humidity monitoring in various occasions, temperature range can be adjusted, with display and without display two options, and cost-effective.



Base parameters
Measuring medium Gas (compatible with contact material)
Temperature range -40~0~125℃
Humidity range 0-100%RH (relative humidity)
Overall weight With display ≈ 160g, no display ≈ 138g
Response frequency ≤2Hz
Stable performance ±1% RHFS/year, ±0.2°C/year
Degree of protection IP65
Speed of response Temperature response time, no filter 15s, with filter 55s; Humidity response time, 15s without filter, 35s with filter (temperature at 10°C per step, humidity at 10%RH per step, gas flow rate of 0.1m/s)
Output power
Output signal 4~20mA,RS485,0~10VDC
Power supply range 12~24VDC,24VDC
Maximum power
4~20mA No display≤0.05Us(W), 0.06Us(W) with display≤
RS485 No display≤0.015Us(W), 0.025Us(W) with display≤
0~10VDC No display≤0.015Us(W), 0.025Us(W) with display≤
Load characteristics
Voltage type ≥100kΩ
Current type ≤200Ω
Environmental conditions
Ambient temperature: -40~85℃
Ambient humidity: 0%~95%RH( Non-condensing, non-condensing)
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4~20mA Output min. 4mA and output max 20mA
RS485 Output minimum 0, output maximum 1650/1000
0~10VDC Output minimum 0.001VDC, output maximum 10VDC
Overall material
Body housing ABS engineering plastics (contact with the measured medium)
filter Polyethylene (density 50 μm) (contact with the measured medium)
Cable locking head Nylon (lock wire diameter 4~6mm) (contact with the measured medium)
display LCD display with backlight
Seals Nitrile rubber (contact with the medium to be measured)
Mechanical stability
Seismic performance 5g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/1ms conforms to IEC60068-2-27 standard
