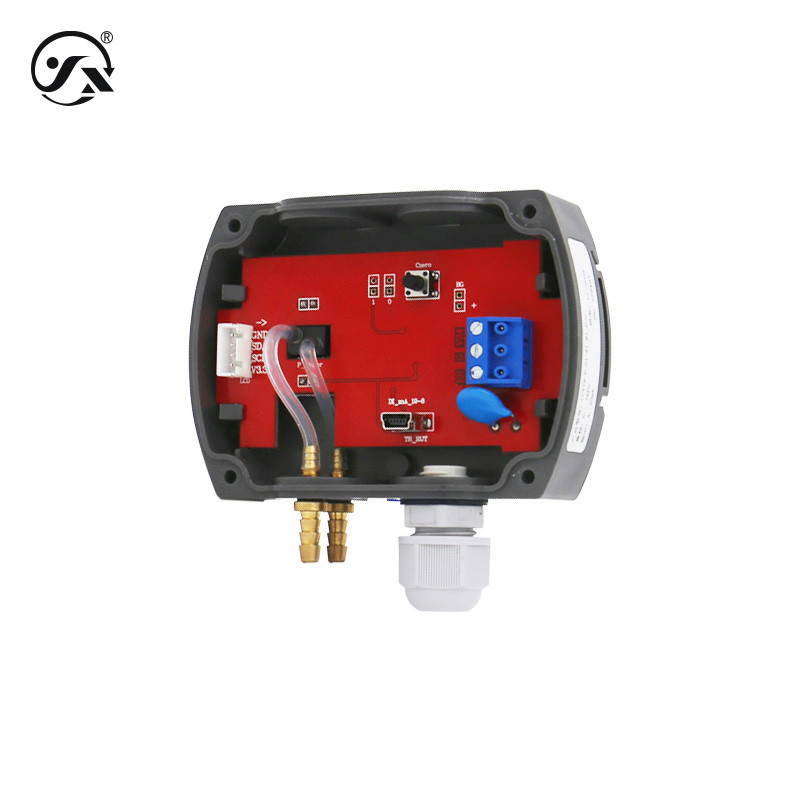

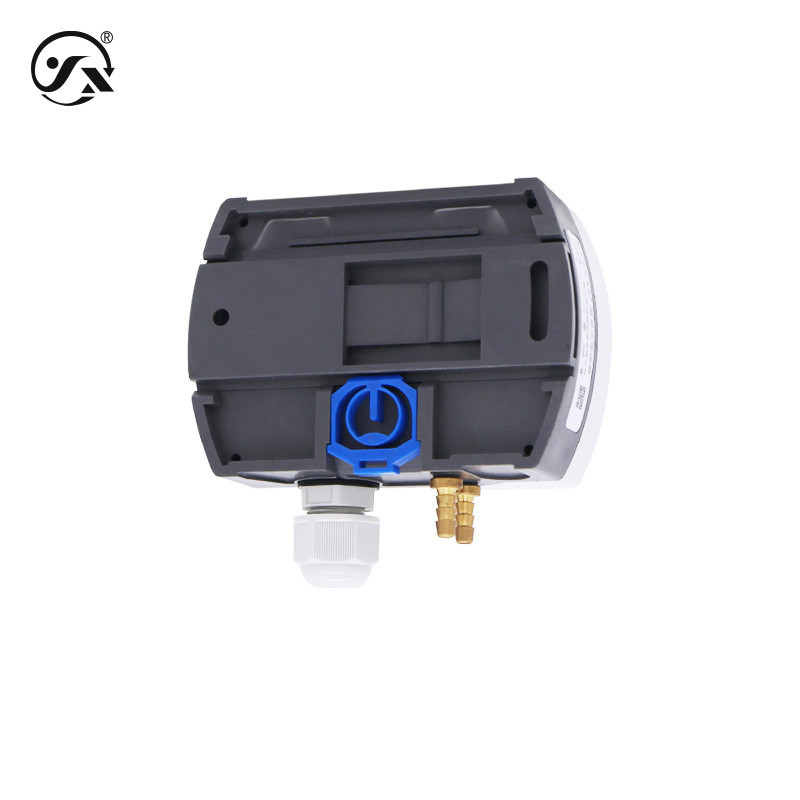

CCY19Y Wall Mounted Differential Pressure Transmitter HVAC Planting And Breeding

Basic Information
Place of Origin: China
Brand Name: Star Merter
Model Number: CCY19Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -10~0~10kPa Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 9~36VDC, 12~36VDC Accuracy: 0.25%FS, 0.5%FS, 1%FS
Highlight:

CCY19 Differential Pressure Transmitter

,

Wall Mounted Differential Pressure Transmitter

,

Wall Mounted Diff Pressure Transmitter

CCY19Y Wall-Mounted Differential Pressure Transmitter Ndustrial Equipment HVAC Planting And Breeding





Base parameters
Measuring medium Gas (compatible with contact material and humidity <90RH%, non-condensing)
Measuring range -10~0~10kPa
Type of pressure Differential pressure
Temperature compensation -10~60℃
On-time 400ms
Accuracy class 0.5%FS or 0.25%FS (range≥1kPa); 1%FS or 0.5%FS (Range<1kPa)
Response frequency Analog output≤ 20Hz, digital signal output≤5Hz
Stable performance ±0.3%FS/year (range≥1kPa); ±0.5%FS/year (range< 1kPa)
Temperature drift ±0.03%FS/°C (temperature compensation range)
Durable performance 10X10⁶ times (lower range to upper range cycles)
Overall weight With display ≈ 150g, no display ≈ 130g
Degree of protection IP65
resolution Analog output 0.02%FS, digital output 0.05%FS
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC
Power supply range 9~36VDC,12~36VDC
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
0~10VDC ≤0.015Us(W)
0~5VDC ≤0.015Us(W)
1~5VDC ≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type Load ≤ {(Us-7.5)÷0.02}Ω(Us=Supply voltage)
Environmental conditions
Media temperature -40~100℃
Ambient temperature -40~85℃
Overall material
enclosure ABS engineering plastics
diaphragm Silicon chip (in contact with the medium under test)
Pressure tube Silicone (contact with the medium to be measured)
Φ6 Pagoda mouth H59 copper (contact with the medium to be measured)
Φ8 Pagoda mouth H59 copper (contact with the medium to be measured)
Φ6 quick connector Nickel plating of copper (contact with the medium to be tested)
Φ4 quick screw interface 304 stainless steel (contact with the medium to be measured)
Cable locking head Nylon (lock wire diameter 5~8mm)

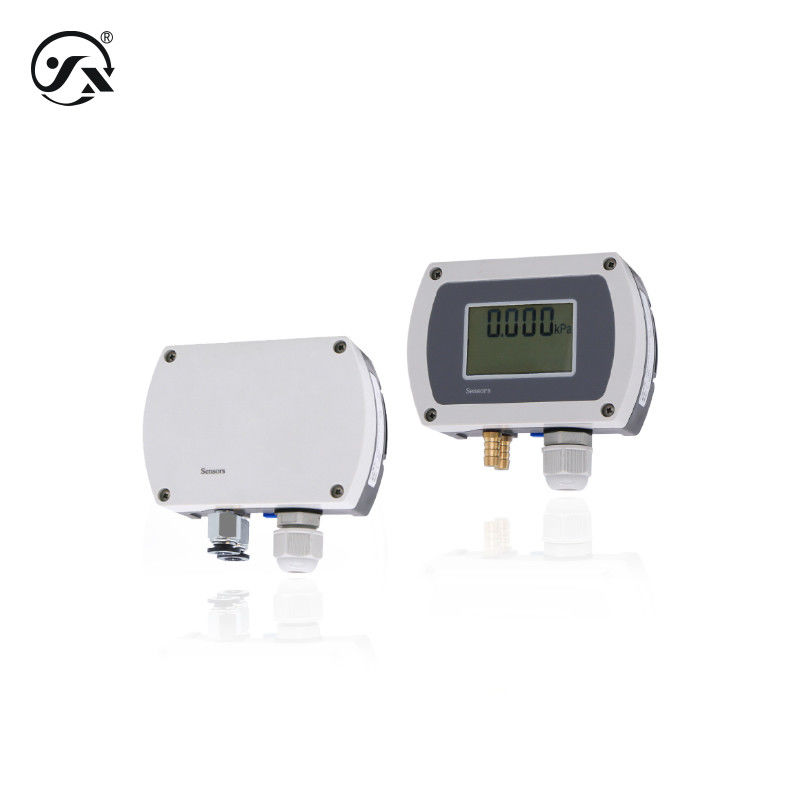

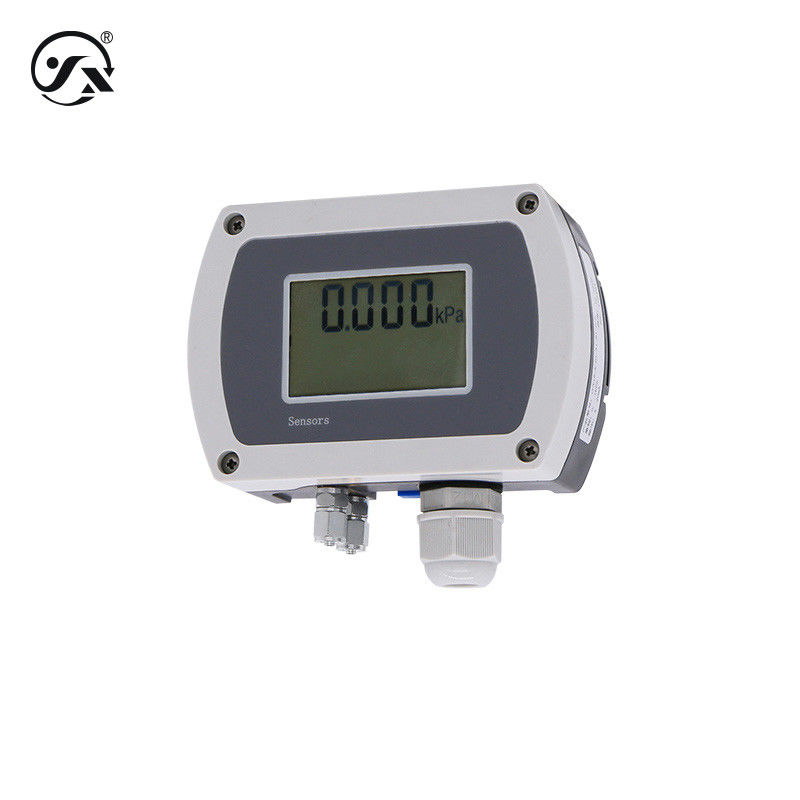

display LCD display without backlight
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/1ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 4mA and output max 20mA
RS485 Output minimum 0, output maximum 2000
0~5VDC Output minimum 0VDC, output maximum 5VDC
0~10VDC Output minimum 0VDC, output maximum 10VDC
1~5VDC Output minimum 1VDC, output maximum 5VDC
Interface specifications
Interface specifications φ6 pagoda mouth, φ8 pagoda mouth, φ6 fast interface, φ4 quick screw interface
