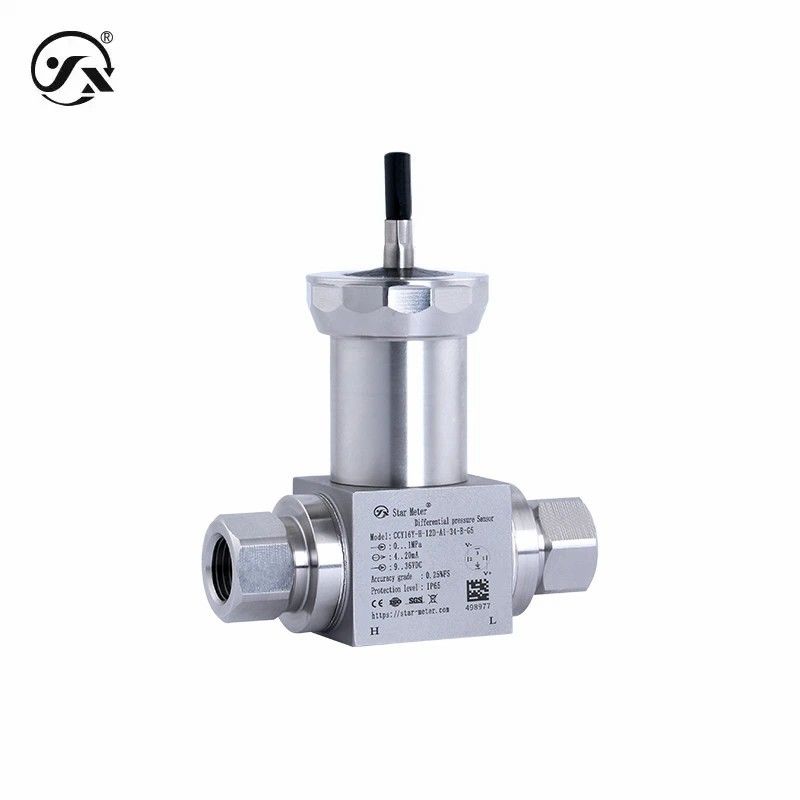

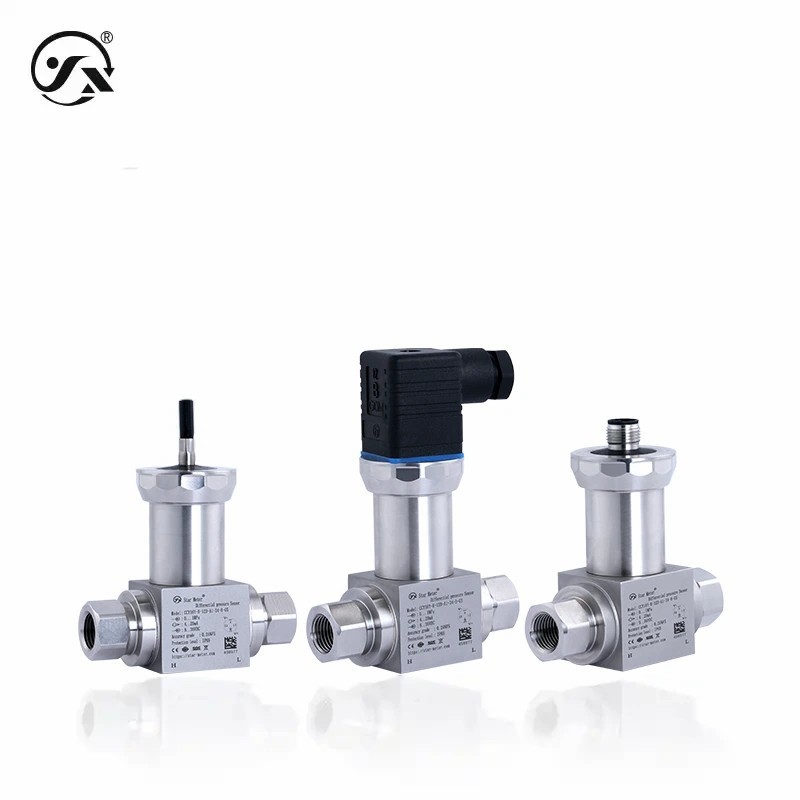

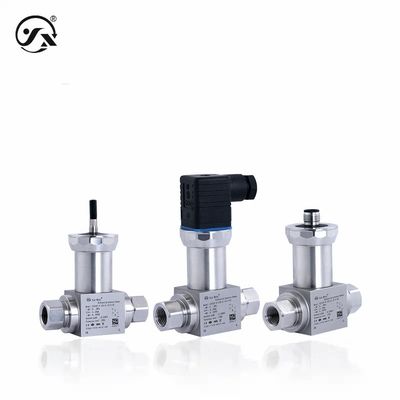

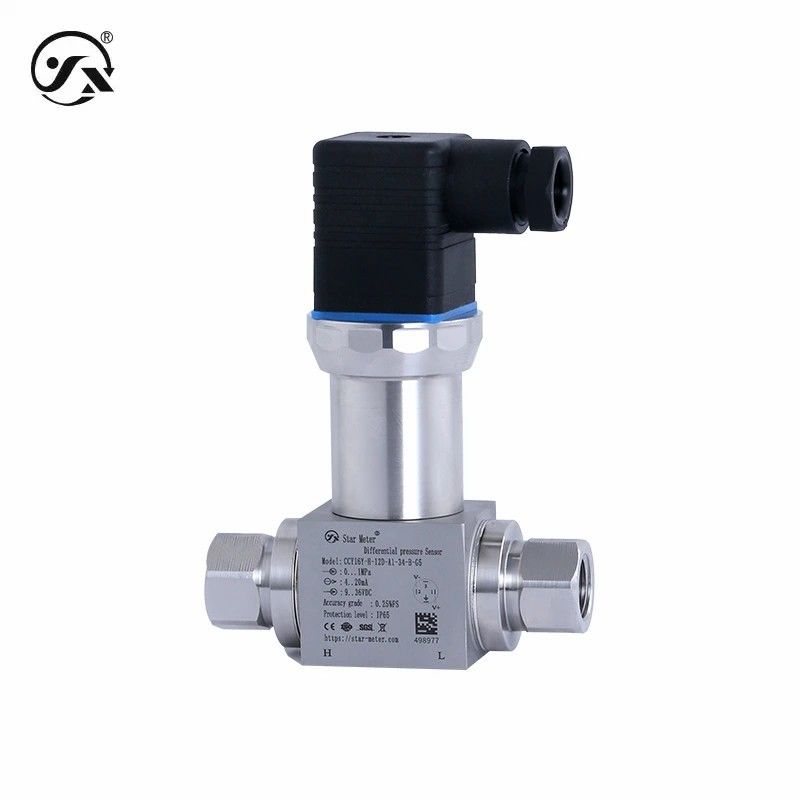

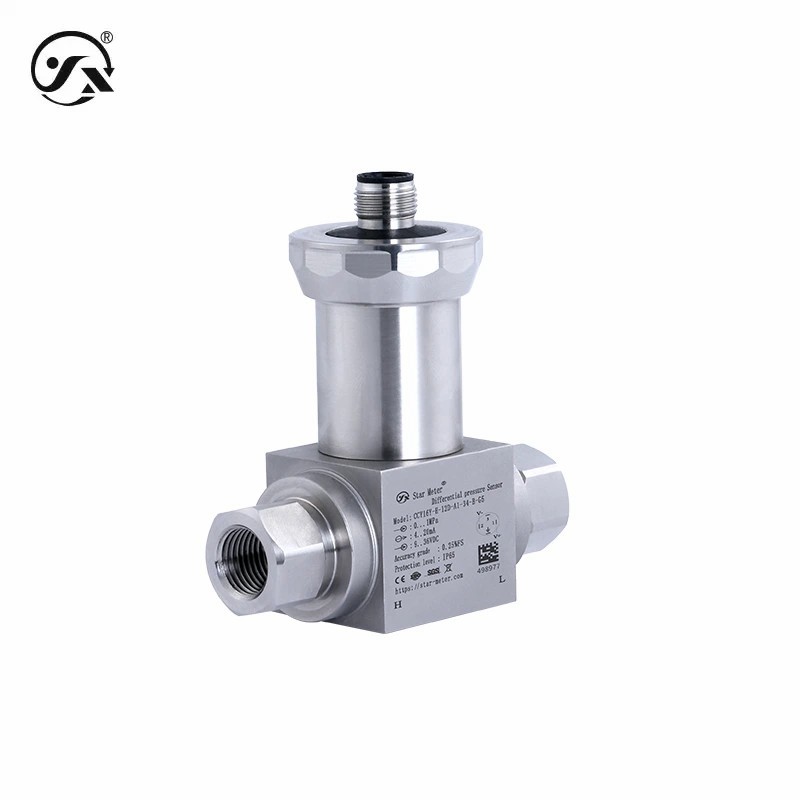

CCY16Y Differential Pressure Type Flow Transmitter 0.25%FS DP Transmitter For Flow Measurement

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CCY16Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~2.5MPa (see Range Selection Table For Details) Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, 0.5~2.5VDC
Power Supply: 9~36VDC, 15~36VDC, 3~5VDC Accuracy: 0.25%FS, 0.5%FS
Name: Differential Pressure Type Flow Transmitter
Highlight:

CCY16 Differential Pressure Type Flow Transmitter

,

0.25%FS DP Type Flow Transmitter

,

DP Transmitter For Flow Measurement

The differential pressure transmitter type CCY16Y is designed for industrial applications to measure the differential pressure value of liquids or gases, which is not only compact, but also of excellent quality, ideal for general industry, and cost-effective. It also has diversified advantages such as output signal, range and electrical connection, which is convenient to match different working conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range 0~2.5MPa (see range selection table for details)
Pressure mode Differential pressure
Temperature compensation -10~70℃

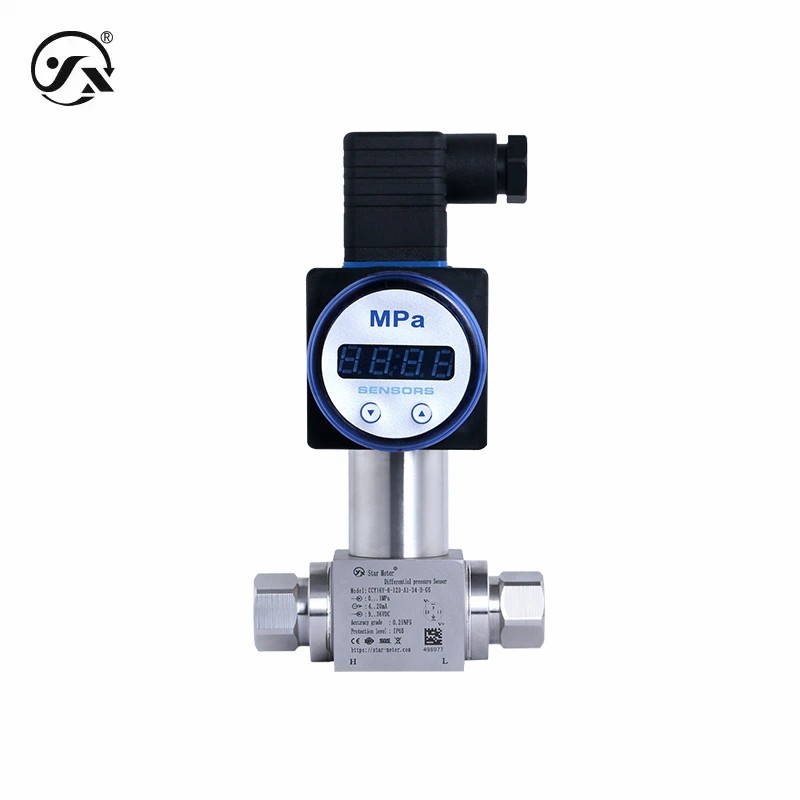

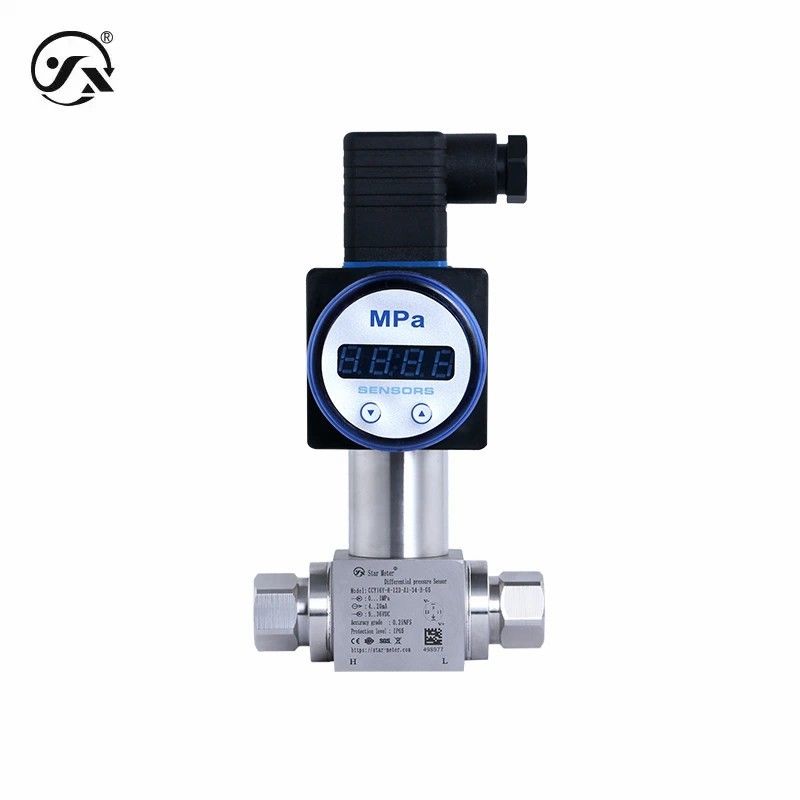

Accuracy class 0.25%FS (differential pressure range to rated range ratio ≥1:2.5) 0.5%FS (differential pressure range to rated range ratio <1:2.5) With repeatability≤ 0.05%FS, hysteresis ≤0.05%FS Meter display accuracy 0.5%FS<b15>, digital tube (LED)

display
Note: Reference condition temperature 25~86 °C, Atmospheric pressure 106~45kPa, humidity 75~<>%RH.
Response frequency Analog output≤ 30Hz, digital output≤5Hz
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Overall weight No display≈ 415g has a display ≈ 460g
Degree of protection IP65 (no display) IP54 (with display) Note: The above protection level refers to the electrical connection is achieved after the electrical connection is complete
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~36VDC,15~36VDC,3~5VDC
Durable performance 10X10⁶ times (lower range to upper range cycles)
Power range
Current type ≤0.02Us(W)
Voltage type ≤0.001Us(W),≤0.008Us(W)
Digital ≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type No display load≤ {(Us-7.5)÷0.02}Ω with display load≤{(Us-12)÷0.02}Ω (US=supply voltage)
working conditions
Media temperature -40~85℃
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Seals Nitrile rubber O-ring
Display the shell ABS engineering plastics (LED display)
Hirschmann joints ABS engineering plastics
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,0.05VDC
Output maximum 20mA,2000,10VDC,5VDC
