CCY11Y HVAC Pressure Transmitter Differential 0.5%FS 1%FS Fast Response

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CCY11Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: HVAC Pressure Transmitter Differential Range: -10~0~10kPa
Output: 4~20mA, RS485, 0~5VDC, 0~10VDC, 1~5VDC Power Supply: 9~36VDC, 12~36VDC
Accuracy: 0.5%FS, 1%FS
Highlight:

CCY11 HVAC Pressure Transmitter

,

HVAC Pressure Transmitter Differential

,

Pressure Transmitter Differential 1%FS

CCY11Y Differential Pressure Transmitter HVAC Planting And Breeding Building Automation Environmental Protection System





CCY11Y series differential pressure transmitter adopts piezoresistive pressure sensor chip, using the thin film resistance on the substrate for zero point correction, zero point temperature compensation and sensitivity compensation, high-performance and stable silicon chip package, so that its static pressure resistance value is high, anti-interference, stable and reliable. Therefore, the product can be used in various differential pressure applications for gas measurement. It is an ideal differential pressure measuring instrument in the field of industrial automation. High precision, good stability, fast response





Base parameters
Measuring medium Gas (compatible with contact material)

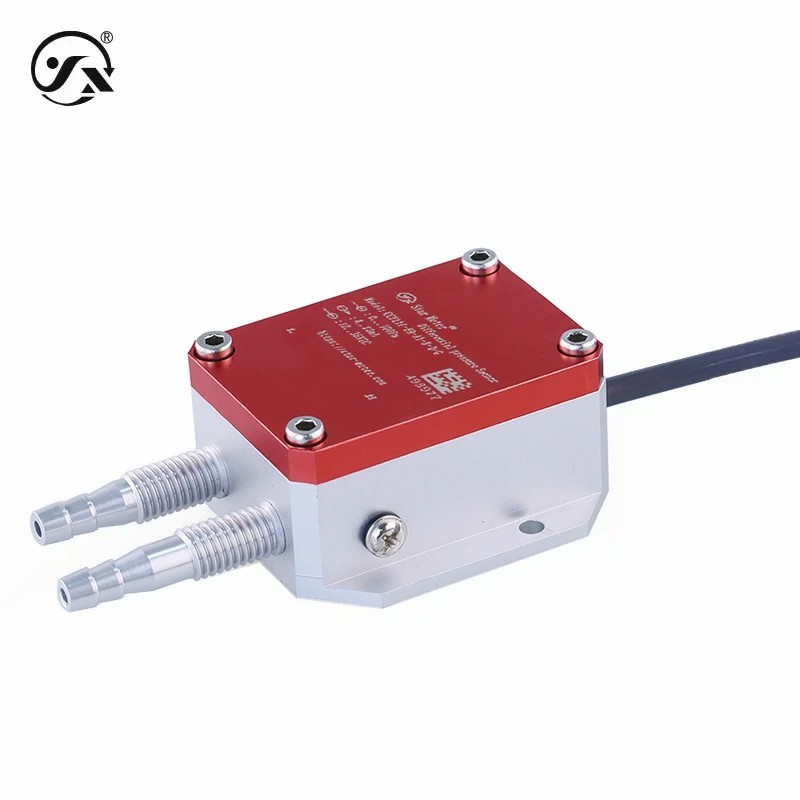

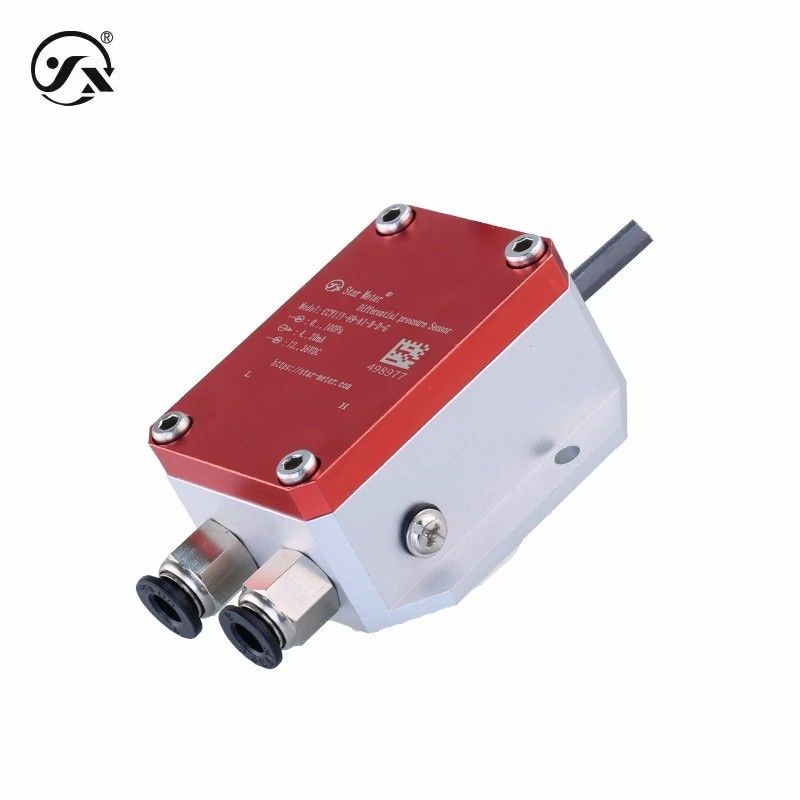

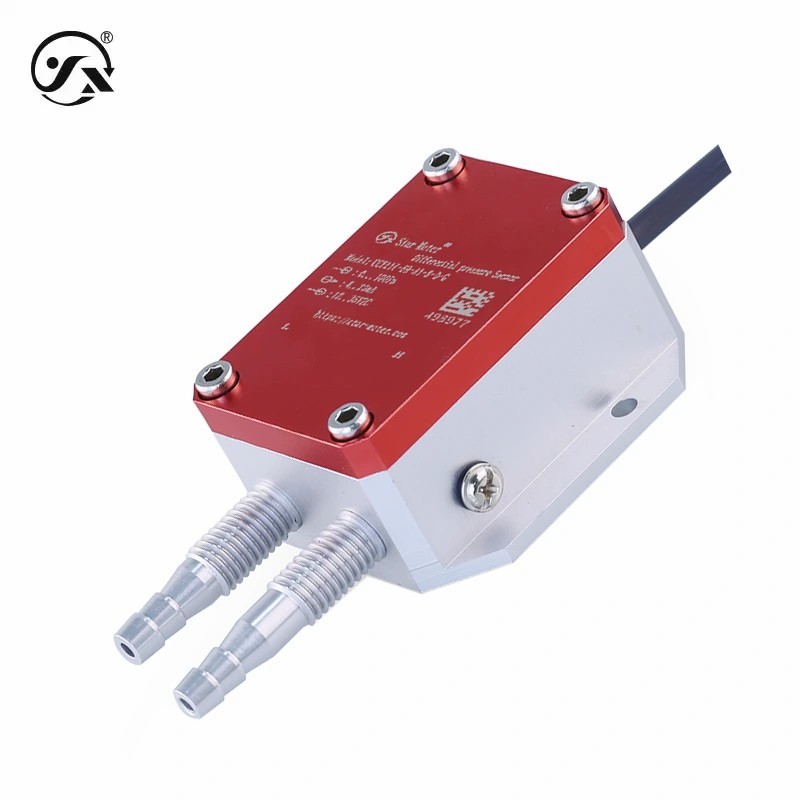

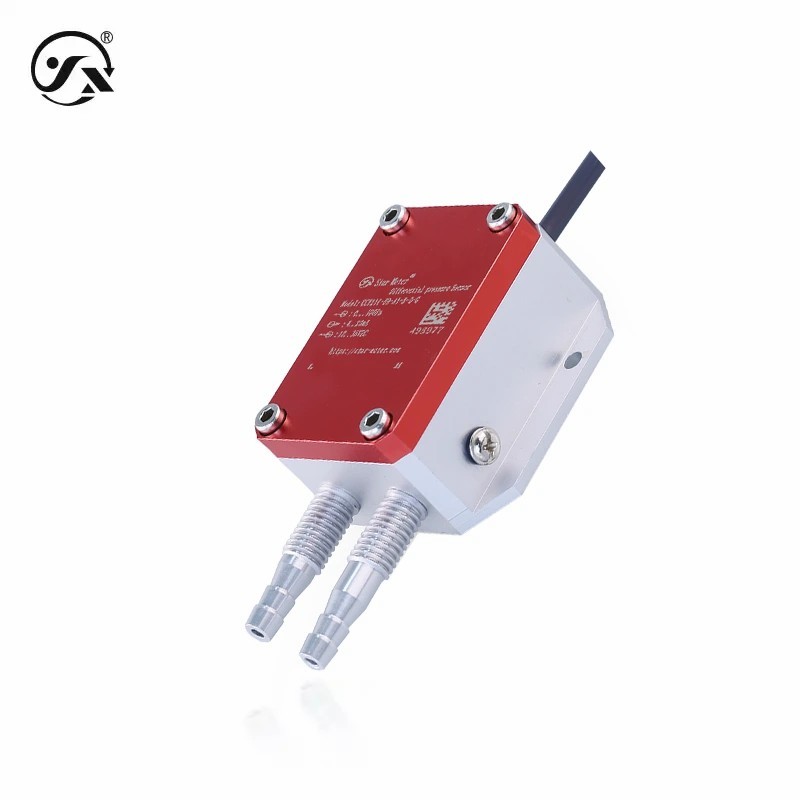

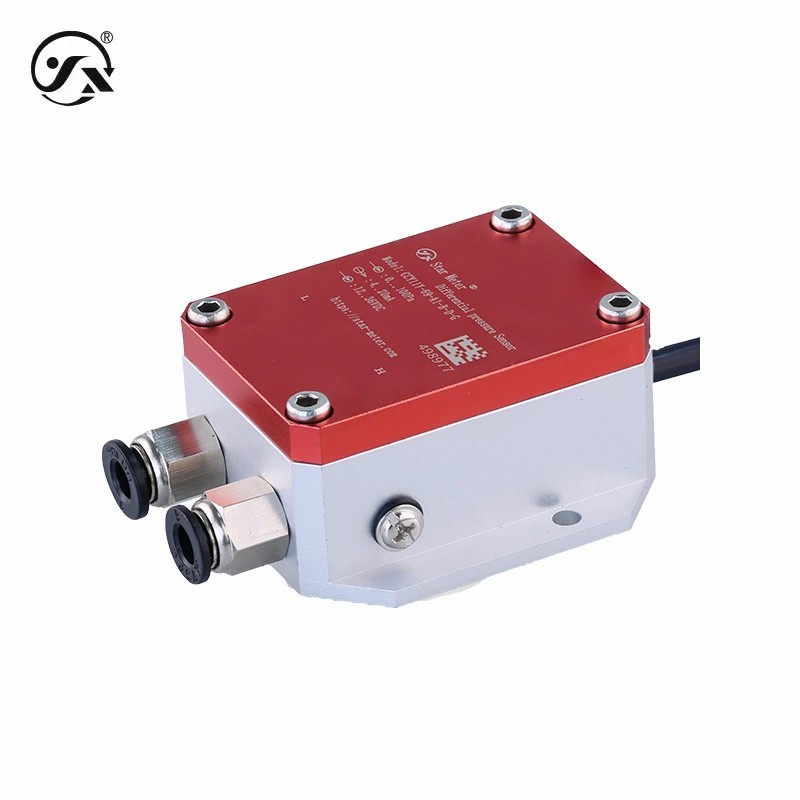

Overall material Diaphragm Silicon chip (contact) φ8 Pagoda mouth LY12 aluminum (contact) φ6 Quick connector Nickel plated copper (contact) shell LY12 aluminum Seal Butadiene rubber
Range range -10~0~10kPa
Pressure mode Differential pressure
Output signal 4~20mA,RS485,0~5VDC,0~10VDC,1~5VDC
Supply voltage 9~36VDC,12~36VDC
Accuracy class 0.5%FS or 0.25%FS (range≥ 1kPa); 1%FS or 0.5%FS (range<1kPa)
Media temperature -40~100℃
Ambient temperature -40~85℃
Temperature compensation -10~60℃
Seismic performance 20g(20… 2000Hz)
Response frequency ≤5Hz
Stable performance ±0.3%FS/year (range≥1KPa) ±0.5%FS/year (range<1KPa)
Temperature drift ±0.03%FS/°C (temperature compensated)
Overall weight ≈200g
Degree of protection IP54
Power cap Current type≤ 0.02Us(W) voltage type≤ 0.015Us(W) digital type Note; Us = supply voltage
Load characteristics Current type load ≤{(Us-7)÷0.02(Us=supply voltage)}Ω
