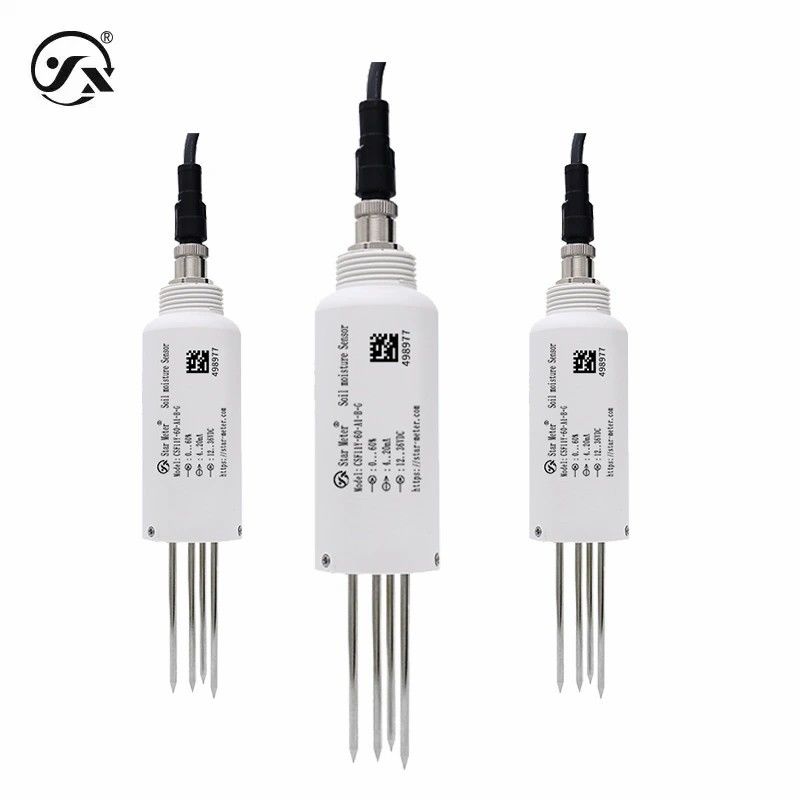

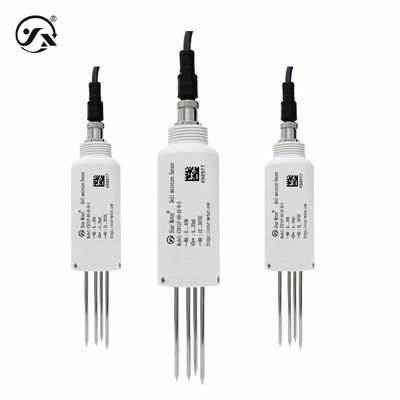

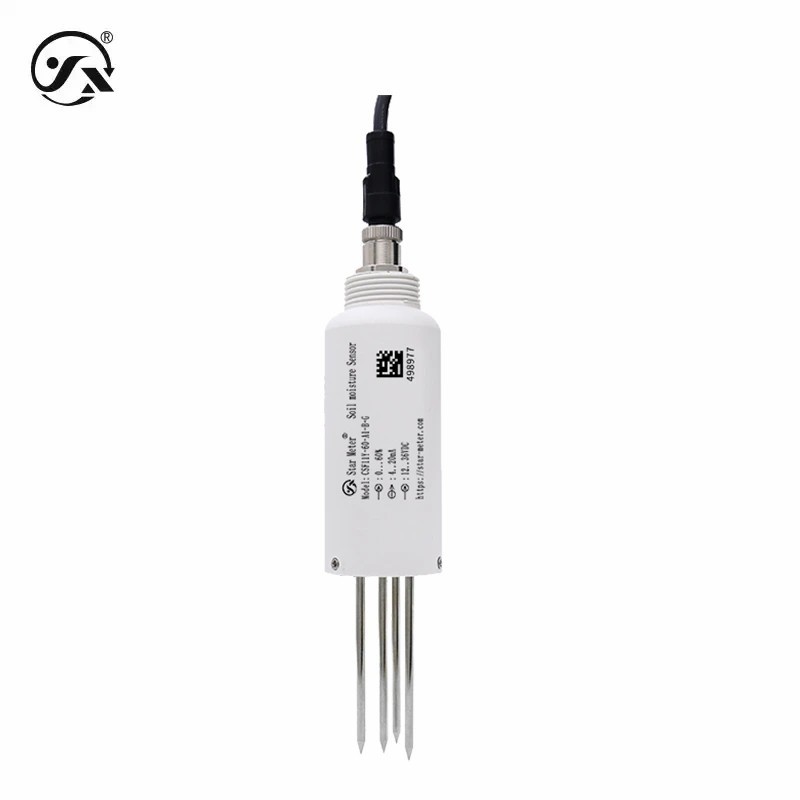

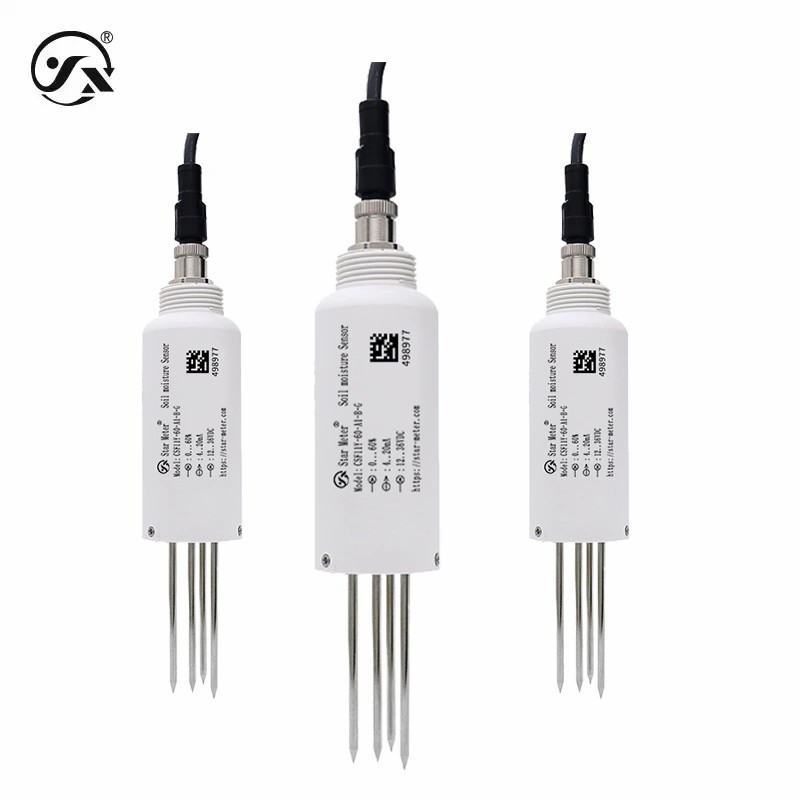

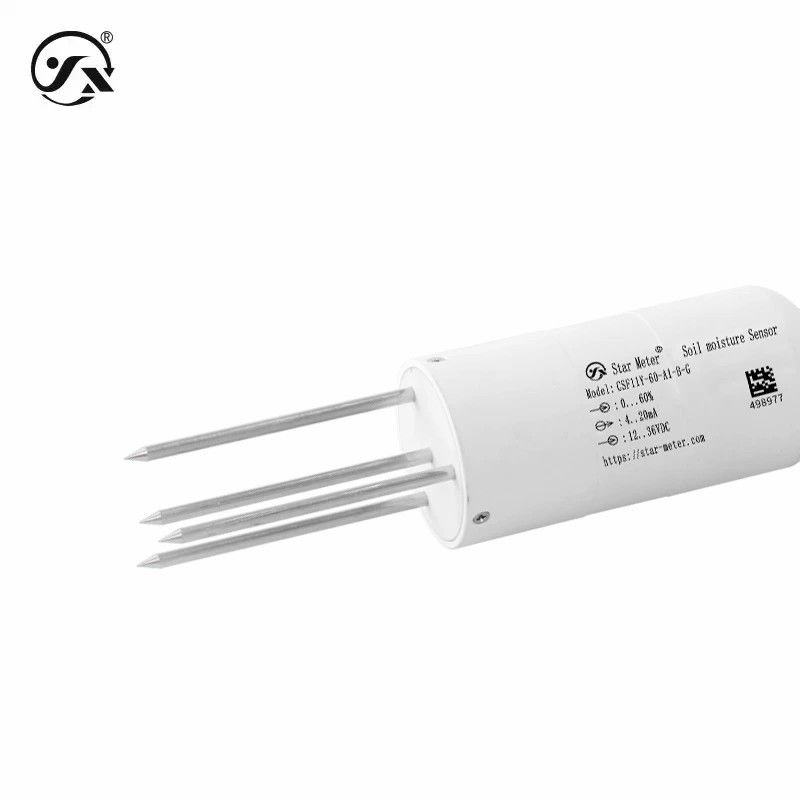

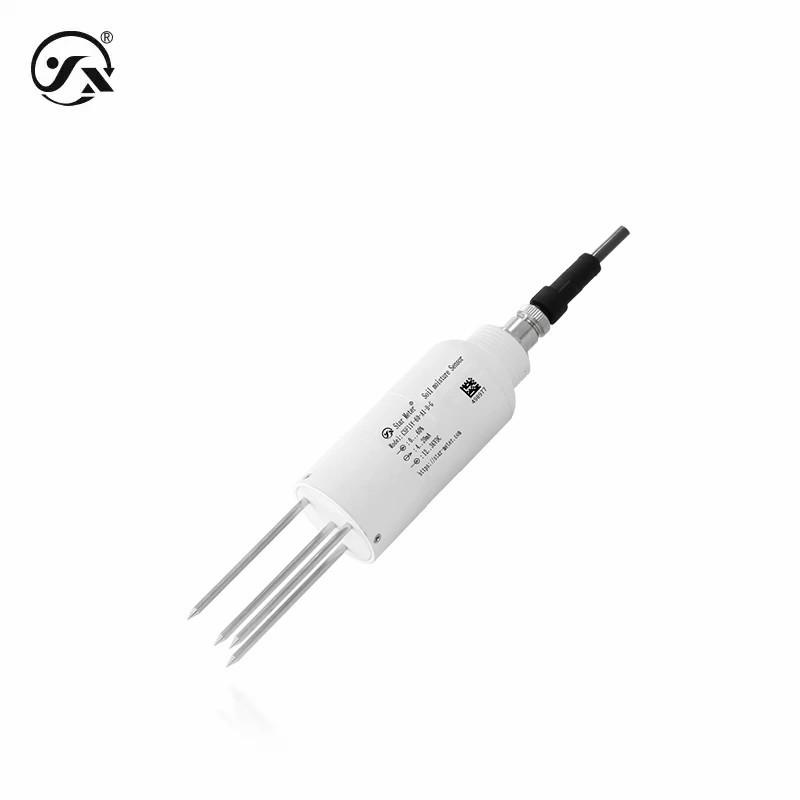

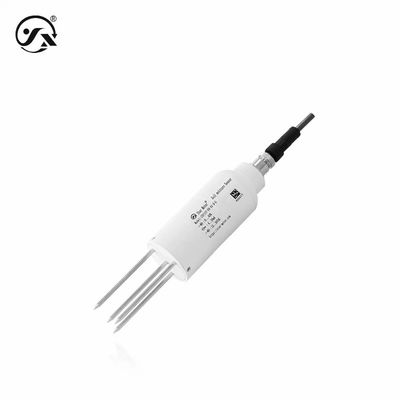

CSF11Y Soil Moisture And Temperature Sensor , Water Moisture Sensor IP68

Basic Information
Place of Origin: China
Brand Name: Star Merter
Model Number: CSF11Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Water Moisture Sensor Moisture Range: 0-60%m³/m³
Temperature Range: 0-50℃ Output Signal: 4~20mA, RS485 (Modbus-RTU Protocol), 0~1VDC, 0~2.5VDC
Supply Voltage: 5-24VDC,12-36VDC
Highlight:

CSF11 Soil Moisture And Temperature Sensor

,

Water Moisture Sensor IP68

CSF11Y Soil Moisture Transmitter Frequency Domain Reflection FDR Saturated Water Content



Based on the principle of frequency-domain reflection FDR, the CSF11 series soil moisture sensor is a dielectric sensor that measures the dielectric constant of the inserted medium by measuring the change in capacitance on the sensor at a frequency of 100MHz. Since water has a very high dielectric constant (80), soil is (3-10). Therefore, when the moisture content in the soil changes, the dielectric constant of the soil also changes considerably. This series of soil moisture sensor circuits reduces the influence of temperature changes on the measurement. Digital technology and durable materials enable high measurement accuracy and low price. The sensor enables long-term continuous monitoring of moisture content at multiple plots and at different soil depths.

Base parameters
Sensor principle Frequency Domain Reflection FDR
Measurement parameters Soil volume water content
Measuring range Saturated water content
Moisture range 0-60%m³/m³
Temperature range 0-50℃
Output signal 4~20mA, RS485 (Modbus-RTU protocol), 0~1VDC,
0~2.5VDC
Supply voltage 5-24VDC,12-36VDC
Moisture accuracy 3% (after the rate is determined)
Temperature accuracy ±0.5℃
resolution 0.1%
Response time <500ms
Operating environment Outdoor, the suitable ambient temperature is 0-45°C
Operating current 45-50mA, with temperature<80mA
Cable length 5 meters standard (or customized)
Housing material ABS engineering plastics
Probe material 316 stainless steel
gross weight 500g
Degree of protection IP68
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Protocol -Chinese (CN) PDF
