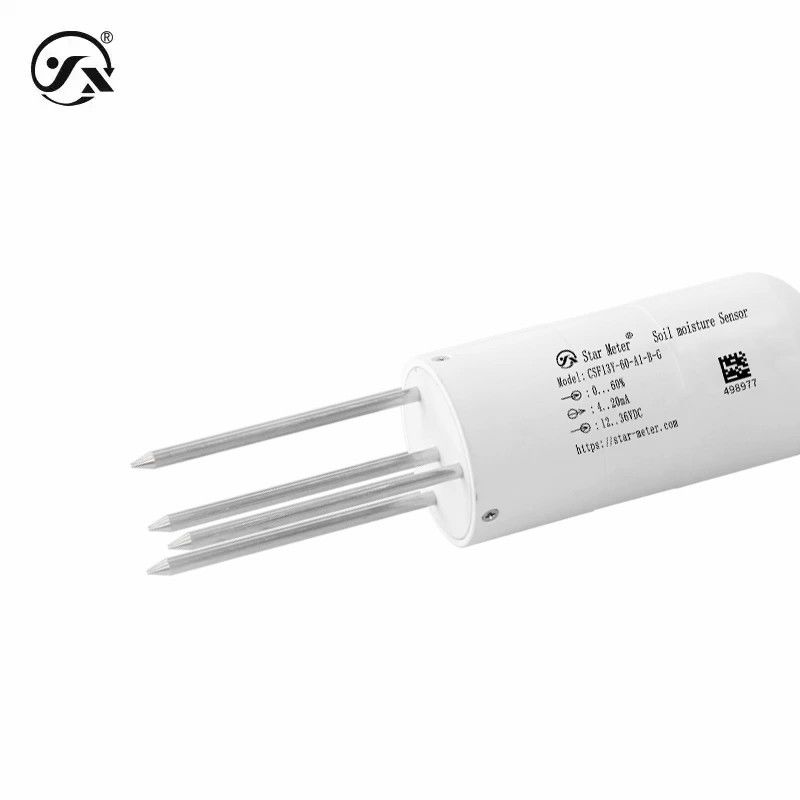

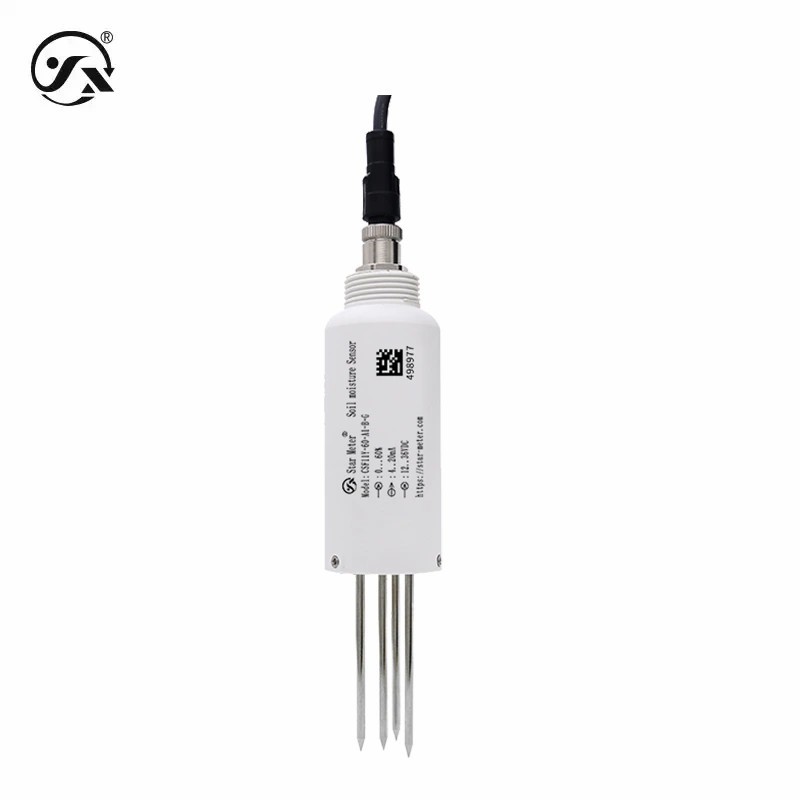

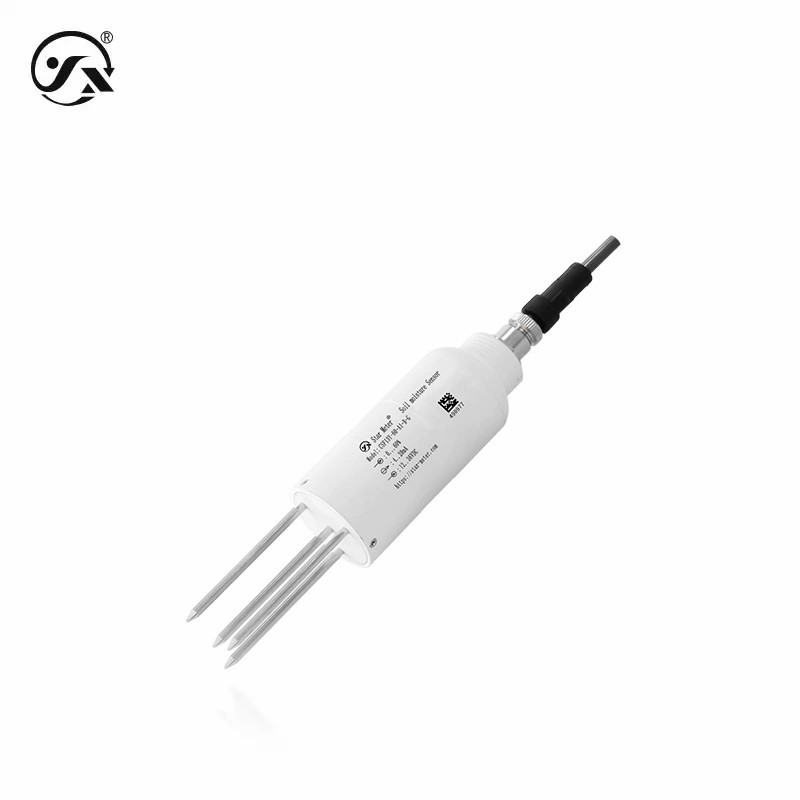

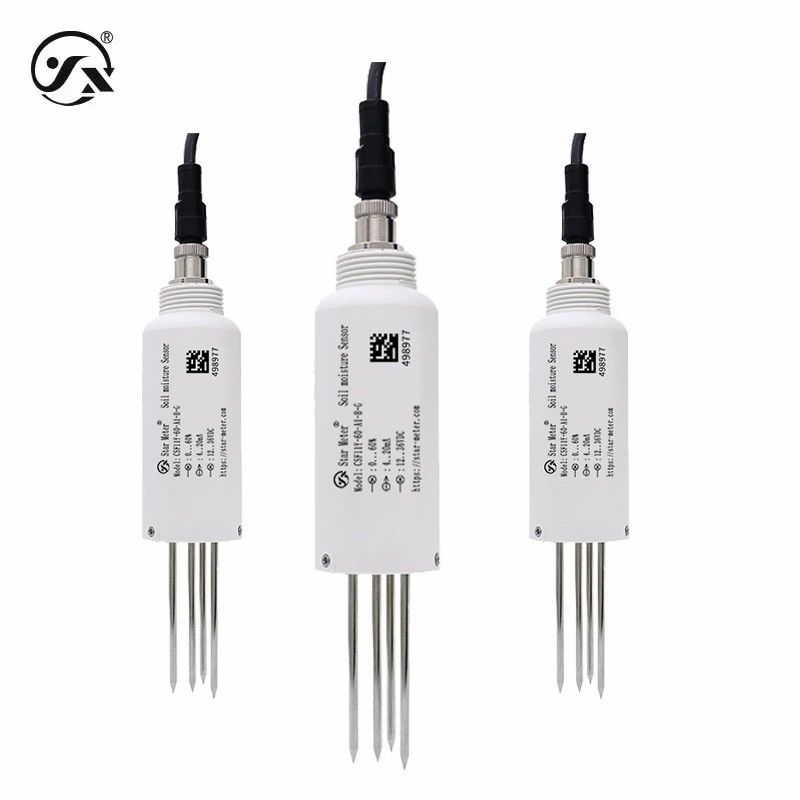

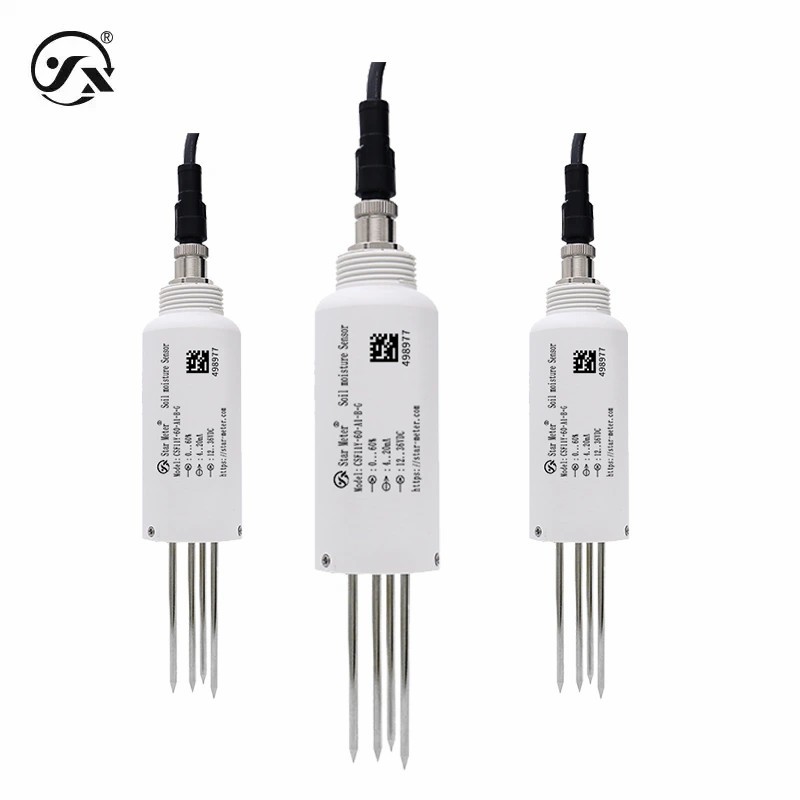

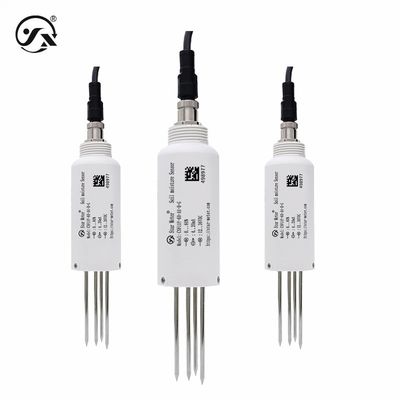

CSF13Y Soil Moisture Transmitter Frequency Domain Reflection FDR IP68

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CSF13Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Sensor Principle: Frequency Domain Reflection FDR Temperature Range: 0-50℃
Output Signal: 4~20mA, RS485 (Modbus-RTU Protocol), 0~1VDC, 0~2.5VDC Moisture Range: 0-60%
Name: Soil Moisture Transmitter
Highlight:

CSF13 Soil Moisture Transmitter

,

Soil Moisture Transmitter IP68

,

Soil Moisture Sensor IP68

CSF13Y Soil Moisture Transmitter Frequency Domain Reflection FDR IP68



Based on the principle of frequency reflection FDR, the CSF13 series soil moisture sensor is a dielectric sensor that measures the dielectric constant of the inserted medium by measuring the change in capacitance on the sensor at a frequency of 100MHz. Since water has a very high dielectric constant (80), soil is (3-10). Therefore, when the moisture content in the soil changes, the dielectric constant of the soil also changes considerably. This series of soil moisture sensor circuits reduces the influence of temperature changes on the measurement. Digital technology and durable materials enable high measurement accuracy and low price. The sensor enables long-term continuous monitoring of moisture content at multiple plots and at different soil depths.



Base parameters
Sensor principle Frequency Domain Reflection FDR
Measurement parameters Soil volume water content
Measuring range Saturated water content
Moisture range 0-60%
Temperature range 0-50℃
Output signal 4~20mA, RS485 (Modbus-RTU protocol), 0~1VDC,
0~2.5VDC
Supply voltage 5-24VDC,12-36VDC
Moisture accuracy <±0.03m/m(±3%)率定后<±0.02m/m (±2%)
Temperature accuracy ±0.5℃
resolution 0.1%
Response time <500ms
Operating environment Outdoor, the suitable ambient temperature is 0-45°C
Operating current 45-50mA, with temperature<80mA
Cable length 5 meters standard (or customized)
Housing material ABS engineering plastics
Probe material 316 stainless steel
gross weight 500g
Degree of protection IP68
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
