| Place of Origin: | China |
|---|---|
| Brand Name: | Star merter |
| Model Number: | CSF15Y |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 30000 Piece/Month |
| Name: | Soil Moisture Transmitter | Sensor Principle: | Time-domain Reflection TDR |
|---|---|---|---|
| Output Signal: | RS485 (Modbus-RTU Protocol) | ||
| Highlight: | RS485 Soil Moisture Transmitter,Time Domain Reflection Soil Moisture Transmitter,Modbus-RTU Soil Moisture Transmitter |
||

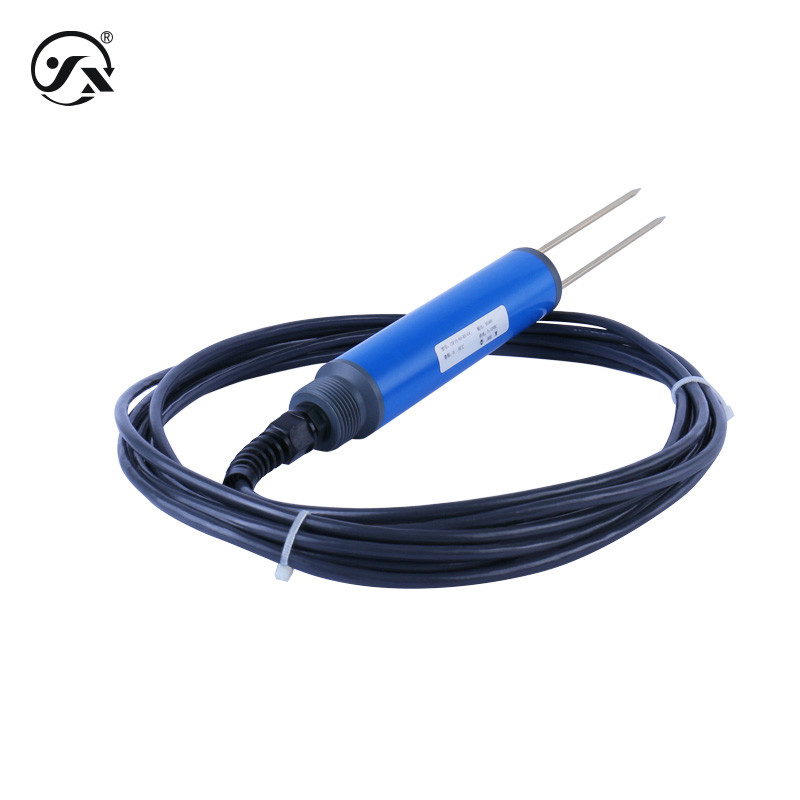

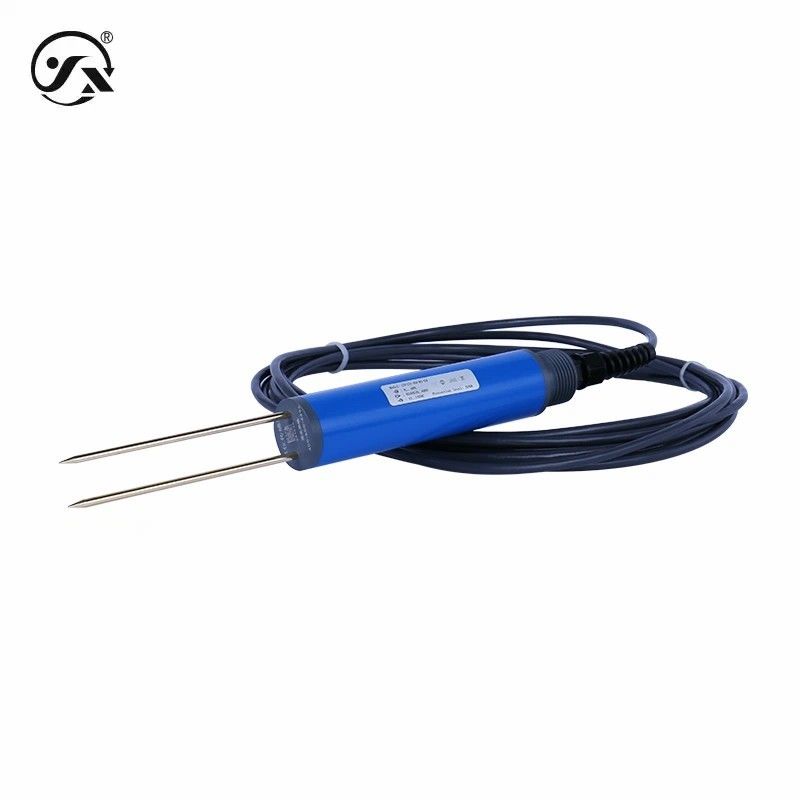

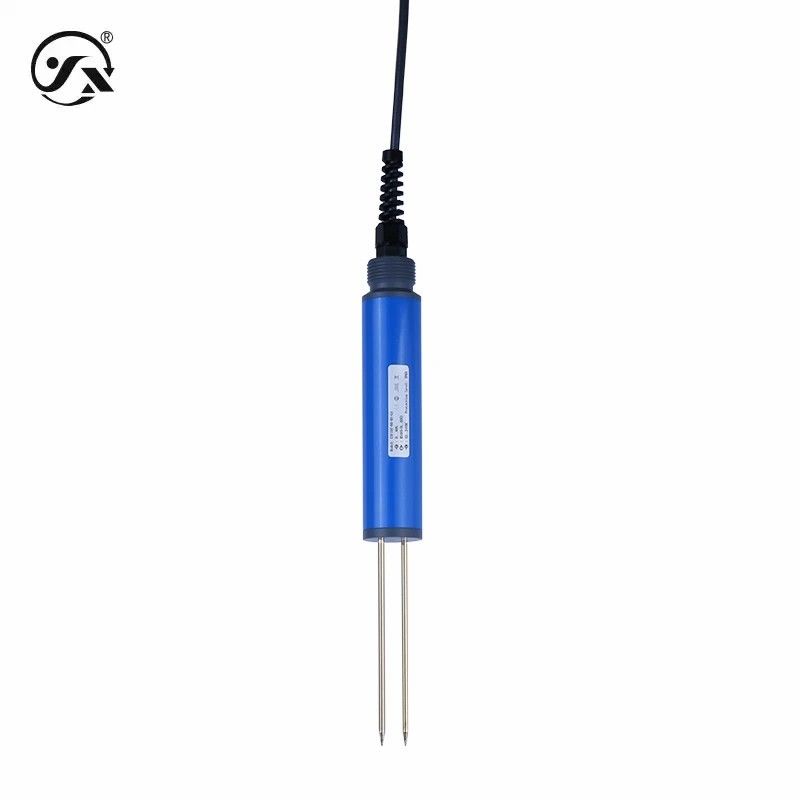

CSF15Y Soil Moisture Transmitter Time-domain reflection TDR RS485 (Modbus-RTU protocol)
CSF15Y series soil moisture sensor is based on the principle of time-domain reflection TDR, which is a dielectric sensor, which has strong independence, and its results are basically independent of soil type, density and temperature. Therefore, when the moisture content in the soil changes, the dielectric constant of the soil also changes considerably. This series of soil moisture sensor circuits minimizes the effect of temperature changes on the measurement. Digital technology and durable materials enable high measurement accuracy and low price. The sensor enables long-term continuous monitoring of moisture content at multiple plots and at different soil depths.
| Base parameters | |||||||
| Sensor principle | Time-domain reflection TDR | ||||||
| Measurement parameters | Soil volume water content | ||||||
| Measuring range | 0 – Saturated water content | ||||||
| Moisture range | 0-60%m³/m³ | ||||||
| Output signal | RS485 (Modbus-RTU protocol) | ||||||
| Supply voltage | 12～24VDC | ||||||
| Moisture accuracy | <±0.03m³/m³(±3%), (soluble salt content EC≤0.5ms/cm, bulk density ≤1.55gcm³, standard calibration of measurement range 0%~50%VWC) | ||||||
| resolution | 0.1% | ||||||
| Measure time | ＜500ms | ||||||
| Operating environment | Outdoor, the suitable ambient temperature is 0-45°C | ||||||
| Cable length | 5 meters as standard | ||||||
| Housing material | ABS engineering plastics | ||||||
| Probe material | 316 stainless steel | ||||||
| Overall weight | ≈ 350g with 5m cable | ||||||
| Degree of protection | IP68 | ||||||
| Maximum power | The typical value of 12VDC is 50mA, and the typical value of 24VDC is 25mA | ||||||
