YBNJ02Y Static Torque Sensor Square Key Connection Flange Connection 0.2%FS 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: YBNJ02Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Rated Torque: 2~2000Nm Output Signal: 0.8~2mV/V (clockwise)
Power Supply Voltage: 2~12VDC Accuracy Grade: 0.2%FS, 0.5%FS
Name: Static Torque Sensor
Highlight:

YBNJ02 Static Torque Sensor

,

Static Torque Sensor 0.2%FS

,

Static Torque Sensor 0.5%FS

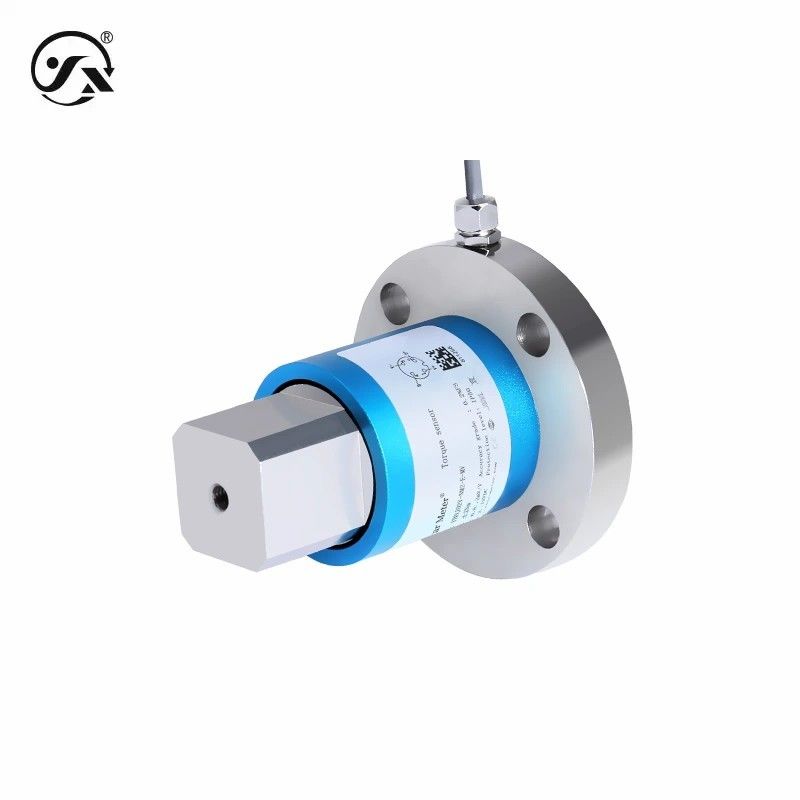

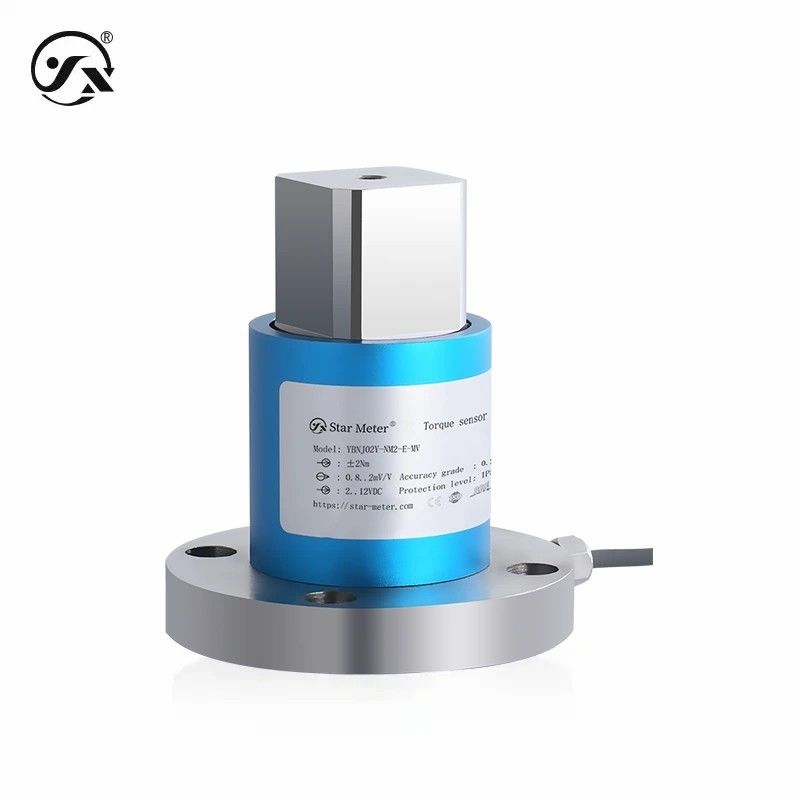

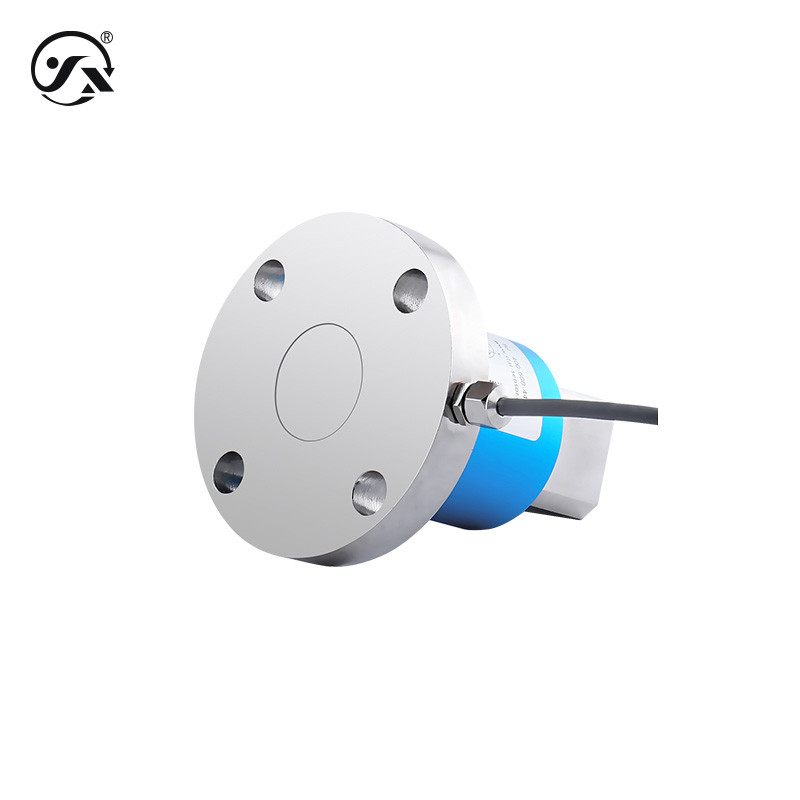

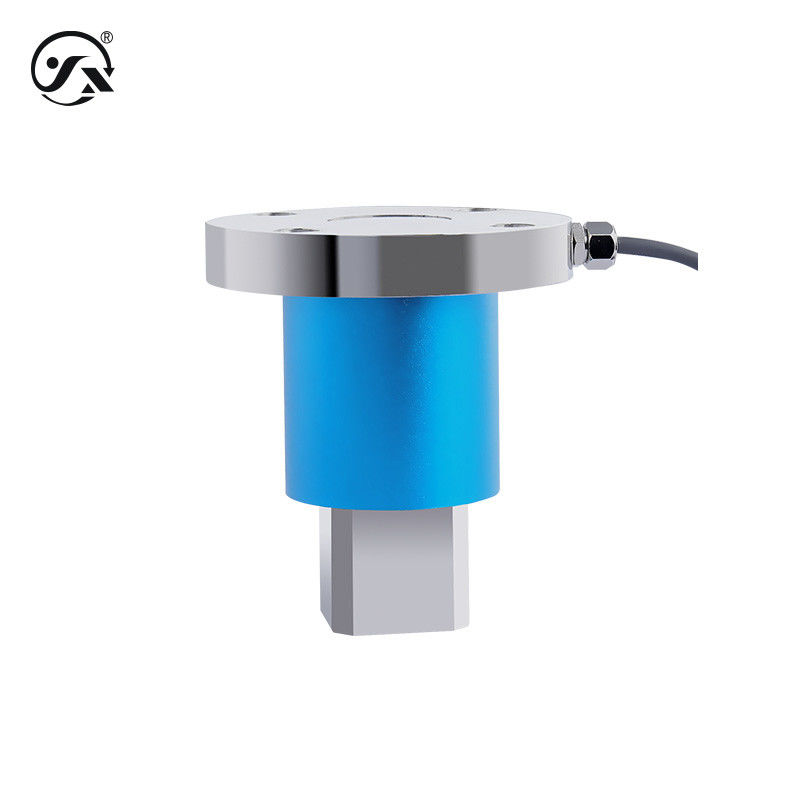

YBNJ02Y Static Torque Sensor Square Key Connection Flange Connection



YBNJ02Y static torque sensor adopts German technology and production equipment and advanced testing equipment. One end is a square key connection, and the other end is a flange connection. Compact structure, easy to handle and install. It has the characteristics of high precision, stable and reliable performance, wide test range and high cost performance.





Base parameters
Rated torque 2~2000Nm
Output signal 0.8~2mV/V(clockwise)
Accuracy class 0.2%FS, 0.5%FS Relative repeatability error at constant mounting position±0.02%
Bridge resistance 1000Ω
Supply voltage 2~12VDC
Temperature drift ±0.2%FS/10°C (Reference temperature 23°C)
Maximum operating torque 150%FS
Maximum ultimate torque 200%FS
Breaking torque 300%FS
Degree of protection IP50
Environmental conditions
Ambient temperature -15~55℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
enclosure 6061 aluminum
axis LY12 aluminum (≤2Nm), stainless steel (>2Nm)
Cable φ3.2 polyurethane shielded cable
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
