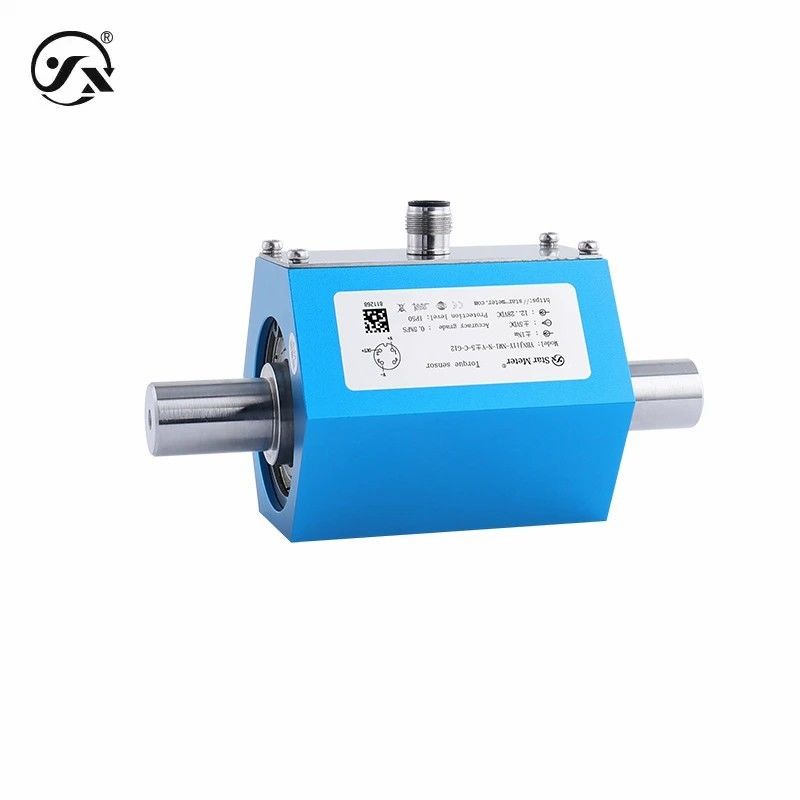

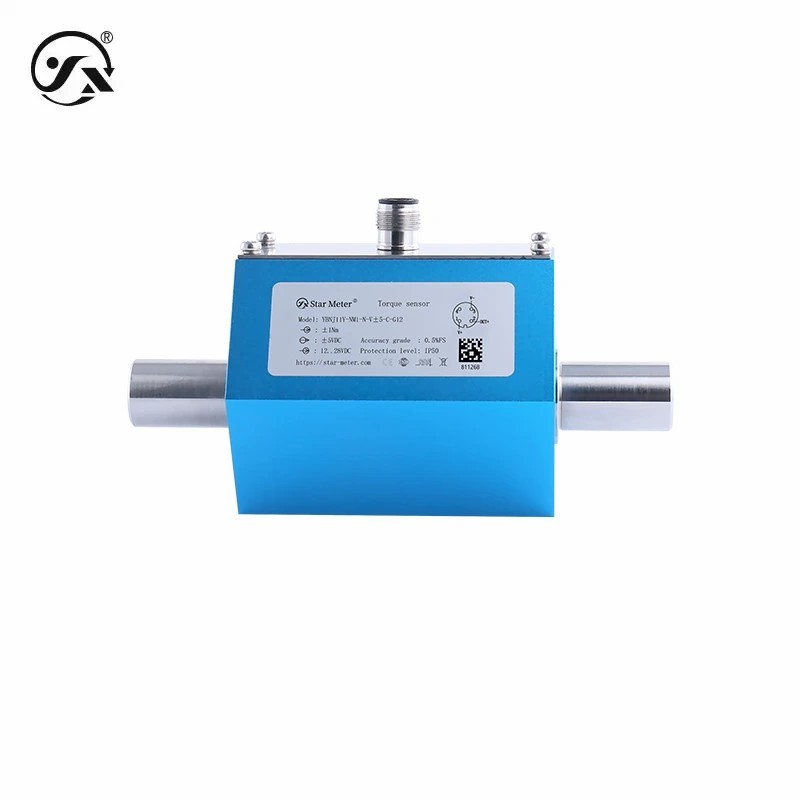

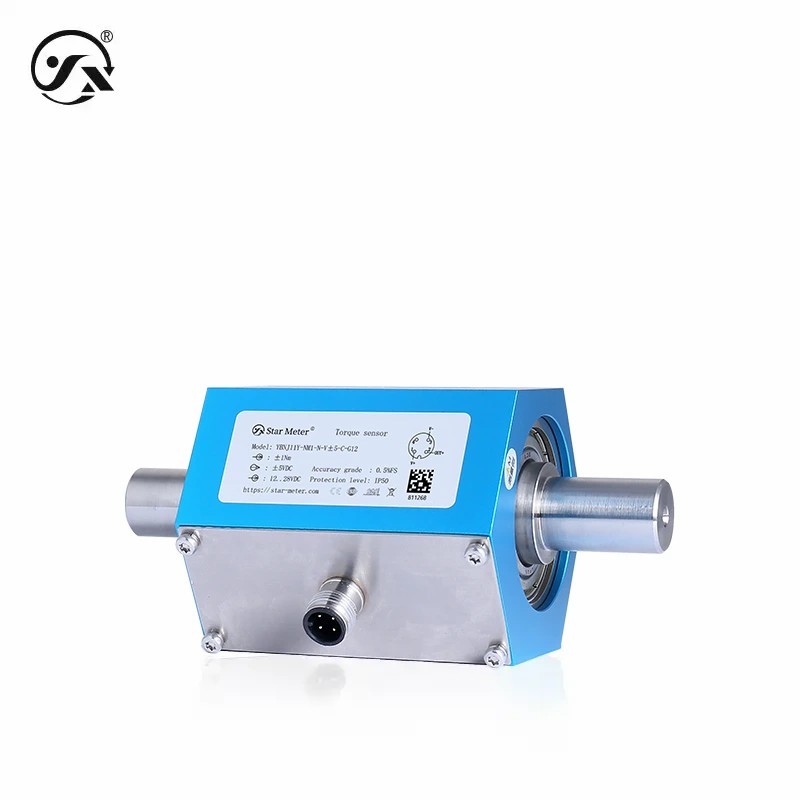

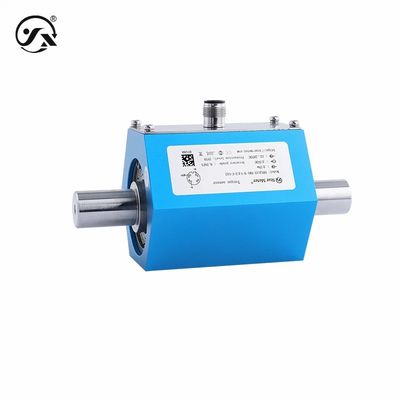

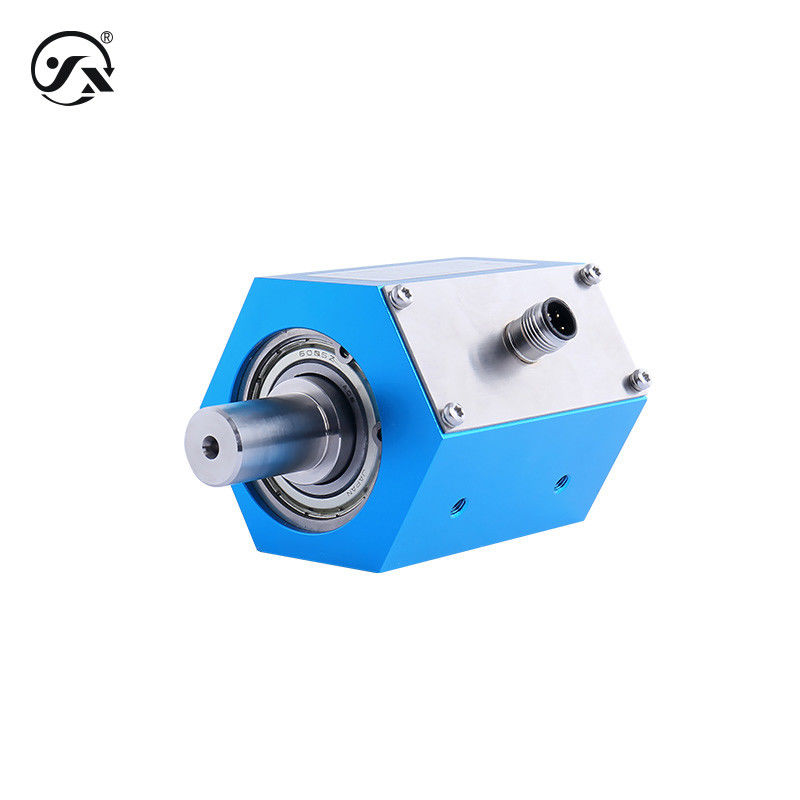

0.5%FS Torque Transmitter Sensor YBNJ11Y Shaft Type Dynamic Torque Sensor

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: YBNJ11Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Rated Torque: 0.2~200Nm Output Signal: ±5VDC, ±10VDC, RS485
Power Supply Voltage: 12~28VDC, 24~28VDC Accuracy Class: 0.5%FS
Name: Torque Transmitter Sensor
Highlight:

0.5%FS Torque Transmitter Sensor

,

Torque Transmitter Sensor YBNJ11

,

Shaft Type Dynamic Torque Sensor

YBNJ11Y Shaft Type Dynamic Torque Sensor Stable And Reliable Performance, Wide Test Range



YBNJ11Y shaft dynamic torque sensor adopts German technology and production equipment and advanced testing equipment. Both ends can be keyed. Compact structure, easy to handle and install. It has the characteristics of high precision, stable and reliable performance, wide test range and high cost performance.





Base parameters
Rated torque 0.2~200Nm
Accuracy class 0.5%FS Relative repeatability error with unchanged mounting position± 0.02%
Temperature drift ±0.2%FS/10°C (Reference temperature 23°C)
Maximum operating torque 150%FS
Maximum ultimate torque 200%FS
Breaking torque 300%FS
Degree of protection IP50
Environmental conditions
Ambient temperature -10~60℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
enclosure 6061 aluminum
axis LY12 aluminum (≤2Nm), stainless steel (>2Nm)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
