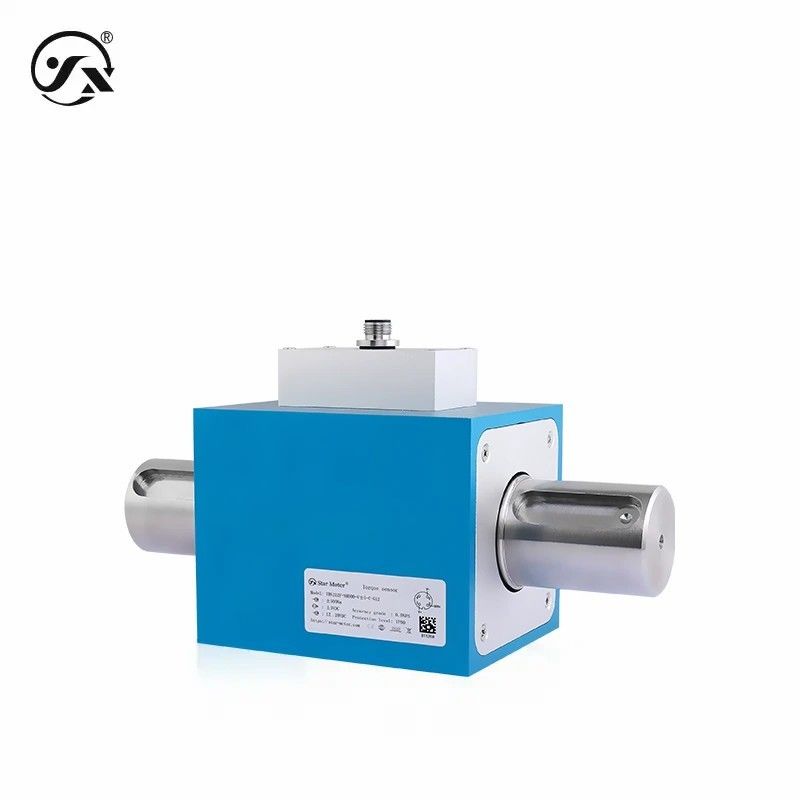

YBNJ12Y Shaft Dynamic Torque Sensor Adopts German Technology And Production Equipment

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: YBNJ12Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Rated Torque: 500~5000Nm Output Signal: ±5VDC, ±10VDC, RS485
Power Supply Voltage: 12~28VDC, 24~28VDC Accuracy Level: 0.5%FS
Name: Shaft Dynamic Torque Sensor
Highlight:

YBNJ12 Dynamic Torque Sensor

,

Shaft Dynamic Torque Sensor

,

YBNJ12 Shaft Torque Sensor

YBNJ12Y Shaft Dynamic Torque Sensor Adopts German Technology And Production Equipment And Advanced Testing Equipment



YBNJ12Y shaft dynamic torque transducer adopts German technology and production equipment and advanced testing equipment. Both ends are keyed connections. Compact structure, easy to handle and install. It has the characteristics of high precision, stable and reliable performance, wide test range and high cost performance.





Basic parameters
Rated torque 500~5000Nm
Accuracy level 0.5%FS Relative repeatability error ±0.02% when the installation position is unchanged
temperature drift ±0.2%FS/10℃ (reference temperature 23℃)
Maximum power consumption ≤70mA
Maximum working torque 150%FS
Maximum ultimate torque 200%FS
Breaking torque >300%FS
Protection level IP50
environmental conditions
ambient temperature -10~60℃
environment humidity 0%~95%RH (no condensation, no condensation)
overall material
shell 6061 aluminum
axis 17-4PH stainless steel
mechanical stability
Anti-vibration performance 10g(20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but doesn’t work
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Product Selection—Chinese (CN) PDF
Product Selection—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
Protocol—Chinese (CN) PDF
Protocol—English (EN) PDF
