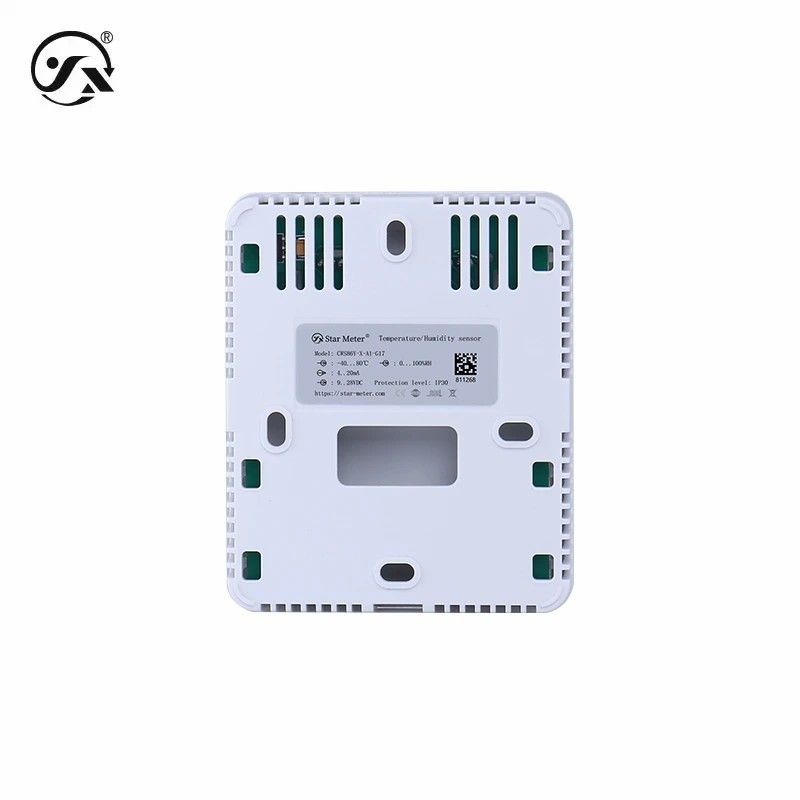

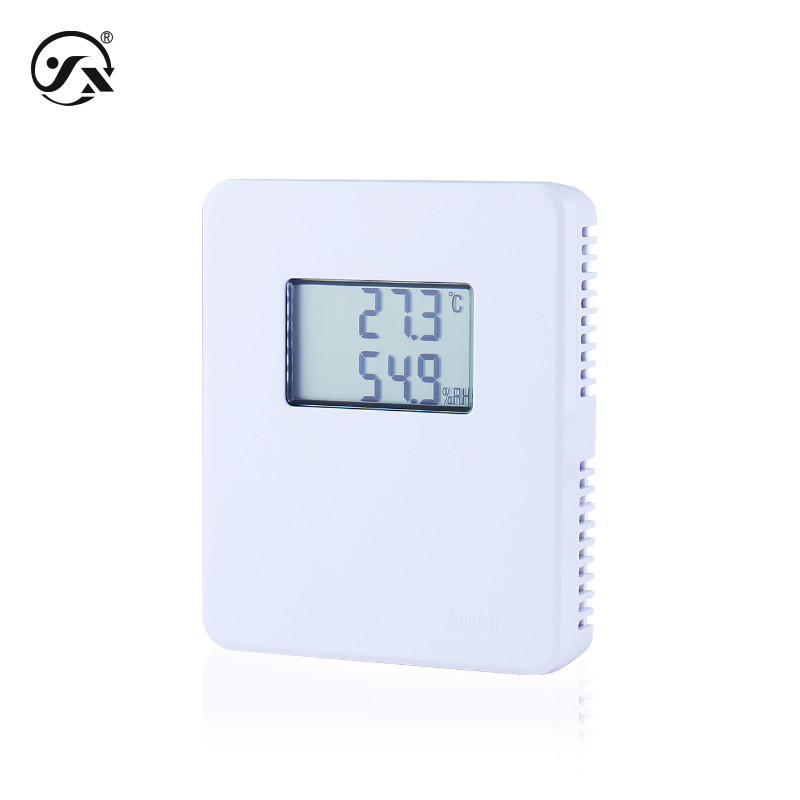

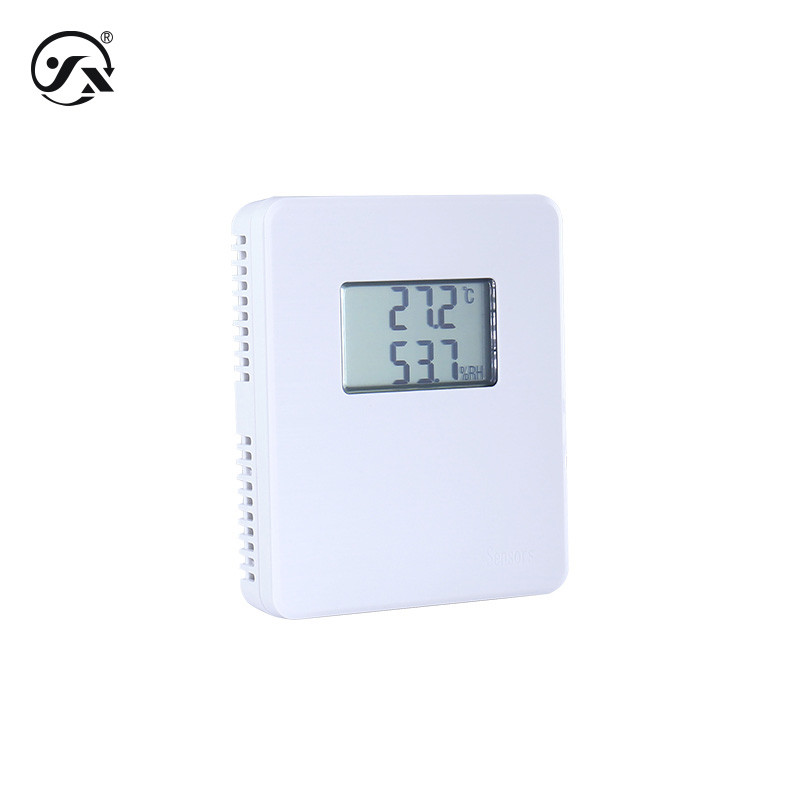

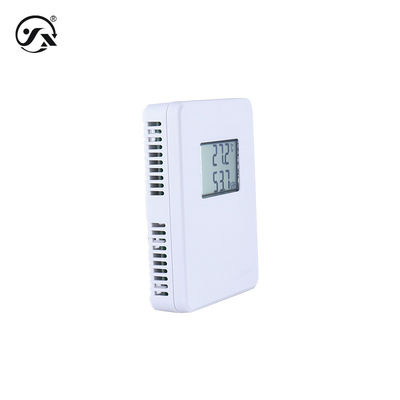

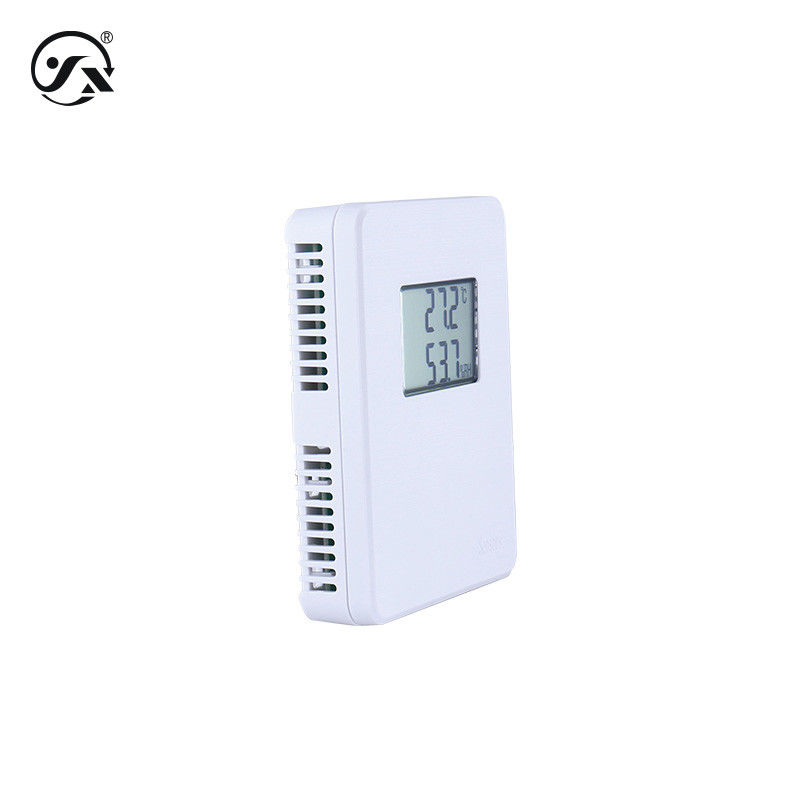

CWS86Y Wall Mounted Temperature And Humidity Transmitter For Hospital Wards Clean Rooms HVAC

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWS86Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: Temperature -40~80°C Humidity 0-100%RH (relative Humidity) Output: RS485, 4-20mA
Power Supply: 5~28VDC, 9~28VDC Name: Temperature And Humidity Transmitter
Highlight:

CWS86 Temperature And Humidity Transmitter

,

Wall Mounted Temperature And Humidity Transmitter

,

Wall Mounted Humidity Temperature Transmitter

CWS86Y Wall-Mounted Temperature And Humidity Transmitter Hospital Wards Clean Rooms HVAC

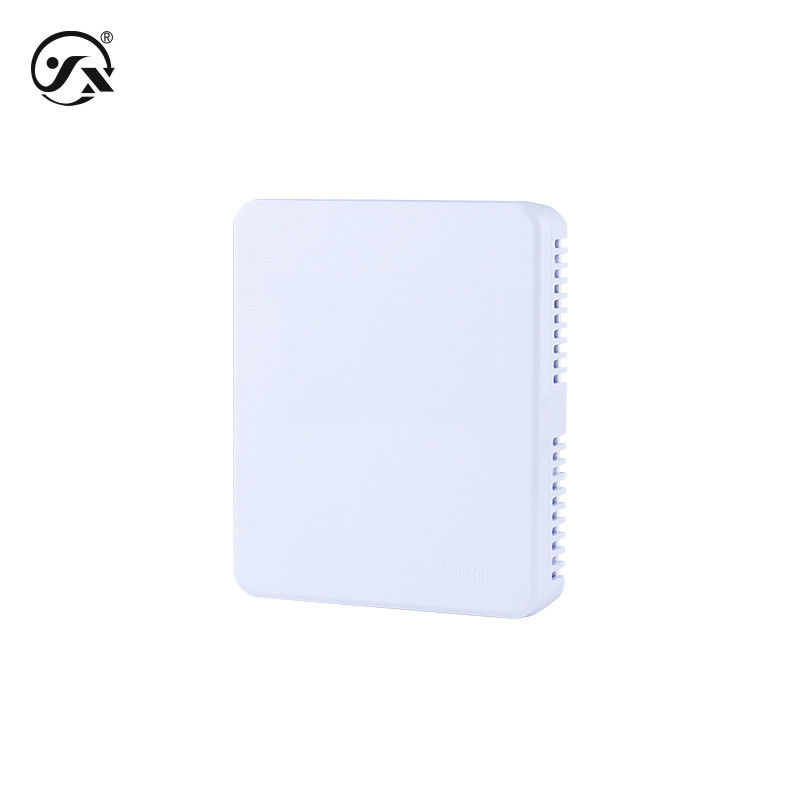

The CWS86Y wall-mounted humidity and temperature transmitter fits into an 86 bottom box. Using Swiss SENSOR high-performance temperature and humidity sensor chip, the circuit adopts loop design, which avoids the problem of inaccurate measurement caused by internal temperature rise. Available with and without display.





Base parameters
Measuring medium Gas (compatible with contact material)
Temperature range -40~80℃
Humidity range 0-100%RH (relative humidity)
Overall weight ≈85g
Response frequency ≤2Hz
Stable performance ±1%RH FS/year ±0.2°C/year
Degree of protection IP30
Speed of response 15s (temperature at 10°C per step, humidity at 10%RH per step, gas flow rate of 0.1m/s.) )
Output power
4~20mA 9~28VDC
RS485 5~28VDC
Maximum power
4~20mA ≤0.04Us(W)
RS485 ≤0.015Us(W)
Load characteristics
load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
Body housing ABS engineering plastics
Display LCD display without backlight
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 4mA, output max 20mA
RS485 Output minimum 0, output maximum 1650/1000
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
