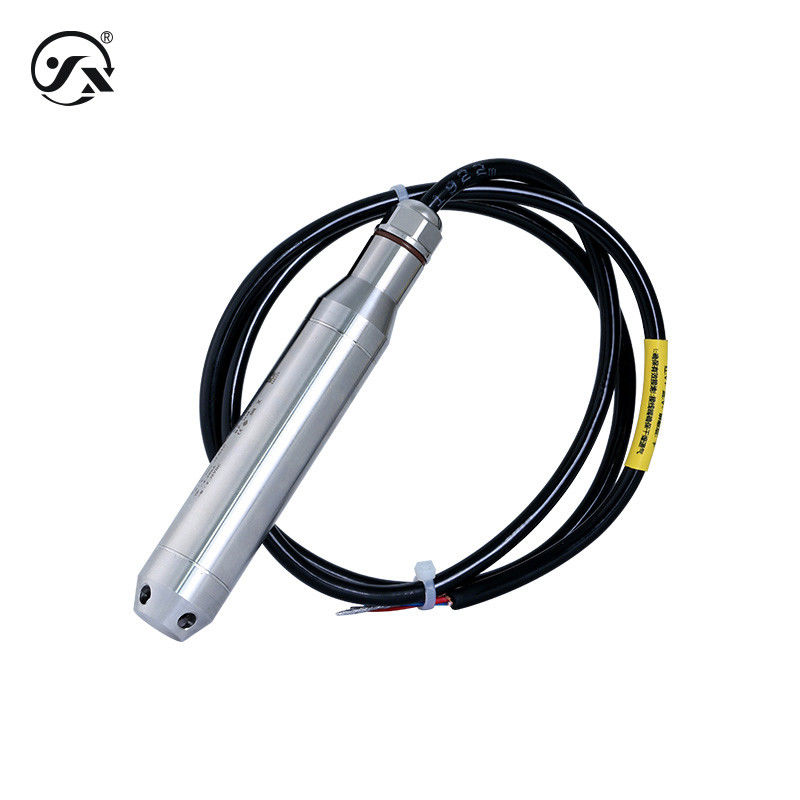

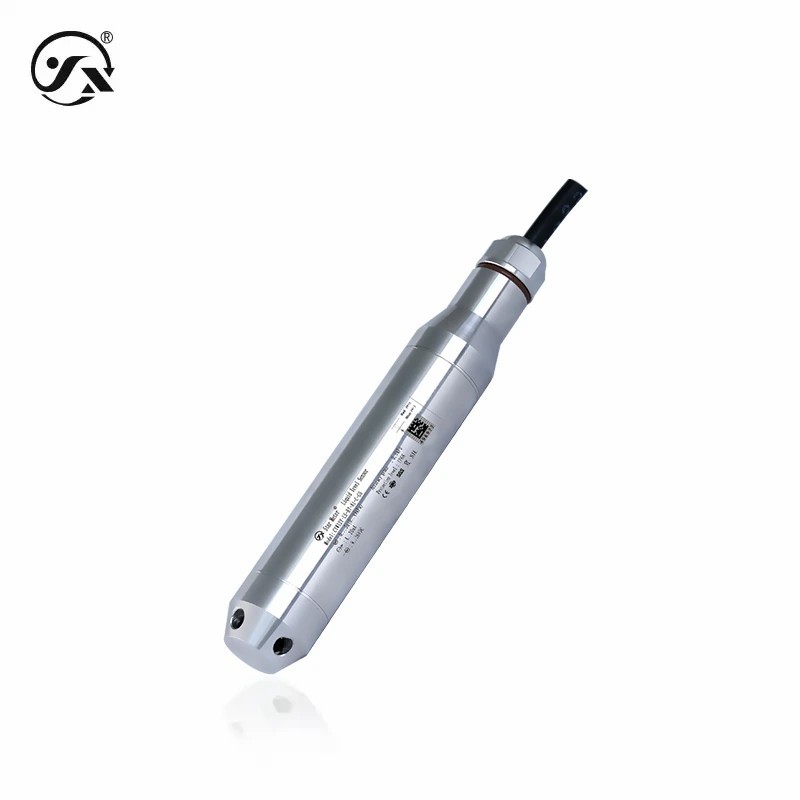

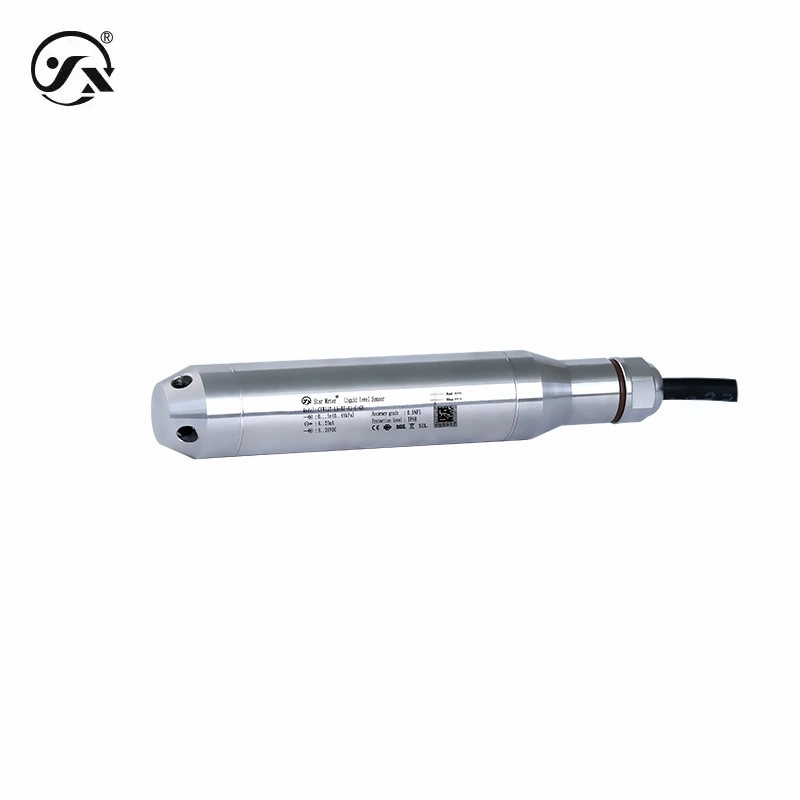

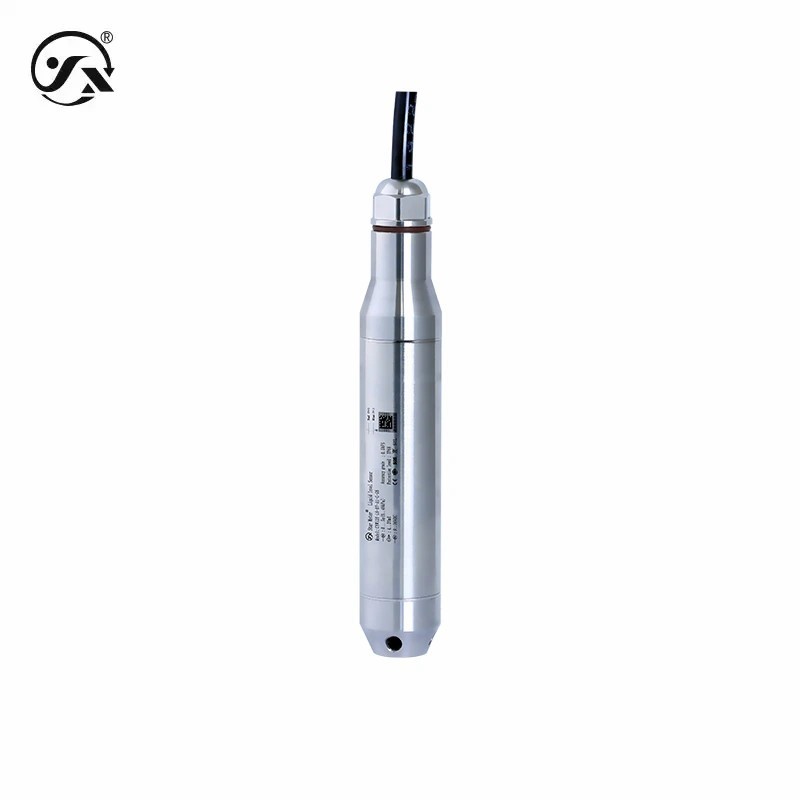

CYW12Y Protective Submersible Pressure Transmitter For Level Measurement

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW12Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Liquid Level Range: 0~1~200mH2O Temperature Range: -20~85°C
Output: 4~20mA, RS485 Power Supply: 9~36VDC
Pressure Accuracy: 0.25%FS, 0.5%FS Temperature Accuracy: ≤±0.5°C
Name: Liquid Level Transmitter
Highlight:

CYW12 Submersible Pressure Transmitter

,

Protective Submersible Pressure Transmitter

,

Submersible Pressure Transmitter For Level Measurement

CYW12Y Protective Submersible Level Transmitter Liquid Level Range 0~1~200mH2O Temperature Range -20~85°C



CYW12Y protective submersible level transmitter adopts double isolation diaphragm inside and integral welding process outside, which makes it have superior anti-condensation function. It is mainly used in liquid level measurement sites such as large changes in medium temperature and humid environment.



Basic parameters
Measuring medium Water (H2O) or liquids compatible with contact materials
Measuring range 0~1~200mH2O (see range selection table for details)
Medium temperature -40~85℃
Temperature range -20~85℃
Frequency of response The analog signal output ≤ 50Hz, and the digital signal output ≤ 5Hz
Stable performance ±0.1% FS/year
Supply voltage 9~36VDC
Signal output 4~20mA,RS485
Overload capacity 200% full scale
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Accuracy class 0.25%FS (range≥10m), 0.5%FS(range<10m)<b10> Note: Reference conditions: temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH.
Explosion-proof type Intrinsically safe Ex ia II.C T6 Ga (4~20mA output only)
Ingress protection IP68
Overall weight Probes ≈ 410g cable ≈ 60g per meter
Turn-on time 400ms
resolution Analog output 0.01%FS, digital output 0.05%FS
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Ambient temperature -40~85℃
Overall material
Diaphragm 316L stainless steel (in contact with the medium to be measured)
Outer shell 304 stainless steel (in contact with the test medium)
Seals Nitrile rubber (contact with the medium to be measured)
Cable Polyurethane φ7.2 gas conductive cable (in contact with the medium to be measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact resistance 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
Level output
4-20mA 4~20mA
RS485 0~2000
Liquid temperature output
4-20mA 2.5~26mA
RS485 0~1500
