CYW12CY Protective Submersible Level Transmitter 4-20mA HART RS485 Accuracy 0.25%FS 0.5%FS

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW12CY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~1~200mH2O Output: 4~20mA, 4~20mA HART, RS485
Power Supply: 9~32VDC, 15~32VDC, 13~32VDC, 15~24VDC Accuracy: 0.25%FS, 0.5%FS
Name: Liquid Level Transmitter
Highlight:

Protective Submersible Level Transmitter

,

Submersible Level Transmitter 4-20mA

,

CYW12C Submersible Level Transmitter

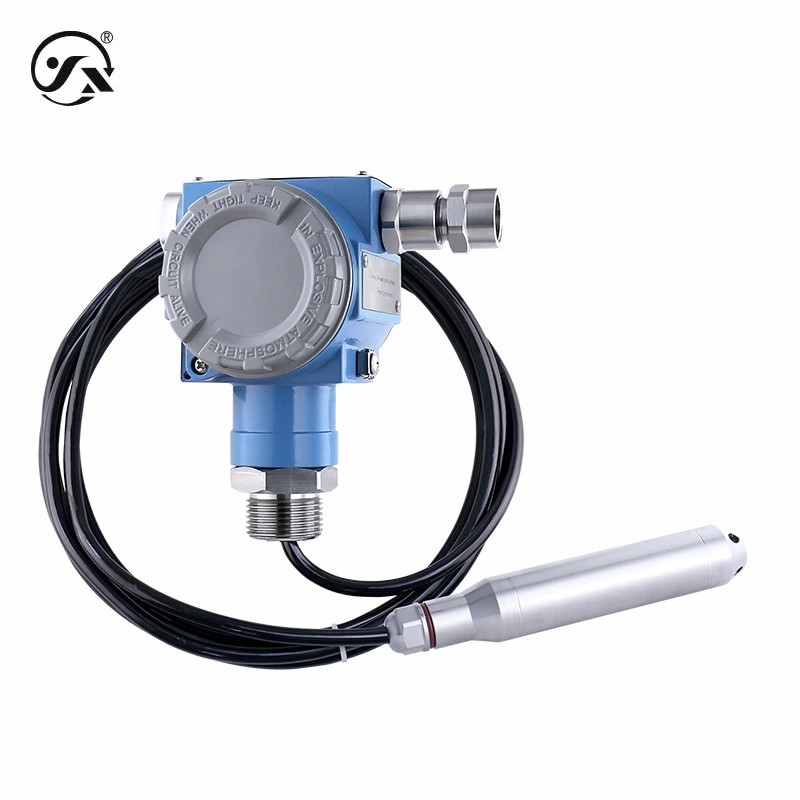

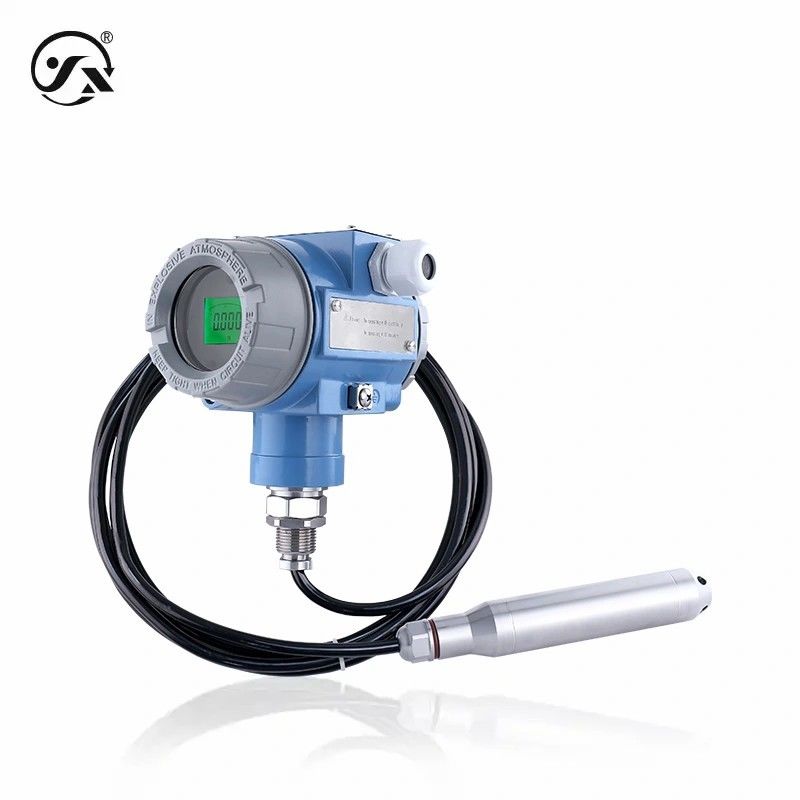

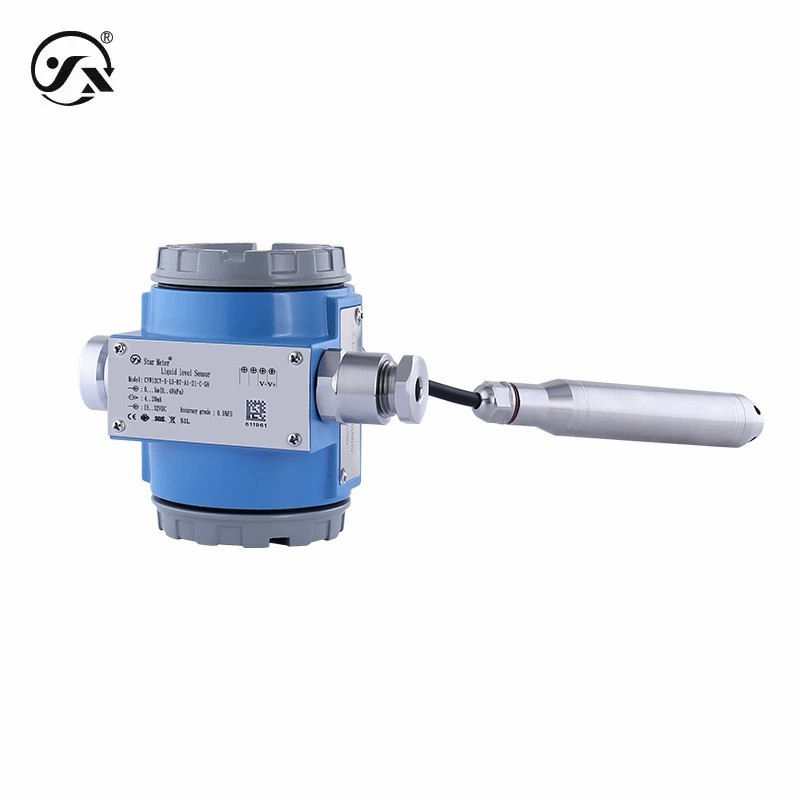

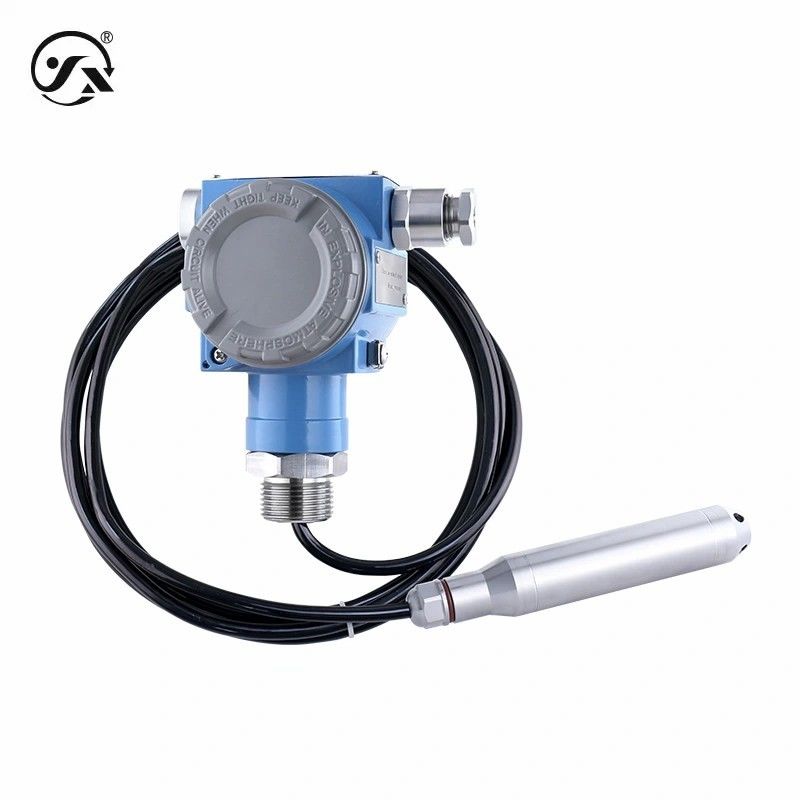

CYW12CY Protective Submersible Level Transmitter Range 0~1~200mH2O Output 4~20mA HART RS485 Accuracy 0.25%FS 0.5%FS



This level transmitter product adopts stainless steel double isolation diaphragm OEM pressure sensor as the signal measurement element, the internal sealing treatment, the external use of the integral laser welding process, so that it has the function of anti-condensation in the cavity, and after automatic computer testing, the laser resistance process is used for a wide temperature range of zero point and sensitivity temperature
Compensate. It is anti-interference, small temperature drift, high stability, and has high measurement accuracy, which is an ideal liquid level measuring instrument in the field of industrial automation.





Base parameters
Measuring medium Water (H2O) or liquids compatible with contact materials
Measuring range 0~1~200mH2O (see range selection table for details)
Media temperature -40~85℃
Response frequency Analog signal output≤ 50Hz, digital signal output ≤5Hz
Stable performance ± 0.1% FS/year
Overload capacity 200% full scale
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Accuracy class 0.25%FS (range≥10m), 0.5%FS (range<10m) with repeatability≤0.05%FS, hysteresis≤0.05%FS Header accuracy 0.5%FS<b15> Liquid crystal (LCD)
display
Note: Reference conditions: temperature 25~86°C, atmospheric pressure 106~45kPa, humidity 75~<>%RH.
Ex type Flameproof Ex db II.C T6 Gb Flameproof Dust Type Ex tb IIIC T80°C Db



Intrinsically Safe Ex ia II.C T6 Ga (4~20mA/4~20mA HART output only)
Dust Intrinsically Safe Ex iaD 20 T80°C (4~20mA/4~20mA HART output only).
NOTE: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply

Degree of protection Probe IP68 Junction Box IP66
Note: The above protection level refers to the electrical connection is complete
Overall weight No display≈ 1.25kg with display≈1.4kg probe≈ 410g cable ≈ 60g per meter
On-time 400ms
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
Maximum power
4~20mA Yes/No Display≤0.02Us(W)
RS485 With display≤0.02Us(W), No display≤0.015Us(W)
4~20mA HART Yes/No Display≤0.02Us(W)
Load characteristics
Current type No display load ≤{(US-7.5)÷0.02}Ω
with display load ≤{(US-12)÷0.02}Ω (Us=supply voltage) HART current type: load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85°C(no condensation, no condensation)
Overall material
Diaphragm 316L stainless steel (contact with the medium to be measured)
Outer shell 304 stainless steel (contact with the medium to be measured)
Junction box Die-cast aluminum
Seals Nitrile rubber (contact with the medium to be measured)
Cable Polyurethane φ7.2 gas cable (contact with the measured medium)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 2.5mA, output max 26mA
RS485 Output minimum 0 and output maximum 2000
4-20mA HART Output min. 3.8mA, output max 22mA
