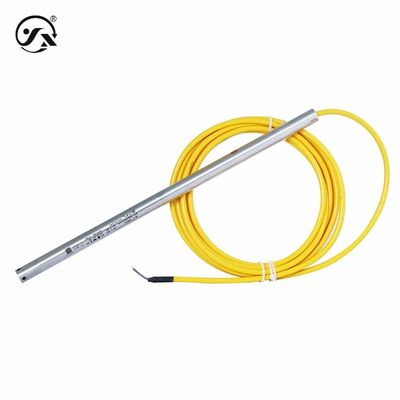

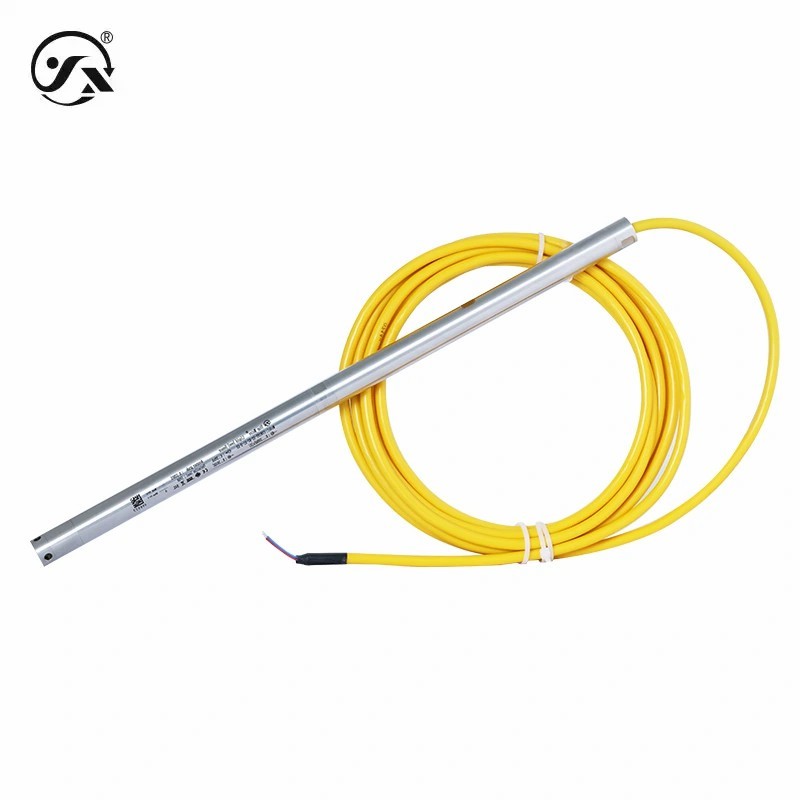

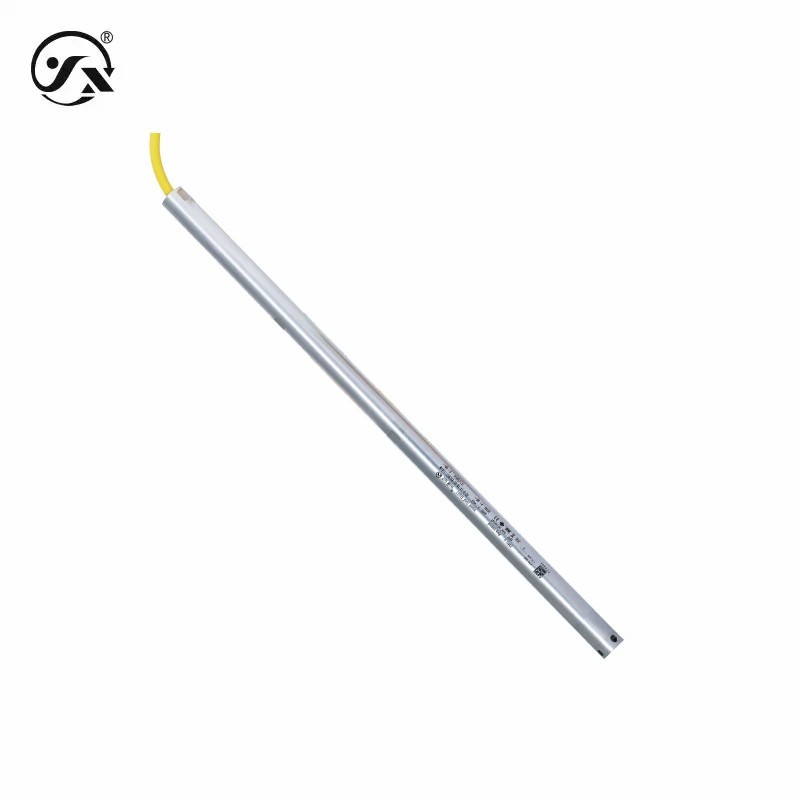

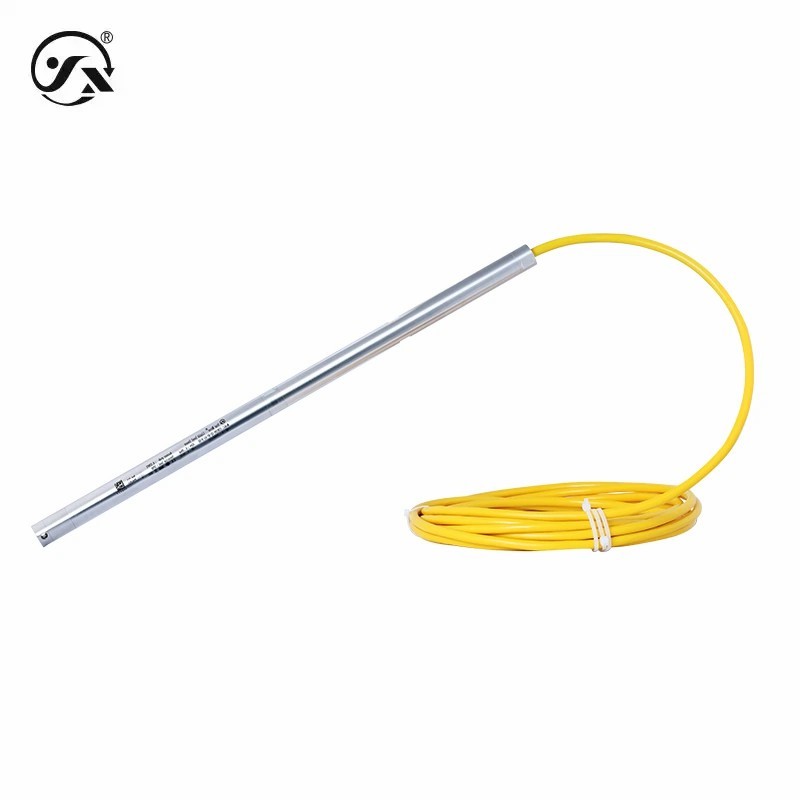

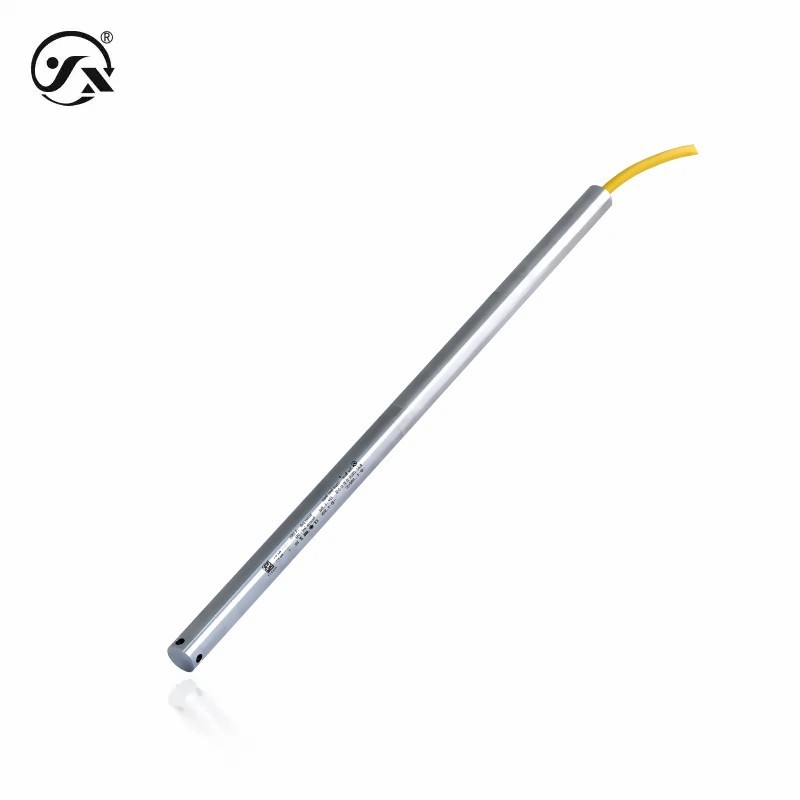

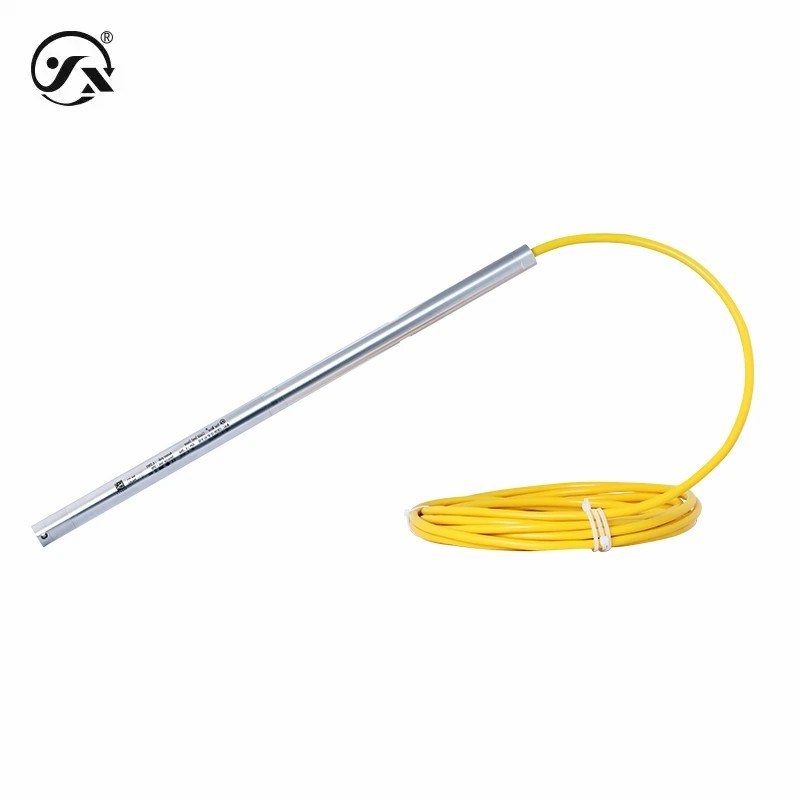

CYW16Y Deep Well Type Liquid Level Transmitter High Precision Wear Resistant

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW16Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Liquid Level Transmitter Liquid Level Range: 0~200~500~1000~2000mH2O
Temperature Range: -40~100°C Output: 4~20mA, 4~12~20mA
Power Supply: 9~36VDC
Highlight:

CYW16 Liquid Level Transmitter

,

Liquid Level Transmitter High Precision

,

CYW16 Deep Well Level Transmitter

CYW16Y Deep Well Type Submersible Level Transmitter Liquid Level Range 0~200~500~1000~2000mH2O Temperature Range-40~100°C



The CYW16Y deep well type submersible level transmitter is independently designed for deep well measurement applications. It has the advantages of small temperature drift coefficient, high precision, wear resistance and anti-pulling of the cable. With double isolation cavity, customers can connect the cable by themselves for easy use.



Base parameters
Measuring medium Water (H2O) or liquids compatible with contact materials
Measuring range 0~200~500~1000~2000mH2O
Temperature range: -40~100℃(±2℃)
Media temperature: -40~100°C (factory with wire)/-40~60°C (self-wiring, depending on packaging process)
Pressure mode: Sealing pressure (S)
Response frequency: Analog signal output≤ 50Hz
Stable performance: ± 0.1% FS/year
Accuracy class: 0.1%FS
Note: Reference conditions: temperature 15~25°C, atmospheric pressure 86~106kPa, humidity 45~75%RH.
Supply voltage: 9~36VDC
Signal output: 4~20mA,4~12~20mA
Temperature compensation: -40~85℃
Overload capacity: 200% full scale
Temperature drift: ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP68
Overall weight Probe≈ 650g Cable ≈ 110g per meter
On-time 400ms
Maximum power ≤0.02Us(W) Note: Us=Supply voltage.
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
Environmental conditions
Ambient temperature -40~100℃
Overall material
Diaphragm 316L stainless steel (contact with the medium to be measured)
Outer shell 316L stainless steel (contact with the medium to be measured)
Seals Fluorine glue (without cable, contact with the medium to be measured)
Seals Fluorine glue (contact with the medium to be measured)
Cable Polyethylene φ7.8 steel wire layer cable (contact with the measured medium)
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA 4~20mA
