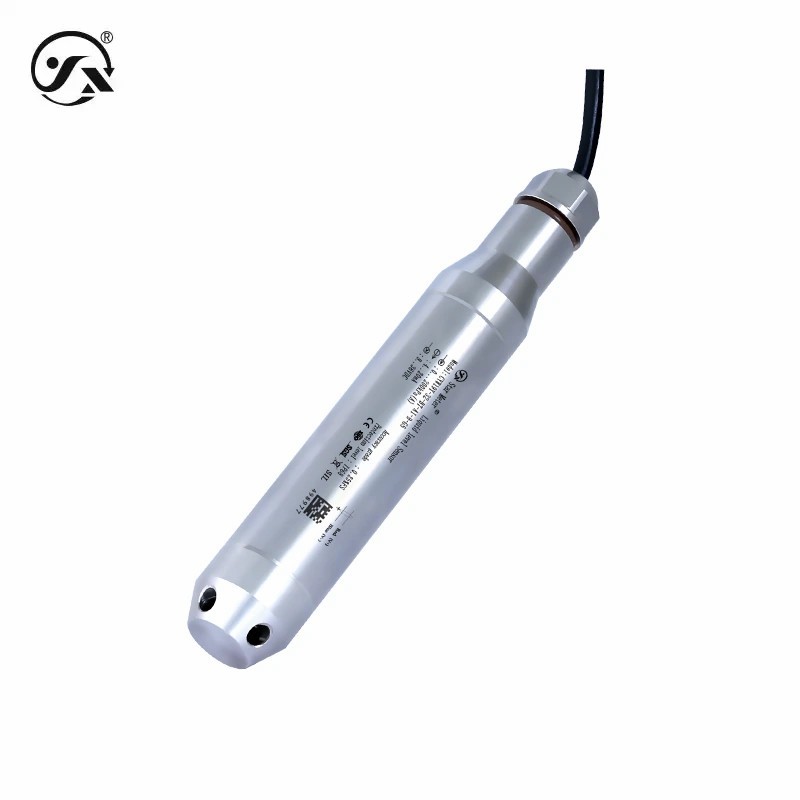

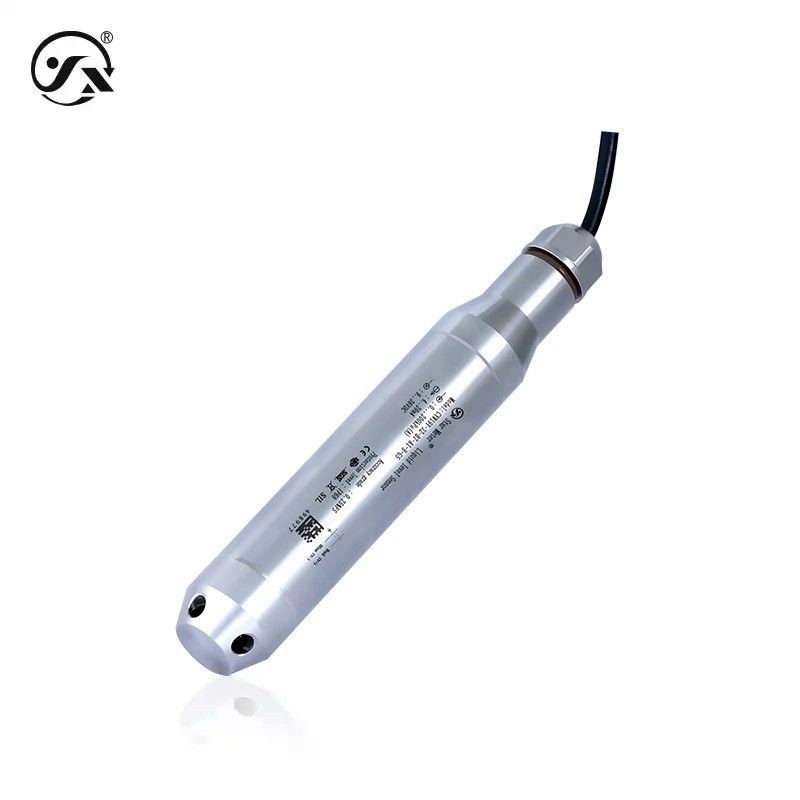

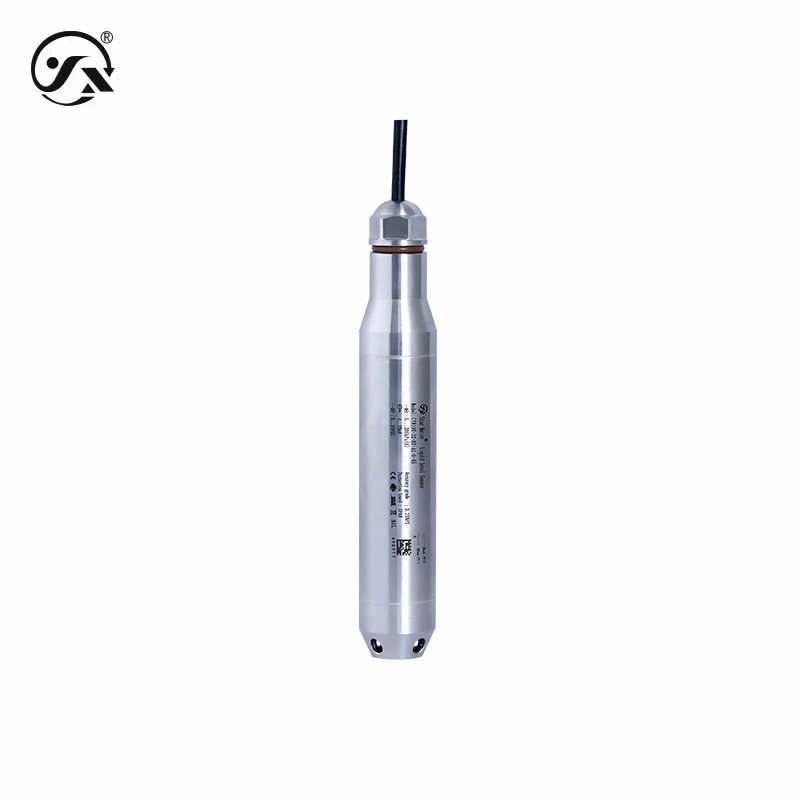

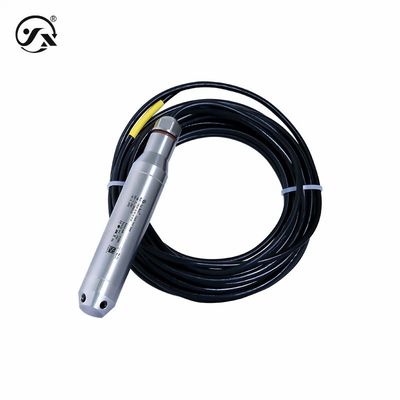

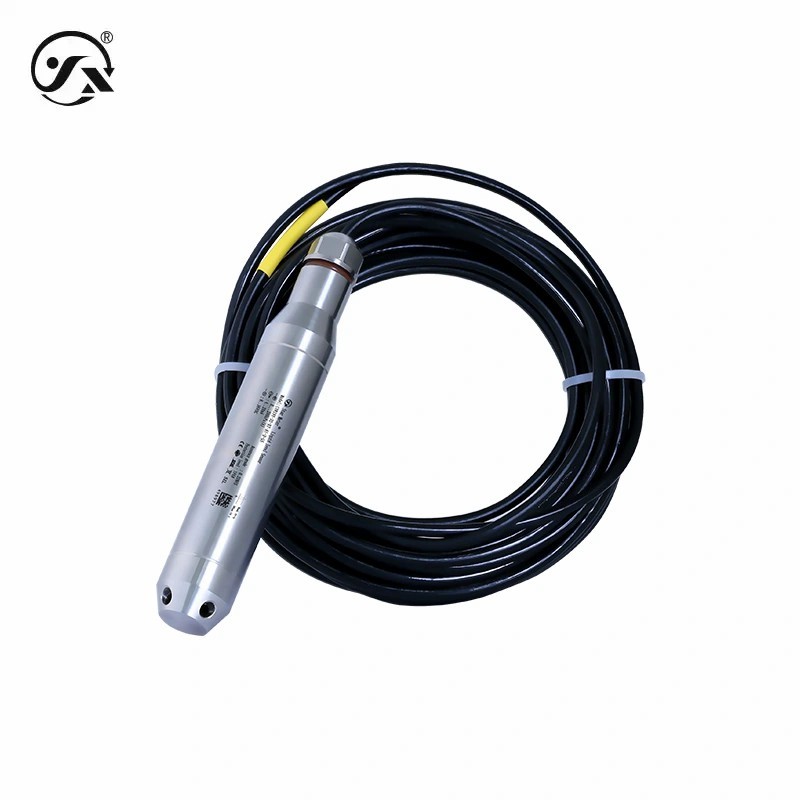

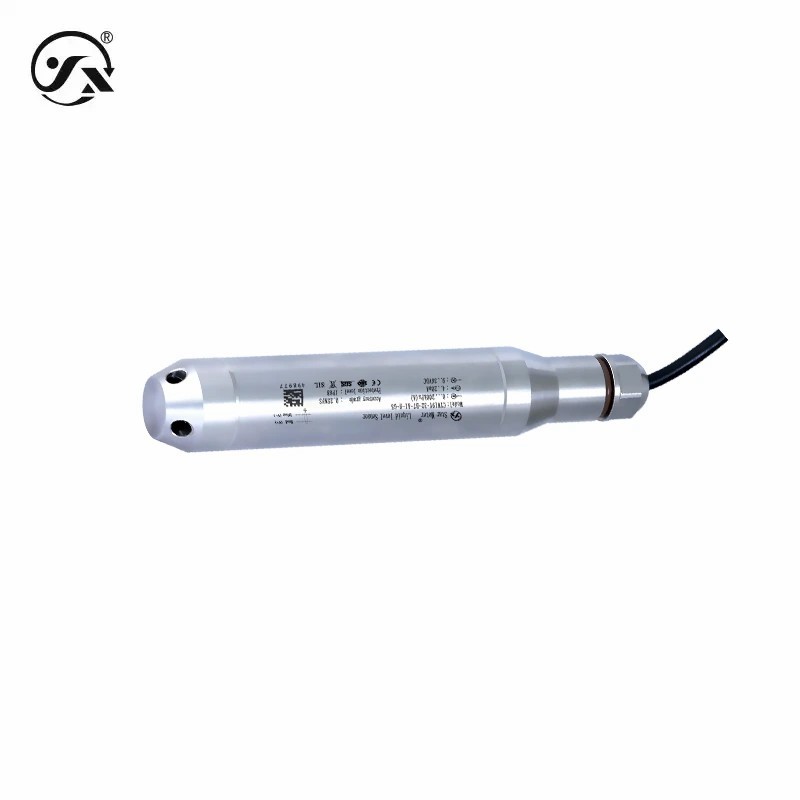

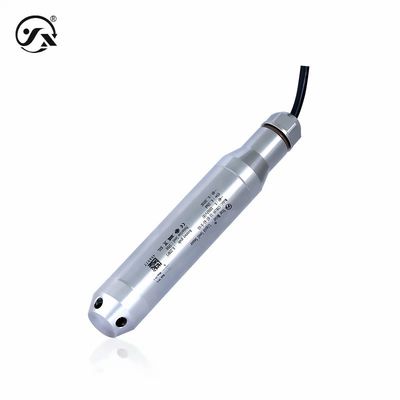

CYW19Y Absolute Pressure Transmitter 0.1%FS, 0.25%FS Submersible Water Level Transmitter

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW19Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Submersible Water Level Transmitter Pressure Range: 0~0.2~2MPa(A)
Temperature Range: -20~85°C Output: 4~20mA, RS485
Power Supply: 9~36VDC, 5~28VDC Liquid Level Accuracy: 0.1%FS, 0.25%FS
Temperature Accuracy: ±0.5°C
Highlight:

CYW19 Absolute Pressure Transmitter

,

0.1%FS Submersible Water Level Transmitter

,

0.25%FS Submersible Water Level Transmitter

CYW19Y Absolute Submersible Level Transmitter Pressure Range 0~0.2~2MPa(A) Temperature Range -20~85°C



The CYW19Y absolute pressure submersible level transmitter adopts an absolute pressure measurement process inside, and the internal cavity is completely isolated from the outside. This avoids transmitter damage caused by internal condensation and liquid filling of the cavity caused by the field use environment. Suitable for harsh level measurement sites.





Basic parameters
Measuring medium Water (H2O) or liquids compatible with contact materials
Measuring range 0~0.2~2MPa(A)(See range selection table for details)
Temperature range -20~85℃
Medium temperature -40~85℃
Pressure mode Absolute(A)
Frequency of response The analog signal output ≤ 50Hz, and the digital signal output ≤ 5Hz
Stable performance ±0.1% FS/year
Supply voltage 4~20mA,RS485
Signal output 4~20mA,RS485
Overload capacity 200% full scale
Temperature drift ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Explosion-proof type Intrinsically safe Ex ia II.C T6 Ga (4~20mA output only)
Ingress protection IP68
Overall weight Probes ≈ 310g cables ≈ 40g per meter
Turn-on time 400ms
Maximum power ≤0.02Us(W) Note: Us=supply voltage.
resolution Analog output 0.01%FS, digital output 0.05%FS
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Ambient temperature -40~85℃
Overall material
Diaphragm 316L stainless steel (in contact with the medium to be measured)
Outer shell 304 stainless steel (in contact with the test medium)
Seals Nitrile rubber (contact with the medium to be measured)
Cable Polyurethane φ5 shielded cable (in contact with the medium to be measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact resistance 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
Level output
4-20mA 4~20mA
RS485 0~2000
Liquid temperature output
4-20mA 2.5~26mA
RS485 0~1500
