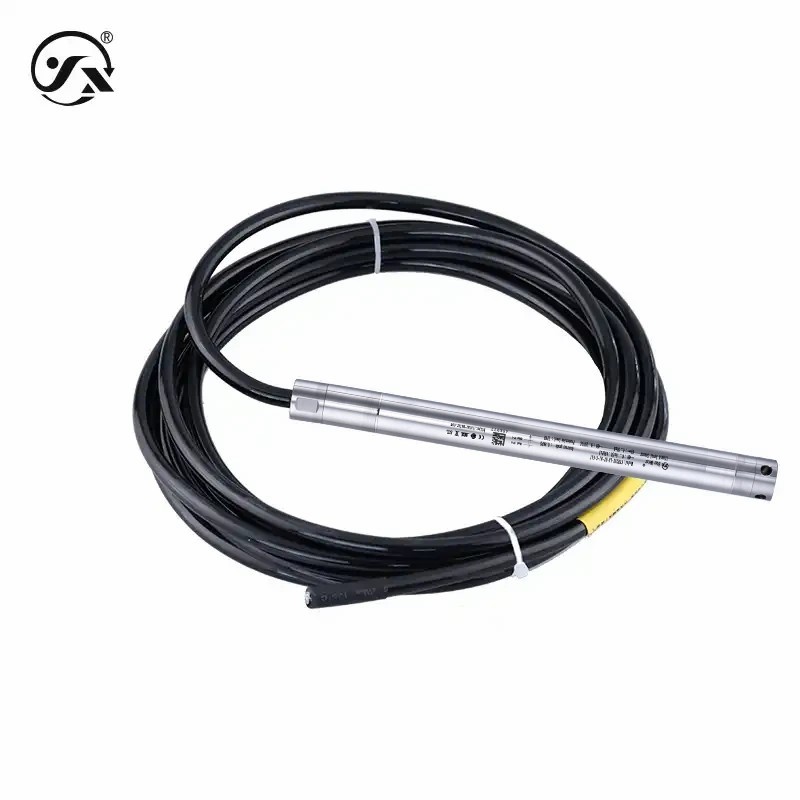

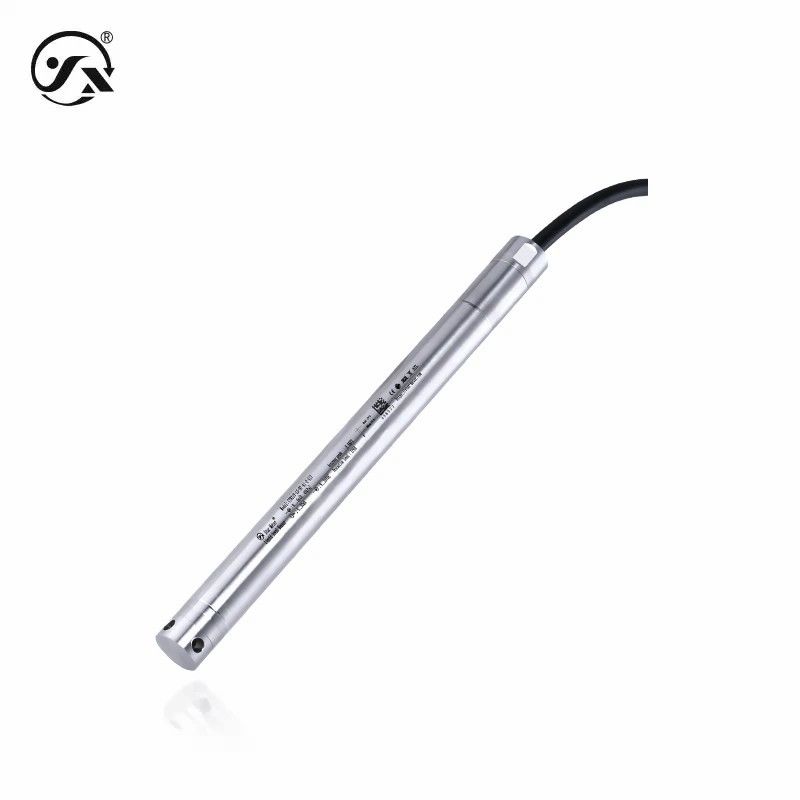

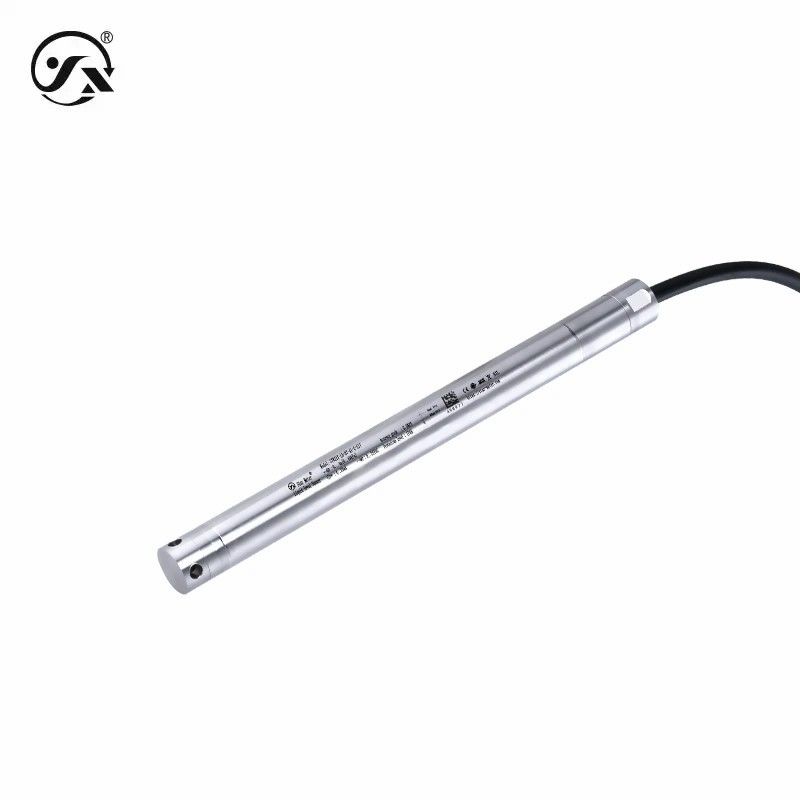

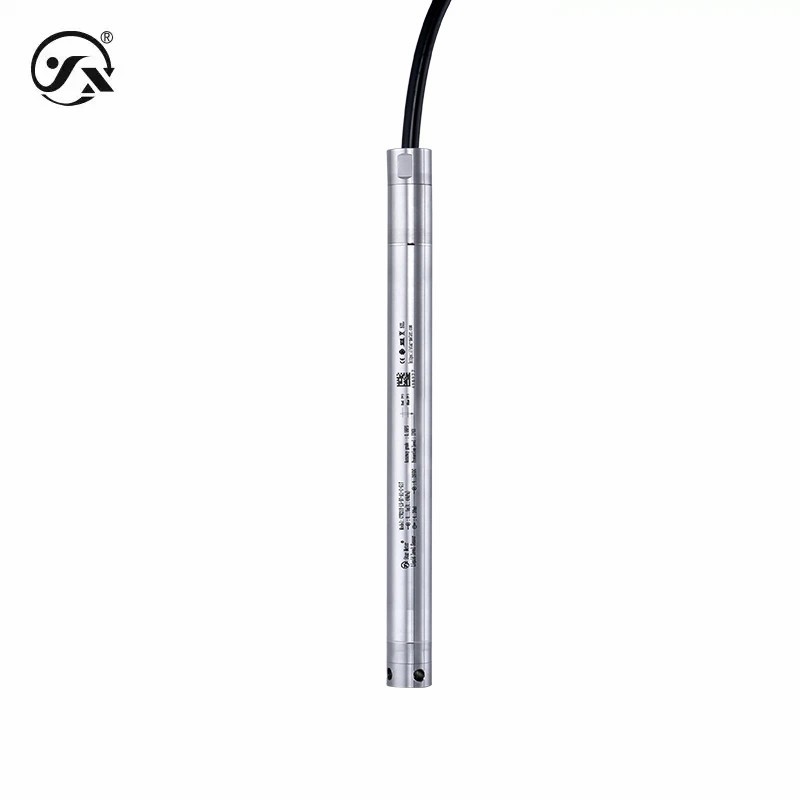

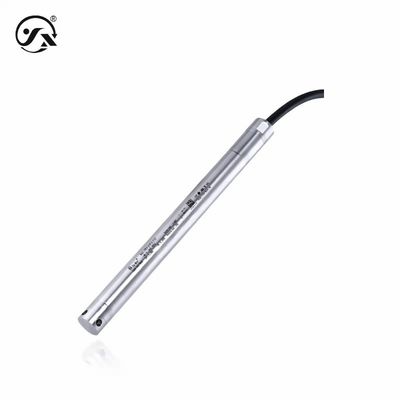

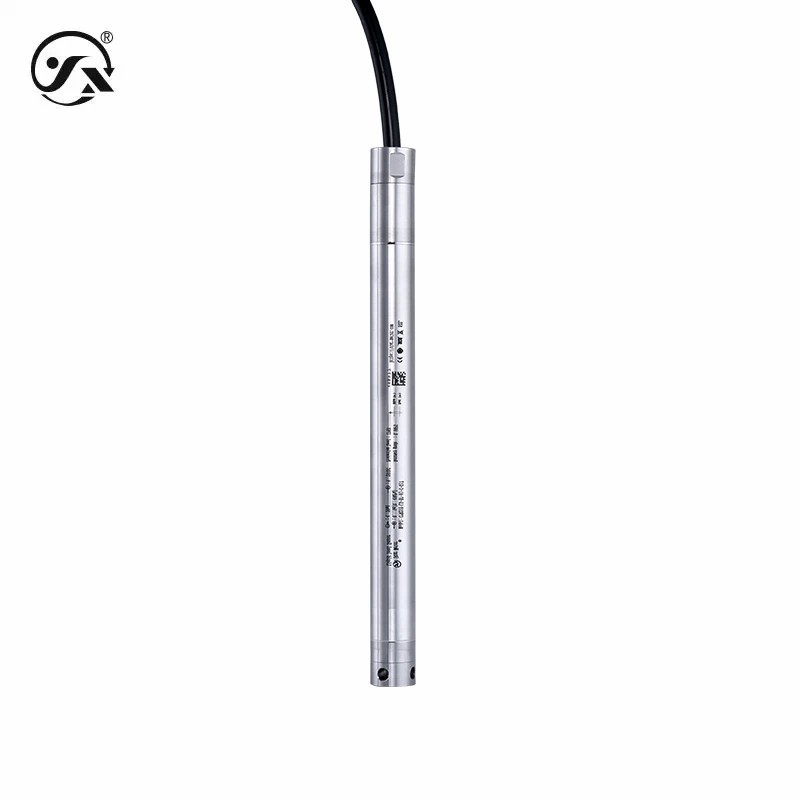

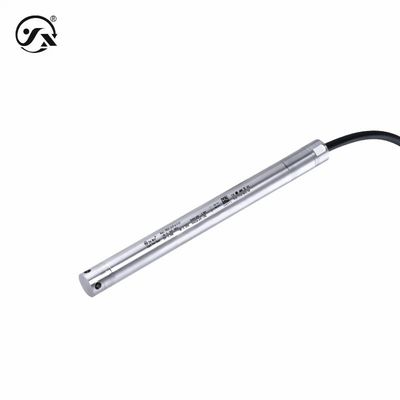

CYW21Y Submersible Level Transmitter 0-10-200mH2O -20-60°C Output 4-20mA RS485

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW21Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Name: Submersible Level Transmitter Level Range: 0~10~200mH2O
Temperature Range: -20~60°C Output: 4~20mA, RS485
Power Supply: 5~28VDC, 9~28VDC Level Accuracy: 0.25%FS, 0.5%FS
Temperature Accuracy: ±0.5°C
Highlight:

CYW21 Submersible Level Transmitter

,

Submersible Level Transmitter 4-20ma

CYW21Y Submersible Level Transmitter For Well Use Level Range 0~10~200mH2O Temperature Range -20~60°C Output 4~20mA, R



The CYW21Y well-type submersible level transmitter has an outer diameter of only 19mm. In addition, the internal circuit strengthens the anti-interference treatment, which effectively reduces the interference of the water pump. It is ideal for water level measurement in wells.






Basic parameters
Measuring medium Water (H2O) or liquids compatible with contact materials
Measuring range 0~10~200mH2O (see range selection table for details)
Temperature range -20~60℃
Level accuracy 0.25%FS,0.5%FS
Temperature accuracy ±0.5℃
Medium temperature -40~60℃
Frequency of response The analog signal output ≤ 50Hz, and the digital signal output ≤ 5Hz
Stable performance ±0.1% FS/year
The liquid level is overloaded 200% full scale
Temperature compensation -10~60℃
Accuracy class 0.25%FS,0.5%FS
Temperature drift ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Ingress protection IP68
Overall weight Probes ≈ 290g cable ≈ 60g per meter
Turn-on time 20ms
Temperature Drift: ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Ingress protection IP68
Overall weight Probes ≈ 650g cable ≈ 110g per meter
Turn-on time 400ms
Resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
4~20mA 9~28VDC
RS485 5~28VDC
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation, no condensation)
Overall material
Diaphragm 316L stainless steel (in contact with the medium to be measured)
Outer shell 304 stainless steel (in contact with the medium to be measured)
Seals Nitrile rubber (contact with the medium to be measured)
Cable Polyurethane φ7.2 shielded gas-conductive cable (in contact with the medium to be measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact resistance 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
Level output
4-20mA 4~20mA
RS485 0~2000
Liquid temperature output
4-20mA 2.5~26mA
RS485 0~1500
