CYW26Y Deep Well Input Liquid Level Transmitter 0-200-2000mH2O Underground Water Level Monitoring

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW26Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Liquid Level Range: 0-200-2000mH2O Temperature Range: 0-100 ℃
Output: 4-20mA, RS485 Power Supply: 5-28VDC, 9-28VDC
Liquid Level Accuracy: 0.25% FS, 0.5% FS Temperature Accuracy: ± 0.5 ℃
Name: Liquid Level Transmitter
Highlight:

CYW26 Liquid Level Transmitter

,

Deep Well Input Liquid Level Transmitter

CYW26Y Deep Well Input Liquid Level Transmitter Measuring Range 0~200~2000mH2O Underground Water Level Monitoring

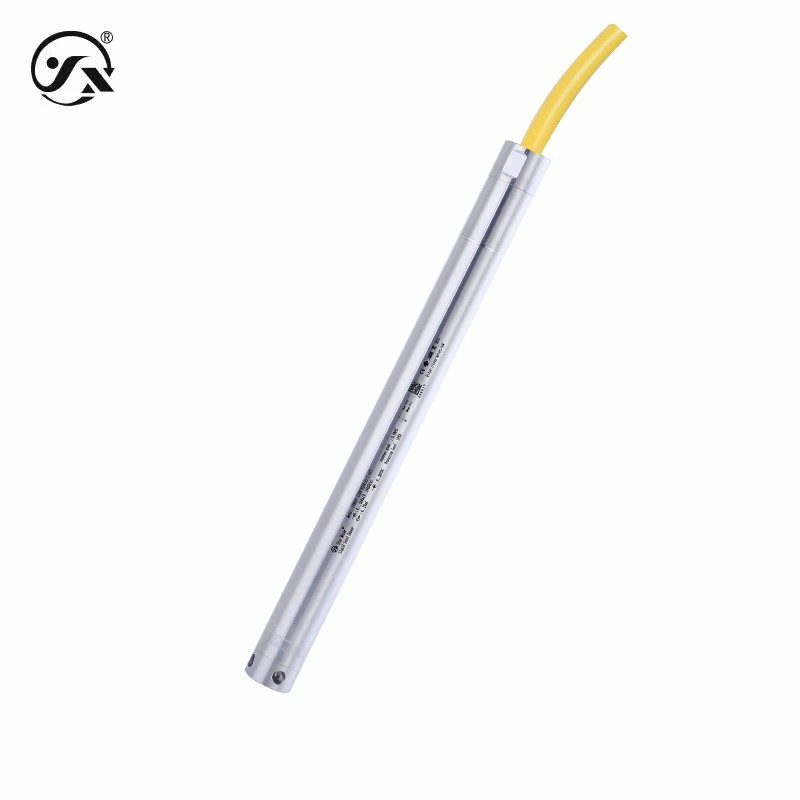

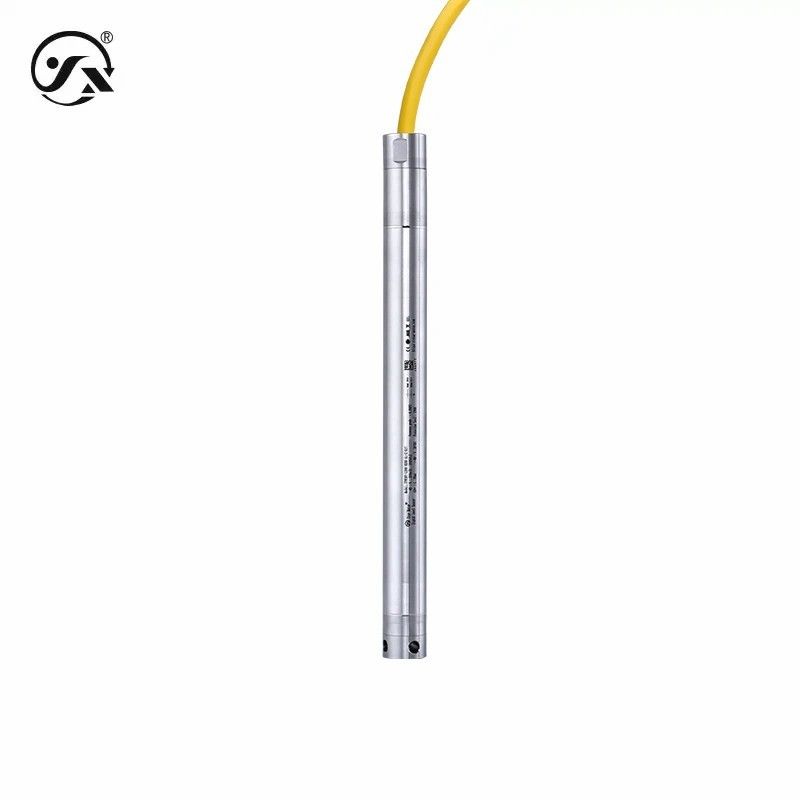

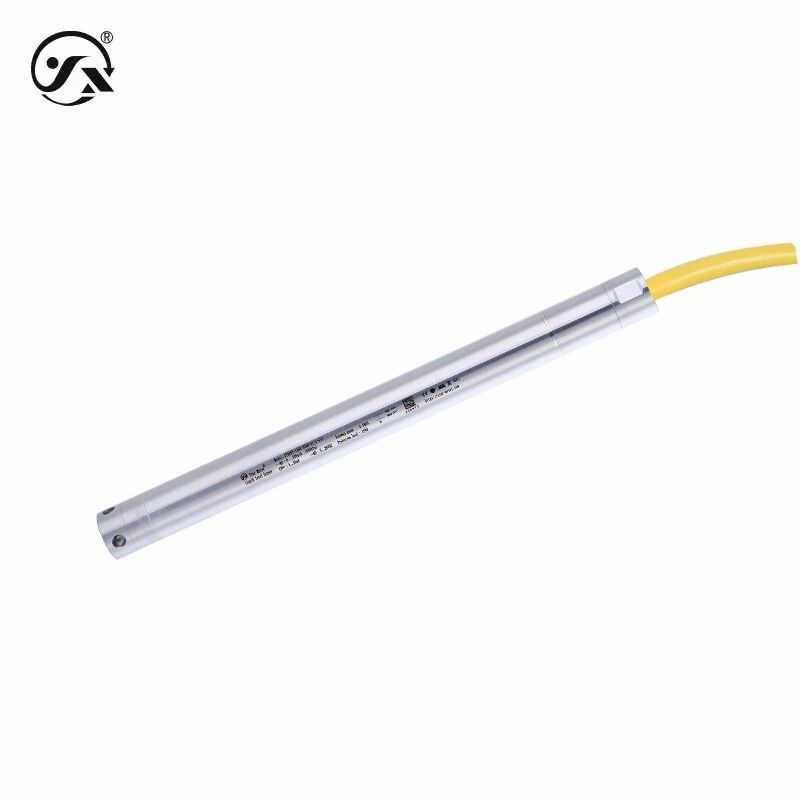

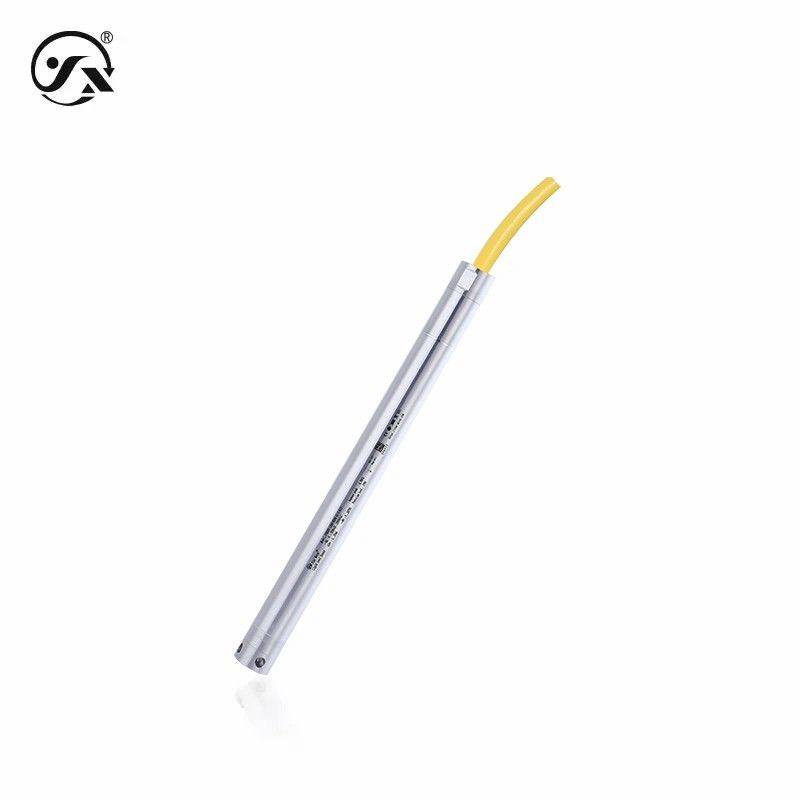

The outer diameter of the CYW26Y deep well input liquid level transmitter is only 19mm, and it can measure both liquid level and temperature simultaneously. The anti condensation process design extends its service life. In addition, the internal circuit enhances anti-interference processing, effectively reducing the interference of the water pump, making it an ideal product for deep well water level measurement.



Basic parameters
Measuring medium Water (H2O) or liquids compatible with contact materials
Measuring range 0~200~2000mH2O (see range selection table for details)
Level accuracy 0.25%FS,0.5%FS
Temperature accuracy ±0.5℃
Temperature range: 0~100℃
Medium temperature: 0~100℃
Pressure mode: Sealing Pressure(S)
Response Frequency: The analog signal output ≤ 50Hz, and the digital signal output ≤ 5Hz
Stable performance: ±0.1% FS/year
Accuracy class: 0.25%FS,0.5%FS
Temperature Compensation: -10~70℃
Overload Capacity: 200% full scale
Temperature Drift: ±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Ingress protection IP68
Overall weight Probes ≈ 290g cable ≈ 110g per meter
Turn-on time 20ms
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power
4~20mA 9~28VDC
RS485 5~28VDC
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Ambient temperature -40~100℃
Overall material
Diaphragm 316L stainless steel (in contact with the medium to be measured)
Outer shell 304/316L stainless steel (in contact with the medium to be measured)
Seals Fluoroglue (in contact with the medium to be measured)
Seals Fluoroglue (in contact with the medium to be measured)

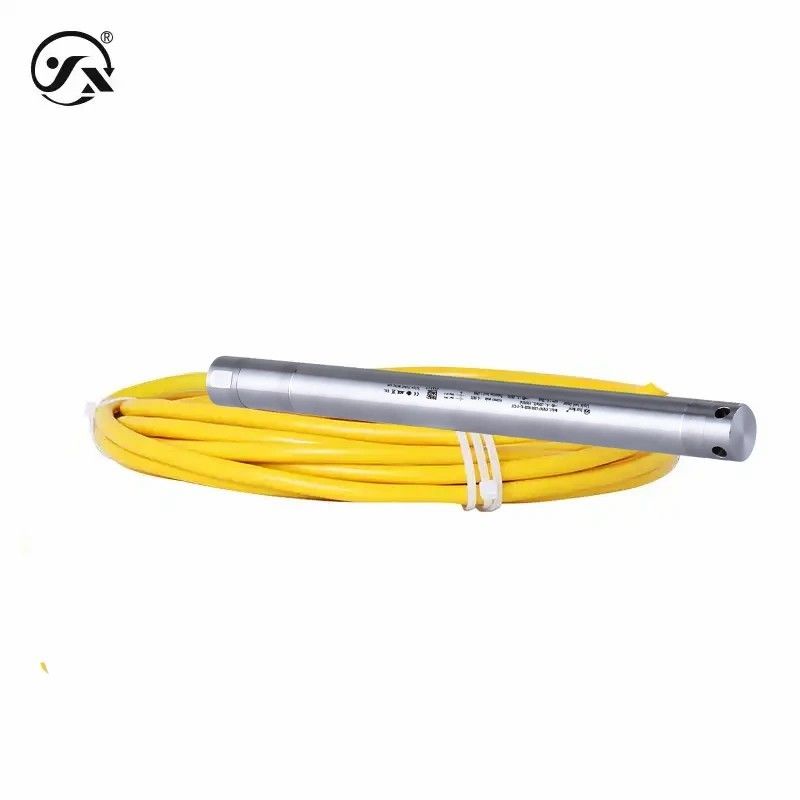

Cable XL05 polyethylene φ7.8 (temperature resistance 120°C) steel wire layer cable (contact with the measured medium)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection eternity
Anti-polarity protection No damage, but no work
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
Level output
4-20mA 4~20mA
RS485 0~2000
Liquid temperature output
4-20mA 2.5~26mA
RS485 0~1500
