Name: CWS29Y Wall Mounted Temperature Humidity And Atmospheric Pressure Transmitter
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CWS29Y
Price: 73.00 USD
Availability: InStock

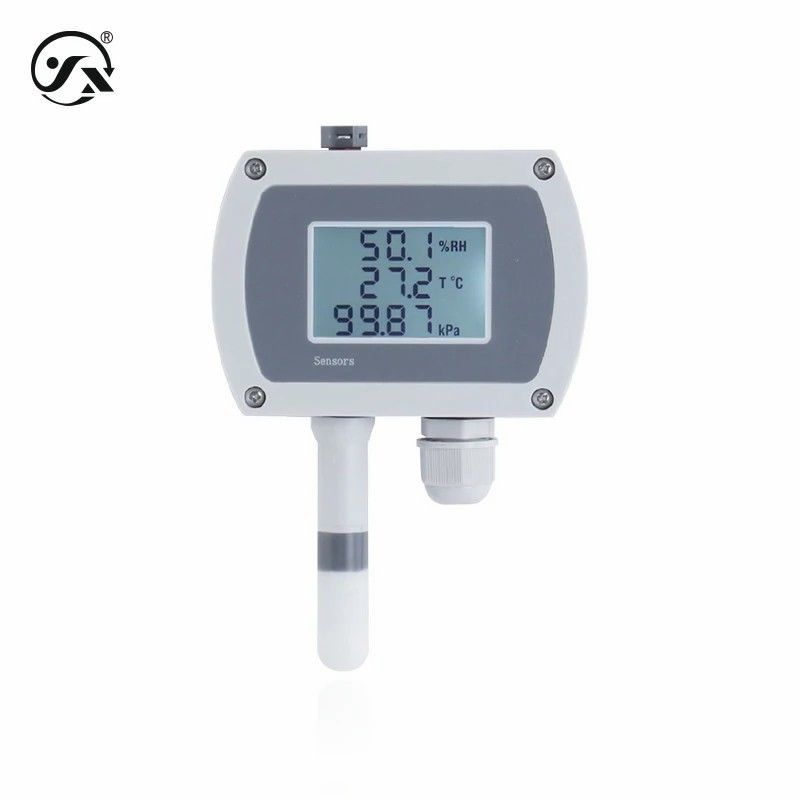

CWS29Y Wall Mounted Temperature Humidity And Atmospheric Pressure Transmitter

Basic Information

Place of Origin:	China
Brand Name:	Star merter
Model Number:	CWS29Y

Contact Now

Range:

Temperature -40~125°C Humidity 0-100%RH (Relative Humidity) Atmospheric Pressure 0~110kPa(A)

Output:

RS485

Power Supply:

5~28VDC

Highlight:

Wall Mounted Temperature And Humidity Transmitter

Temperature Humidity And Atmospheric Pressure Transmitter

CWS29Y wall-mounted temperature, humidity and atmospheric pressure transmitter is carefully designed, suitable for indoor temperature, humidity and atmospheric pressure monitoring in various occasions, with and without display options, and cost-effective.

Basic parameters
Measuring medium	Gas (compatible with contact materials)
Temperature range	-40～125℃
Humidity range	0-100%RH(Relative humidity)
Air pressure range	0～110kPa(A)
Output signal	RS485
Supply voltage	5～28VDC
Overall weight	With display ≈ 160g Without display ≈ 138g
Response frequency	≤2Hz
Stable class=”info” performance	±1%RHFS/year±0.2℃/year
Protection level	IP65
Response speed	The temperature was increased by 10°C per step, the humidity was increased by 10%RH per step, and the gas flow rate was 0.1m/s.
Atmospheric pressure accuracy	0.25%FS
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%～95%RH(no condensation, no condensation)
Electrical protection
Short circuit protection	permanent
Reverse polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output Limitation
temperature	0~1650
humidity	0~1000
Atmospheric pressure	100~15000
Overall material
Main shell	ABS engineering plastics contact the measured medium
Filters	Polyethylene (density 50μm) in contact with the measured medium
Cable locking head	Nylon (locking wire diameter 4 to 6 mm) contacts the measured medium
Seals	Nitrile rubber contacts the measured medium
show	LCD display with backlight
Mechanical stability
Vibration resistance	5g (20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance	500g/1ms in accordance with IEC60068-2-27 standard

manual
Product Information—Chinese (CN)	PDF
Product Information—English (EN)	PDF
Product Selection—Chinese (CN)	PDF
Product Selection—English (EN)	PDF
Installation Instructions—Chinese (CN)	PDF
Installation Instructions—English (EN)	PDF
Protocol Description—Chinese (CN)	PDF
Protocol Description—English (EN)	PDF
