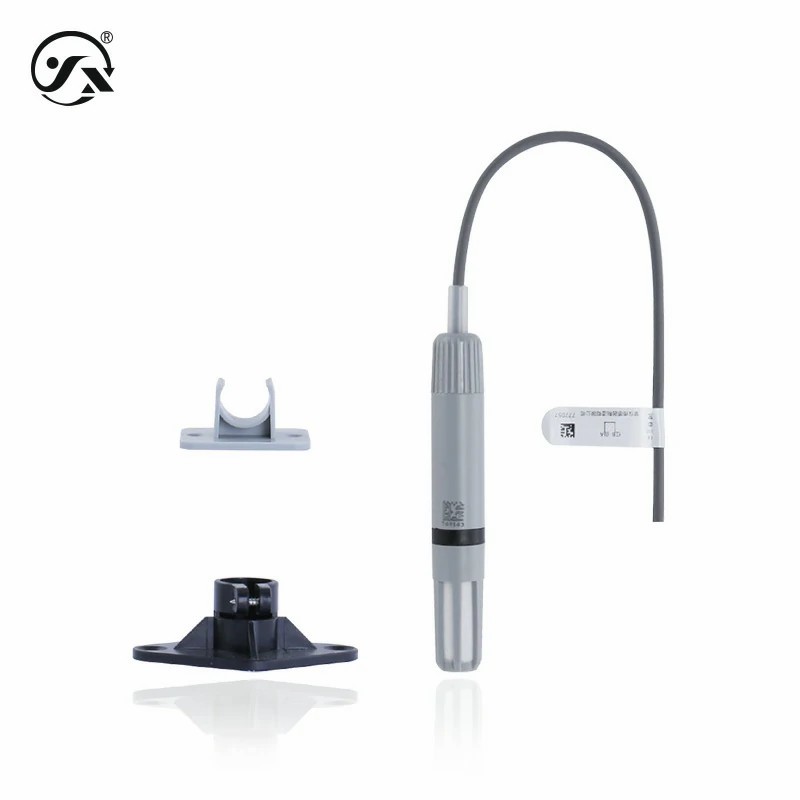

CWS91Y Compact Monitoring Temperature And Humidity Transmitter

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWS91Y
Range: Temperature -40~80°C Humidity 0-100%RH (Relative Humidity) Output: RS485, 0-5VDC, 0-5VDC (NTC)
Power Supply: 5~28VDC, 9~28VDC, 5VDC
Highlight:

Compact Temperature And Humidity Transmitter

,

monitoring temperature and humidity Transmitter

The CWS91Y compact temperature and humidity transmitter is carefully designed and is suitable for monitoring temperature and humidity in indoor environments, pipelines, and boxes. It can be installed by both wall-mounting and insertion, and is cost-effective.

Basic parameters
Measuring medium Gas (compatible with contact materials)
Overall weight ≈187g
Response frequency ≤2Hz
Stable class=”info” performance ±1%RHFS/year±0.2℃/year
Protection level IP54
Response speed The temperature was increased by 10°C per step, the humidity was increased by 10%RH per step, and the gas flow rate was 0.1m/s.
RS485/0-5VDC output
Temperature range -40~80℃
Humidity range 0-100%RH(Relative humidity)
Supply voltage 5~28VDC(RS485) 9~28VDC(0~5VDC)
0-5VDC (NTC) output
Humidity range 0-100%RH(Relative humidity)
Supply voltage 5VDC±0.25VDC
Humidity output 0~5VDC
Note/10%RH~90%RH is linearly corresponding to 0.5-4.5VDC
n0~10%RH and 90~100%RH meet voltage output
Temperature output NTC10Kohm
n25℃β3435(1%)See Appendix 1
Load characteristics
Voltage Type ≥100kΩ
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output Limitation
RS485 0~1650/1000
0~5VDC 0.001VDC~5VDC
0~5VDC(NTC) 0.1VDC~4.9VDC
Overall material
Main shell ABS engineering plastics
Filters Polyethylene (density 50μm)
Cable Material φ3.2 polyurethane shielded cable 4*0.12mm2 (XL07)
Mounting accessories ABS engineering plastics
Mechanical stability
Vibration resistance 5g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/1ms, in compliance with IEC60068-2-27 standard
