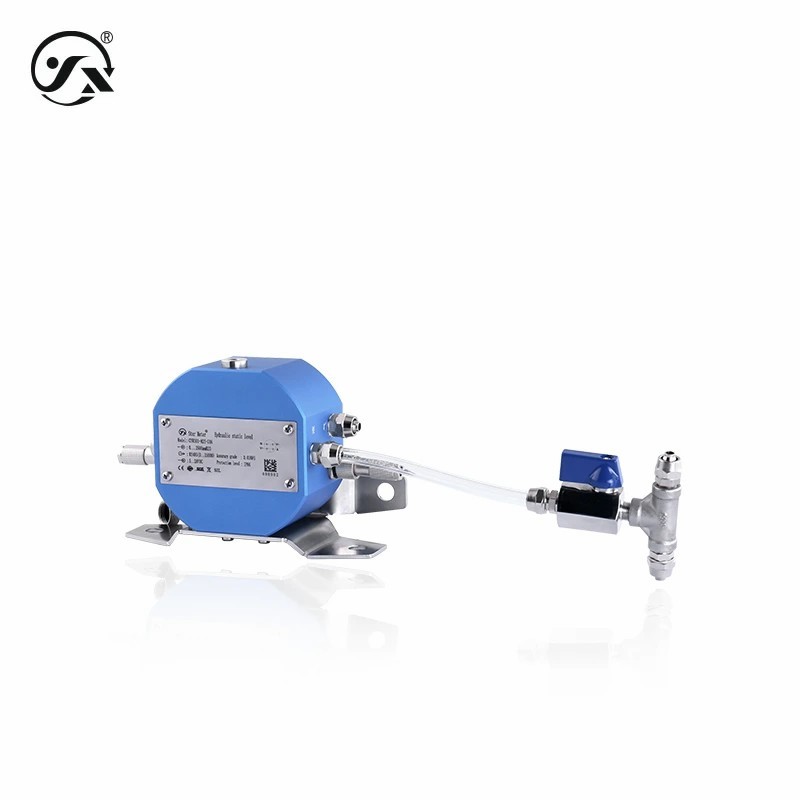

CYW303Y Hydraulic Static Level High Accuracy Level

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYW303Y
Measuring Range: 0~2500mmH 2O Output: RS485
Power Supply: 5~28VDC Accuracy: 0.05%FS
Highlight:

Hydraulic Static Level

,

High Accuracy Hydraulic Static Level

CYW303Y static level adopts imported high-precision diffusion silicon core, which has the characteristics of high precision, good stability and small temperature drift coefficient. It is mainly used for the monitoring of vertical displacement and inclination of dams, nuclear power plants, wind power stations, high-rise buildings, mines, landslides, bridges, etc.



Basic parameters
Measuring medium Water, antifreeze, silicone oil
Measuring range 0~2500mmH2O
Medium temperature -40~60℃
Response frequency ≤5Hz
Output signal RS485
Supply voltage 5~28VDC
Accuracy level 0.05%FS (reference conditions: temperature 15~25℃, atmospheric pressure 86~106kPa, humidity 45~75%RH.)
Repeatability ≤0.01%FS, hysteresis ≤0.01%FS
Stable class=”info” performance ±0.05%FS/year
Liquid level overload 200% full scale
Temperature compensation -10~60℃
Temperature drift ±0.005%FS/℃ (within temperature compensation range) ±0.03%FS/℃ (outside temperature compensation range)
Protection level IP66
Note/The above protection level refers to the level achieved after the electrical connection is complete.
Overall weight ≈1380g (including bracket)
Connection time 20ms
Resolution 0.1mm
Maximum Power ≤0.015Us(W)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation and no condensation)
Overall material
Diaphragm 316L stainless steel (contacting the measured medium)
Seals Fluorine rubber (contacting the measured medium)
Quick-twist connector Nickel-plated copper (contacting the measured medium)
Pressure pipe FEP polyfluorinated ethylene propylene (contacting the measured medium)
Ball valve 304 stainless steel (contacting the measured medium)
shell LY12 Aluminum
Housing screws 304 Stainless Steel
Electrical interface Nickel-plated copper
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms, in compliance with IEC60068-2-27 standard
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
