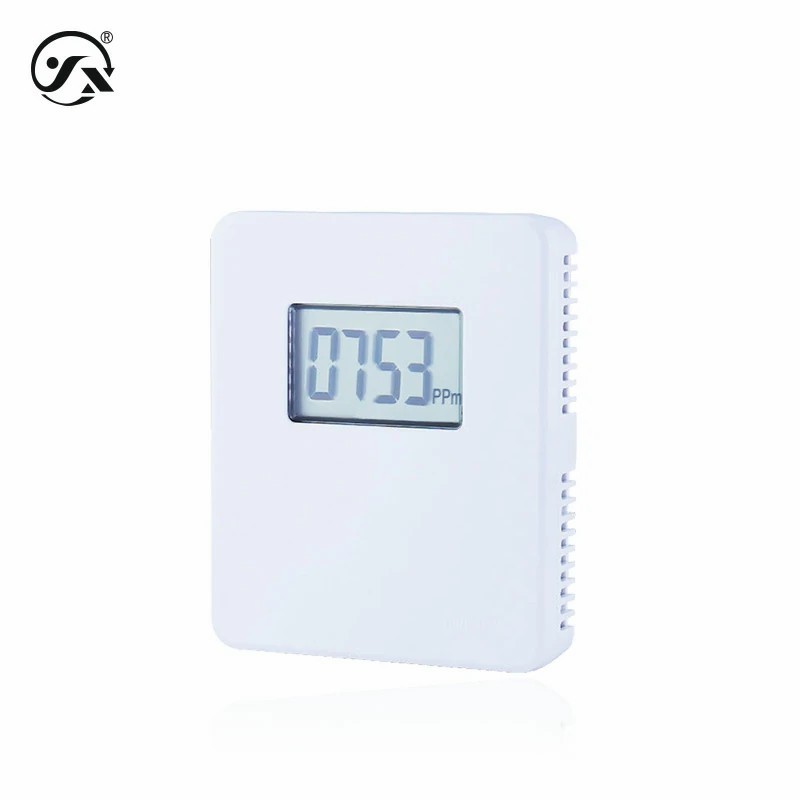

RYH86Y Wall Mounted Carbon Dioxide Transmitter

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: RYH86Y
Range: 0-2000ppm, 0-5000ppm Output: RS485
Power Supply: 24VDC±5%
Highlight:

Wall Mounted Carbon Dioxide Transmitter

,

Wall Mounted co2 transmitter

RYH86Y wall-mounted carbon dioxide transmitter is suitable for measuring indoor carbon dioxide concentration. It can be installed in two ways: wall-mounted and 86 bottom box. It uses imported high-performance carbon dioxide sensor chips with high accuracy and good stability. It can be selected with or without display.

Basic parameters
Measuring medium gas
Range 0-2000ppm, 0-5000ppm
Measurement accuracy Range 0-2000ppm
n400-2000ppm±(50ppm+5% of reading)
Range 0-5000ppm
n400-1000ppm±(50ppm+2.5% of reading)
n1001-2000ppm±(50ppm+3% of reading)
n2001-5000ppm±(40ppm+5% of reading)
Output signal RS485
Supply voltage 24VDC±5%
Protection level IP30
Warm-up time <180s
Response time ≤30s
Response frequency ≤2Hz
Resolution 1ppm
Overall weight ≈85g
Average current ≤60mA
Standby current ≤20mA
Environmental conditions
Ambient temperature -10~60℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Overall material
Main shell ABS engineering plastics
show LCD display without backlight
Output Limitation
RS485 0~2000/5000
manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Product Selection—Chinese (CN) PDF
Product Selection—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
Protocol Description—Chinese (CN) PDF
Protocol Description—English (EN) PDF
