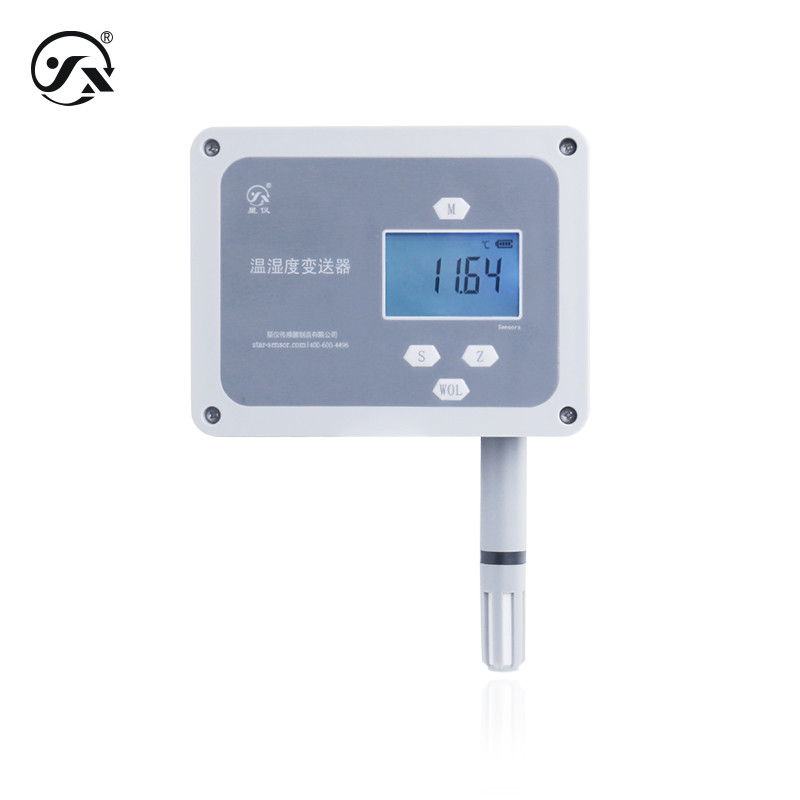

CWS101Y Intelligent Wireless Temperature And Humidity Transmitter

Basic Information
Place of Origin: china
Brand Name: star meter
Model Number: CWS101Y
Range: Temperature -40~80℃ Humidity 0-100%RH (Relative Humidity) Network Standard: NB-IoT
Battery Life: ≤5 Years
Highlight:

Wireless Temperature And Humidity Transmitter

,

Intelligent Temperature And Humidity Transmitter

CWS101Y intelligent wireless temperature and humidity transmitter adopts the form of communication + power + sensor three-in-one, ready to use without considering other factors, equipped with NB-IoT module, is a low-power, wireless communication function of the intelligent instrument, combined with the big data platform can be realized in a wide range of online multifunctional monitoring.



Measuring medium Gas (compatible with contact materials)
Temperature range -40~80℃
Humidity range 0-100%RH(Relative humidity)
Overall weight ≈410g
Stable performance ±1%RH FS/year±0.2℃/year
Protection level IP65
Response speed The temperature is increased by 10°C per step, the humidity is increased by 10%RH per step, and the gas flow rate is 0.1m/s
Protocol parameters
Network Standard NB-IoT
Upload information Data, battery level, signal strength
Sending interval 15min~24h/time (default is 2h/time)
Send time ≈12s/time
Transmit power consumption ≈0.5mA/time
Collection frequency 1 to 30 times during the sending interval (30 times by default)
Collection time ≈1s/time
Power consumption ≈0.002mA/time
Battery parameters
Working power supply 3.6V 19Ah*1
Battery Life Depends on the frequency of collection and transmission (ignoring environmental and time factors).
The annual dormant power consumption is 0.7Ah.
For example, the transmission interval is 1h, the collection frequency is 30 times, and the battery life is ≤1.5 years.
For example, the transmission interval is 2h, the collection frequency is 30 times, and the battery life is ≤3 years.
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation and no condensation)
Overall material
Main shell ABS engineering plastics contact the measured medium
Filters Polyethylene (density 50μm) Contact with the measured medium
show LCD display with backlight
Seals Nitrile rubber contacts the measured medium
Mechanical stability
Vibration resistance 5g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms Comply with IEC60068-2-27 standard
manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Product Selection—Chinese (CN) PDF
Product Selection—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
Protocol Description—Chinese (CN) PDF
Protocol Description—English (EN) PDF
Key Operation Instructions—Chinese (CN) PDF
Key Operation Instructions—English (EN) PDF
