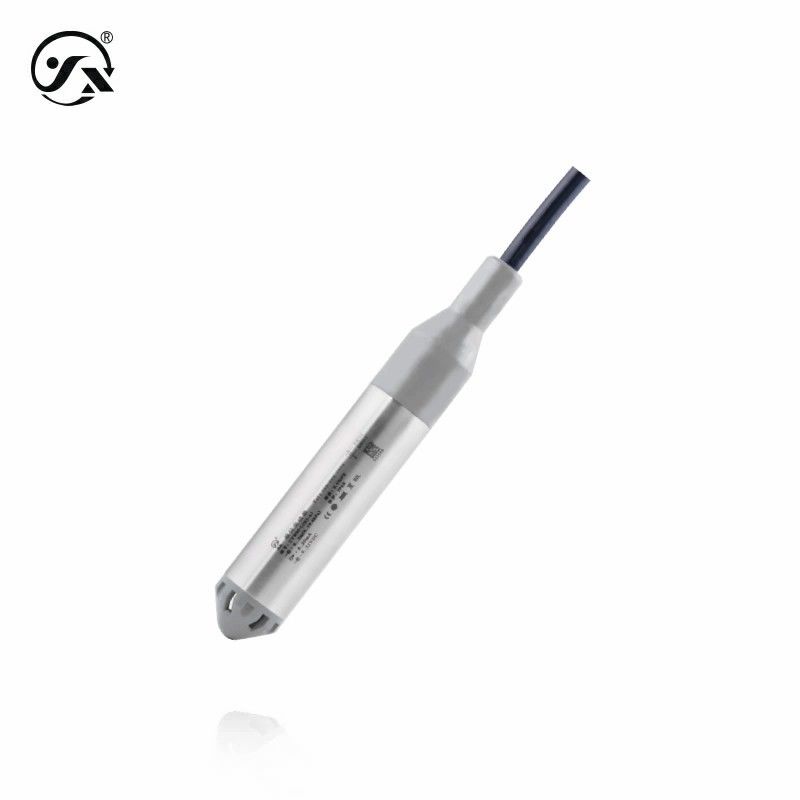

CYW09Y Economical Submersible Level Transmitter

Basic Information
Place of Origin: china
Brand Name: star meter
Model Number: CYW09Y
Range: 0~2~10mH2O Output: 4~20mA, RS485
Power Supply: 9~28VDC, 5~28VDC Accuracy: 0.5%FS
Highlight:

Economical Level Transmitter

,

Submersible Level Transmitter

CYW09Y economic input level transmitter is born for the level measurement of indoor water tanks, pools and so on, with high cost-effective, high reliability and other characteristics.



Measuring medium Water (H2O) or liquid compatible with contact materials
Liquid level range 0~2~10mH2O (see range selection table for details)
Medium temperature -40~60℃ (the temperature difference between the measured medium and the external environment is ≤10℃)
Response frequency ≤5Hz
Accuracy level 0.5%FS
Temperature compensation -10~60℃
Stable performance ±0.2% FS/year
Liquid level overload 200% full scale
Temperature drift ±0.02%FS/℃ (within temperature compensation range)
Protection level IP68
Overall weight Probe ≈ 180g Cable per meter ≈ 60g
Connection time 20ms
Resolution Analog output 0.025%FS, digital output 0.05%FS
Output power supply
4~20mA 9~28VDC
RS485 5~28VDC
Maximum Power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current Type Load ≤{(Us-7.5)÷0.02}Ω (Us=supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation, no condensation)
Overall material
Diaphragm 316L stainless steel (contacting the measured medium)
shell 304 stainless steel and ABS engineering plastics (in contact with the measured medium)
Seals Nitrile rubber (contacting the measured medium)
Cables XL11 PVC φ7.2 air-conducting shielded cable (contacting the measured medium)
Mechanical stability
Vibration resistance 10g (20…2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms Comply with IEC60068-2-27 standard
Electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output Limitation
4~20mA 4mA~20mA
RS485 0~2000
