| Place of Origin: | china |
|---|---|
| Brand Name: | star meter |
| Model Number: | CYW571AY |
| Range: | 0～1～40mH2O | Output: | 4～20mA, RS485 |
|---|---|---|---|
| Power Supply: | 9～28VDC, 15～24VDC | Accuracy: | 0.1%FS, 0.25%FS |
| Highlight: | Submersible Level Transmitter,Anti Corrosion Level Transmitter |
||

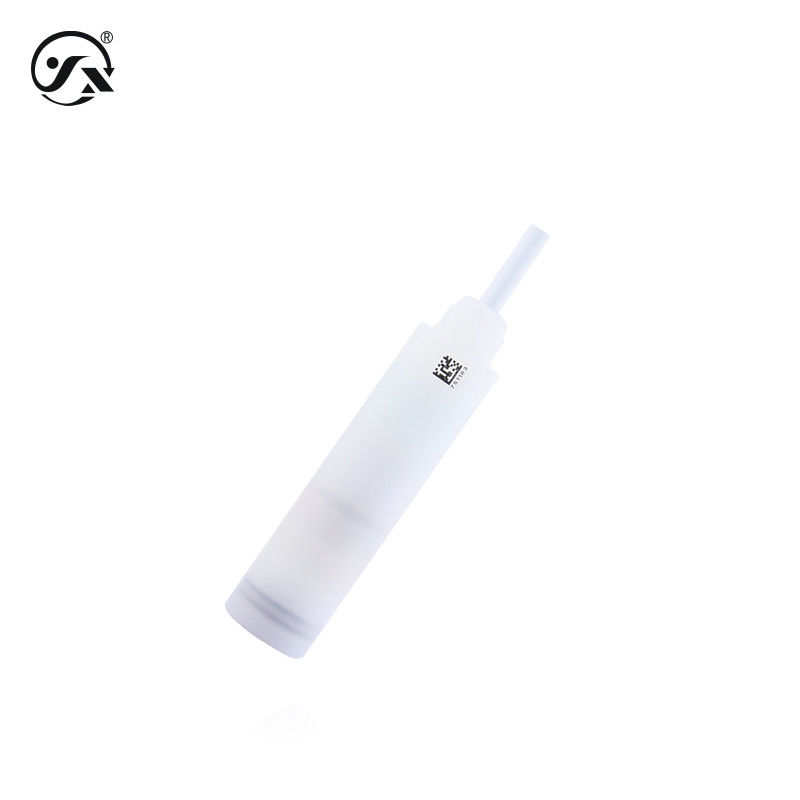

CYW571AY anticorrosive input level transmitter shell is made of full PVDF material, the sensing core is made of ceramic capacitance measuring element, and the liquid-connecting part is made of ceramic material, which makes it have the characteristics of anti-stabbing touch, corrosion-resistant, high precision, high stability, and small blind zone. It can measure liquid, fluid or medium with particles. Explosion-proof function is optional.
| Measuring medium | Water (H2O), liquid or fluid (compatible with contact materials) |
| Liquid level range | 0～1～40mH2O (see range selection table for details) |
| Medium temperature | -40～60℃ |
| Connection time | 20ms |
| Stable performance | ±0.1% FS/year |
| Liquid level overload | 200% full scale |
| Temperature drift | ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range) |
| Temperature compensation | -20～80℃ |
| Explosion-proof type | Intrinsically safe Ex ia ⅡC T6 Ga (4～20mA output only) |
| Protection level | IP68 |
| Accuracy level | 0.1%FS, 0.25%FS |
| Response frequency | Analog signal output ≤30Hz Digital signal output ≤5Hz |
| Resolution | Analog output 0.01%FS, digital output 0.05%FS |
| Overall weight | Probe ≈ 190g Cable per meter ≈ 67g |
| Output power supply | |
| 4～20mA | 9～28VDC, 15～24VDC (intrinsically safe) |
| RS485 | 9～28VDC |
| Maximum Power | |
| 4～20mA | ≤0.02Us(W) |
| RS485 | ≤0.015Us(W) |
| Load characteristics | |
| Current Type | Load ≤{(Us-7.5)÷0.02}Ω |
| Environmental conditions | |
| Ambient temperature | -40～85℃ |
| Ambient humidity | 0%～95%RH (no condensation and no condensation) |
| Overall material | |
| Diaphragm | Al2O3 ceramics (contacting the measured medium) |
| shell | PVDF polyvinylidene fluoride (contacting the measured medium) |
| Seals | Fluororubber (contacting the measured medium) |
| Cables | XL10 PTFE φ7.2 air-conducting cable (contacting the measured medium) |
| Mechanical stability | |
| Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
| Impact resistance | 500g/ms Comply with IEC60068-2-27 standard |
| Electrical protection | |
| Short circuit protection | permanent |
| Reverse polarity protection | No damage, but not working |
| Insulation resistance | ≥100MΩ 500VDC |
| Dielectric strength | 500VAC |
| Output Limitation | |
| 4～20mA | 4mA~20mA |
| RS485 | 0~2000 |
