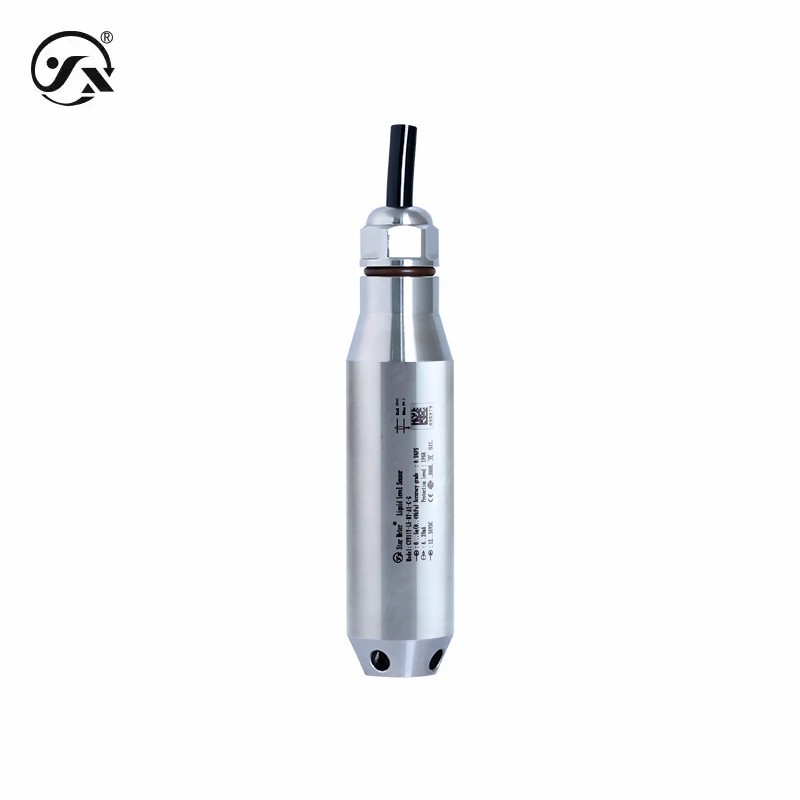

CYW11Y Universal Liquid Level Transmitter Level Range 0-0.5-50mH2O For Level Measurement

Basic Information
Place of Origin: China
Brand Name: Star Merter
Certification: CE
Model Number: CYW11Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Level Range: 0~0.5~50mH2O Temperature Range: -20~60℃
Output: 4~20mA, RS485 Power Supply: 9~36VDC, 12~36VDC, 3~5VDC
Level Accuracy: 0.1%FS, 0.25%FS, 0.5%FS Temperature Accuracy: ±2°C, ±0.5°C
Name: Liquid Level Transmitter
Highlight:

Liquid Level Measurement Transmitter

,

Universal Liquid Level Transmitter

,

0-0.5-50mH2O Liquid Level Transmitter

CYW11Y Universal Submersible Level Transmitter Level Range 0~0.5~50mH2O Temperature Range -20~60℃





The CYW11Y universal submersible level transmitter is designed for simple level measurement applications, with excellent quality and high cost performance, and the overall three-channel sealing process makes it highly reliable.





Basic parameters
Measuring medium Water (H2O) or compatible with contact materials
Temperature range -20~60℃
Medium temperature -40~60℃
Level range 0~0.5~50mH2O (see range selection table for details)
Accuracy class 0.25%FS,0.5%FS
Frequency of response The analog signal output ≤ 50Hz, and the digital signal output ≤ 5Hz
Stable performance ±0.1% FS/year
The liquid level is overloaded 200% full scale
Temperature drift ±0.01%FS/°C (within temperature compensation); ±0.05%FS/°C (out of temperature compensation)
Explosion-proof type Intrinsically safe Ex ia II.C T6 Ga (4~20mA output only)
Ingress protection IP68
Overall weight The probe ≈ 290g, the cable ≈ 60g per meter
resolution Analog output 0.01%FS, digital output 0.05%FS
Turn-on time 20ms
Output power
Output signal 4~20mA,RS485
Power supply range 9~36VDC,12~36VDC,3~5VDC
Level accuracy Standard (temperature compensation -10~60°C): Range≥10m, 0.25%FS/0.5m≤ Range<10m, 0.5%FS
  Optional (temperature compensation -40~60°C): range ≥ 10m, 0.1%FS/0.5m≤ range < 10m, 0.25%FS, 0.1%FS
Temperature accuracy ≤±2℃, ≤±0.5℃
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤{(Us-7.5)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Medium temperature -40~60℃
Ambient temperature -40~85℃
Overall material
diaphragm 316L stainless steel (in contact with the medium to be measured)
enclosure 304 stainless steel (in contact with the test medium)
Seals Nitrile rubber (contact with the medium to be measured)
Cable Polyurethane φ7.2 gas conductive cable (in contact with the medium to be measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact resistance 500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
Level output
4-20mA The minimum output: 2.5mA/4mA, 26mA/20mA
RS485 The output is 0 and the output is 2000
Liquid temperature output
4-20mA The output is a minimum of 2.5mA and the output is a maximum of 26mA
RS485 The output is 0 at a minimum, and the output is 1500 at a maximum
