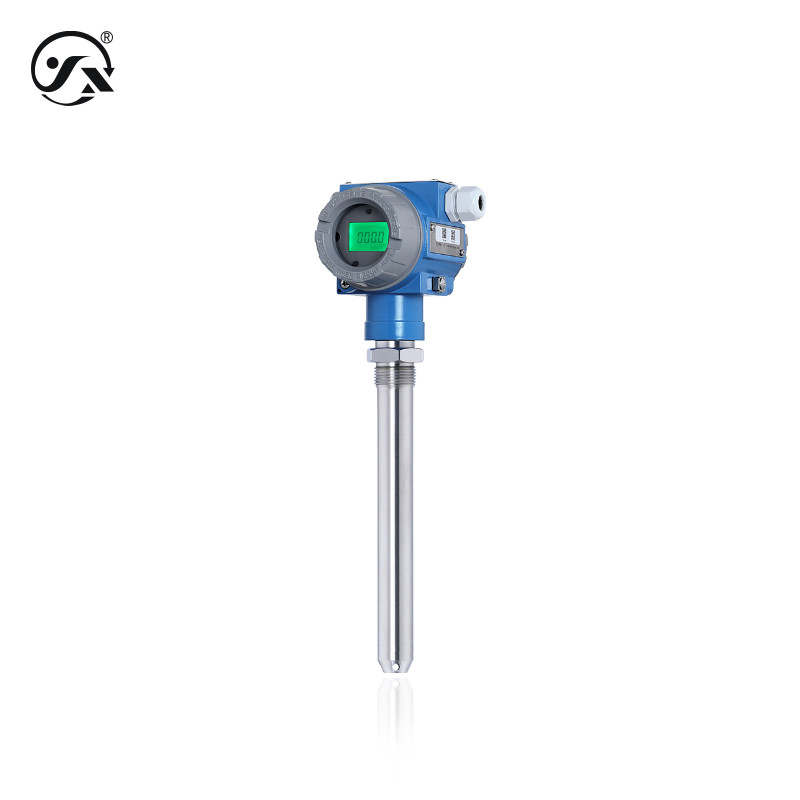

Name: CYW81CY Hydrostatic Oil Level Transmitter 0-5-30kPa Oil Level Measurement
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CYW81CY
Price: 73.00 USD
Availability: InStock

CYW81CY Hydrostatic Oil Level Transmitter Measuring Range 0～5～30kPa Oil Level Measurement Site Such As Fuel Tanks Tanks

CYW81CY hydrostatic oil level transmitter, its wetted part is made of stainless steel and integral laser welding process, so that it has excellent oil resistance. Ideal for measuring tank and tank levels, and cost-effective.

Base parameters
Measuring medium	Liquids such as oil that are compatible with contact materials
Measuring range	0～5～30kPa
Pressure mode	Gauge pressure
Media temperature	-40～100℃
Response frequency	Analog output≤ 30Hz, digital output≤5Hz
Stable performance	± 0.1% FS/year
Overload capacity	200% full scale
Temperature drift	±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Ex type	Intrinsically Safe Ex ia II.C T6 Ga Note: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply
Degree of protection	Probe IP68, junction box IP66. Note: The above protection level refers to the electrical connection after it is complete
On-time	20ms
resolution	Analog output 0.01%FS, digital output 0.05%FS
Output power
Output signal	4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC
Power supply range	9～32VDC,15～32VDC,15～24VDC
Accuracy class	0.25%FS,0.5%FS
Power range
Current type	≤0.02Us(W)
Digital	≤0.015Us(W)
Voltage type	≤0.008Us(W)
Power range
4~20mA	Yes/No Display≤0.02Us(W)
RS485	With display ≤0.02Us(W), no display ≤0.015Us(W)
0～10VDC	Yes≤0.02Us(W), No display≤0.008Us(W)
0～5VDC	Yes≤0.02Us(W), No display≤0.008Us(W)
1～5VDC	Yes≤0.02Us(W), No display≤0.008Us(W)
Output power
Voltage type	≥10kΩ
Current type	Current type load ≤{(Us-7.5)÷0.02(Us=Supply voltage 2)}Ω
Environmental conditions
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH(no condensation, no condensation)
Overall material
diaphragm	316L stainless steel (contact)
Probes	304 stainless steel (contact)
Junction box	Die-cast aluminum
Sealed	Laser welding (contact with the medium to be measured)
Display window	≈ 6mm explosion-proof glass
Mechanical stability
Seismic performance	10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance	500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
4-20mA	4mA~20mA
RS485	0~2000
0～10VDC	0.001VDC~10VDC
0～5VDC	0.001VDC~5VDC
1～5VDC	0.001VDC~5VDC

Tag:

Place of Origin:	China
Brand Name:	Star merter
Certification:	CE SIL3
Model Number:	CYW81CY

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	carton
Payment Terms:	T/T
Supply Ability:	30000 Piece/Month

Range:	0~5~30kPa (need To Provide Measured Medium Density In Meters)	Output:	4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply:	9~32VDC, 15~32VDC, 15~24VDC	Accuracy:	0.25%FS, 0.5%FS
Name:	Liquid Level Transmitter
Highlight:	Hydrostatic Oil Level Transmitter , 0-5-30kPa Hydrostatic Oil Level Transmitter , Hydrostatic Oil Level Measurement
