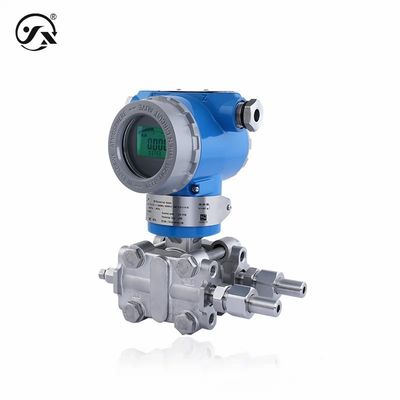

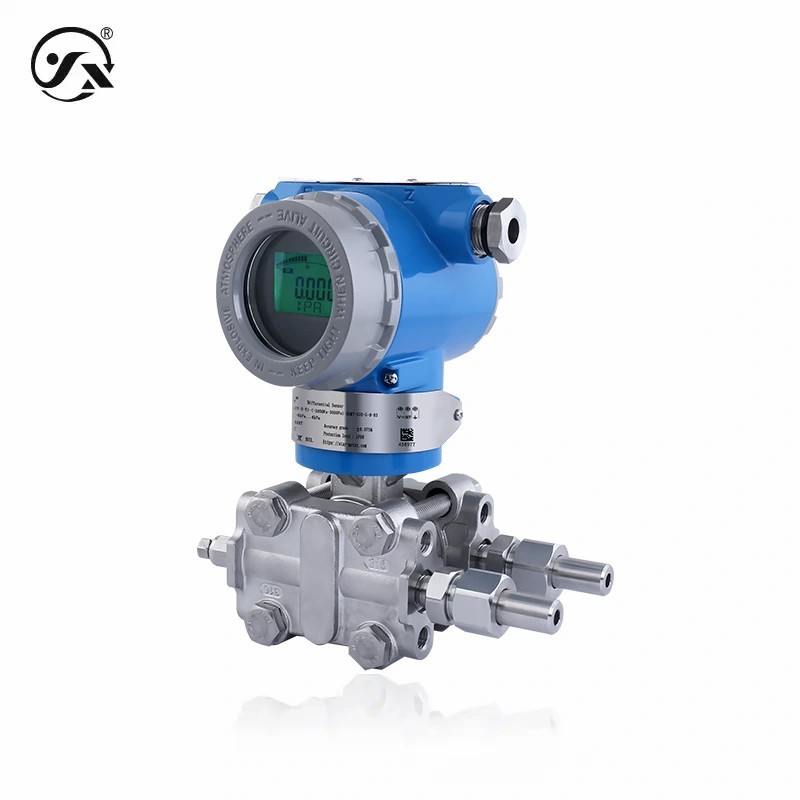

Name: CYYZ3051AY Monocrystalline Silicon DP Pressure Transmitter Explosion Proof
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CYYZ3051AY
Price: 73.00 USD
Availability: InStock

CYYZ3051AY Monocrystalline Silicon Differential Pressure Transmitter Monocrystalline Silicon Resonant Sensor Technology

CYYZ3051AY monocrystalline silicon differential pressure transmitters use monocrystalline silicon resonant sensor technology and are suitable for measuring the flow, differential pressure and pressure of liquids, gases or steam. It has a variety of explosion-proof functions, intrinsically safe type, dust intrinsically safe type, flameproof type, and flameproof dust type.

Basic parameters
Measuring medium	Liquid or gas (compatible with contact materials)
pressure type	Differential pressure
Medium temperature	-40～110℃
output signal	4-20mA HART protocol
Power supply range	12～32VDC, 15～24VDC (intrinsically safe and explosion-proof only)
Maximum power	≤0.02Us(W)
connection time	20ms
Stable performance	±0.05%URL/year
Explosion-proof level	Explosionproof type Ex d Ⅱ C T6 Gb Explosionproof dust type Ex tb IIIC T80℃ Db Intrinsically safe type Ex ia ⅡC T6 Ga dust intrinsically safe type Ex ia ⅢC T200 80℃ Da Note: Intrinsic safety must be passed through a safety barrier or intrinsically safe power supply powered by
Protection level	IP66 Note: The above protection level refers to the level achieved after the electrical connection is complete.
response frequency	The time constant is adjustable, in increments of 0.1 seconds, from as low as 32 seconds. If the damping time is 0, the default is 0.1 (the lowest is 0.1).
overall weight	No display≈1.25kg With display≈1.4kg
Load characteristics
HART current type	Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
environmental conditions
No LCD liquid crystal display ambient temperature	-40～85℃
With LCD display ambient temperature	-20～70℃
environment humidity	0%～95%RH (no condensation, no condensation)
overall material
Diaphragm	316L stainless steel/Hastelloy C/tantalum (contact with the measured medium)
exhaust drain valve	304 stainless steel (contact with measured medium)
Adapter	304 stainless steel (contact with measured medium)
Clamp block	304 stainless steel (contact with measured medium)
O-ring	Fluorine rubber
Filling fluid	Silicone oil, fluorine oil
bolt	304 stainless steel
case	die cast aluminum
display window	≈6mm explosion-proof glass
mechanical stability
Anti-vibration performance	10g(20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance	500g/ms conforms to IEC60068-2-27 standard
electrical protection
Short circuit protection	permanent
Reverse polarity protection	No damage, but doesn’t work
Insulation resistance	≥100MΩ 500VDC
Dielectric strength	500VAC
Output limits
Output minimum	3.8mA
Output maximum	22mA

manual
Product Information—Chinese (CN)	PDF
Product Information—English (EN)	PDF
Product Selection—Chinese (CN)	PDF
Product Selection—English (EN)	PDF
Installation Instructions—Chinese (CN)	PDF
Installation Instructions—English (EN)	PDF
Button operation instructions—Chinese (CN)	PDF
Button operation instructions—English (EN)	PDF

Tag:

Place of Origin:	China
Brand Name:	Star merter
Model Number:	CYYZ3051AY

Minimum Order Quantity:	1PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	30000 Piece/Month

Range:	0~100Pa~10MPa (see Range Selection Table For Details)	Output:	4~20mA HART
Power Supply:	12~32VDC, 15~24VDC	Accuracy:	0.05%SPAN, 0.075%SPAN, 0.1%SPAN
Name:	Differential Pressure Flow Transmitter
Highlight:	Monocrystalline Silicon DP Pressure Transmitter , DP Pressure Transmitter Explosion Proof , Differential Pressure Flow Transmitter Explosion Proof
