CWDZ00Y Platinum Resistance Temperature Sensor IP68 General industry Use

CWDZ00Y Platinum Resistance Temperature Sensor IP68 General industry Use
CWDZ00Y Platinum Resistance Temperature Sensor IP68 General industry Use CWDZ00Y Platinum Resistance Temperature Sensor IP68 General industry Use CWDZ00Y Platinum Resistance Temperature Sensor IP68 General industry Use CWDZ00Y Platinum Resistance Temperature Sensor IP68 General industry Use CWDZ00Y Platinum Resistance Temperature Sensor IP68 General industry Use
Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ00
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Contact Now
Measuring Element: Platinum Resistance PT100 Measurement Accuracy: 1/3B Level
Measurement Range: -50~100 °C, -50~260 °C Output: PT100
Highlight:

CWDZ00 Platinum Resistance Temperature Sensor

,

Platinum Resistance Temperature Sensor IP68

,

Platinum Resistor Temperature Sensor IP68

CWDZ00Y Platinum Resistance Temperature Sensor range -50～100℃,-50～260℃ Degree of protection IP68 General industry Use





CWDZ00Y platinum resistance temperature sensor is suitable for measuring equipment surface temperature, liquid temperature and gas temperature.


Base parameters
Measuring medium Solid, liquid or gas (compatible with contact material)
Measuring range -50～100℃,-50～260℃
Measuring cell 1*Pt100(1/3B grade)
Response time ≤18s (according to IEC60751, 0.4m/s water flow, 10°C steps)
Stable performance ± 0.1% FS/year
Degree of protection IP68
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC

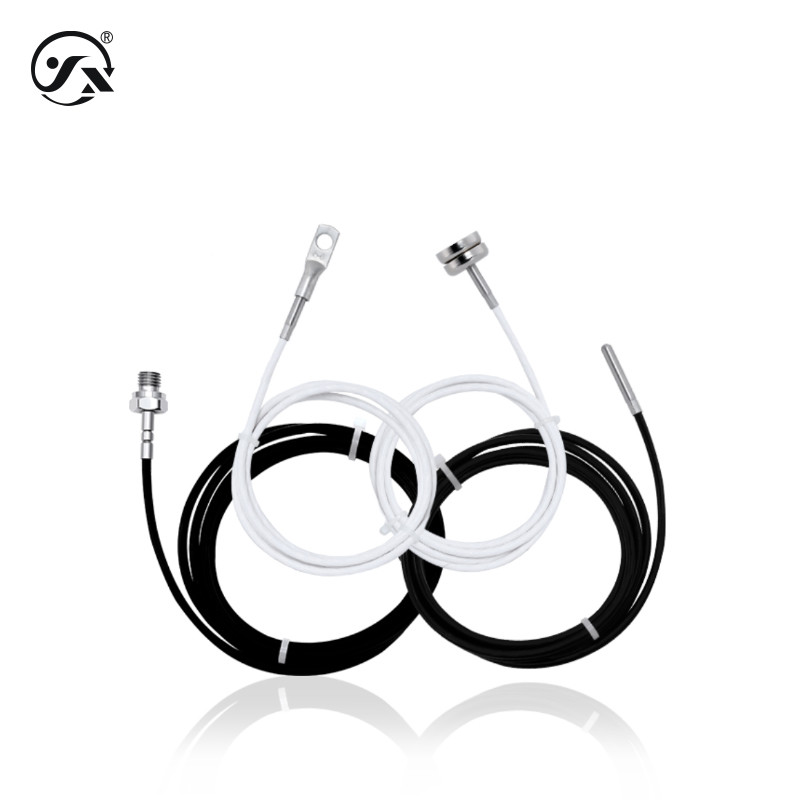

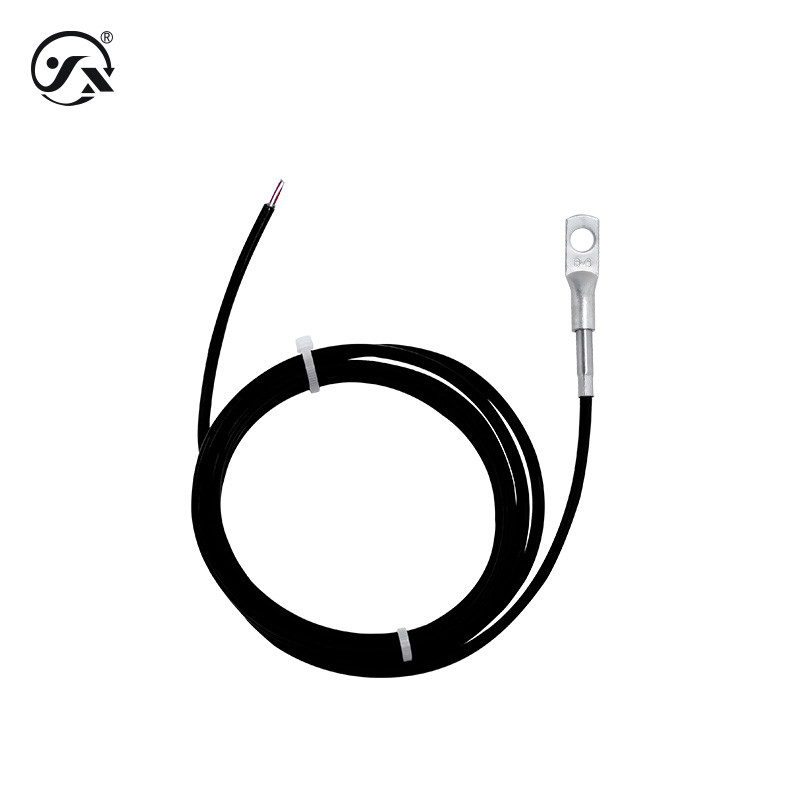

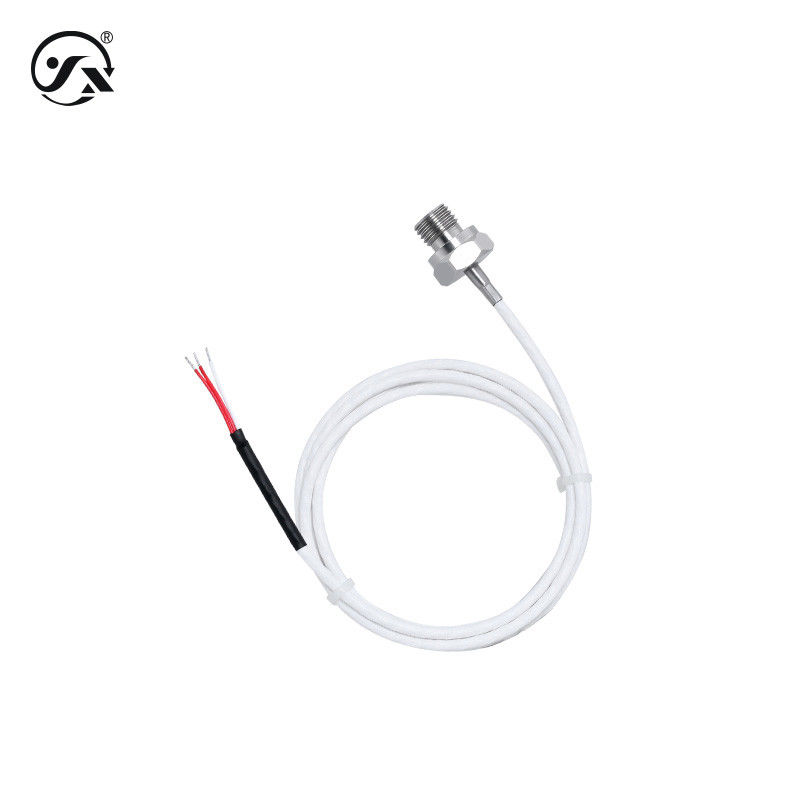

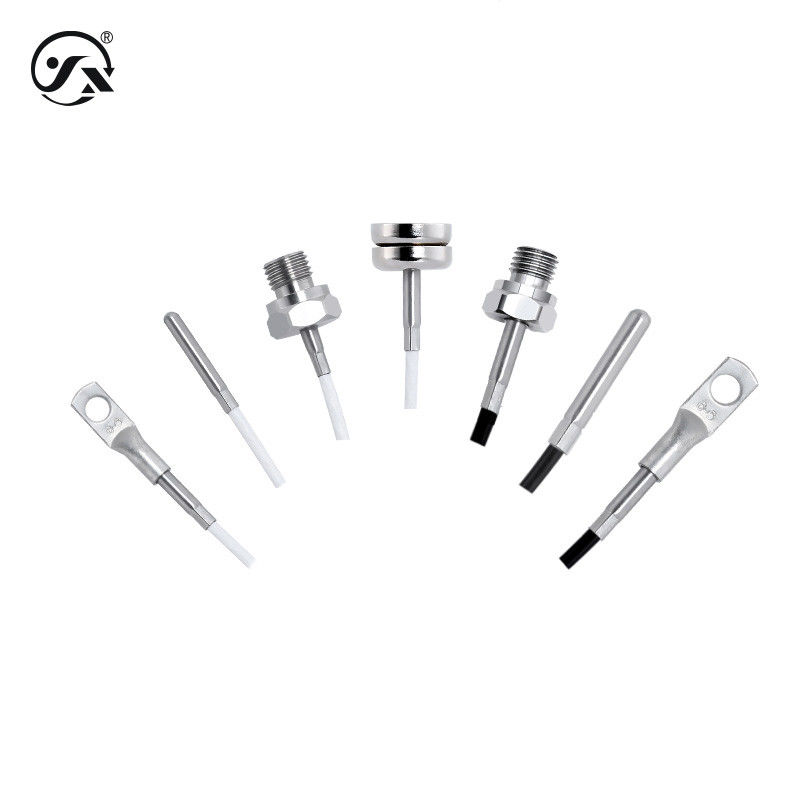

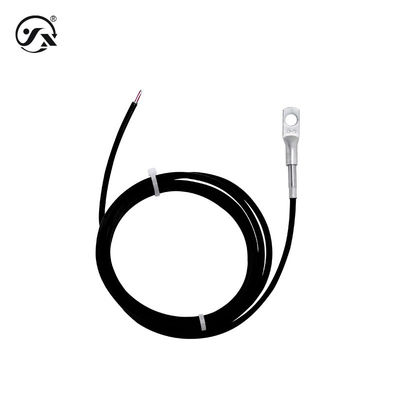

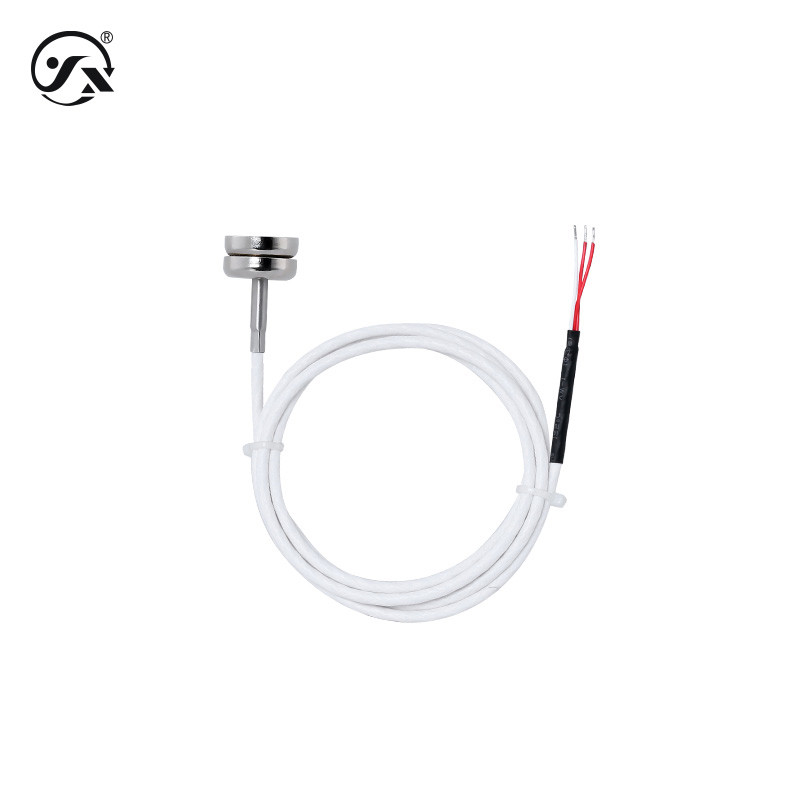

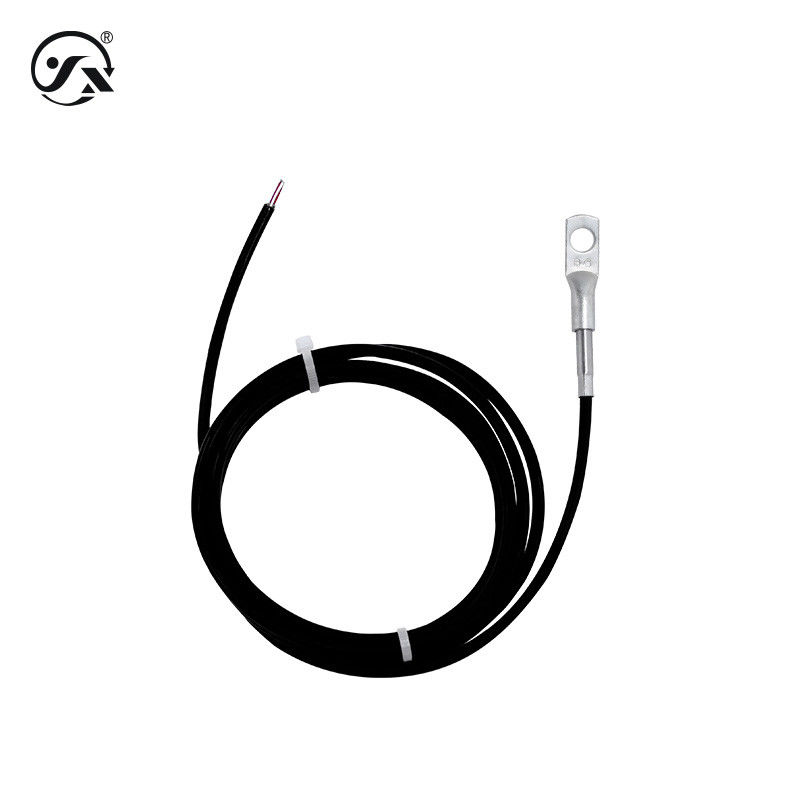

Probe style Tube type, tube type, magnetic type, nose pressing type, screw-in type
Overall material
Outer shell 304 stainless steel
Cable PTFE shielded compensation cable (φ3.2mm) temperature resistance -200~260 °C polyurethane shielded compensation cable (φ4.7mm) temperature resistance -50~100 °C
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
