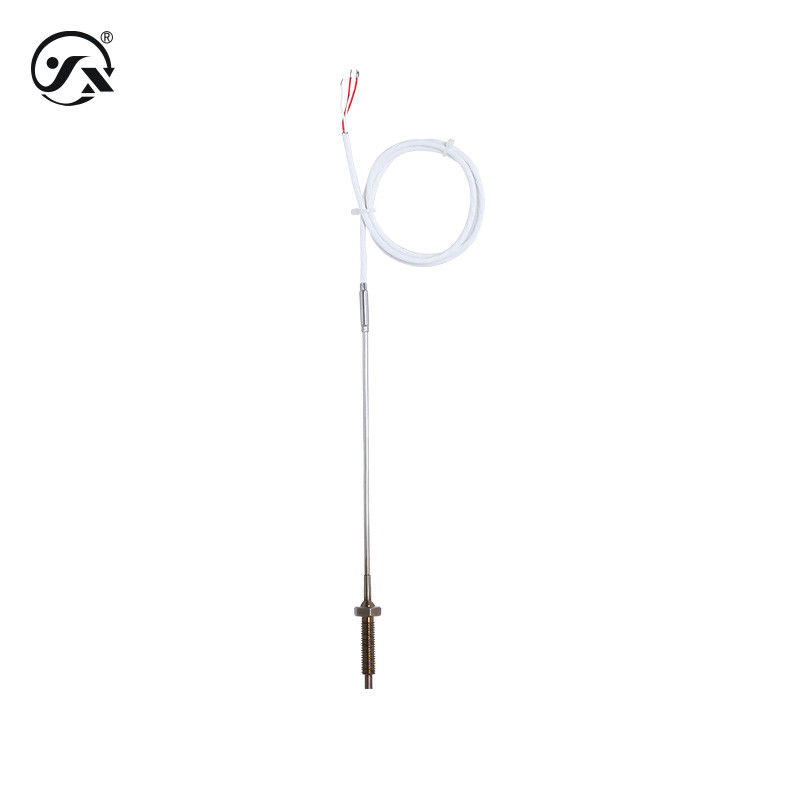

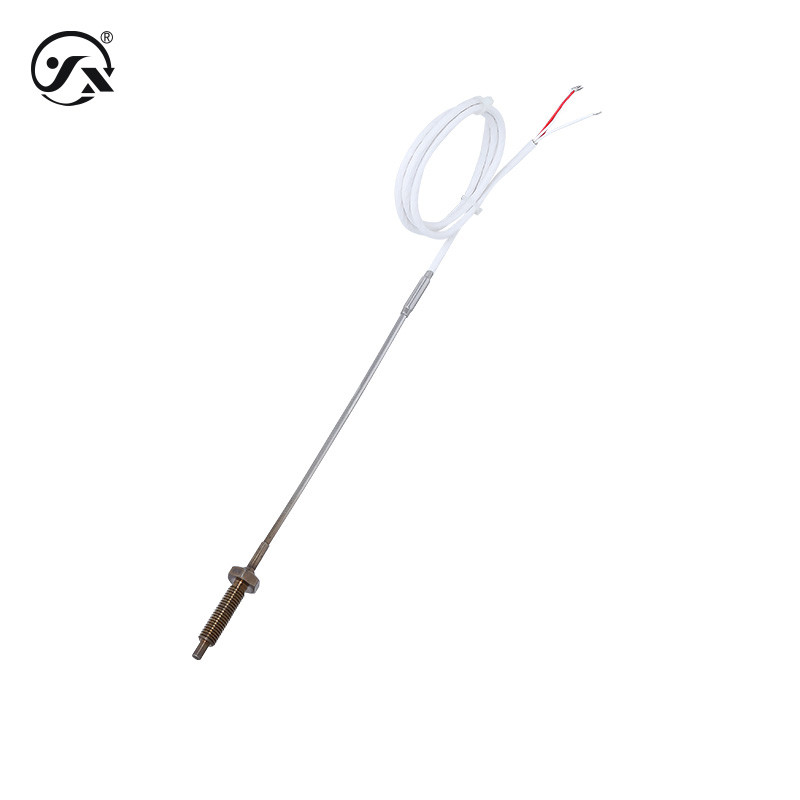

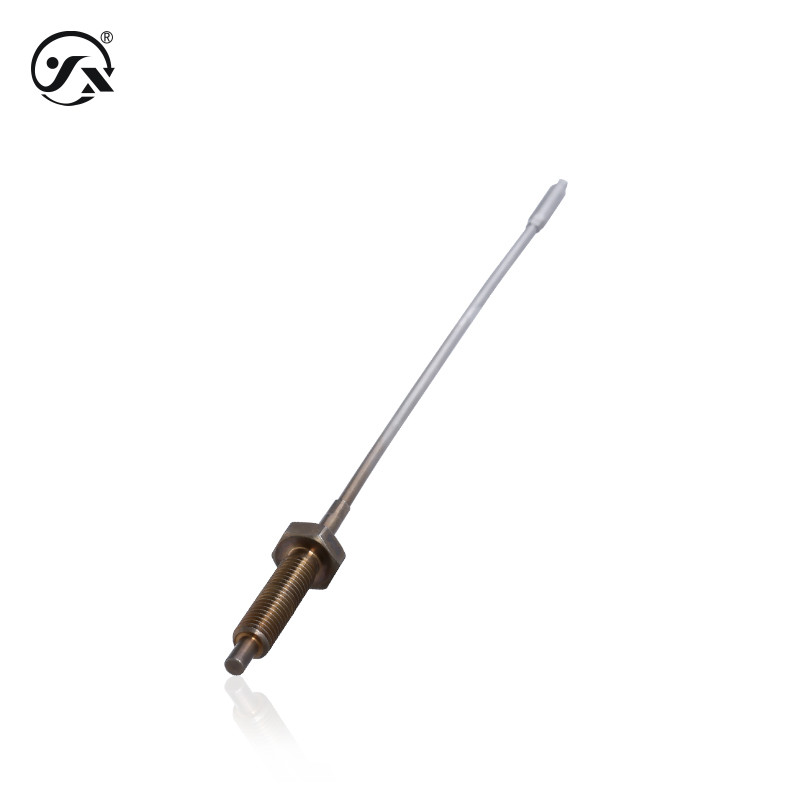

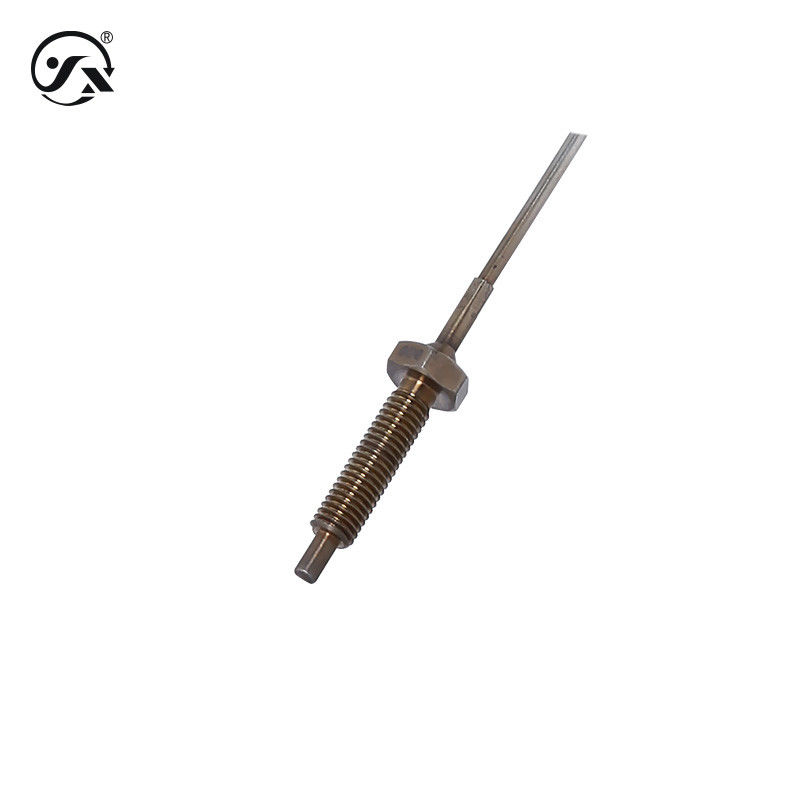

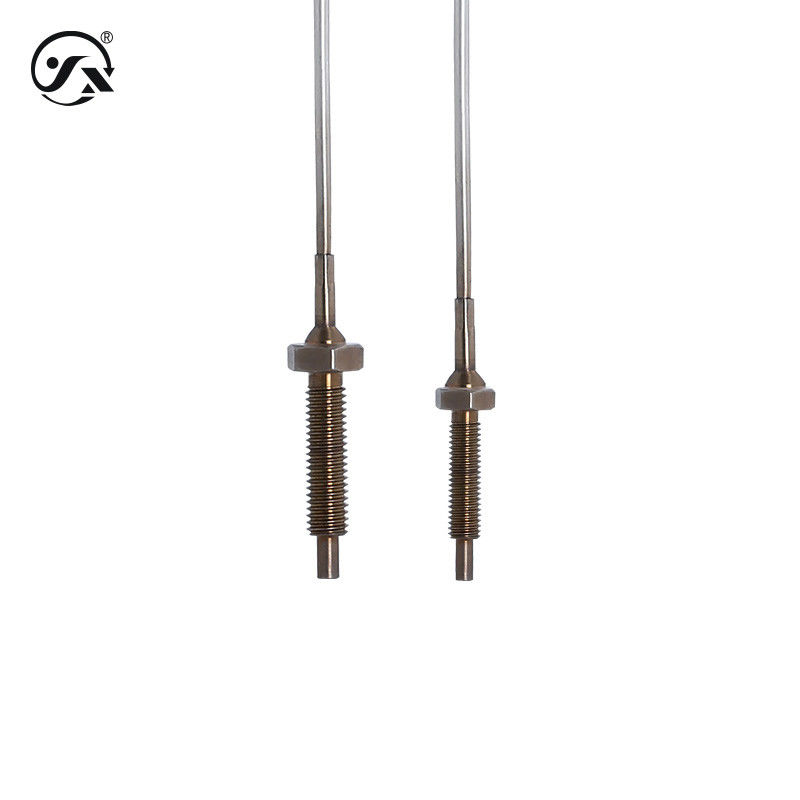

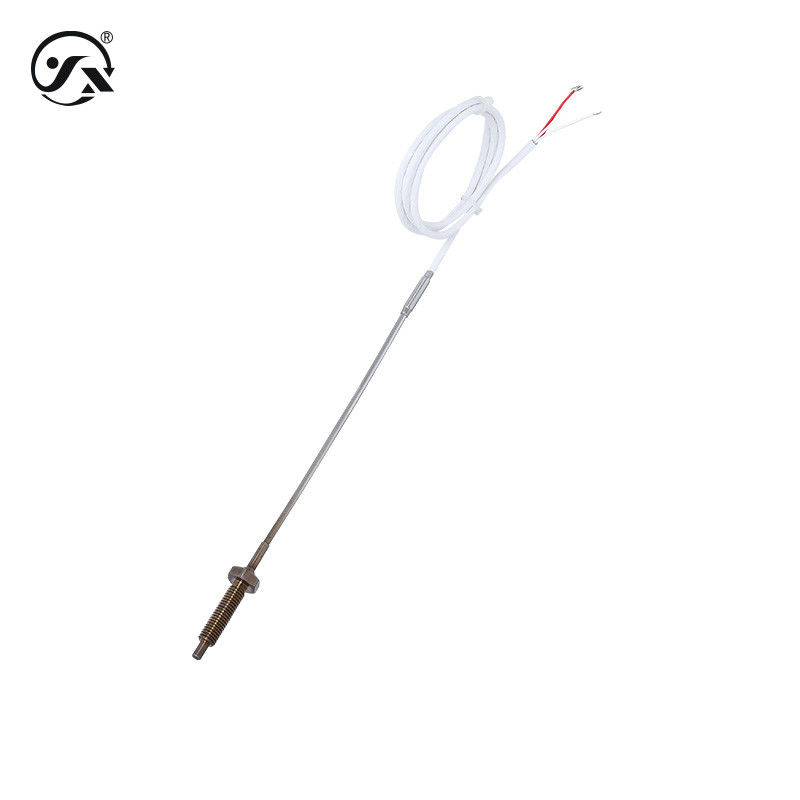

CWDZ06Y Platinum Resistance Temperature Sensor Heating Systems

CWDZ06Y Platinum Resistance Temperature Sensor Heating Systems
CWDZ06Y Platinum Resistance Temperature Sensor Heating Systems CWDZ06Y Platinum Resistance Temperature Sensor Heating Systems CWDZ06Y Platinum Resistance Temperature Sensor Heating Systems CWDZ06Y Platinum Resistance Temperature Sensor Heating Systems CWDZ06Y Platinum Resistance Temperature Sensor Heating Systems
Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ06
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Contact Now
Output: PT100 Measuring Cell: 1/3B Class
Measuring Range: -200~500°C Name: Platinum Resistance Temperature Sensor
Highlight:

CWDZ06 Platinum Resistance Temperature Sensor

,

Platinum Resistance Temperature Sensor Heating Systems

CWDZ06Y Platinum Resistance Temperature Sensor Heating systems industrial boilers gas furnaces pellet furnaces



CWDZ06 platinum resistance temperature sensor is designed in stainless steel, which has excellent high temperature resistance and can withstand temperatures up to 500°C. Suitable for measurement of high temperature media, such as high temperature gases, high temperature liquids.



Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range -200～500℃
Measuring cell 1*Pt100(1/3B grade)
Response time ≤18s (according to IEC60751, 0.4m/s water flow, 10°C steps)
Stable performance ± 0.1% FS/year
Degree of protection IP68
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Environmental conditions
Ambient temperature -200～500℃
Overall material
Outer shell 304 stainless steel
Cable Stainless steel metal wire, φ3.2 tetrafluorine shielded compensation cable
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard



Manual
Product Information -Chinese (CN) PDF
Product selection -Chinese (CN) PDF
Installation instructions -Chinese (CN) PDF
