| Place of Origin: | China |
|---|---|
| Brand Name: | Star merter |
| Model Number: | CWDZ03Y |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 30000 Piece/Month |
| Measuring Element: | Platinum Resistance Pt100 | Measurement Accuracy: | 1/3B Class |
|---|---|---|---|
| Measurement Range: | -50~100°C, -50~260°C | Output: | Pt100 |
| Highlight: | PT100 Platinum Resistor Temperature Sensor,PT100 Platinum Resistance Thermometer,CWDZ03 Platinum Resistance Temperature Sensor |
||

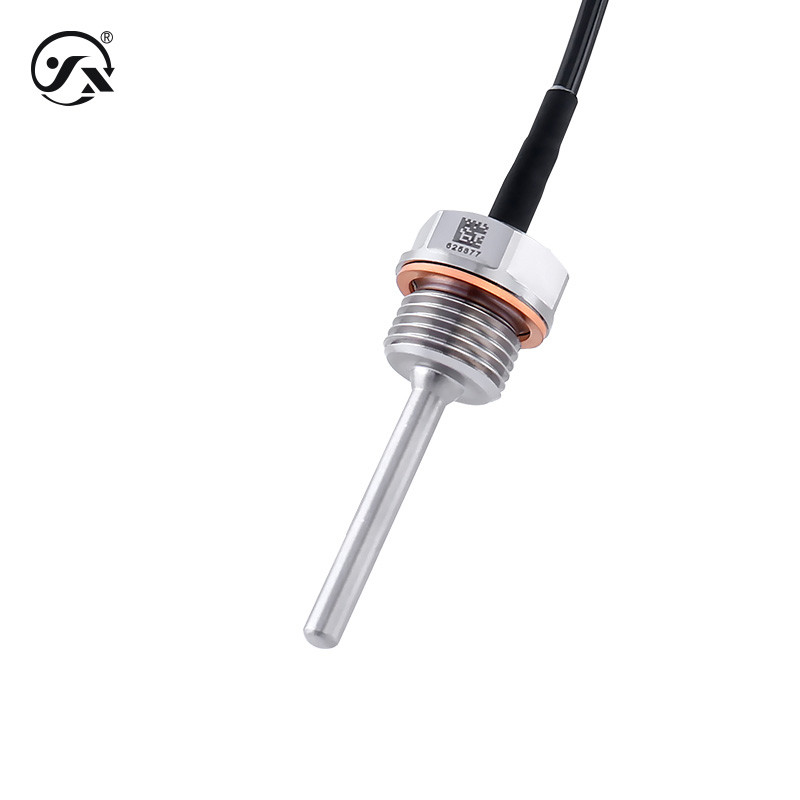

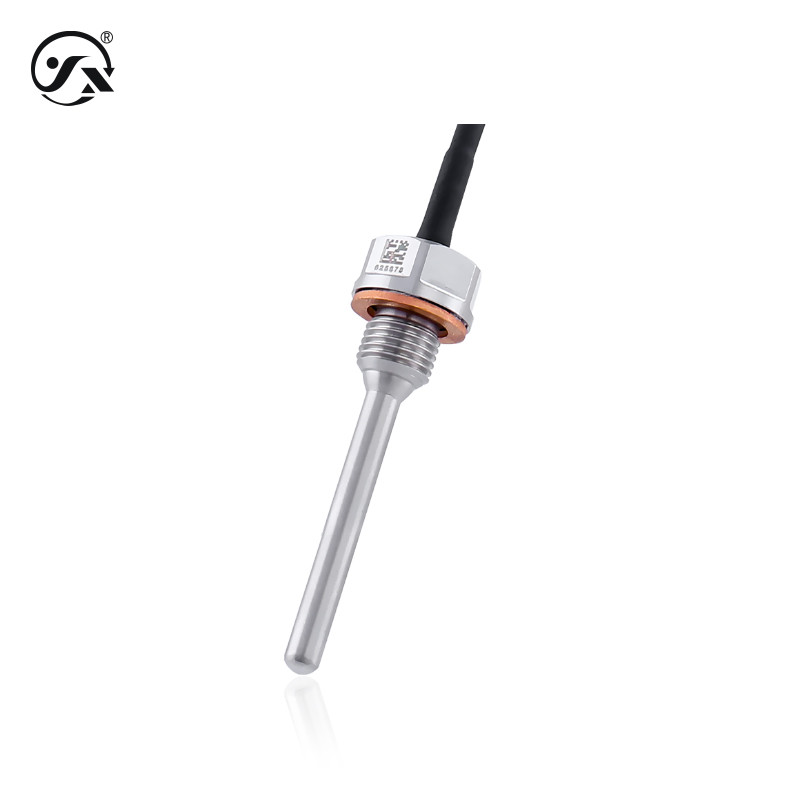

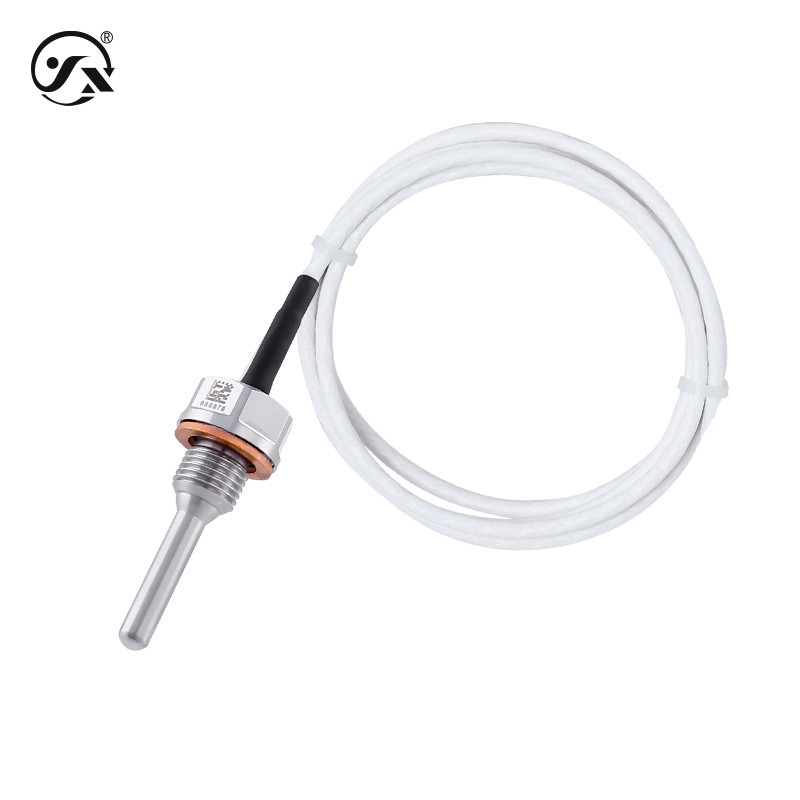

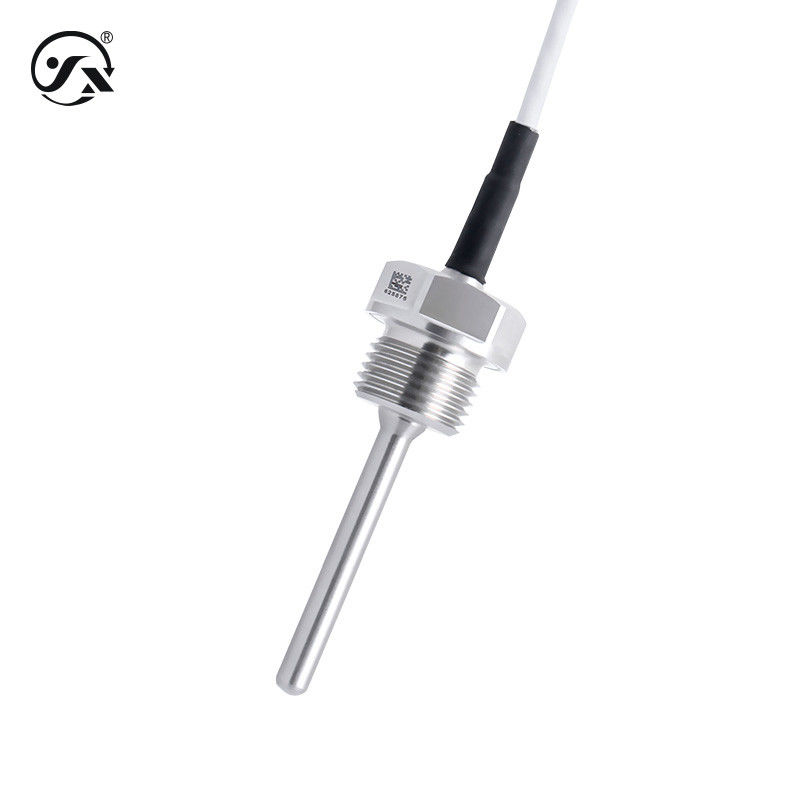

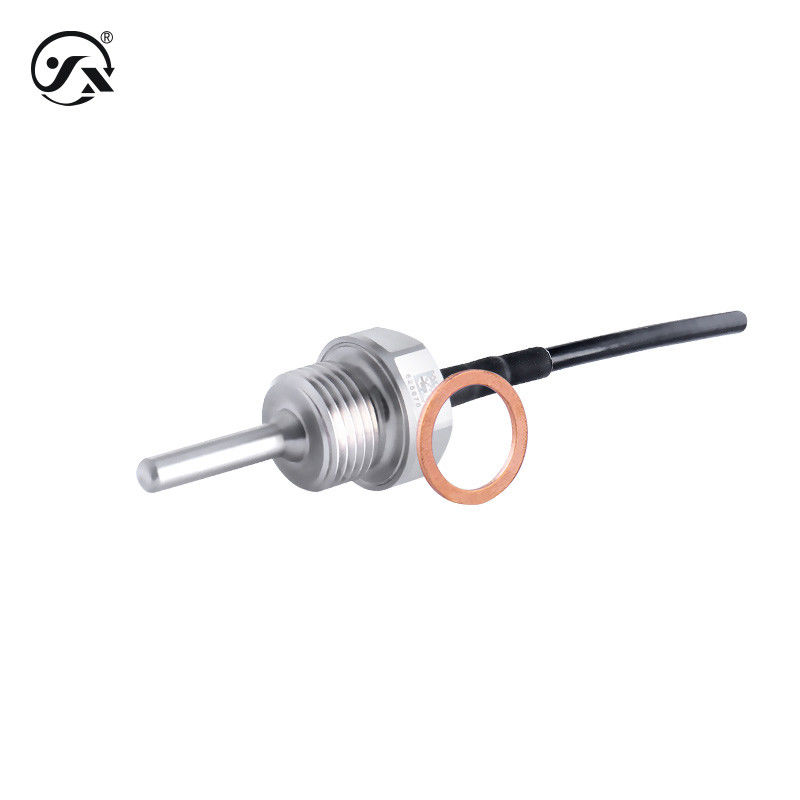

CWDZ03Y Platinum Resistance Temperature Sensor Measuring Range -50～100℃,-50～260℃ Output Pt100 General Industry
CWDZ03Y platinum resistance temperature sensor is suitable for measuring the temperature of gases, liquids and solids.
| Base parameters | |
| Measuring medium | Solid, liquid or gas (compatible with contact material) |
| Measuring range | -50～100℃,-50～260℃ |
| Measuring cell | 1*Pt100(1/3B grade) |
| Measurement accuracy | Class 1/3B |
| Response time | ≤18s (according to IEC60751, 0.4m/s water flow, 10°C steps) |
| Stable performance | ± 0.1% FS/year |
| Degree of protection | IP68 |
| Insulation resistance | ≥100MΩ,500VDC |
| Dielectric strength | 500VAC |
| Overall material | |
| Outer shell | 304 stainless steel |
| Cable | PTFE shielded compensation cable (φ3.2mm) temperature resistance -200~260 °C polyurethane shielded compensation cable (φ4.7mm) temperature resistance -50~100 °C |
| Mechanical stability | |
| Seismic performance | 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard |
| Impact resistance | 500g/ms conforms to IEC60068-2-27 standard |
