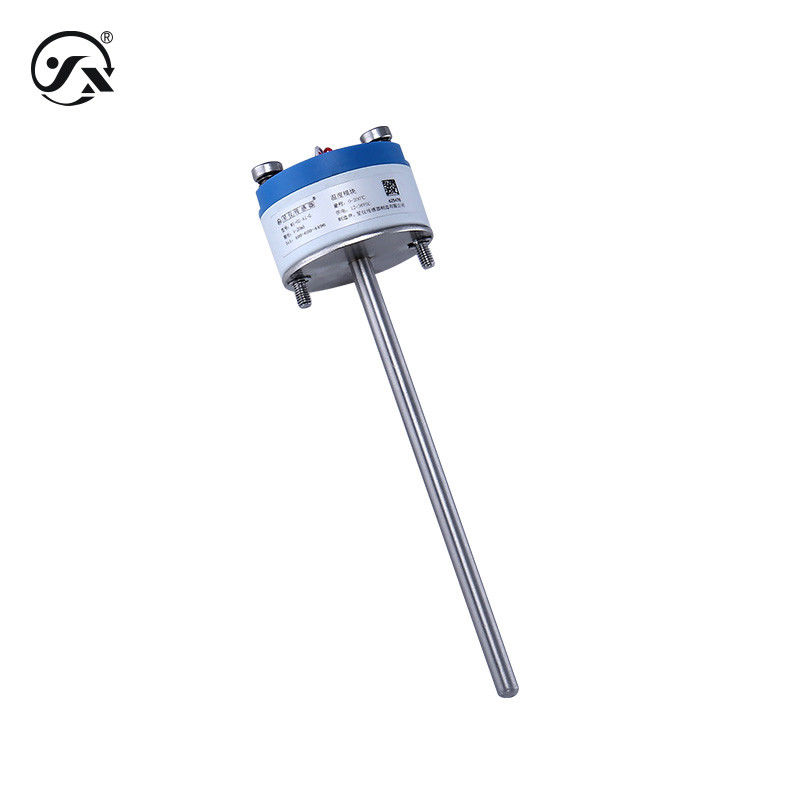

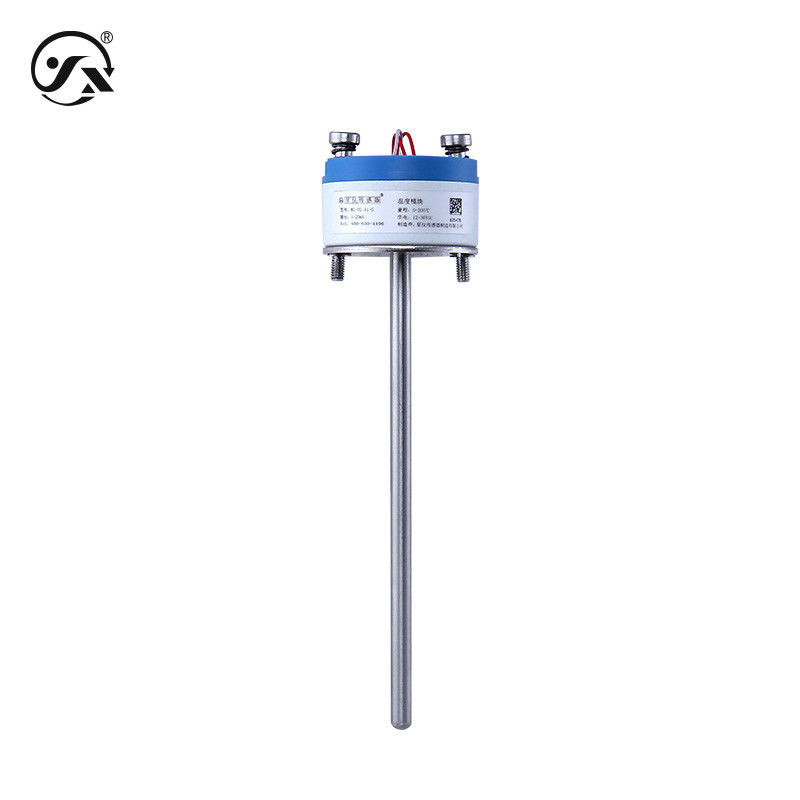

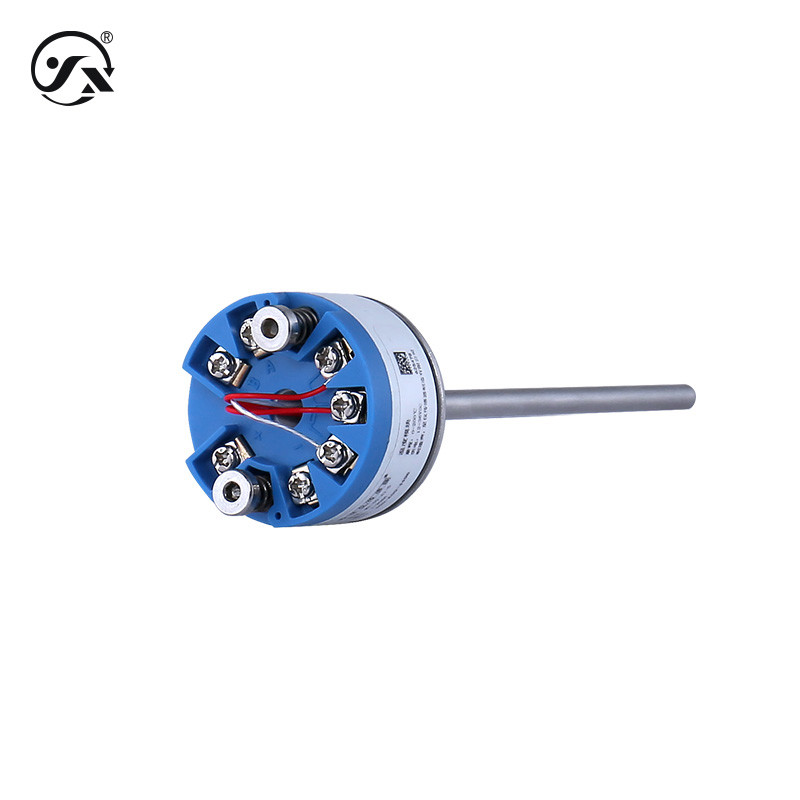

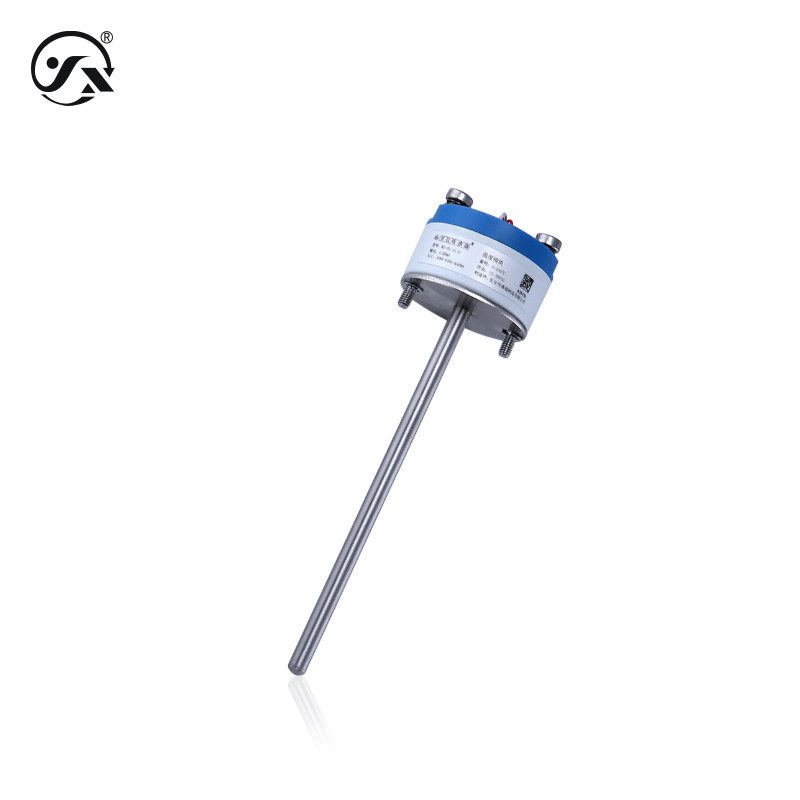

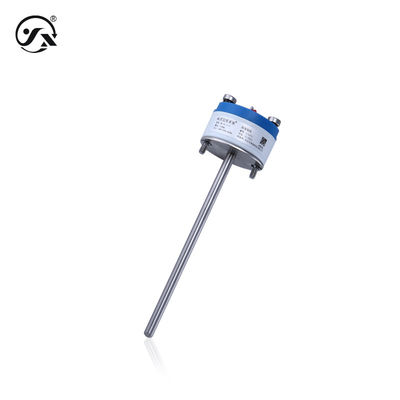

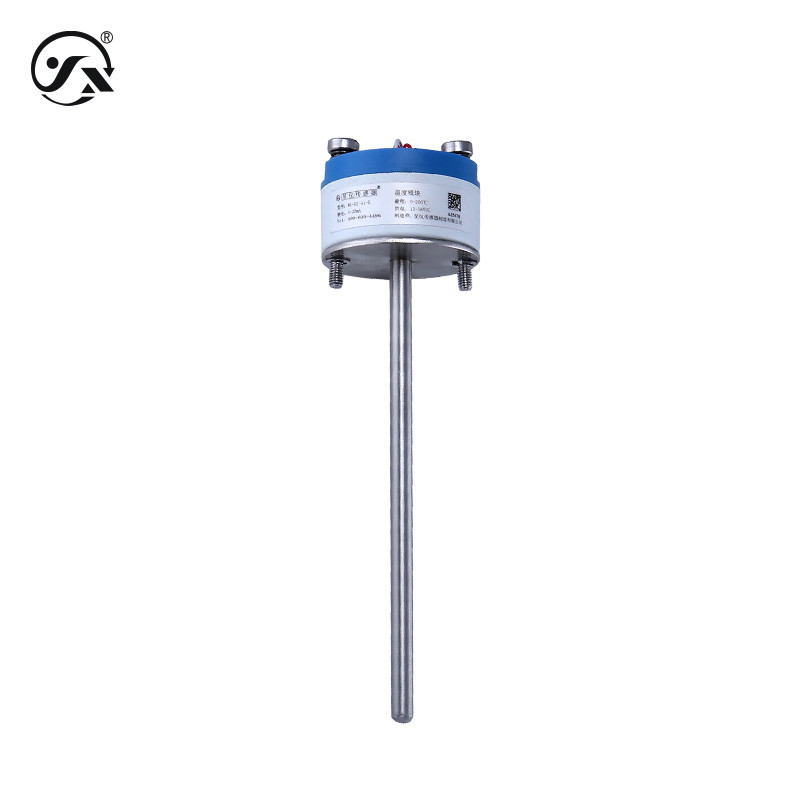

CWDZ05MY Armored Temperature Transmitter 4-20ma RS485 PT100

CWDZ05MY Armored Temperature Transmitter 4-20ma RS485 PT100
CWDZ05MY Armored Temperature Transmitter 4-20ma RS485 PT100 CWDZ05MY Armored Temperature Transmitter 4-20ma RS485 PT100 CWDZ05MY Armored Temperature Transmitter 4-20ma RS485 PT100 CWDZ05MY Armored Temperature Transmitter 4-20ma RS485 PT100 CWDZ05MY Armored Temperature Transmitter 4-20ma RS485 PT100
Basic Information
Brand Name: Star merter
Model Number: CWDZ05M
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Contact Now
Range: -50~300°C、-200~300°C、-50~500°C Output: 4~20mA, RS485, Pt100
Power Supply: 12~36VDC Accuracy: 0.25%FS, 0.5%FS
Highlight:

CWDZ05M Armored Temperature Transmitter

,

PT100 Armoured Temperature Transmitter

,

Armored Temperature Transmitter 4-20ma

CWDZ05MY Armored Temperature Transmitter Range: -50~300°C,-200~300°C,-50~500°C Output: 4~20mA, RS485, Pt100



CWDZ05MY armoured temperature transmitter core is suitable for armored temperature transmitters that meet this size.



Base parameters
Measuring range -50～300℃,-200～300℃, -50～500℃
Output signal 4~20mA,RS485
Supply voltage 12～36VDC
Measuring cell 1*Pt100 (Class 1/3B)
Stable performance ± 0.1% FS/year
On-time 400ms
Overall weight ≈400g
Accuracy class 0.25%FS,0.5%FS
Resolution Analog output 0.02%FS, digital output 0.1°C
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤{(Us-9)/0.02(Us=Supply voltage)}Ω
Environmental conditions
Ambient temperature -40～85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Overall material
enclosure ABS engineering plastics
Protective pipe material 304 stainless steel (contact with the medium to be measured)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms complies with IEC60068-2-27 standard
Output limits
4-20mA Output min. 2.5mA, output max 26mA
RS485 Output minimum 0, output maximum 3500/7000
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
