| Place of Origin: | China |
|---|---|
| Brand Name: | Star merter |
| Model Number: | CWDZ05TY |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 30000 Piece/Month |
| Measuring Element: | Platinum Resistance Pt100 (1/3B Class) | Measuring Range: | -50~300°C, -200~300°C, -50~500°C |
|---|---|---|---|
| Output: | PT100 | Name: | Armored Temperature Sensor |
| Highlight: | PT100 Temperature Indicator Transmitter,IP68 Temperature Indicator Transmitter,CWDZ05T Armored Temperature Sensor |
||

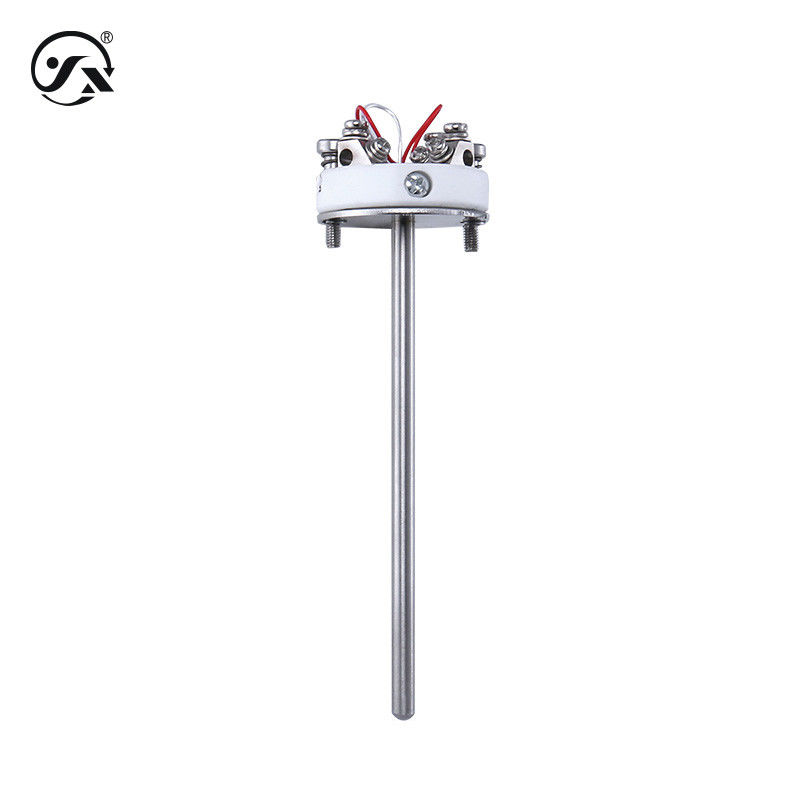

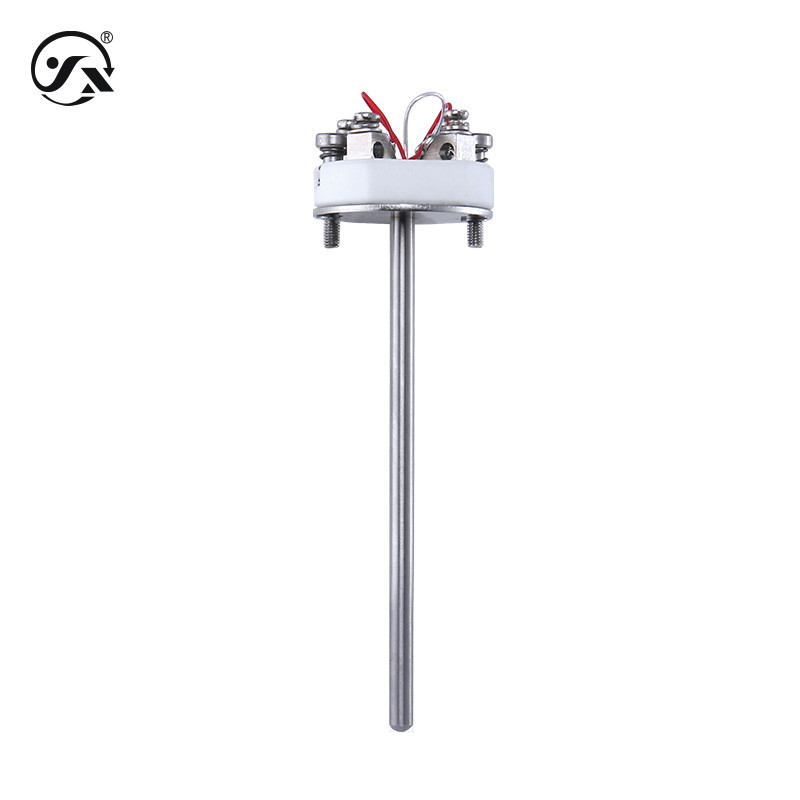

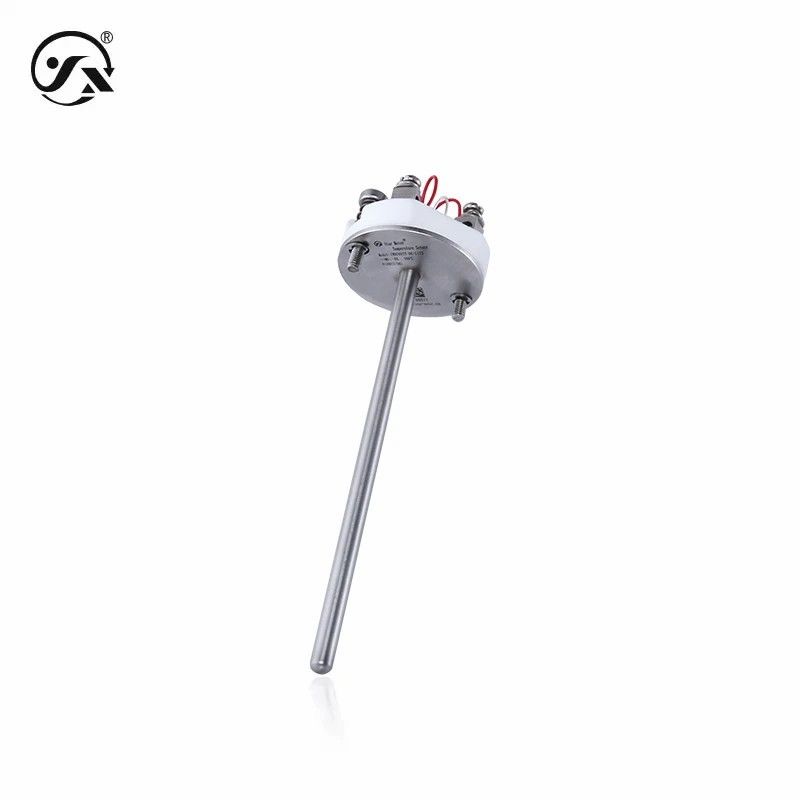

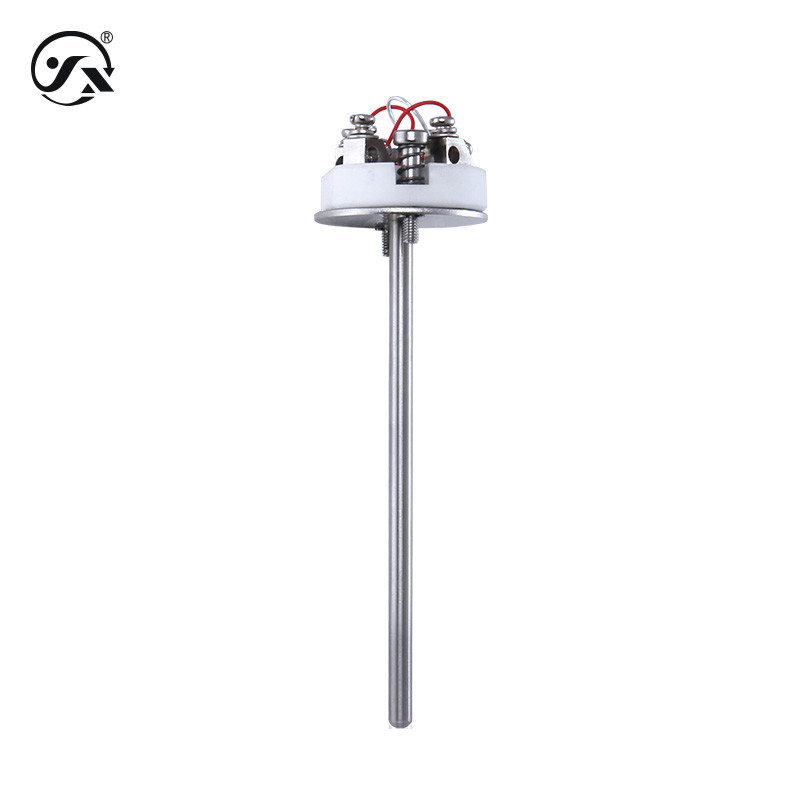

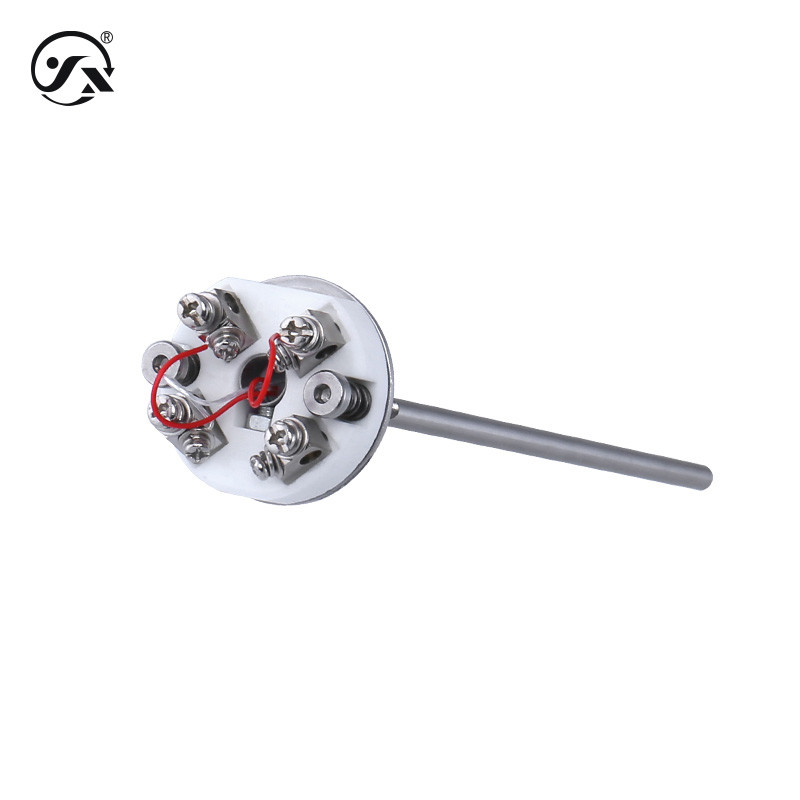

CWDZ05TY Armored Temperature Sensor Measuring Range -50～300℃,-200～300℃, -50 ～500℃ 1*Pt100 (Class 1/3B) General Industry
CWDZ05TY armoured temperature sensor core is suitable for armoured temperature transmitters that meet this size. The dielectric strength is enhanced by a special process.
| Base parameters | |
| Measuring medium | Solid, liquid or gas (compatible with contact material) |
| Measuring range | -50～300℃,-200～300℃, -50～500℃ |
| Measuring cell | 1*Pt100 (Class 1/3B) |
| Response time | ≤18s (conforms to IEC60751, 0.4m/s water flow, 10°C step) |
| Stable performance | ± 0.1% FS/year |
| Degree of protection | IP68 |
| Electrical protection | |
| Insulation resistance | ≥100MΩ,500VDC |
| Dielectric strength | 500VAC |
| Overall material | |
| Cable Header | ceramics |
| Outer shell | 304 stainless steel |
| Cable | 0.2 compensation cable |
| Mechanical stability | |
| Seismic performance | 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard |
| Impact resistance | 500g/ms complies with IEC60068-2-27 standard |
