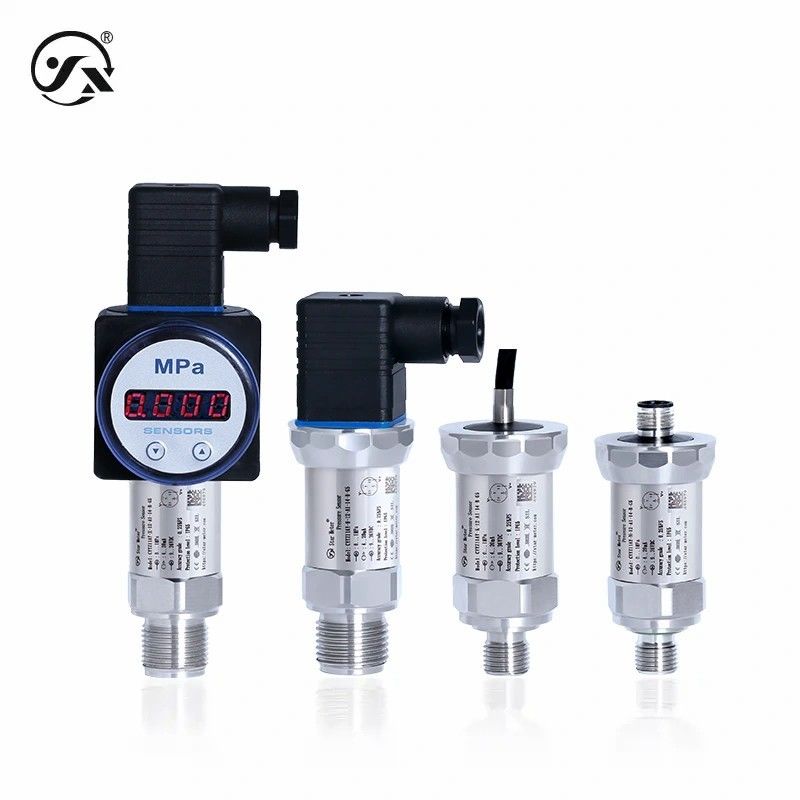

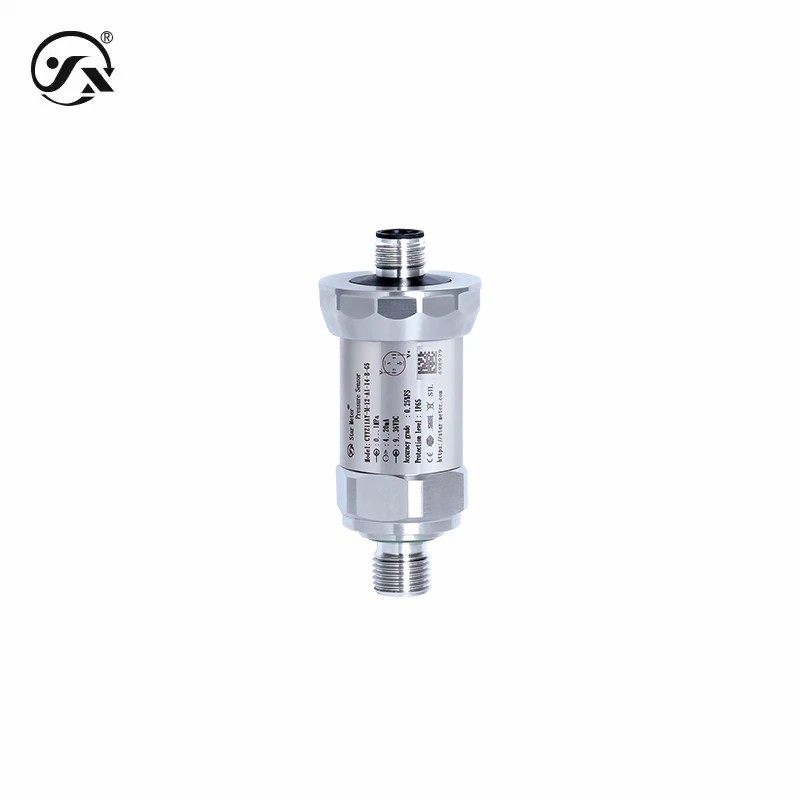

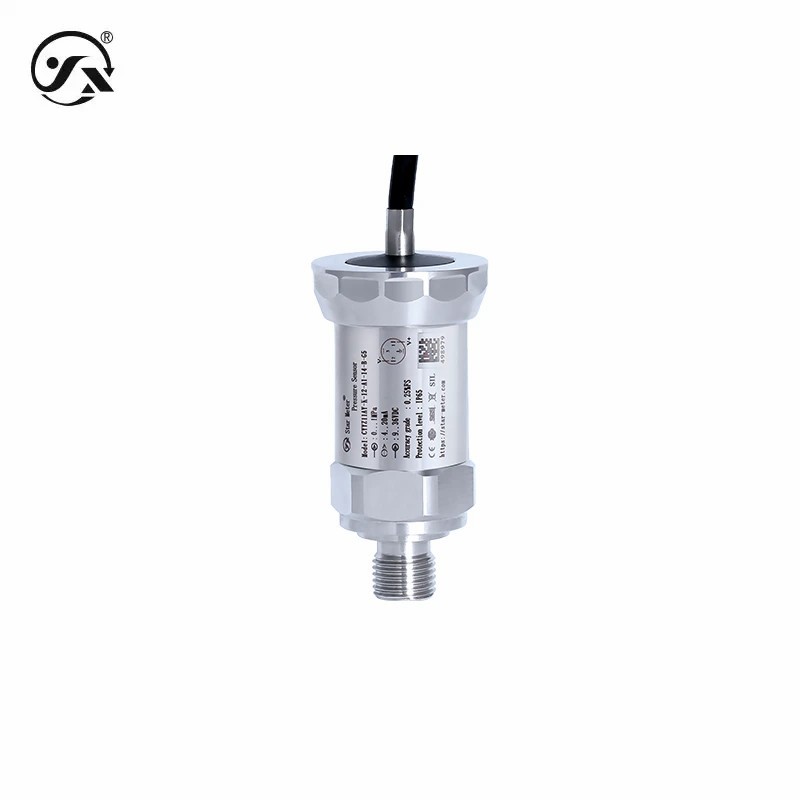

CYYZ11AY Universal Pressure Transmitter 0.1%FS 0.25%FS 0.5%FS for General Industry

Basic Information
Place of Origin: China
Brand Name: Star Meter
Model Number: CYYZ11AY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~100MPa Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, 0.5~2.5VDC
Power Supply: 9~36VDC, 15~36VDC, 3~5VDC Accuracy: 0.1%FS, 0.25%FS, 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ11A Universal Pressure Transmitter

,

Universal Pressure Transmitter 0.25%FS

,

Universal Pressure Transmitter 0.1%FS

CYYZ11AY Universal Pressure Transmitter General Industry Use Range -100kPa~0~100MPa Accuracy 0.1%FS 0.25%FS 0.5%FS



The CYYZ11AY pressure transmitter is well designed, not only compact, but also of excellent quality, which is very suitable for general industry and cost-effective. It also has diversified advantages such as output signal, range range, pressure interface, electrical connection, etc., which is convenient to match different working conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range -100kPa~0~100MPa (see range selection table for details)
Type of pressure Gauge pressure, absolute pressure, negative pressure
Media temperature -40~85℃
Temperature compensation -10~70℃
Accuracy class 0.1%FS,0.25%FS,0.5%FS
Response frequency 5Hz,30Hz,100Hz
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)

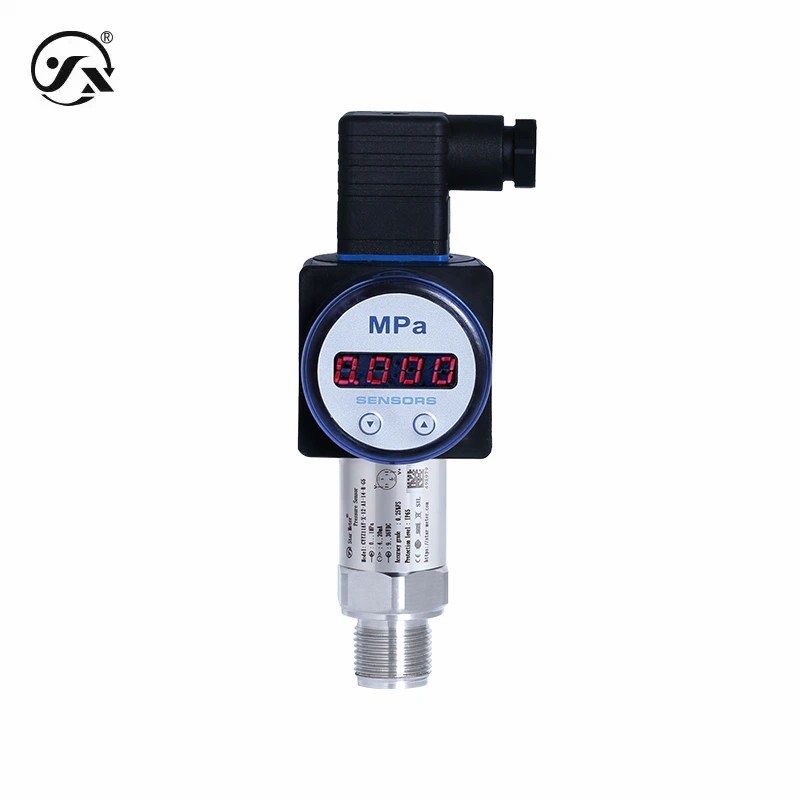

Overall weight No display≈ 190g has a display ≈ 270g
resolution Analog output 0.01%FS, digital output 0.05%FS
Degree of protection IP65 (no display) IP54 (with display) Note: The above protection level refers to the electrical connection is achieved after the electrical connection is complete
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~36VDC,15~36VDC,3~5VDC
Power range
Current type ≤0.02Us(W)
Digital ≤0.015Us(W),≤0.02Us(W)
Voltage type ≤0.008Us(W),≤0.001Us(W),≤0.02Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type No display load ≤{(Us-7.5)÷0.02}Ω (US=supply voltage)
Current type Load ≤ shown {(Us-12)÷0.02}Ω (US=Supply Voltage)
Environmental conditions
Media temperature -40~85℃
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overload capacity
Overload pressure 300%FS,200%FS,150%FS,12kPa,50kPa,300kPa,480kPa,750kPa,800kPa,1.2MPa,2MPa,3MPa,5MPa
Burst pressure 600%FS,500%FS,400%FS,300%FS,20kPa,200kPa,600kPa,900kPa,1.25MPa,2MPa,3MPa,5MPa,9MPa,12.5MPa
Overall material
diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
enclosure 304 stainless steel (contact)
Seals Nitrile rubber (contact) fluoroelastomer (seen pressure and blasting chart (contact with the medium to be measured)
Hirschmann joints ABS engineering plastics,
Mechanical stability
Seismic performance 10g(20… 2000Hz)
Impact resistance: 500g/ms
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 4mA,0,0.001VDC,0.05VDC
Output maximum 20mA,2000,10VDC,5VDC
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
