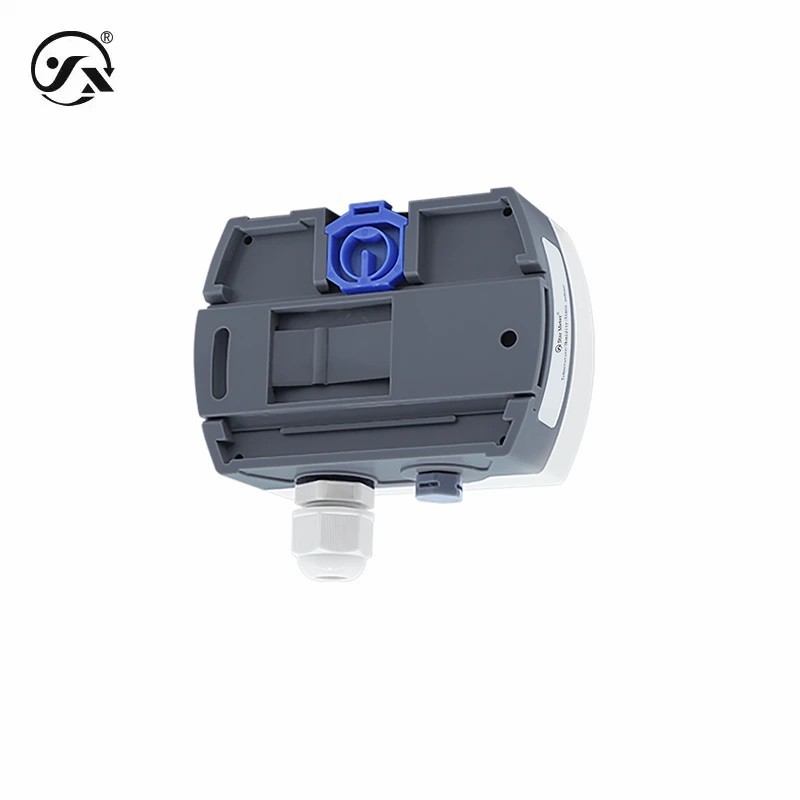

CYYZ26Y Atmospheric Pressure Transmitter 0.25%FS Ambient Air Pressure Transmitter

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ26Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~110kPa(A) Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 9~36VDC, 12~36VDC Accuracy: 0.25%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ26 Atmospheric Pressure Transmitter

,

Atmospheric Pressure Transmitter 0.25%FS

,

Ambient Air Pressure Transmitter

CYYZ26Y Atmospheric Pressure Transmitter Range 0~110kPa(A) Ambient Air Pressure Monitoring Accuracy 0.25%FS

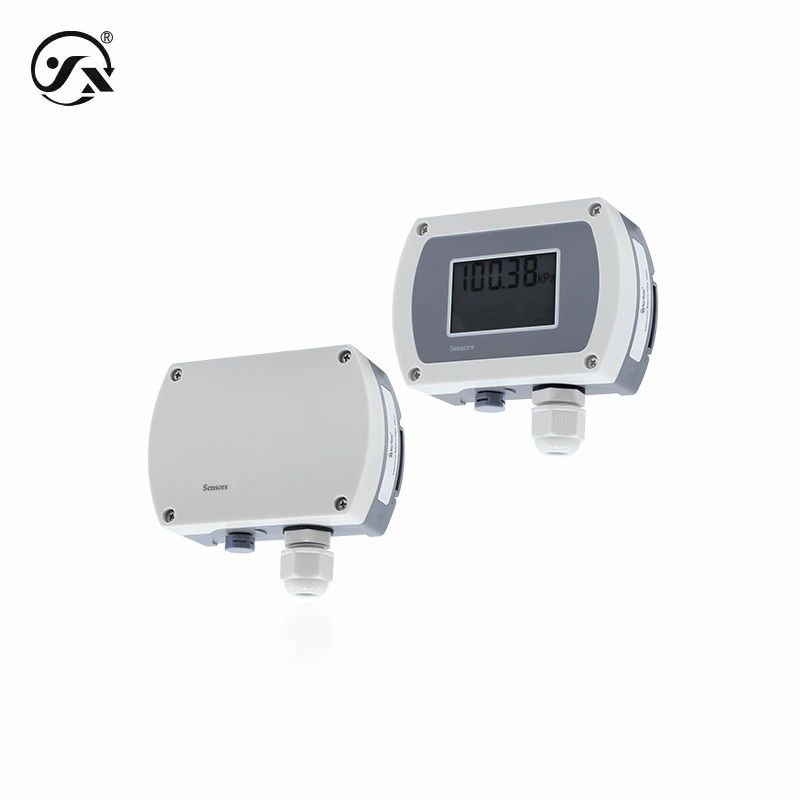

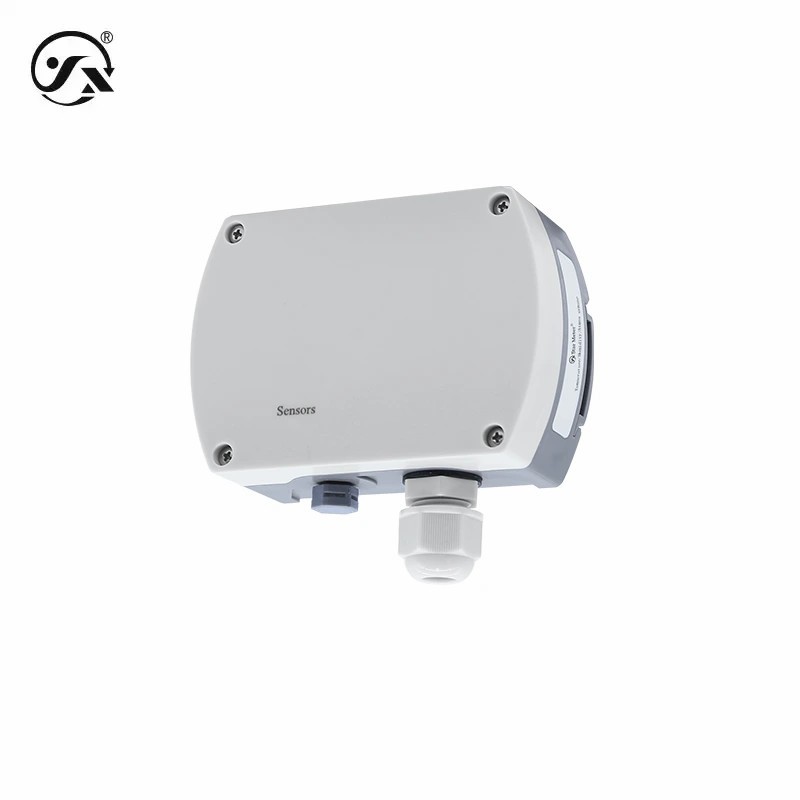

CYYZ26Y atmospheric pressure transmitter is carefully designed and of excellent quality, suitable for monitoring of various ambient atmospheric pressure in various occasions, with and without display two options, and cost-effective.





Base parameters
Measuring medium gas
Range range 0~110kPa(range of use: 1~110kPa)
Type of pressure Absolute pressure
On-time 400ms
Accuracy class 0.25%FS
Response frequency 5Hz
Stable performance ± 0.1% FS/year
Temperature compensation -10~70℃
Temperature drift ±0.01%FS/°C (temperature compensation range); ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP65
Overall weight No display≈ 110g, with display ≈130g
resolution Analog output 0.01%FS, digital output 10Pa
Output power
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC
Power supply range 9~36VDC,12~36VDC
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
0~10VDC ≤0.015Us(W)
0~5VDC ≤0.015Us(W)
1~5VDC ≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type ≤{(Us-7.5)÷0.02}Ω(Us=Supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
enclosure ABS engineering plastics
Cable locking head Nylon (lock wire diameter 4~6mm)

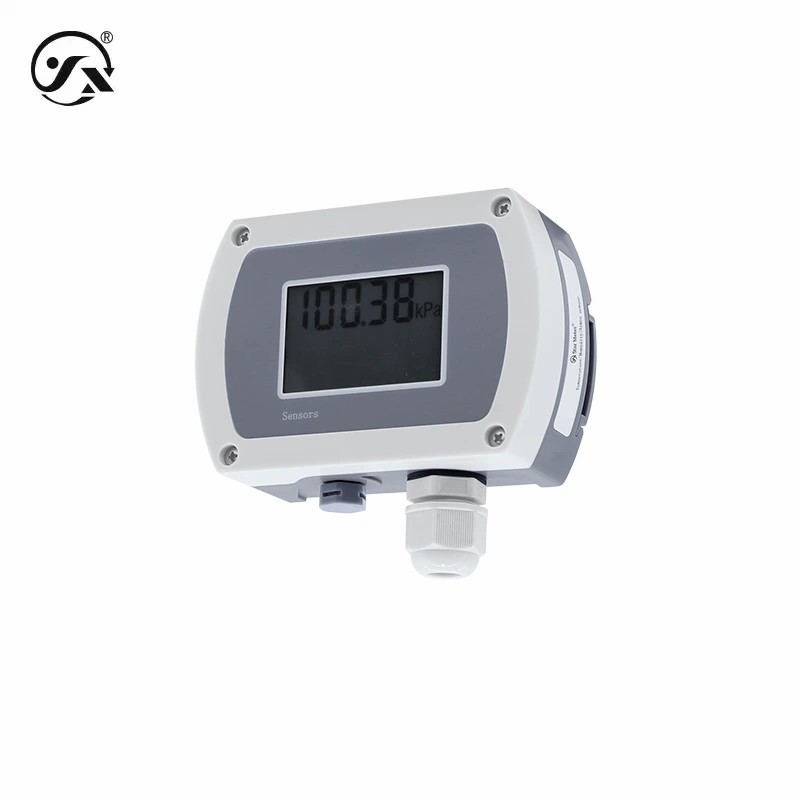

display LCD display, no backlight
Seals nitrile rubber
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 4.145mA and output max 20mA
RS485 Output minimum 100, output maximum 15000
0~5VDC Output minimum 0.09VDC, output maximum 10VDC
0~10VDC Output minimum 0.046VDC, output maximum 5VDC
1~5VDC Output minimum 1.036VDC, output maximum 5VDC
