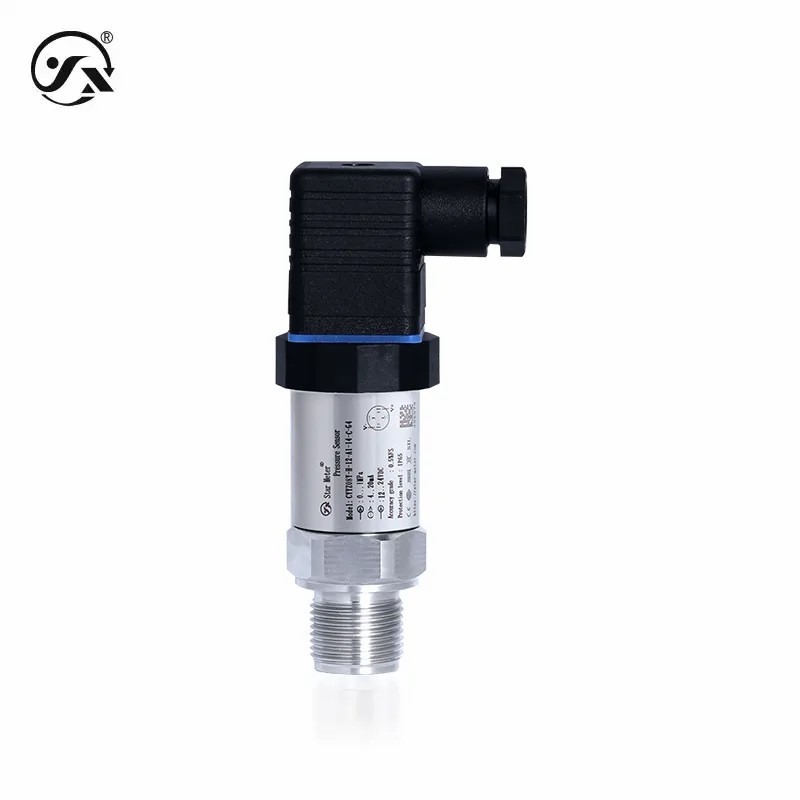

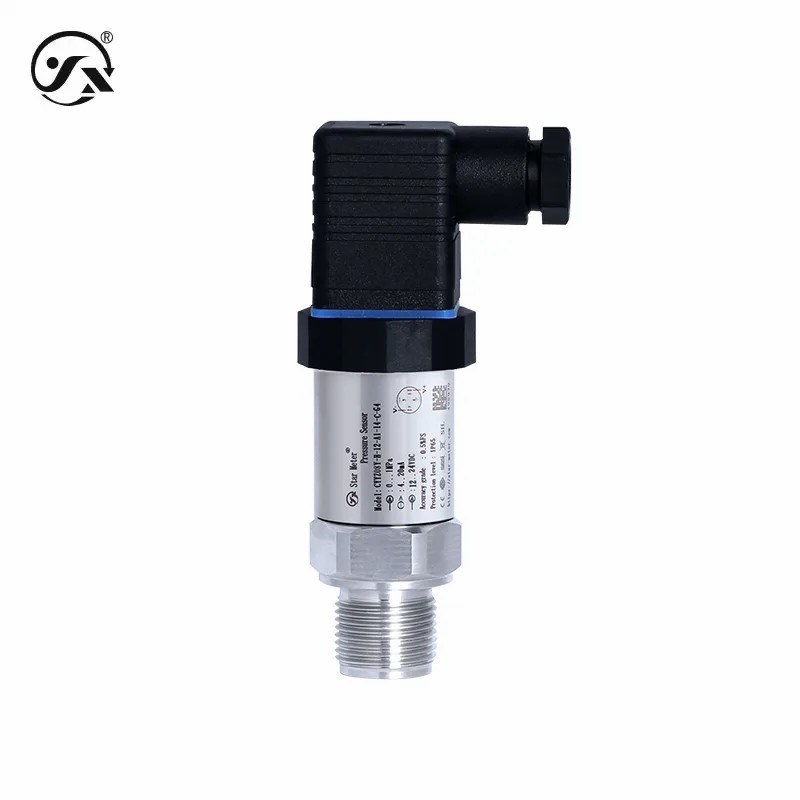

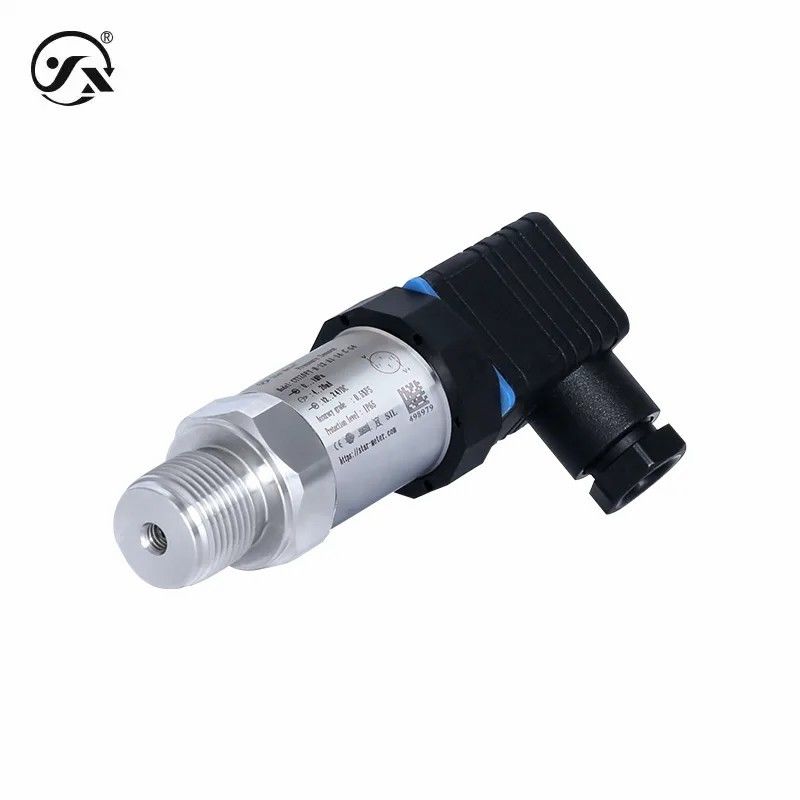

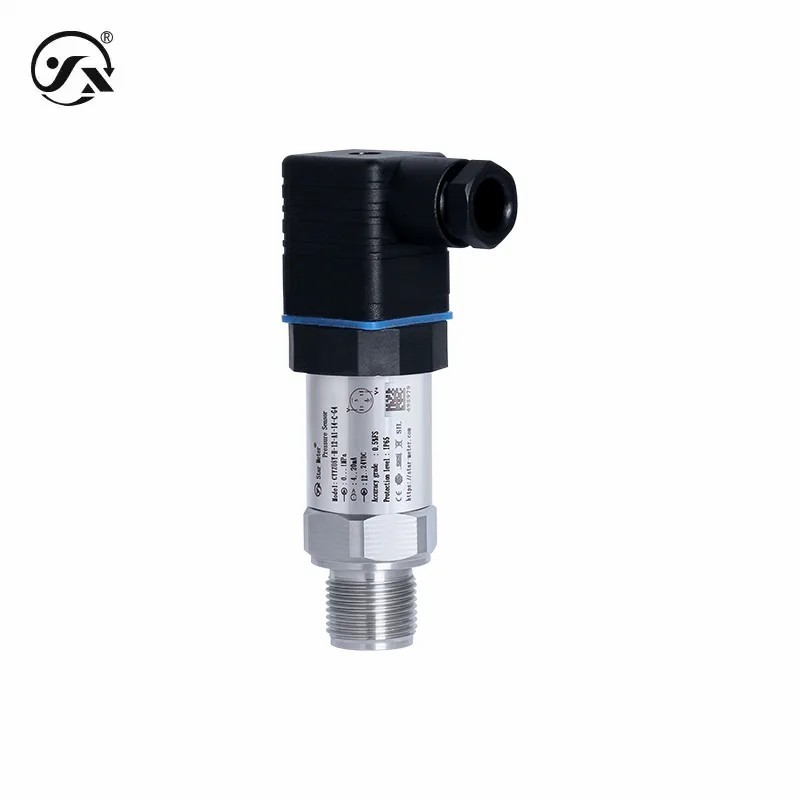

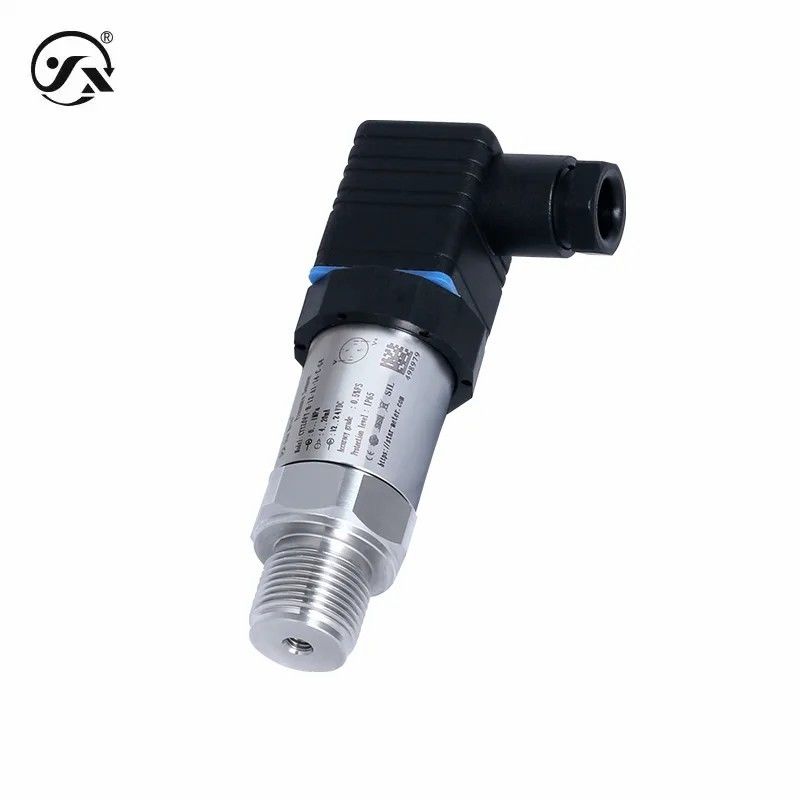

CYYZ08Y Special Type Pressure Transmitter Sensor Constant Pressure Water Supply Heat System

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ08Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0-0.6~2.5MPa Output: 4~20mA, RS485
Power Supply: 12~24VDC Accuracy: 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ08 Pressure Transmitter Sensor

,

Special Type Pressure Transmitter Sensor

,

CYYZ08 Sensor Pressure Transmitter

CYYZ08Y Special Type Pressure Transmitter Constant Pressure Water Supply Heat System Range 0-0.6~2.5MPa



CYYZ08Y pressure transmitter is well designed and cost-effective. It is suitable for constant pressure water supply, heat system, heat exchange station and other sites.





Technical parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range 0-0.6~2.5MPa (see range selection table for details)
Type of pressure Gauge pressure
Output signal 4~20mA, RS485 (standard Modbus-RTU protocol)
Supply voltage 12~24VDC
Accuracy class 0.5%FS
Media temperature -40~85℃
On-time 20ms
Temperature compensation -10~70℃
Stable performance ± 0.2% FS/year
Temperature drift ±0.02%FS/°C (temperature compensated)
Degree of protection IP65 Note: The above protection level refers to the electrical connection after it is complete
Durable performance 10X10⁶ times (lower range to upper range cycles)
Response frequency Analog output≤ 100Hz, digital output≤5Hz
Overall weight ≈190g
Power range
Current type ≤0.02Us(W)
Digital ≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type Load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overpressure and blasting
Overload pressure 200%FS
Burst pressure 500%FS
Overall material
diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
enclosure 304 stainless steel (contact)
Seals Seen pressure and blasting charts (contact with the medium being measured)
Hirschmann joints ABS engineering plastics
Mechanical stability
Seismic performance 10g(20… 2000Hz)
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output limits
The output is minimal 4mA,0
Output maximum 20mA ,2000
