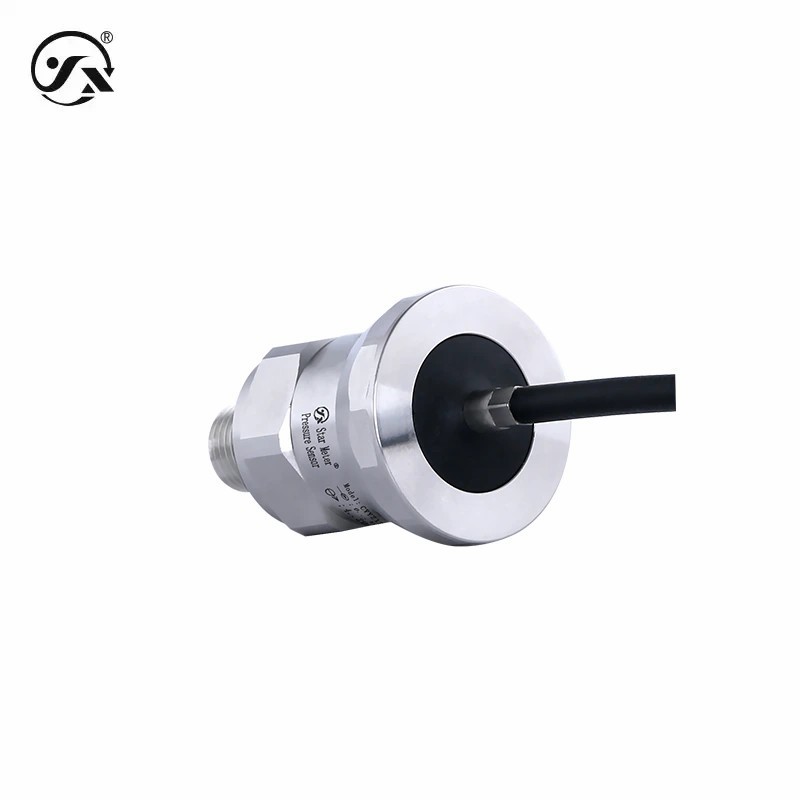

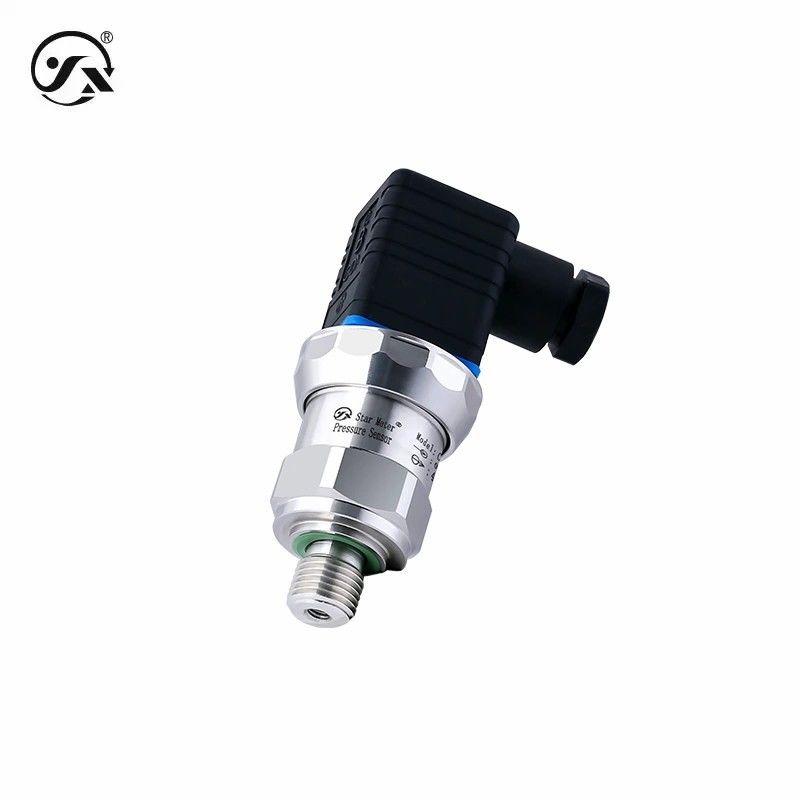

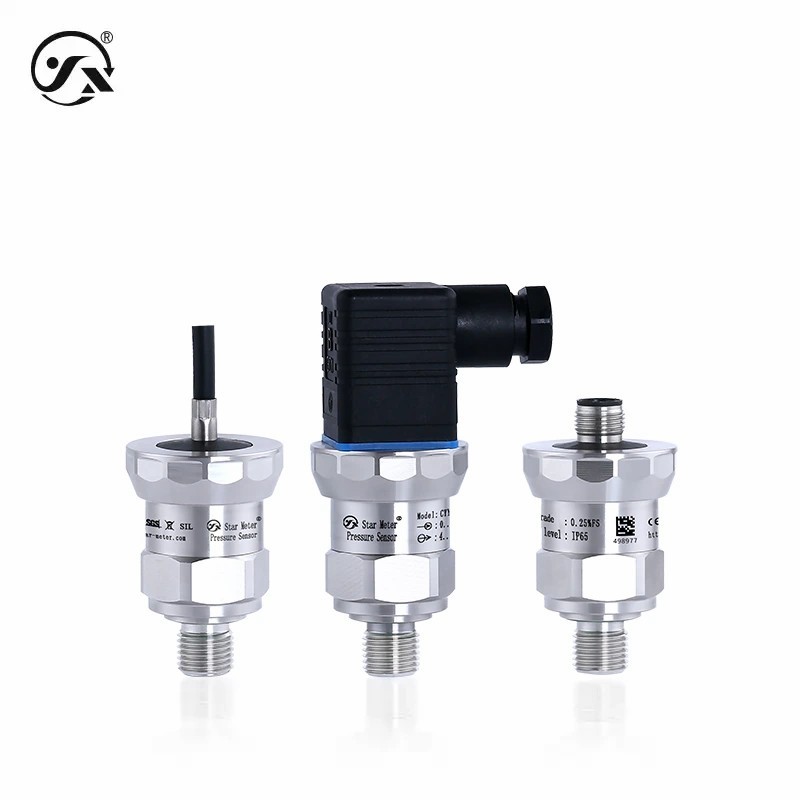

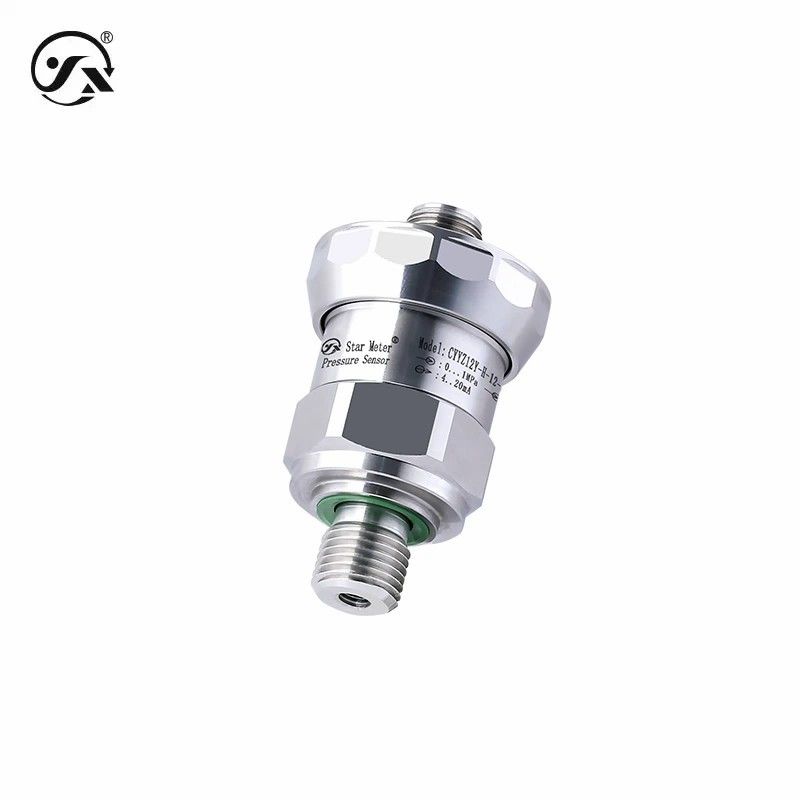

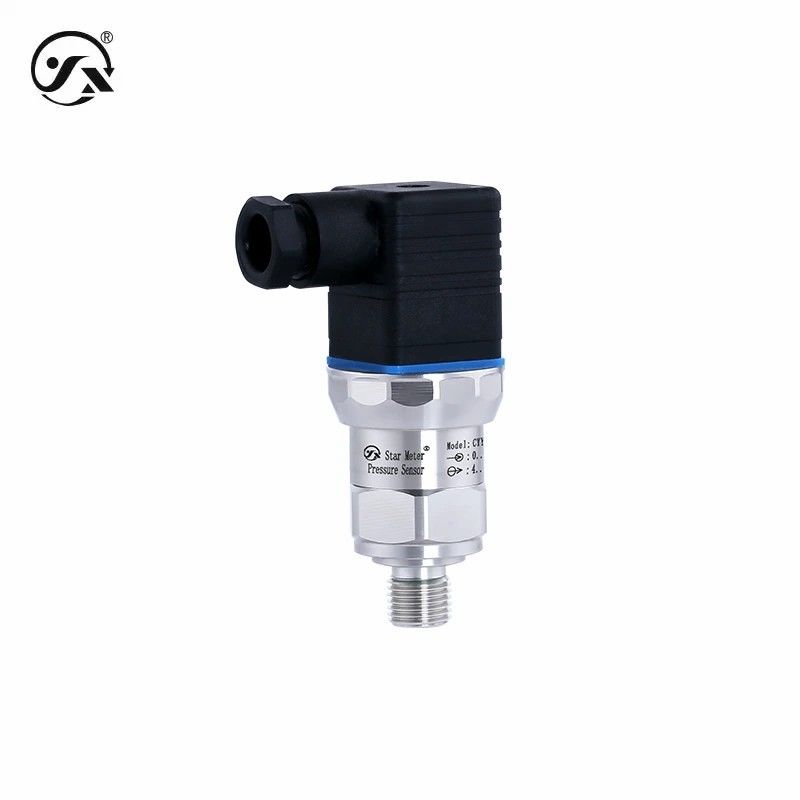

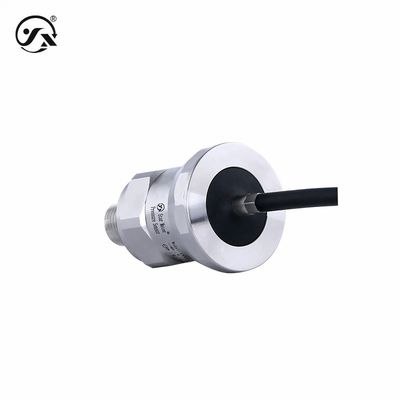

CYYZ12Y High Frequency Pressure Transmitter Sensor Fast Response Pressure Sensor Transmitter

Basic Information
Brand Name: Star merter
Model Number: CYYZ12Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: 0~0.02~20MPa Output: 4~20mA、0~10VDC
Power Supply: 9~32VDC、13~32VDC Accuracy: 0.25%FS
Name: Pressure Transmitter Sensor
Highlight:

High Frequency Pressure Transmitter Sensor

,

CYYZ12 High Frequency Pressure Transmitter

,

Fast Response Pressure Sensor Transmitter

CYYZ12Y High Frequency Response Pressure Transmitter General Industry Range 0~0.02~20MPa Accuracy 0.25%FS



CYYZ12Y high-frequency response pressure transmitter, its response frequency can reach 2kHz, can meet some high-frequency response scenes, and cost-effective. In addition, we can provide customized products to meet the needs of customers in a short period of time, depending on their application.





Base parameters
Measuring medium Liquid or gas (compatible with contact material)
Measuring range 0~0.02~20MPa (see range selection table for details)
Type of pressure Gauge pressure, absolute pressure, sealing pressure
Accuracy class 0.25%FS
Response frequency 2kHz
Media temperature -40℃~100℃
On-time 20ms
Stable performance ± 0.1% FS/year
Temperature compensation -40~80℃
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP65
Durable performance 10X10⁶ times (lower range to upper range cycles)
Overall weight ≈170g
Power supply range 9~32VDC,13~32VDC
Output signal 4~20mA,0~10VDC
Maximum power
Current type ≤0.02Us(W)
Voltage type ≤0.005Us(W)
Load characteristics
Current type Load ≤{(US-8)÷0.02}Ω (US=Supply voltage)
Voltage type ≥5kΩ
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overload capacity
Overload pressure 300%FS,200%FS,150%FS
Burst pressure 600%FS,500%FS,400%FS
Overall material
diaphragm 316L stainless steel (contact)
Process connection 304 stainless steel (contact)
enclosure 304 stainless steel (contact)
Seals Nitrile rubber (contact) (seen pressure and blasting chart (contact with the medium to be measured)
Hirschmann joints ABS engineering plastics
Mechanical stability
Seismic performance 10g(20… 2000Hz)
Impact resistance: 500g/ms
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ500VDC
Dielectric strength: 500VAC
Output limits
The output is minimal 3.2mA,-1.2VDC
Output maximum 22.3mA,11.2VDC
