CYYZ11DY Universal Industrial Pressure Transmitter Sensor Range -100kPa~0~100MPa

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ11DY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~100MPa Output: 4~20mA, 4~20mA HART, RS485, 0~10VDC, 0~5VDC, 1~5VDC
Power Supply: 5~28VDC, 9~28VDC, 13~28VDC, 15~28VDC, 15~24VDC Accuracy: 0.1%FS, 0.25%FS, 0.5%FS
Name: Pressure Transmitter Sensor
Highlight:

CYYZ11D Pressure Transmitter Sensor

,

Industrial Pressure Transmitter Sensor

,

Universal Industrial Pressure Transmitter

CYYZ11DY Universal Pressure Transmitter Range -100kPa~0~100MPa Accuracy: 0.1%FS 0.25%FS 0.5%FS General Industry

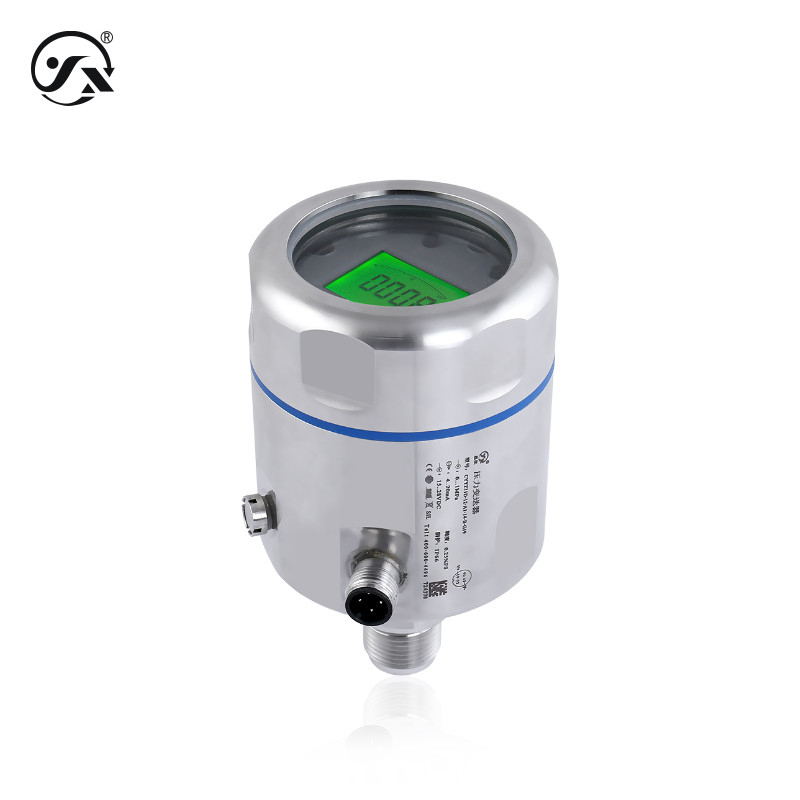

CYYZ11DY general-purpose pressure transmitters are well-designed and ideally suited for general purpose industries. It has two explosion-proof functions of intrinsically safe type and dust intrinsically safe type, and can also choose HART protocol communication, which is cost-effective. It also has the advantages of multiple advantages such as output signal, range range, pressure interface, etc., which is convenient to match the site under different working conditions.





Basic parameters
Measuring medium Liquid or gas (compatible with contact materials)
measuring range <10kPa (non-conductor, non-corrosive, non-explosive gas and humidity ≤90%RH, no condensation).
Measuring range -100kPa~0~100MPa (see range selection table for details)
pressure type Gauge pressure, absolute pressure, negative pressure
Medium temperature -40~85℃
connection time 20ms
Stable performance ±0.1% FS/year
temperature drift ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range)
Explosion-proof type Intrinsic safety type Ex ia ⅡC T6 Ga (4~20mA/4~20mA HART output only)
Dust intrinsic safety type Ex iaD 20 T80℃ (4~20mA/4~20mA HART output only)
Note: Intrinsic safety must be passed through safety grid or intrinsically safe power supply
Protection level IP66
Note: The above protection level refers to the level achieved after the electrical connection is complete.
Durability 10X10⁶ times (number of cycles from the lower limit of the measuring range to the upper limit of the measuring range)
response frequency Analog signal output ≤30Hz Digital signal output ≤5Hz HART communication ≤10Hz
overall weight ≈1kg
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power supply
output 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, 4~20mA HART
powered by 5~28VDC, 9~28VDC, 13~28VDC, 15~28VDC, 15~24VDC
Accuracy level 0.1%FS, 0.25%FS, 0.5%FS
Load characteristics
voltage type ≥10kΩ
Current type Load≤{(Us-12)÷0.02}Ω (Us=supply voltage)
HART current type HART current type: load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
environmental conditions
ambient temperature -40~85℃
environment humidity 0%~95%RH (no condensation, no condensation)
Overpressure and explosion
overload pressure 300%FS, 200%FS, 150%FS, 12kPa, 50kPa, 300kPa, 480kPa, 750kPa, 800kPa, 1.2MPa, 2MPa, 3MPa, 5MPa
Burst pressure 600%FS, 500%FS, 400%FS, 300%FS, 20kPa, 200kPa, 600kPa, 900kPa, 1.25MPa, 2MPa, 3MPa, 5MPa, 9MPa, 12.5MPa
overall material
Diaphragm 316L stainless steel (contact with measured medium)
process connection 304 stainless steel (contact with measured medium)
shell 304 stainless steel
Core seal See pressure and burst charts (contact with measured medium)
Thread seal Fluorine rubber
display window ≈6mm explosion-proof glass
mechanical stability
Anti-vibration performance 10g(20…2000Hz) complies with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
electrical protection
Short circuit protection permanent
Reverse polarity protection No damage, but doesn’t work
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output limits
Output minimum 4mA, 0, 0.001VDC, 3.8mA
Output maximum 20mA, 2000, 10VDC, 5VDC, 22mA



manual
Product Information—Chinese (CN) PDF
Product Information—English (EN) PDF
Product Selection—Chinese (CN) PDF
Product Selection—English (EN) PDF
Installation Instructions—Chinese (CN) PDF
Installation Instructions—English (EN) PDF
Protocol—Chinese (CN) PDF
Protocol—English (EN) PDF
Button operation instructions—Chinese (CN) PDF
Button operation instructions—English (EN) PDF
HART button operation instructions—Chinese (CN) PDF
HART button operation instructions—English (EN) PDF
