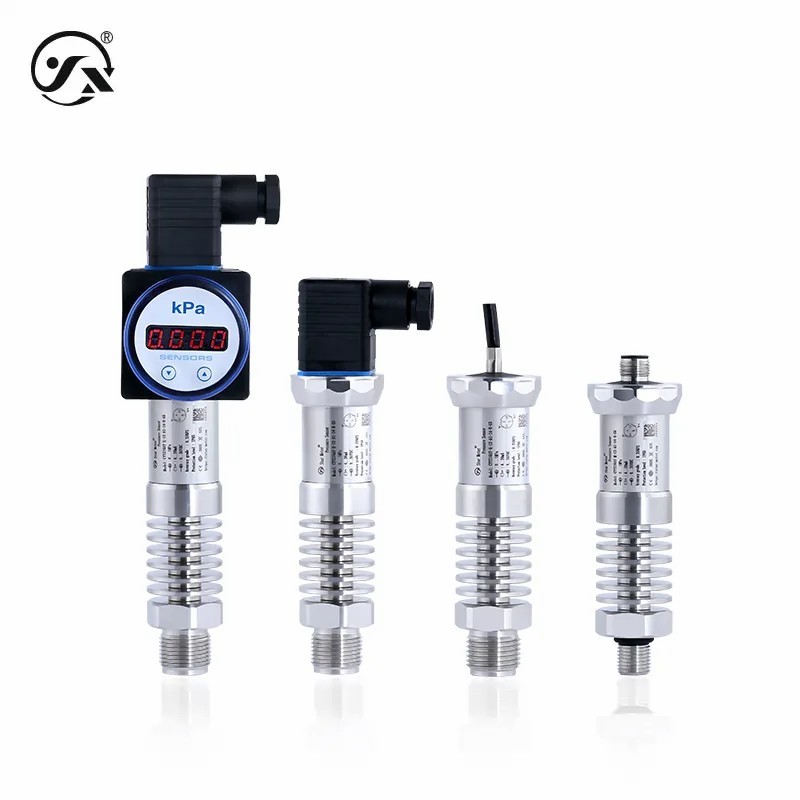

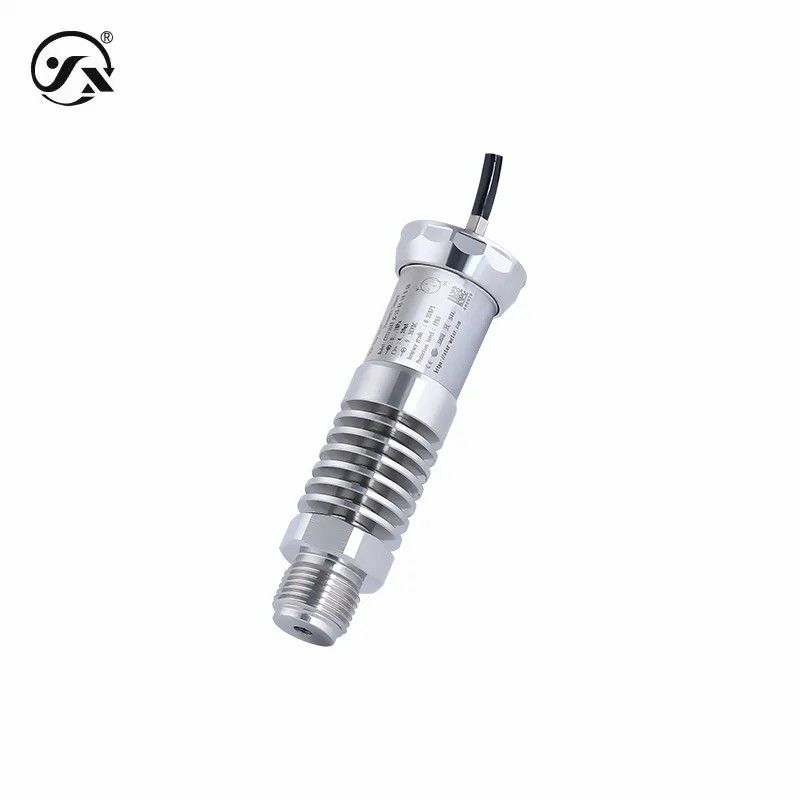

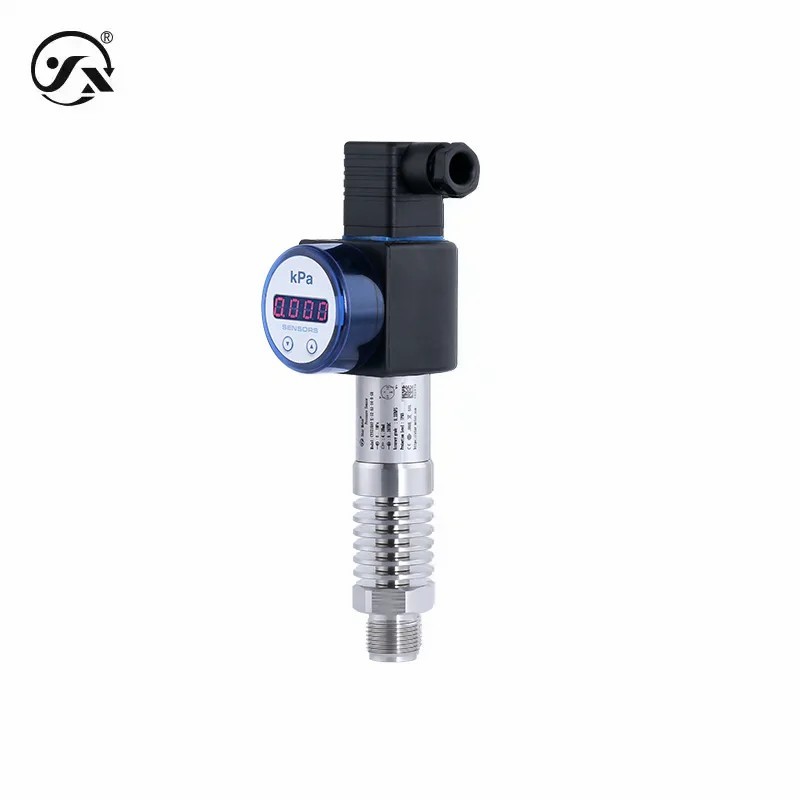

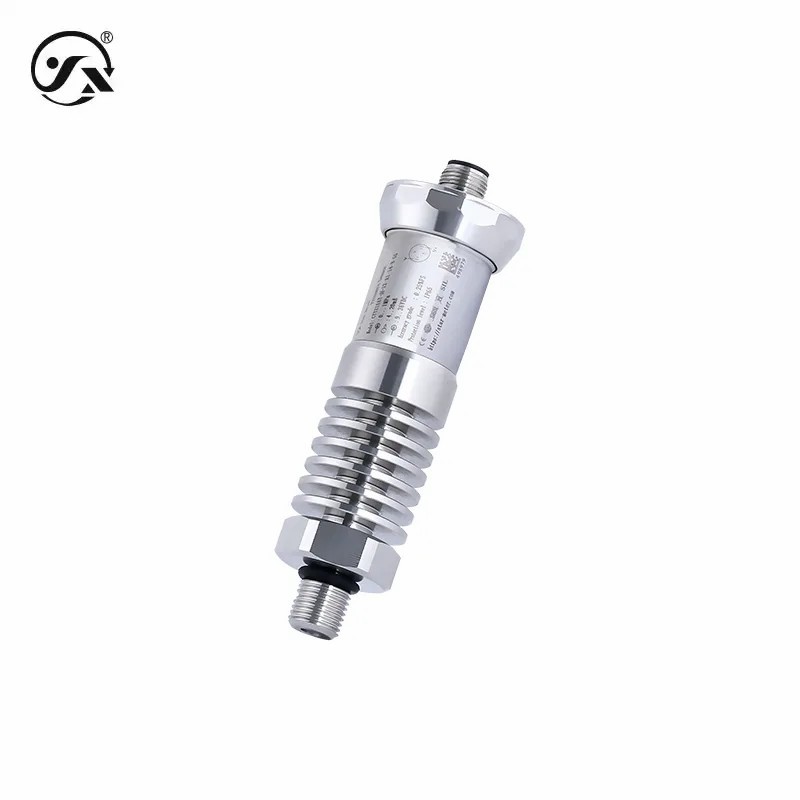

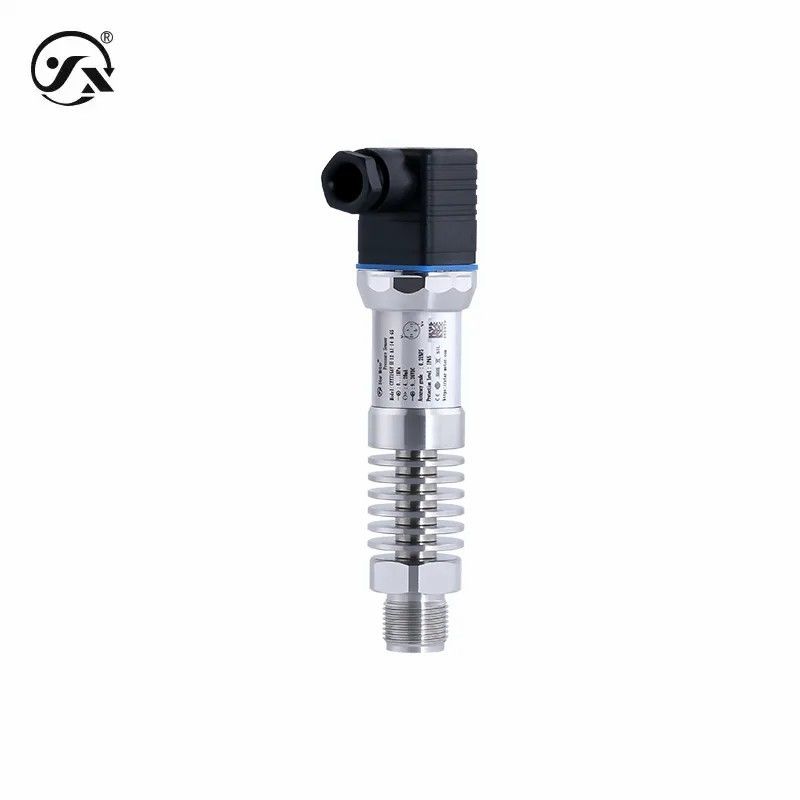

CYYZ16AY High Temperature Pressure Transmitter Range -100kPa-0-100MPa

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CYYZ16AY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -100kPa~0~100MPa Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, 0.5~2.5VDC
Power Supply: 9~36VDC, 15~36VDC, 3~5VDC Accuracy: 0.1%FS, 0.25%FS, 0.5%FS
Name: High Temperature Pressure Transmitter
Highlight:

CYYZ16A High Temperature Pressure Transmitter

,

High Temperature Pressure Transmitter 100MPa

CYYZ16AY High Temperature Pressure Transmitter Range -100kPa~0~100MPa Accuracy 0.1%FS 0.25%FS 0.5%FS General Industry



The CYYZ16AY pressure transmitter is not only compact, but also of excellent quality, suitable for measuring high-temperature liquids or gases, and cost-effective. It also has diversified advantages such as output signal, range range, pressure interface, electrical connection, etc., which is convenient to match different working conditions.





Base parameters
Measuring medium Liquid or gas (compatible with contact material) range< 10 kPa (non-conductor, non-corrosive, non-explosive gas with humidity ≤90%RH, no condensation)
Measuring range -100kPa~0~100MPa (see range selection table for details)
Pressure mode Gauge pressure, absolute pressure, negative pressure
Media temperature -40~150℃
On-time 20ms
Stable performance ± 0.1% FS/year
Temperature drift ±0.01%FS/°C (temperature compensation range) ±0.05%FS/°C (outside temperature compensation range)
Degree of protection IP65 (no display) IP54 (with display) Note: The above protection level refers to the electrical connection is complete
Durable performance 10X10⁶ times (lower range to upper range cycles)
Overall weight No display≈ 320g Yes≈360g
resolution Analog output 0.01%FS, digital output 0.05%FS
Output power supply:
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,0.5~2.5VDC
Power supply range 9~36VDC,15~36VDC,3~5VDC
Accuracy class 0.1%FS,0.25%FS,0.5%FS
Response frequency 5Hz,30Hz,100Hz
Maximum power:
Current type ≤0.02Us(W)
Voltage type ≤0.02Us(W),≤0.008Us(W) ,≤0.001Us(W)
Digital ≤0.02Us(W),≤0.015Us(W)
Load characteristics:
Voltage type ≥10kΩ
Current type No display load ≤ {(Us-7.5)÷0.02}Ω (Us=Supply voltage) Display load ≤{(Us-12)÷0.02}Ω (US=Supply voltage)
Environmental conditions:
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overpressure and blasting 600%FS,500%FS,400%FS,300%FS,20kPa,200kPa,600kPa,900kPa,1.25MPa,2MPa,3MPa,5MPa,9MPa,12.5MPa
Overall material:
diaphragm 316L stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Seals Seen pressure and blasting charts (contact with the medium being measured)
Hirschmann joints ABS engineering plastics,
Display the shell ABS Engineering Plastics (LED Display)
Hirschmann joints ABS engineering plastics
Mechanical stability:
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection:
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ 500VDC
Dielectric strength 500VAC
Output Limits:
The output is minimal 4mA,3.8mA,0,0.001VDC,0.05VDC
Output maximum 20mA,26mA,2000,12VDC,10VDC,5VDC
