CWDZ15CY Universal Temperature Transmitter -50~300°C For Various Industrial Fields

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ15CY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -50~300°C (see Range Parameter Selection Table For Details) Output: 4~20mA, 4~20mA HART, RS485, Pt100 (1/3B Level)
Power Supply: 9~32VDC, 13~32VDC, 15~32VDC, 15~24VDC Accuracy: 0.25%FS, 0.5%FS
Name: Universal Temperature Transmitter
Highlight:

CWDZ15C Universal Temperature Transmitter

,

Industrial Fields Universal Temperature Transmitter

,

Industrial Temperature Transmitter 0.25%FS

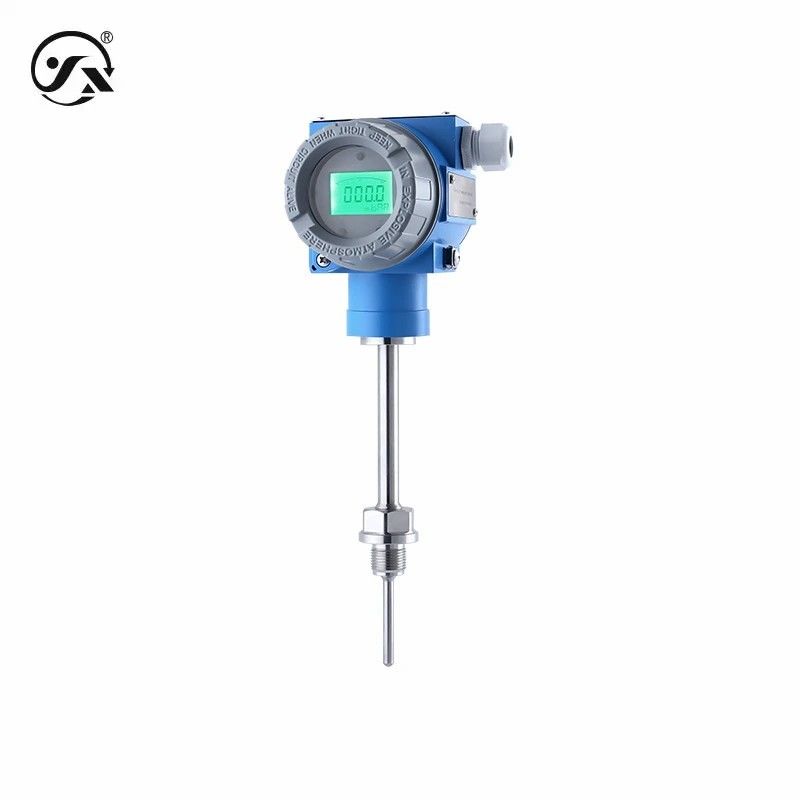

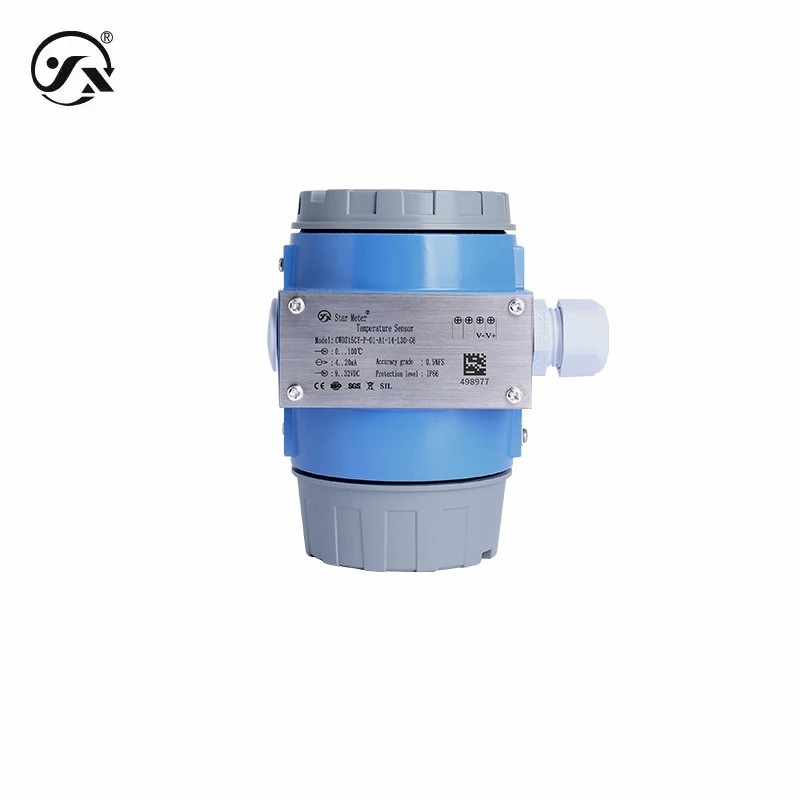

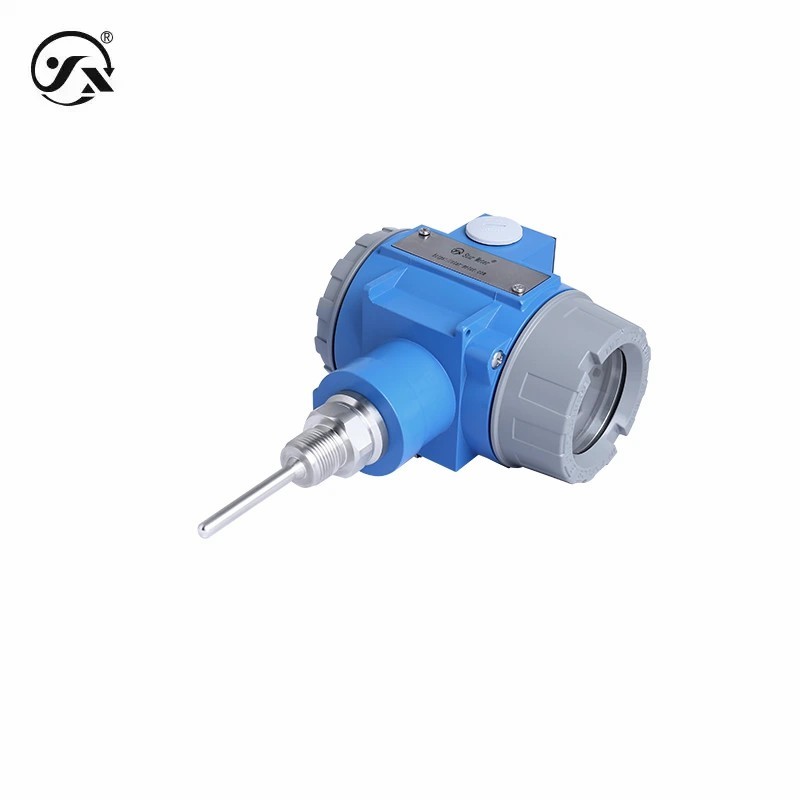

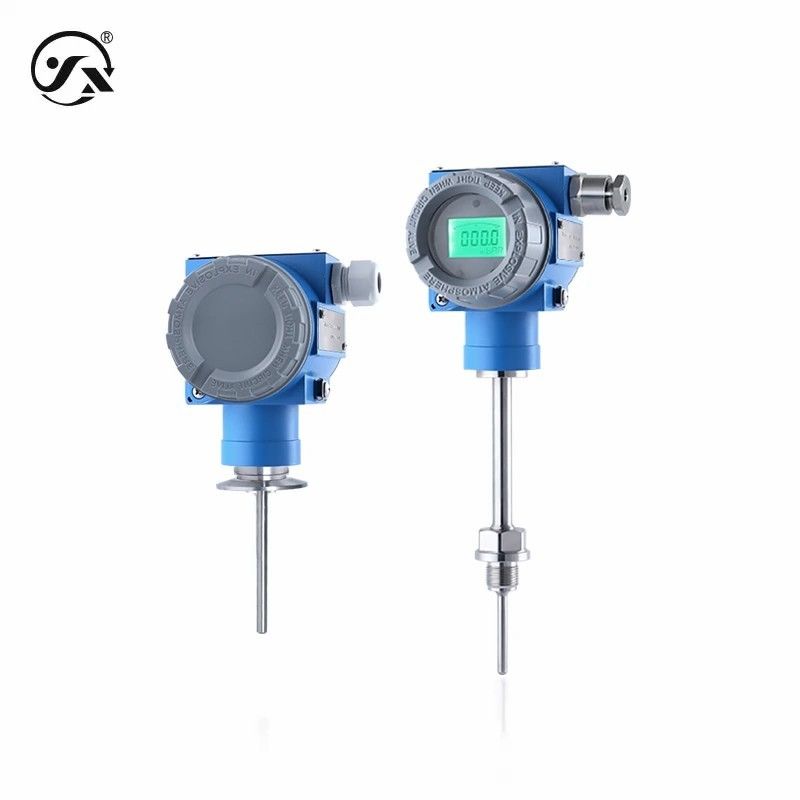

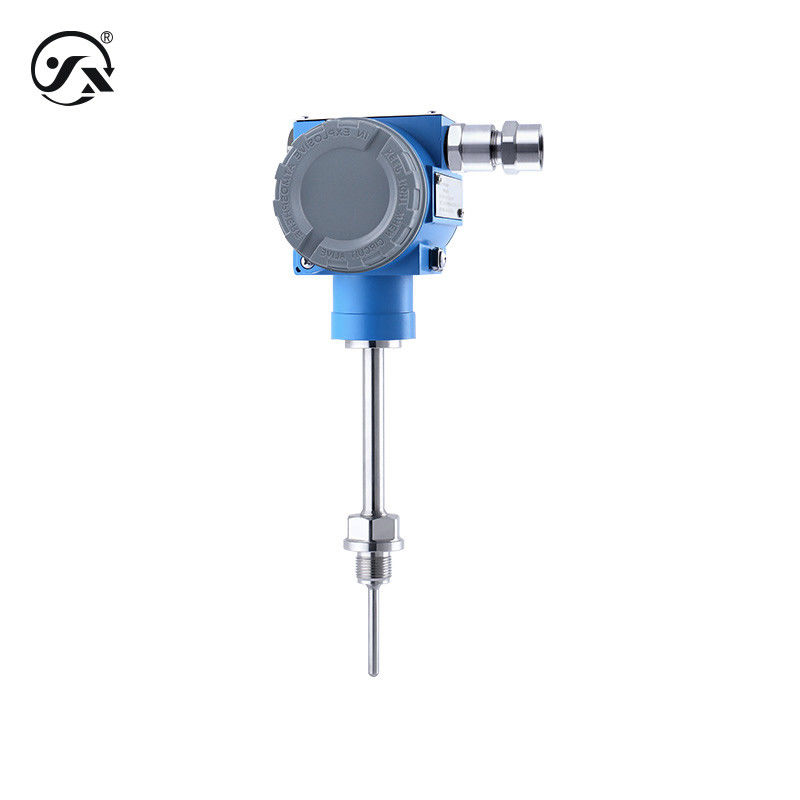

CWDZ15CY Universal Temperature Transmitter Measuring Range -50~300°C Widely Used In Various Industrial Fields



CWDZ15CY general-purpose temperature transmitters are well-designed and ideally suited for general purpose industries. It has a variety of explosion-proof function options, intrinsically safe, dust intrinsically safe, flameproof, explosion-proof dust, and can also choose HART protocol communication, cost-effective.





Basic parameters
Measuring medium Liquids or gases, etc. (compatible with contact materials)
Measuring range -50~300°C (see range parameter selection table for details)
Response time Protection tube φ6mm≈18s, casing φ10mm≈36s (in line with IEC60751, 0.4m/s water flow, 10°C step)
Measuring cell 1*Pt100 (1/3B grade)
Stable performance ±0.1% FS/year
Explosion-proof type Flameproof Ex d II. C T6 Gb
Intrinsically safe Ex ia II.C T6 Ga (current output only) Dust intrinsically safe Ex ia IIIC T85°CDa (current output only)



Note: Intrinsically safe must be powered by a safety barrier or intrinsically safe power supply Switching time: 400ms

Ingress protection IP66
Note: The above protection level refers to the level achieved when the electrical connection is complete
Accuracy class 0.25%FS, 0.5%FS
Meter Accuracy 0.5%FS (LCD with backlight)
Resolution Analog output 0.02%FS, digital output 0.1°C
Output power
Output signal 4~20mA,RS485,4~20mA HEART
Supply voltage 9~32VDC,13~32VDC,15~32VDC,15~24VDC
Maximum power
4~20mA Yes/No Display
RS485 Yes Display
4~20mA HART Yes/No Display
≤0.02Us(W)
RS485 is not displayed ≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type No display load ≤{(Us-7.5)÷0.02}Ω
With display load ≤{(Us-12)÷0.02}Ω (Us=supply voltage)
HART current type Load ≤{(Us-12)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH (no condensation, no condensation)
Electrical protection
Short-circuit protection perpetual
Reverse polarity protection No damage, but no work
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA The output is 2.5mA min. 26mA max
RS485 Output minimum: 0, output max. 3500/7000
4-20mA HART The output is 3.8mA and the output is 22mA
Overall material
Protective tube material 304 stainless steel (in contact with the medium to be measured)
Process connections 304 stainless steel (in contact with the medium to be measured)
enclosure Die-cast aluminum
Display window ≈6mm explosion-proof glass
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact resistance 500g/ms meets IEC60068-2-27 standard



Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
Protocol -Chinese (CN) PDF
Protocol -English (EN) PDF
HART Key Operation Instructions—Chinese (CN) PDF
HARTKey Operation Instructions – English (EN) PDF
Key Operation Instructions—Chinese (CN) PDF
Key Operation Instructions – English (EN) PDF
