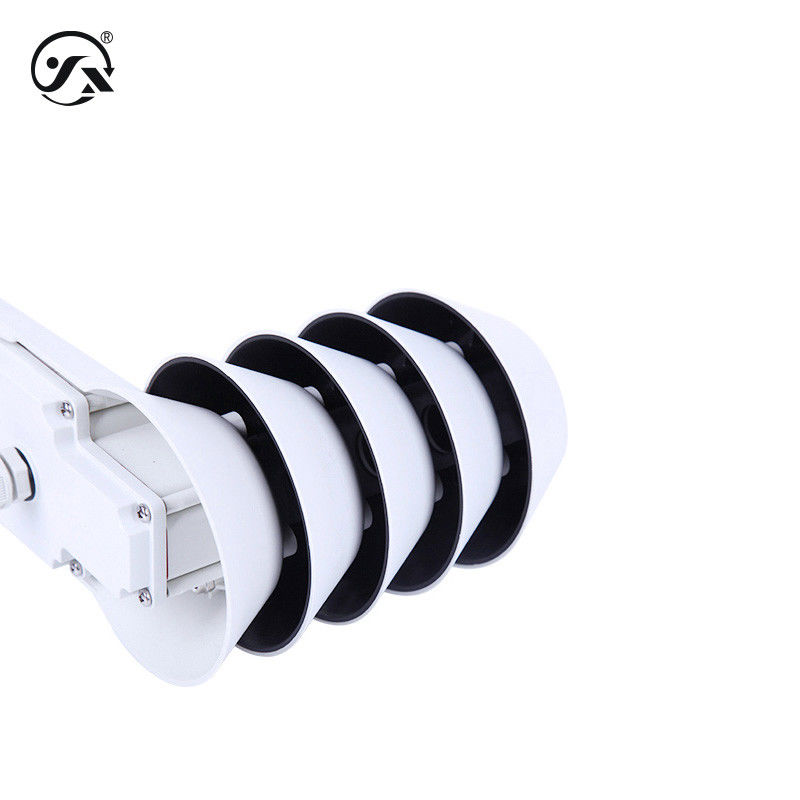

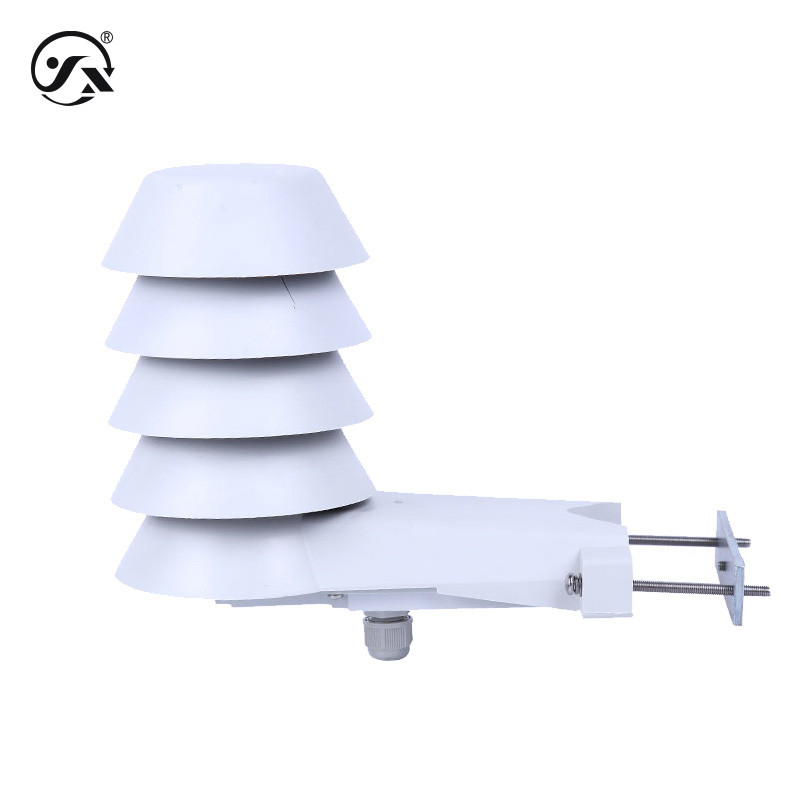

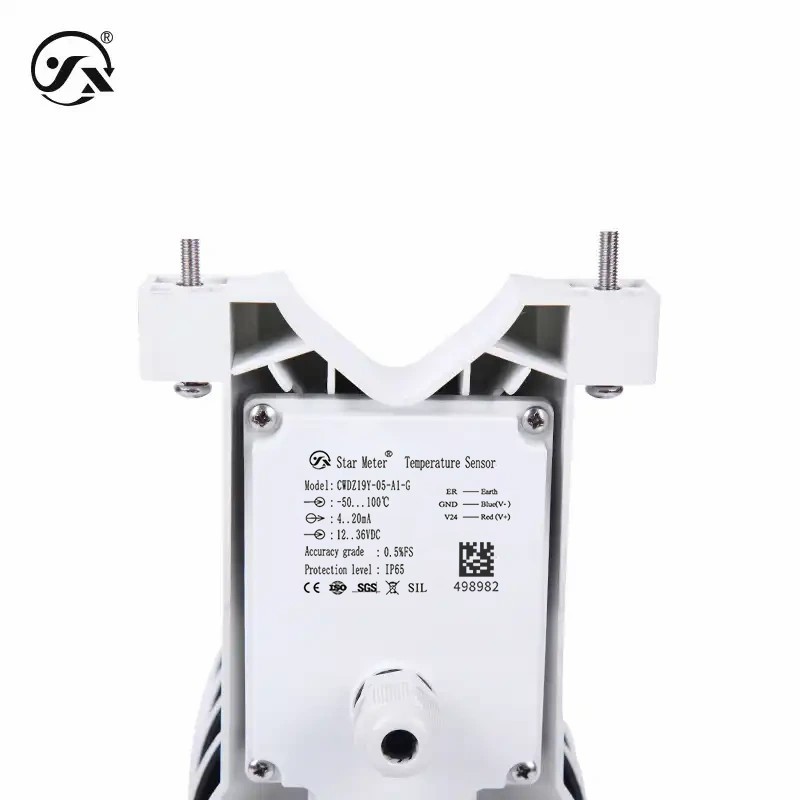

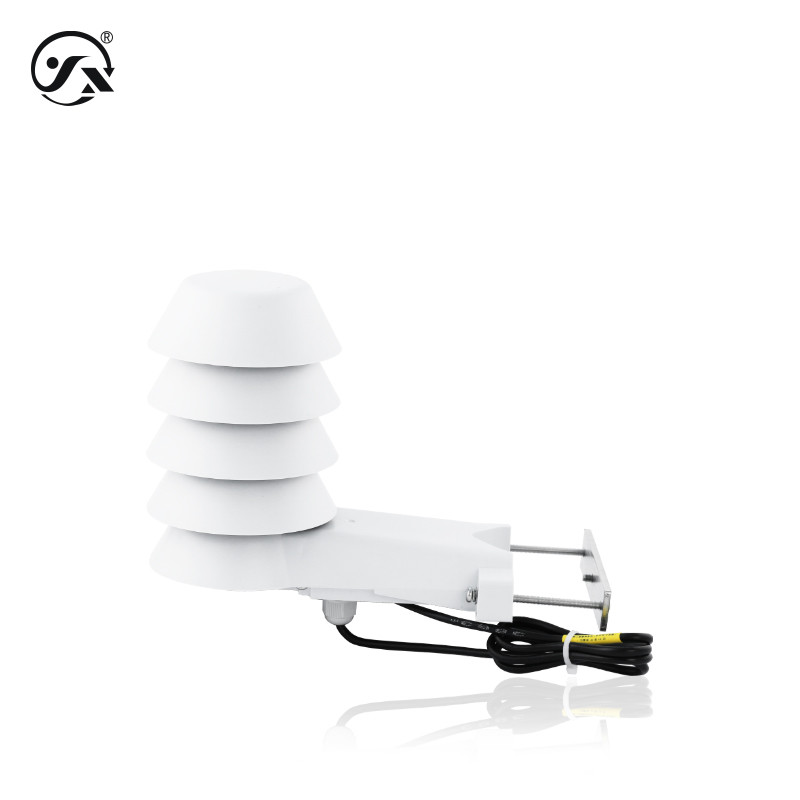

CWDZ19Y Outdoor Temperature Transmitter Weather Monitoring 0.5%FS For Temperature Measurement

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWS19Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -50~100°C Output: 4~20mA, RS485
Power Supply: 12~36VDC Accuracy: 0.5%FS
Name: Outdoor Temperature Transmitter
Highlight:

CWDZ19 Outdoor Temperature Transmitter

,

Outdoor Temperature Transmitter Weather Monitoring

,

Outdoor Temperature Transmitter 0.5%FS

CWDZ19Y Outdoor Temperature Transmitter Weather Monitoring Suitable For Temperature Measurement In A Variety Of Outdoor



CWDZ19Y outdoor temperature transmitter is carefully designed, excellent quality, suitable for all kinds of outdoor temperature monitoring, digital signal and analog signal two outputs are optional, wide power supply range, strong weather resistance and other advantages.


Base parameters
Measuring medium gas
Output signal 4~20mA,RS485
Power supply range 12~36VDC
Measuring range -50~100℃
Measuring cell 1*Pt100(1/3B grade)
Response time 18s (according to IEC60751, 0.4m/s wind speed, 10°C step)
Stable performance ± 0.1% FS/year
On-time 400ms
Degree of protection IP65
Overall weight ≈650g
Accuracy class 0.5%FS
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
Load characteristics
Current type Load ≤ {(Us-7.5)÷0.02}Ω(Us=Supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 4mA and output max 20mA
RS485 Output minimum 0, output maximum 1500
Overall material
Body housing ABA comes into contact with the medium under test
Cable locking head Nylon (lock wire diameter 4~6mm) contact with the measured medium
Seals Nitrile rubber comes into contact with the medium to be measured
Mounting parts 304 stainless steel
Mechanical stability
Seismic performance 5g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/1ms conforms to IEC60068-2-27 standard
