CWDZ22Y Split Temperature Transmitter 4-20ma for General Industry

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ22Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -50~100°C、-50~260°C Output: 4~20mA、RS485、Pt100、0~10VDC、0~5VDC、1~5VDC
Power Supply: 9~28VDC、12~28VDC Accuracy: 0.25%FS, 0.5%FS
Name: Split Temperature Transmitter
Highlight:

CWDZ22 Split Temperature Transmitter

,

Split Temperature Transmitter 4-20ma

CWDZ22Y Split Temperature Transmitter Measuring Range -50~100℃,-50~260℃ Accuracy Class 0.25%FS,0.5%FS General Industry

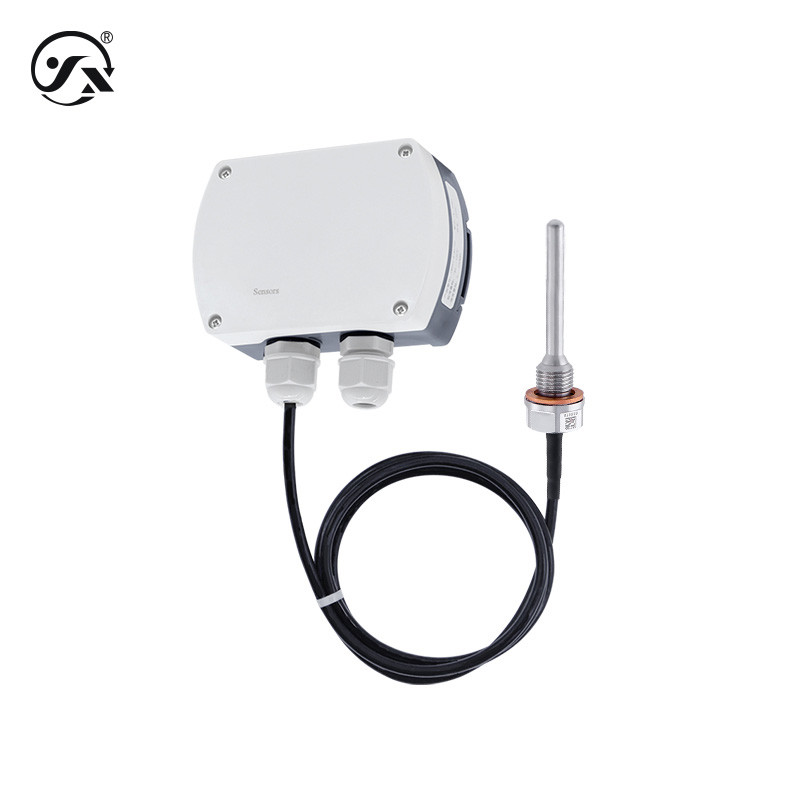

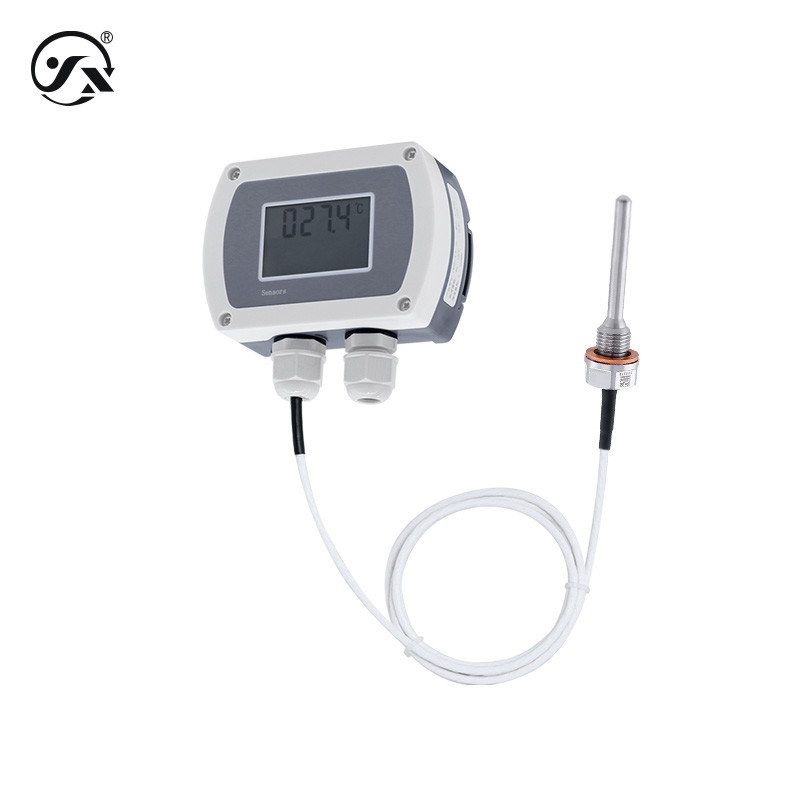

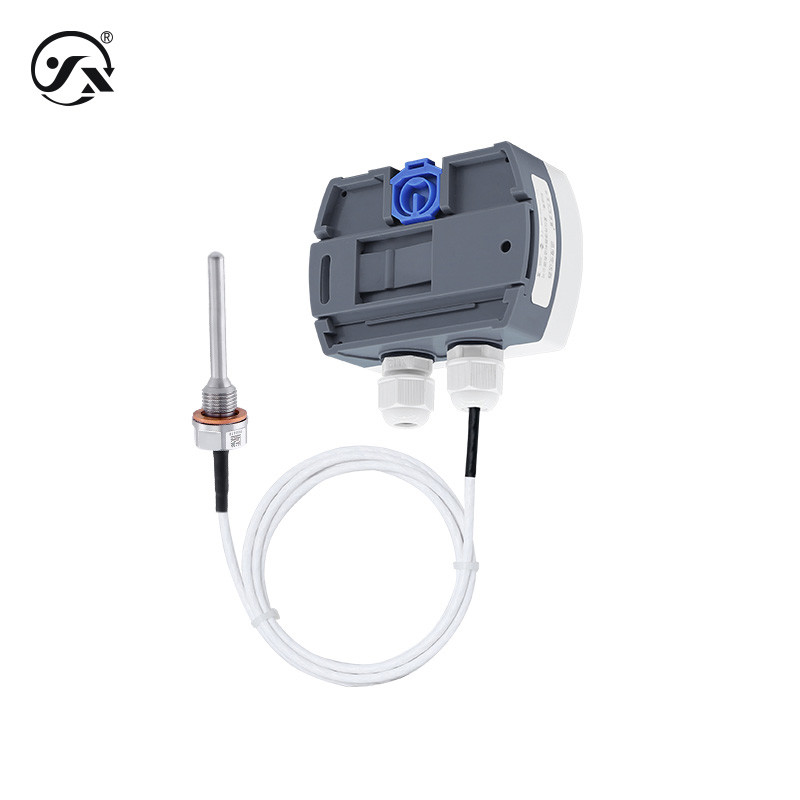

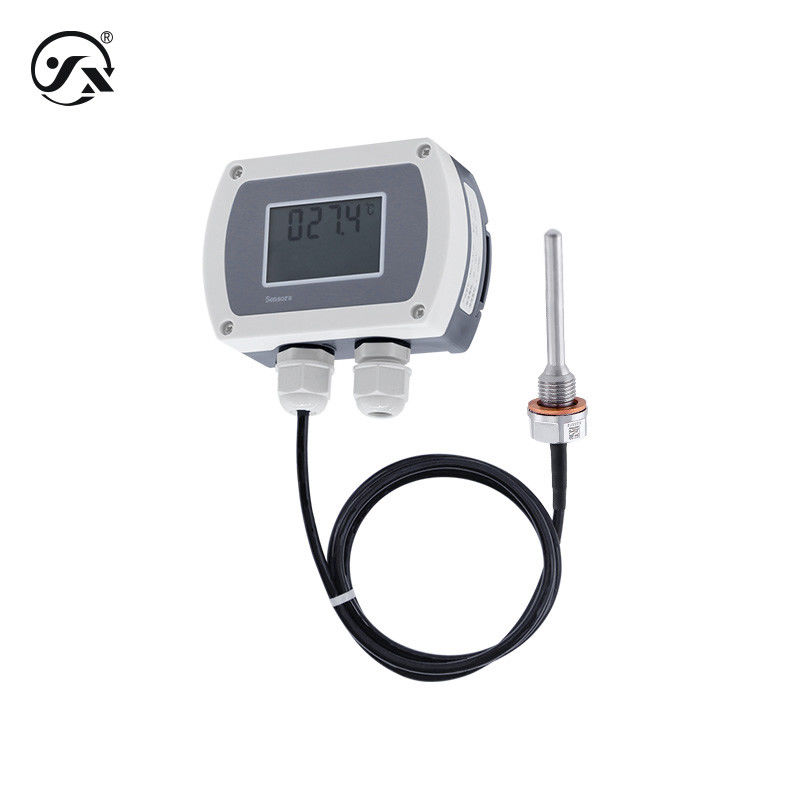

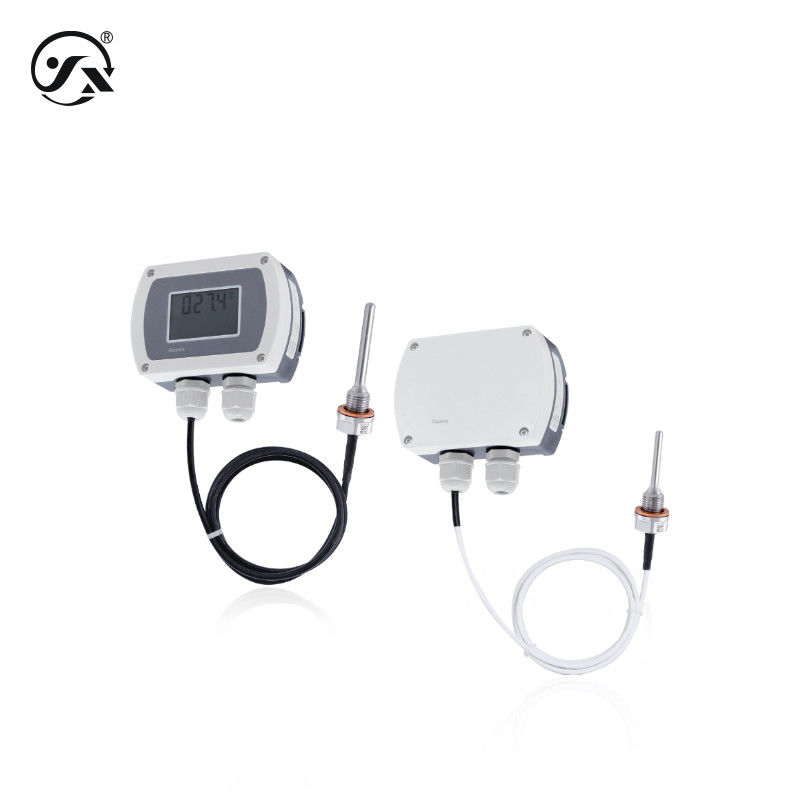

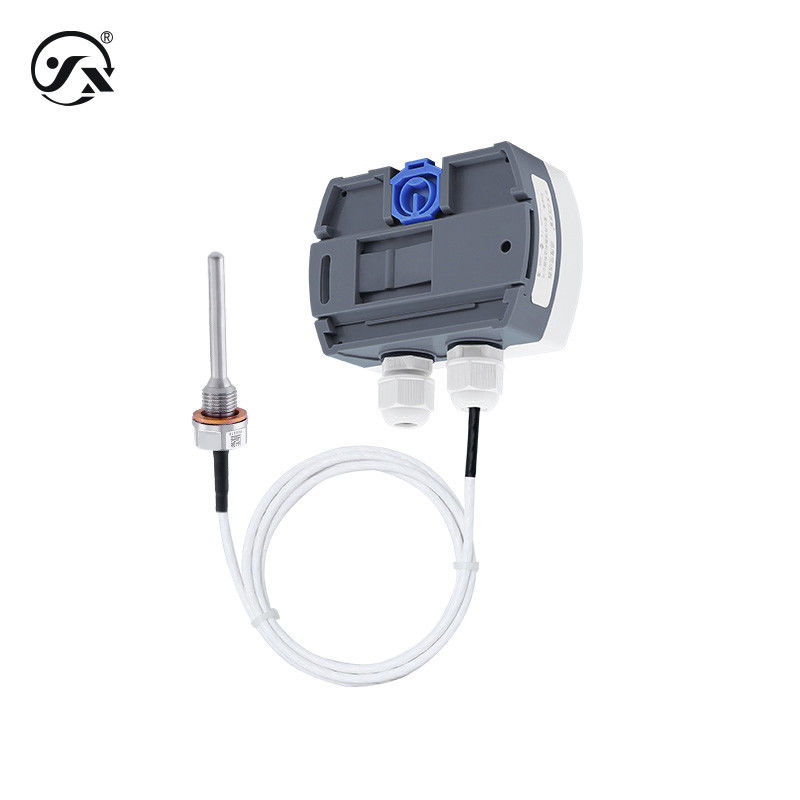

The CWDZ22Y split temperature transmitter is designed to measure the temperature of gases, liquids and solids. Available with and without display.





Base parameters
Measuring medium Solid, liquid or gas (compatible with contact material)
Measuring range -50~100℃,-50~260℃
Output signal 4~20mA,RS485,Pt100,0~10VDC,0~5VDC,1~5VDC
Measuring cell 1*Pt100 (Class 1/3B)
Response time 18s (according to IEC60751, 0.4m/s wind speed, 10°C step)
Stable performance ± 0.1% FS/year
On-time 400ms
Degree of protection Housing IP65 Probe IP68 Note: The degree of protection is achieved after the electrical connection is complete
Durable performance 1X10⁶ times (lower range to upper range number of cycles)
Overall weight With display≈ 150g No display≈ 130g Probe G1/4 male thread≈ 36g (insertion depth is 30mm) Probe G1/2, M20*1.5 male thread≈ 78g (insertion depth is 30mm)
Note: For every 10mm increase in insertion depth, the weight increases by 1g
Accuracy class 0.25%FS,0.5%FS
resolution Analog output 0.02%FS, digital output 0.1°C
Output power
4~20mA 9~28VDC
RS485 9~28VDC
0~10VDC 12~28VDC
0~5VDC 9~28VDC
1~5VDC 9~28VDC
Maximum power
4~20mA ≤0.02Us(W)
RS485 ≤0.015Us(W)
0~10VDC ≤0.015Us(W)
0~5VDC ≤0.015Us(W)
1~5VDC ≤0.015Us(W)
Load characteristics
Voltage type ≥10kΩ
Current type Load ≤{(Us-7.5)÷0.02}Ω (US=Supply voltage)
Environmental conditions
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Overall material
enclosure ABS engineering plastics
Cable locking Nylon (lock wire diameter 4~6mm)
Display LCD LCD display without backlight
Probe material 304 stainless steel
Seals nitrile rubber
Cable PTFE shielded compensation cable (φ3.2mm) temperature resistance -50~260 °C polyurethane shielded compensation cable (4.7mm) temperature resistance -50~100 °C
Mechanical stability
Seismic performance 10g(20… 2000Hz) conforms to IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 4mA and output max 20mA
RS485 Output minimum 0, output maximum 1500
0~10VDC Output minimum 0.001VDC, output maximum 10VDC
0~5VDC Output minimum 0.001VDC, output maximum 5VDC
1~5VDC Output minimum 0.001VDC, output maximum 5VDC
