CWDZ31AY Waterproof Industrial Temperature Transmitter Manufacturer

Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ31AY
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Range: -50~300°C (see Range Parameter Selection Table For Details) Output: 4~20mA, RS485, 0~10VDC, 0~5VDC, 1~5VDC, PT100
Power Supply: 12~36VDC, 15~36VDC Accuracy: 0.25%FS, 0.5%FS
Name: Industrial Temperature Transmitter Manufacturer
Highlight:

Waterproof Industrial Temperature Transmitter

,

Industrial Temperature Transmitter Manufacturer

,

CWDZ31A Industrial Temperature Transmitter

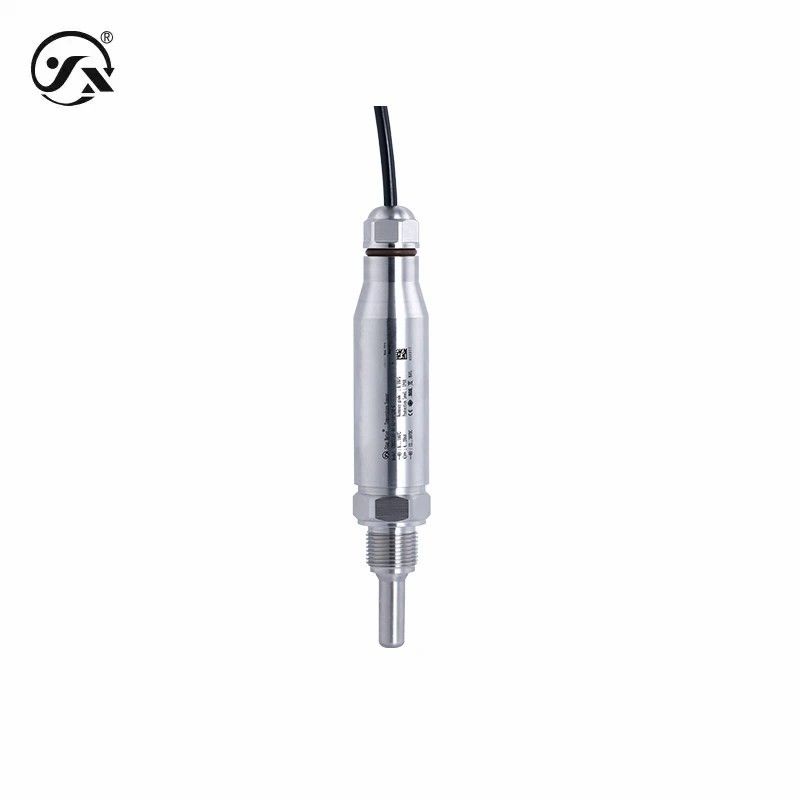

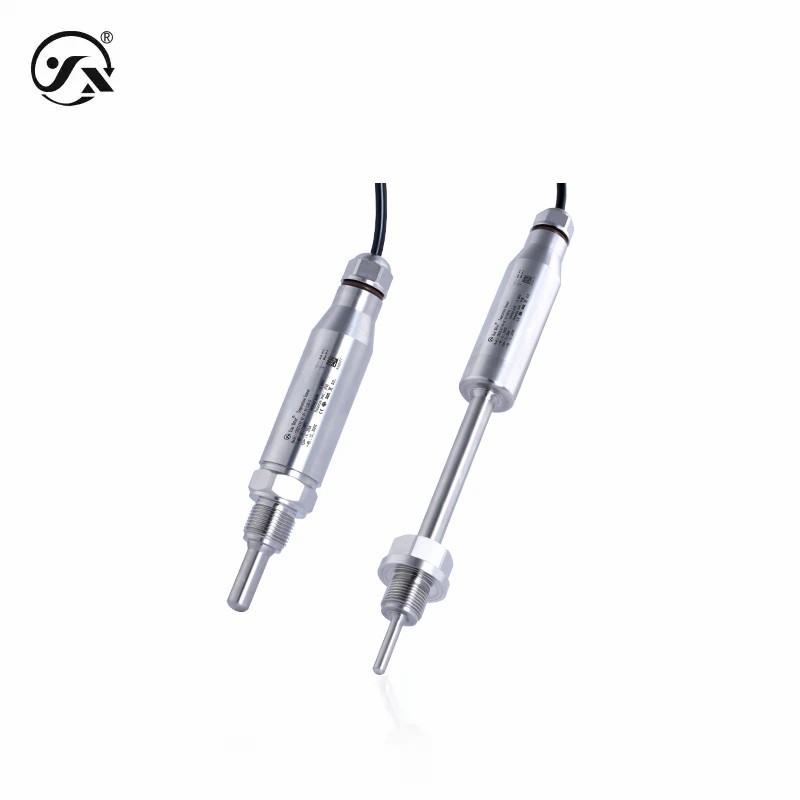

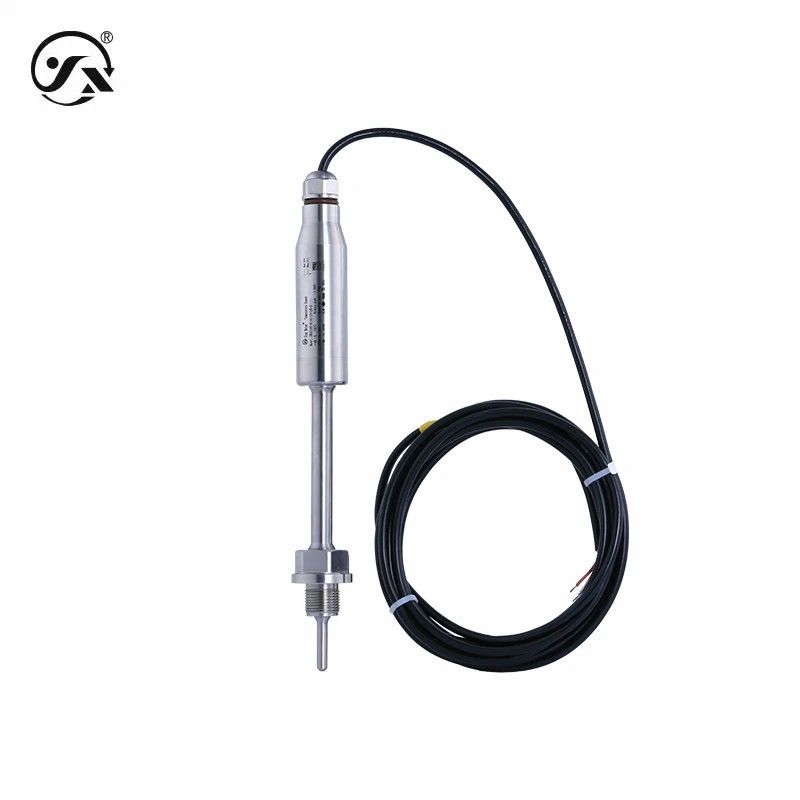

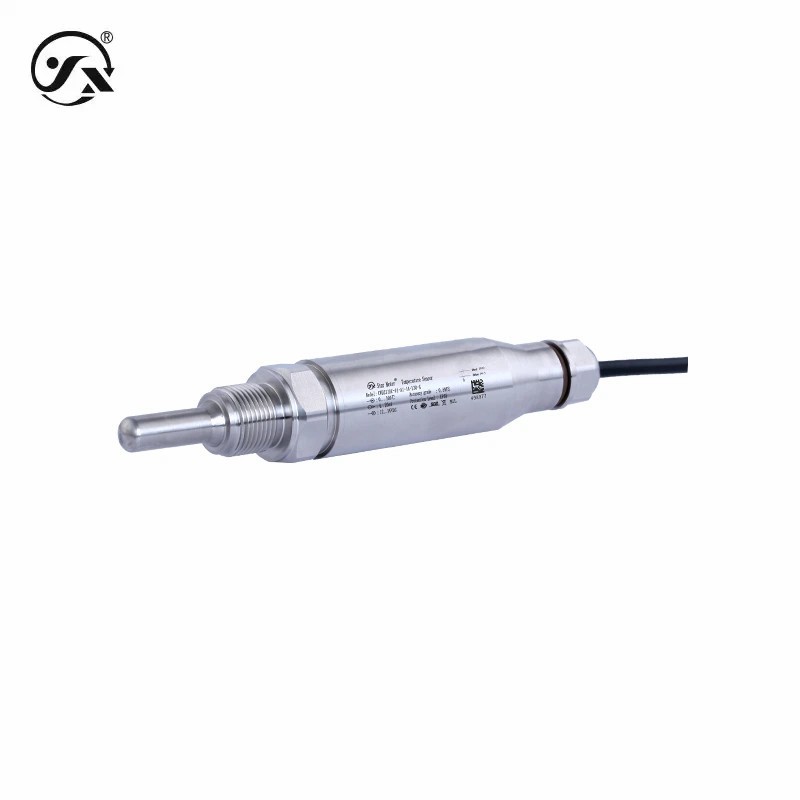

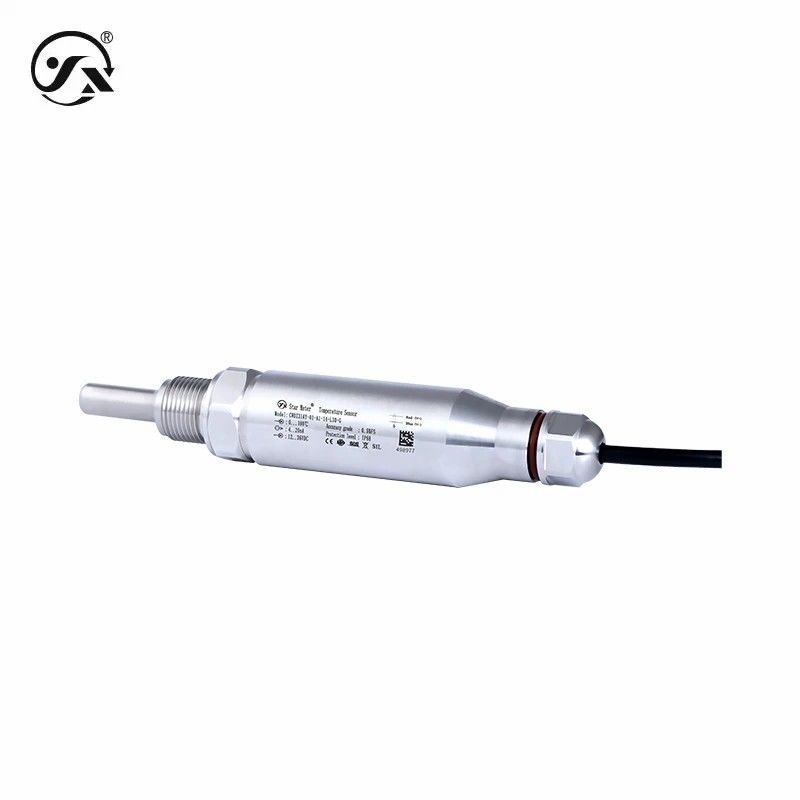

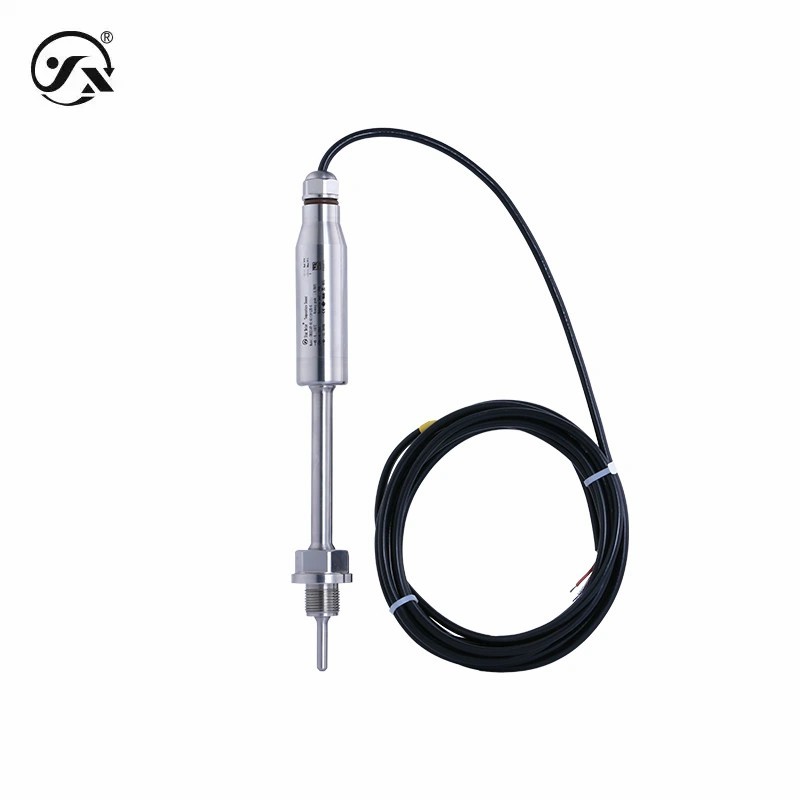

CWDZ31AY Waterproof Temperature Transmitter Widely Used In Various Industrial Fields Measuring Range -50~300°C



CWDZ31AY waterproof temperature transmitter is well designed and of excellent quality, making it ideal for general industry. The IP68 degree of protection is ideal for harsh field environments, such as wet and immersion measurements, and is cost-effective.





Base parameters
Measuring medium Liquids or gases, etc. (compatible with contact materials)
Measuring range -50~300°C (see range parameter selection table for details)
Output signal 4~20mA,RS485,0~10VDC,0~5VDC,1~5VDC,PT100
Power supply 12~36VDC,15~36VDC
precision 0.25%FS,0.5%FS
resolution Analog output 0.02%FS, digital output 0.1°C
Measuring cell 1*Pt100(1/3B grade)
Response time Protection tube φ6mm≈18s, protective tube φ10mm≈36s (in accordance with IEC60751, 0.4m/s water flow, 10°C step)
Stable performance ± 0.1% FS/year
Between ons 400ms
Power range
Voltage type ≤0.008Us(W),≤0.001Us(W)
Current type ≤0.02Us(W)
Digital ≤0.015Us(W)
Load characteristics Current type: load ≤{(Us-9)/0.02(Us=supply voltage)}Ω
Degree of protection IP68
Ambient temperature -40~85℃
Ambient humidity 0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
The output is minimal 2.5mA,0,0.001VDC
Output maximum 26mA,3500/7000,10.2VDC,5.2VDC
Overall material
Protective tube 304 stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Cable φ5mm polyurethane shielded cable (UV protection)
Mechanical stability
Seismic performance 10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance 500g/ms conforms to IEC60068-2-27 standard
