Name: CWDZ61Y Hygienic Temperature Transmitter for Pharmaceutical / Food / Beverage Industry
Brand: Star Sensor Manufacturing Co., Ltd
SKU: CWDZ61Y
Price: 73.00 USD
Availability: InStock

CWDZ61Y Hygienic Temperature Transmitter for Pharmaceutical / Food / Beverage Industry

Basic Information

Place of Origin:	China
Brand Name:	Star merter
Model Number:	CWDZ61Y

Minimum Order Quantity:	1PC
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	30000 Piece/Month

Contact Now

Name:

Hygienic Temperature Transmitter

Range:

-50~150°C

Output:

4~20mA, PT100 (1/3B Class)

Power Supply:

9~36VDC

Accuracy:

0.25%FS, 0.5%FS

Highlight:

CWDZ61 Hygienic Temperature Transmitter

Beverage Industry Hygienic Temperature Transmitter

CWDZ61Y Hygienic Temperature Transmitter Medical technolog pharmaceutical industry food and beverage industry

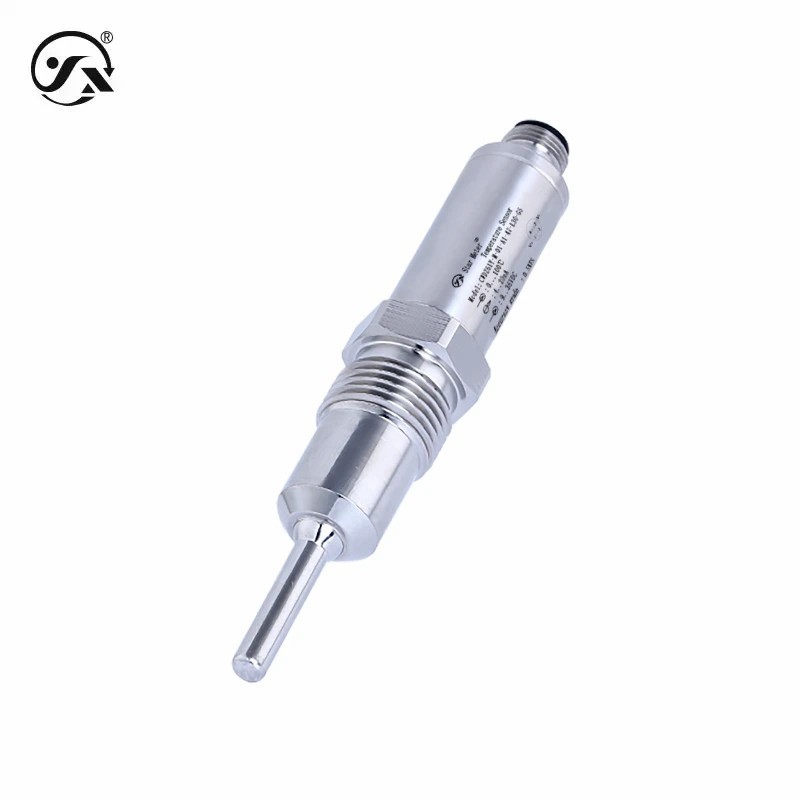

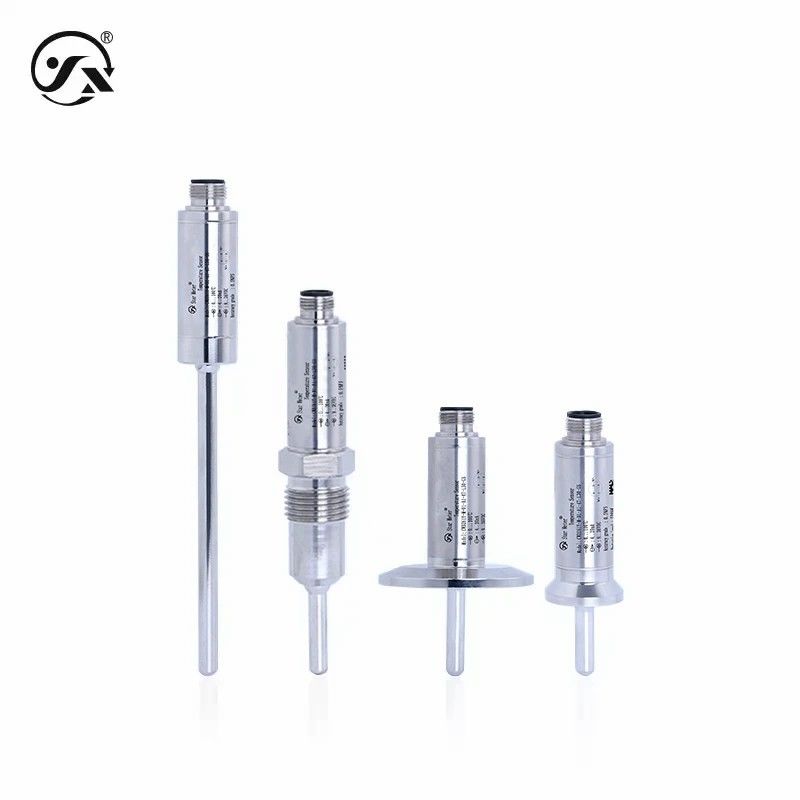

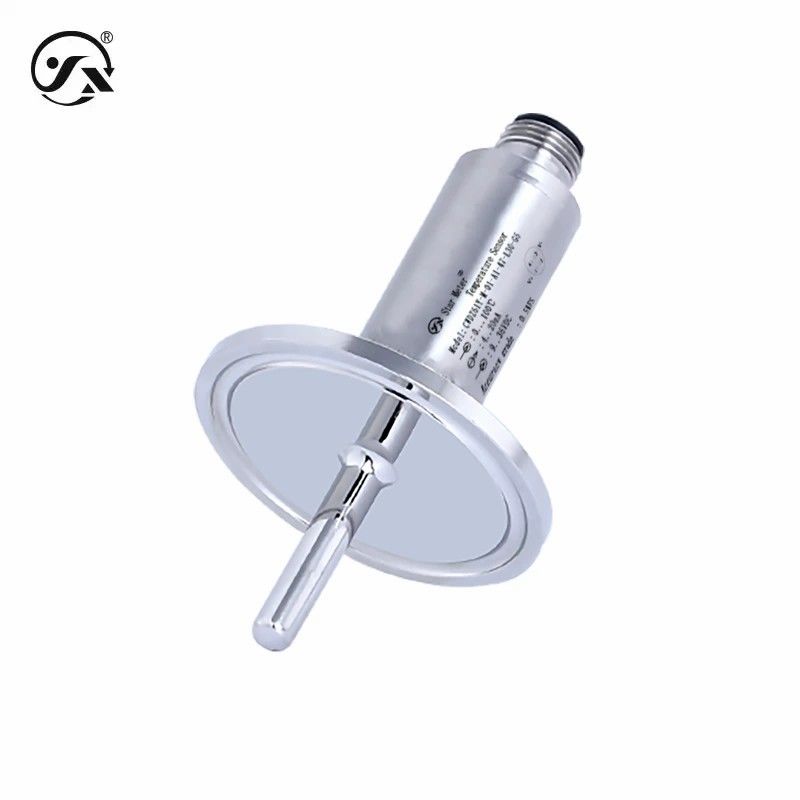

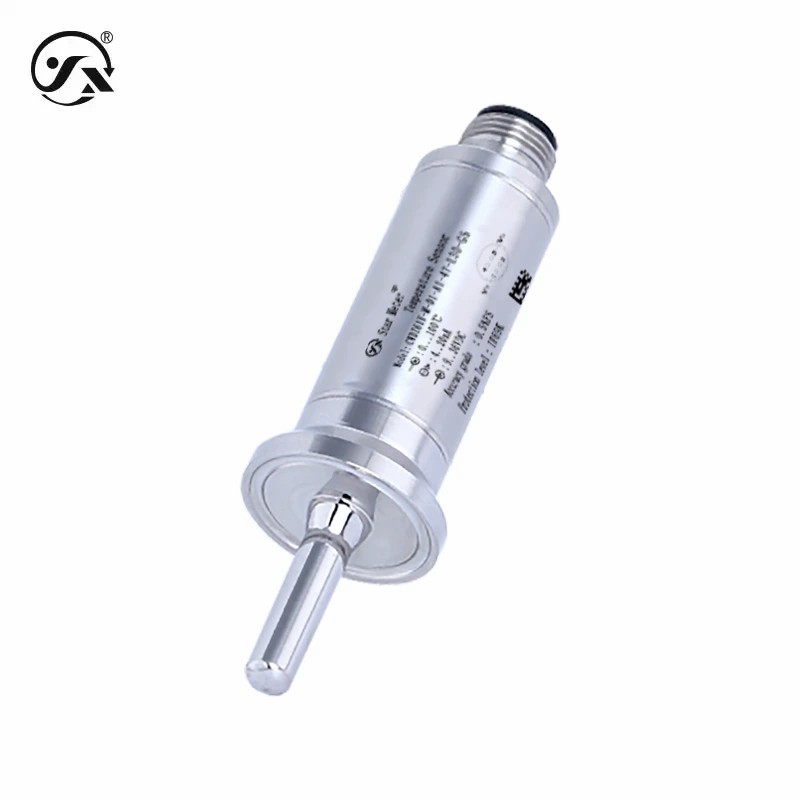

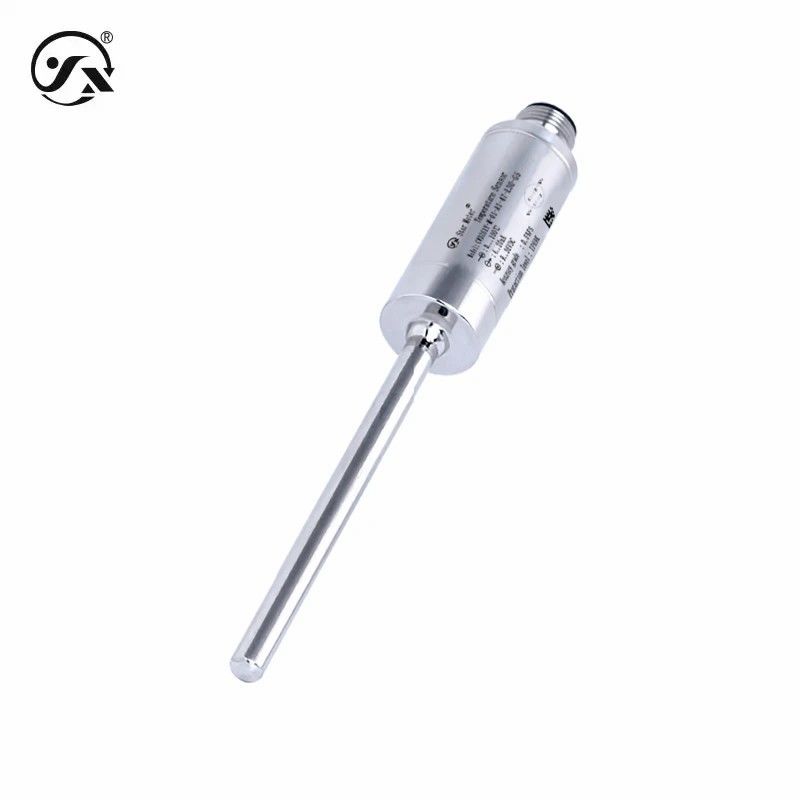

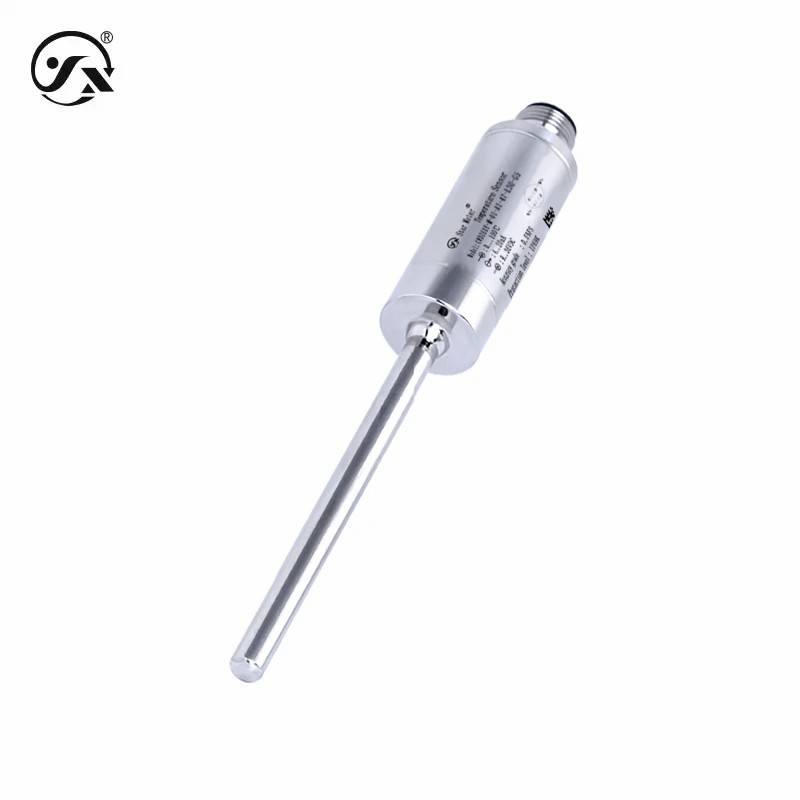

CWDZ61Y hygienic temperature transmitter for hygienic applications. The whole material is 316L to meet the hygiene requirements. Laser welding leveling process with protection up to IP69K (washable). The surface in contact with the process medium adopts plasma polishing process, so that it has the characteristics of easy cleaning and corrosion resistance. In addition, it is equipped with a variety of sanitary process connections to easily match different working conditions.

Base parameters
Measuring medium	Liquids or gases, etc. (compatible with contact materials)
Measuring range	-50～150℃
Output signal	4~20mA
Power supply	9～36VDC
precision	0.25%FS,0.5%FS
resolution	Analog output 0.02%FS
Measuring cell	1*Pt100(1/3B grade)
Response time	≈18s (according to IEC60751, 0.4m/s water flow, 10°C steps)
Stable performance	± 0.1% FS/year
Between ons	400ms
Maximum power	≤0.02Us(W) Note: Us=Supply voltage
Load characteristics	Current type: load ≤{(Us-9)/0.02(Us=supply voltage)}Ω
Degree of protection	IP69K Note: The above protection level refers to the electrical connection achieved after it is complete, and also depends on the electrical connection plug.
Ambient temperature	-40～85℃
Ambient humidity	0%~95%RH(no condensation, no condensation)
Electrical protection
Short-circuit protection	perpetual
Anti-polarity protection	No damage, but not working
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
The output is minimal	4mA
Output maximum	20mA
Overall material
Protective tube	316 stainless steel (contact with the medium to be measured)
Process connection	316 stainless steel (contact with the medium to be measured)
enclosure	316L stainless steel
Mechanical stability
Seismic performance	10g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Impact resistance	500g/ms conforms to IEC60068-2-27 standard
