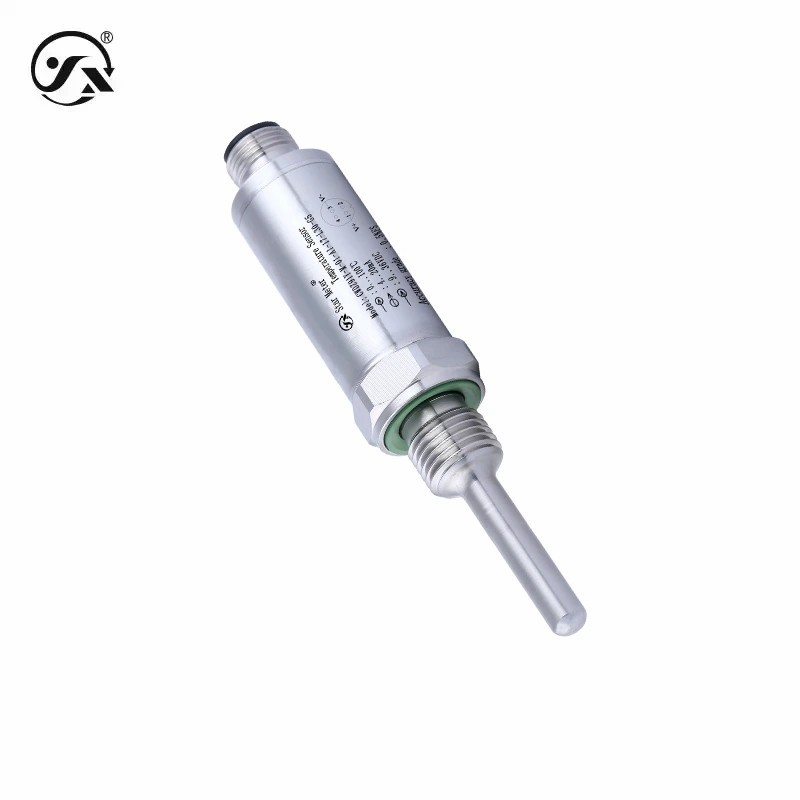

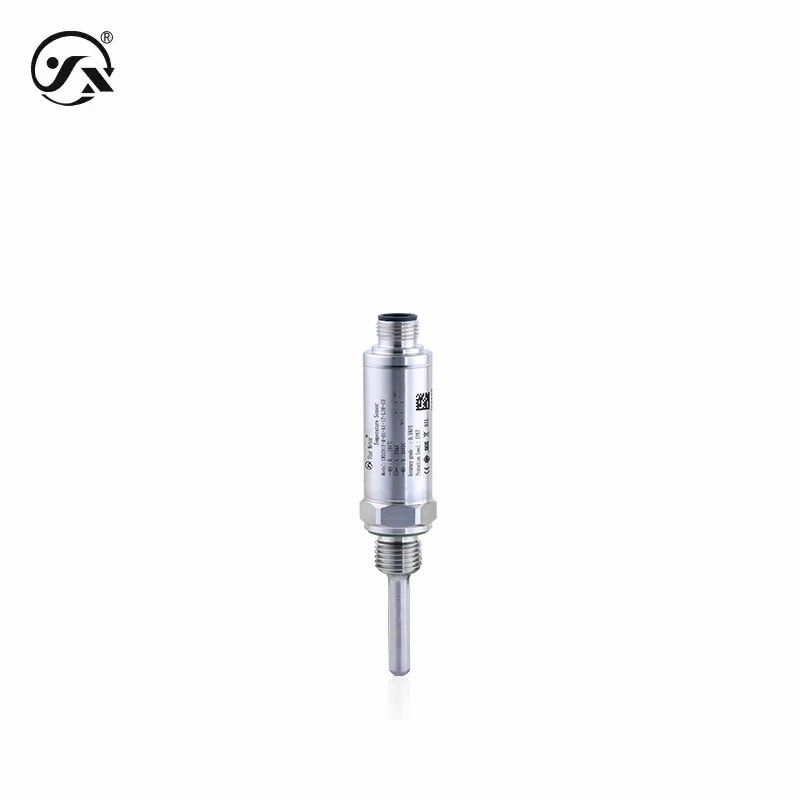

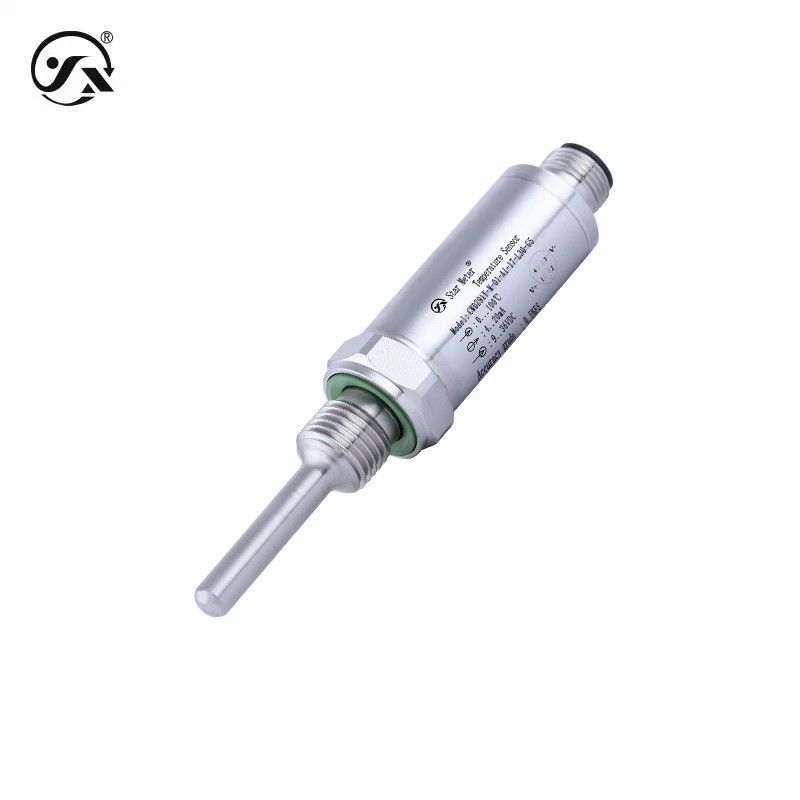

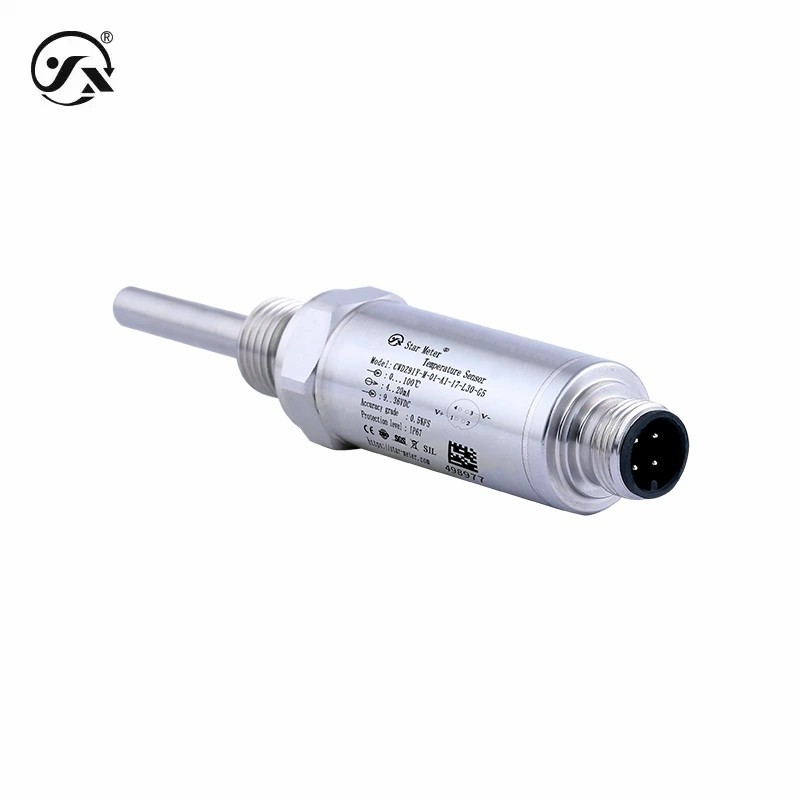

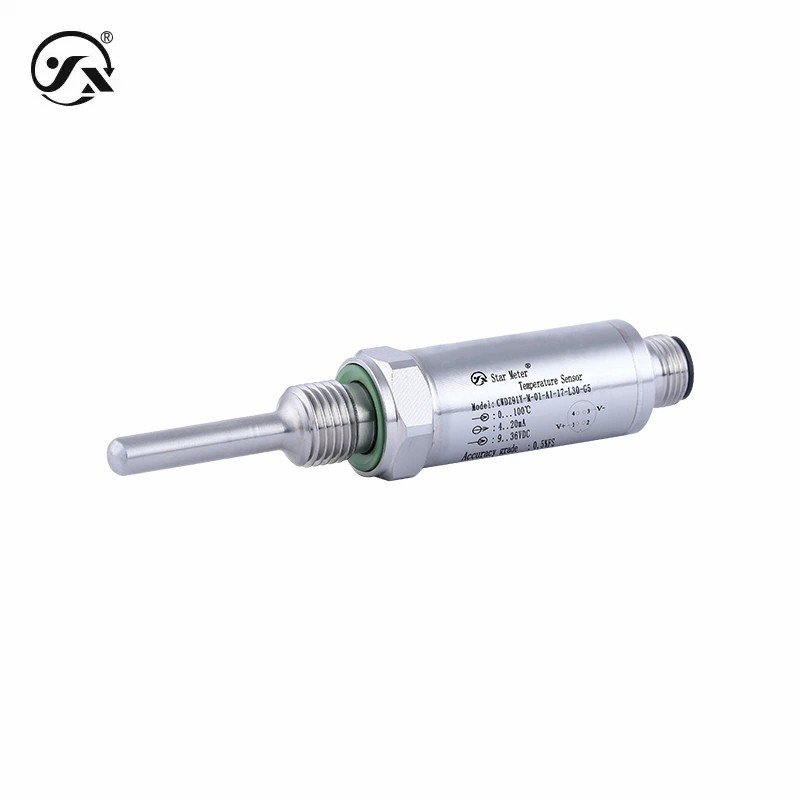

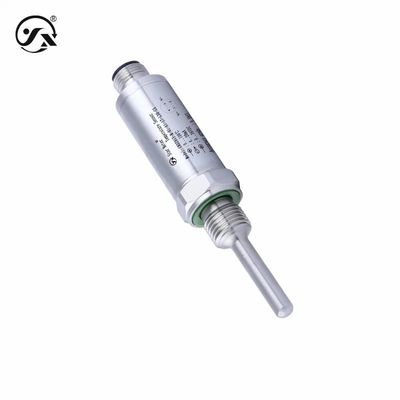

CWDZ91Y Compact Temperature Transmitter 0.25%FS 0.5%FS Mobile Equipment Hydraulic Systems

CWDZ91Y Compact Temperature Transmitter 0.25%FS 0.5%FS Mobile Equipment Hydraulic Systems
CWDZ91Y Compact Temperature Transmitter 0.25%FS 0.5%FS Mobile Equipment Hydraulic Systems CWDZ91Y Compact Temperature Transmitter 0.25%FS 0.5%FS Mobile Equipment Hydraulic Systems CWDZ91Y Compact Temperature Transmitter 0.25%FS 0.5%FS Mobile Equipment Hydraulic Systems CWDZ91Y Compact Temperature Transmitter 0.25%FS 0.5%FS Mobile Equipment Hydraulic Systems CWDZ91Y Compact Temperature Transmitter 0.25%FS 0.5%FS Mobile Equipment Hydraulic Systems
Basic Information
Place of Origin: China
Brand Name: Star merter
Model Number: CWDZ91Y
Minimum Order Quantity: 1PC
Price: Negotiation
Payment Terms: T/T
Supply Ability: 30000 Piece/Month
Contact Now
Range: -50~150°C Output: 4~20mA, PT100 (1/3B Class)
Power Supply: 9~36VDC Accuracy: 0.25%FS, 0.5%FS
Name: Compact Temperature Transmitter
Highlight:

CWDZ91 Compact Temperature Transmitter

,

Compact Temperature Transmitter 0.25%FS

,

Compact Temperature Transmitter 0.5%FS

CWDZ91Y Compact Temperature Transmitter Mobile Equipment Hydraulic Systems Tank Manufacturing



CWDZ91Y compact temperature transmitter is well designed, not only compact in structure, but also excellent in quality, which is very suitable for industrial equipment with limited installation space, and is cost-effective.





Base parameters
Measuring medium Liquids, gases
Measuring range -50～150℃
Measuring cell 1*Pt100(1/3B grade)
Output signal 4~20mA
Power supply range 9～36VDC
Response time ≈18s (according to IEC60751, 0.4m/s water flow, 10°C steps)
Stable performance ± 0.1% FS/year
On-time 400ms
Degree of protection IP67
Overall weight L30≈60g L50≈62g L100≈67g L150≈72g L200≈77g
Accuracy class 0.5%FS
Maximum power ≤0.02Us(W)
Load characteristics
Current type Load ≤{(Us-9)÷0.02(Us=supply voltage)}Ω
Environmental conditions
Ambient temperature -40～85℃
Electrical protection
Short-circuit protection perpetual
Anti-polarity protection No damage, but not working
Insulation resistance ≥100MΩ,500VDC
Dielectric strength 500VAC
Output limits
4-20mA Output min. 4mA and output max 20mA
Overall material
Protective pipe material 304 stainless steel (contact with the medium to be measured)
Process connection 304 stainless steel (contact with the medium to be measured)
enclosure 304 stainless steel
Seals Fluorine glue (contact with the medium to be measured)
Mechanical stability
Seismic performance 20g(20… 2000Hz) in accordance with IEC60068-2-6 standard
Manual
Product Information -Chinese (CN) PDF
Product Information -English (EN) PDF
Product selection -Chinese (CN) PDF
Product selection -English (EN) PDF
Installation instructions -Chinese (CN) PDF
Installation instructions -English (EN) PDF
